Camshaft Position Sensor (2UZ-FE): Replacement

  1. DRAIN ENGINE COOLANT (SEE  REPLACEMENT  )
  2. REMOVE FAN AND GENERATOR V BELT (SEE  REPLACEMENT  )
  3. REMOVE OIL COOLER PIPE (SEE  REPLACEMENT  )
  4. REMOVE TIMING BELT COVER SUB-ASSY NO. 3 LH (SEE  REPLACEMENT  )
  5. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt, stud bolt and camshaft position sensor.

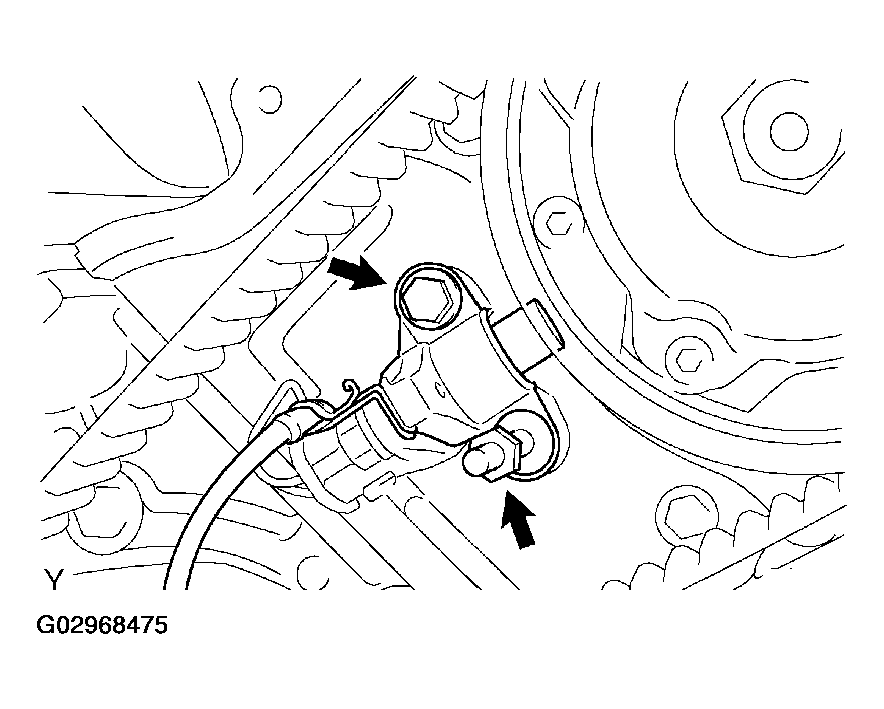

      Fig 1: Removing Camshaft Position Sensor
      G02968475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CAMSHAFT POSITION SENSOR
    1. Install the camshaft position sensor with the bolt and stud bolt.

      Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

  7. INSTALL TIMING BELT COVER SUB-ASSY NO. 3 LH (SEE  REPLACEMENT  )
  8. INSTALL OIL COOLER PIPE (SEE  REPLACEMENT  )
  9. INSTALL FAN AND GENERATOR V BELT (SEE  REPLACEMENT  )
  10. REFILL ENGINE COOLANT (SEE  COOLANT (2UZ-FE)  )
  11. CHECK FOR ENGINE COOLANT LEAKS (SEE  ON-VEHICLE INSPECTION  )
