Ignition System: Preparation: Lubrication: Preparation

SST

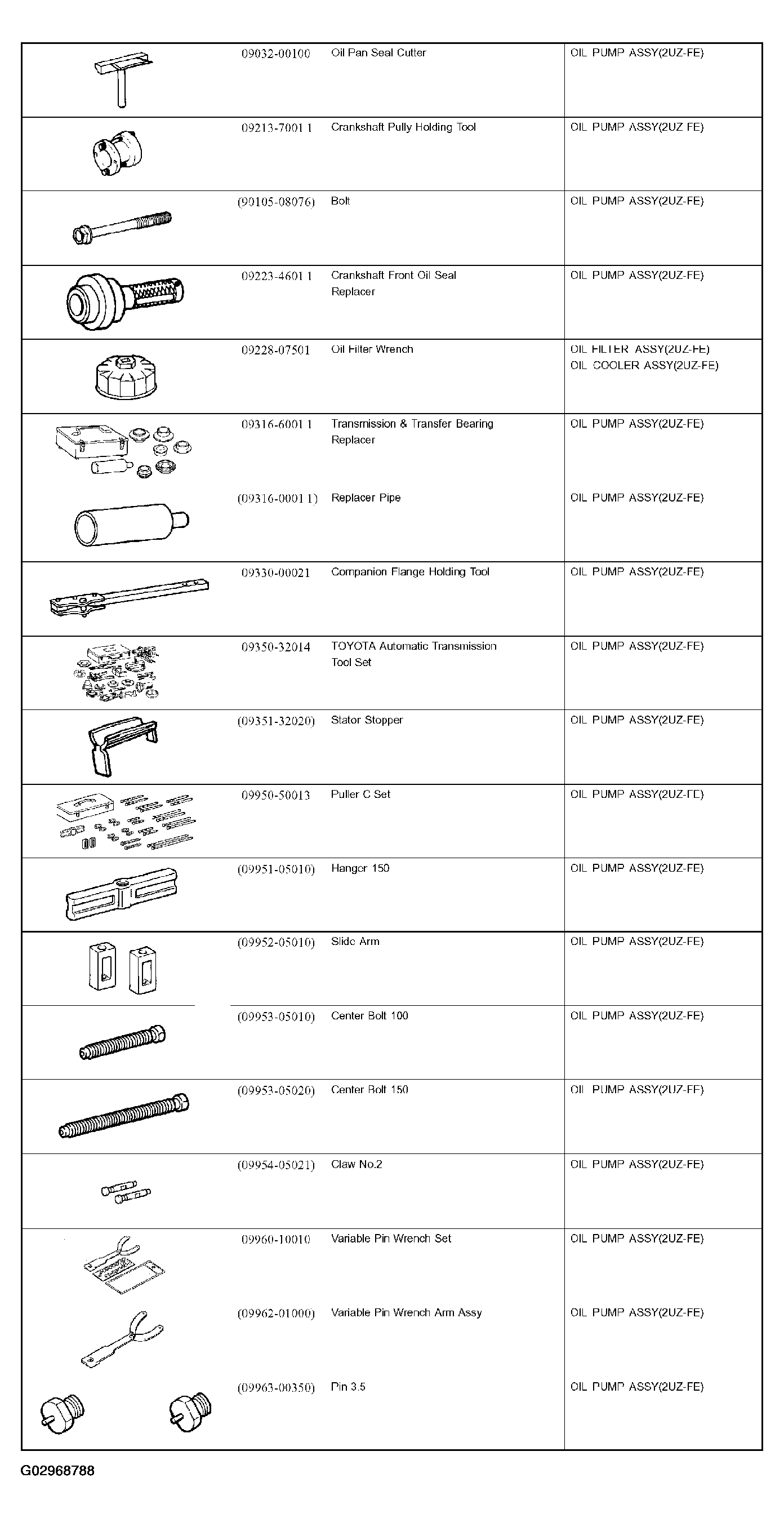

Fig 1: Service Special Tools Table - Lubrication

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

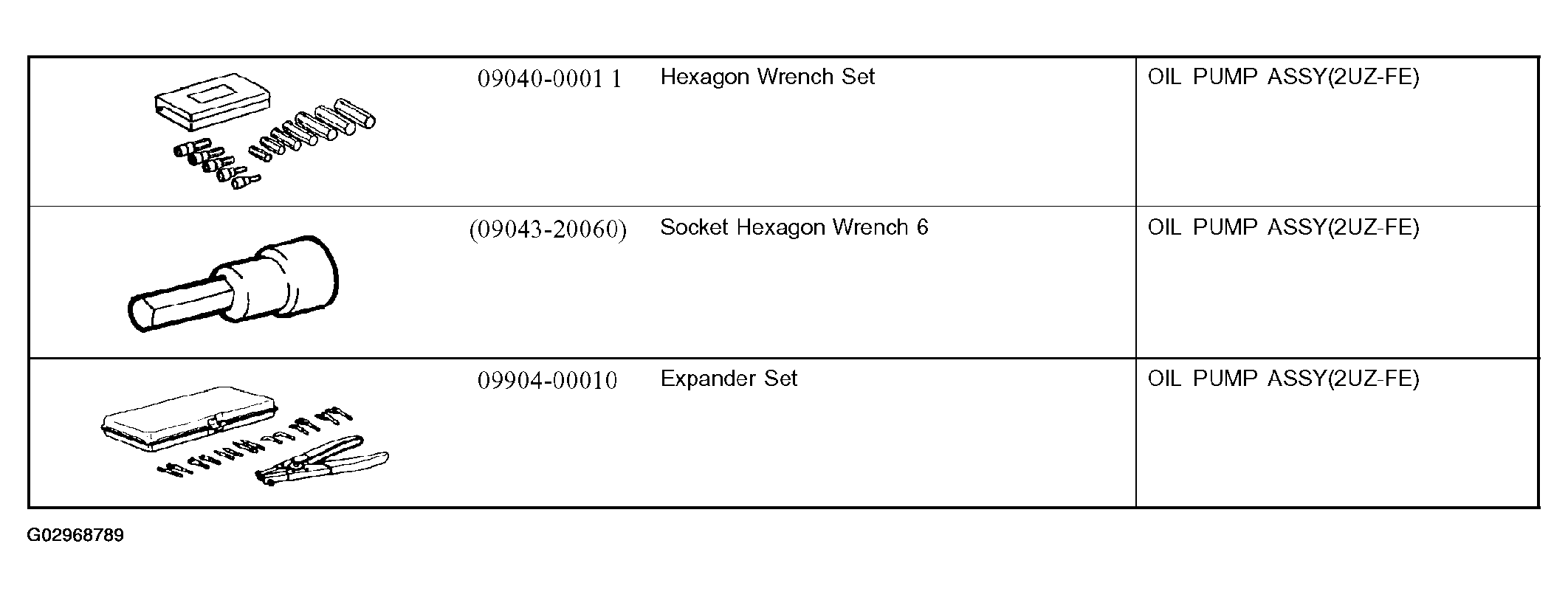

Fig 2: Recommended Tools Table - Lubrication

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SSM

SSM SPECIFICATION

08826-00080 Seal Packing Black or equivalent (FIPG)

OIL PUMP ASSY (2UZ-FE)

Equipment

LUBRICATION EQUIPMENT SPECIFICATION

Feeler gauge
CO/HC meter
Straight edge
Torque wrench

Lubricant

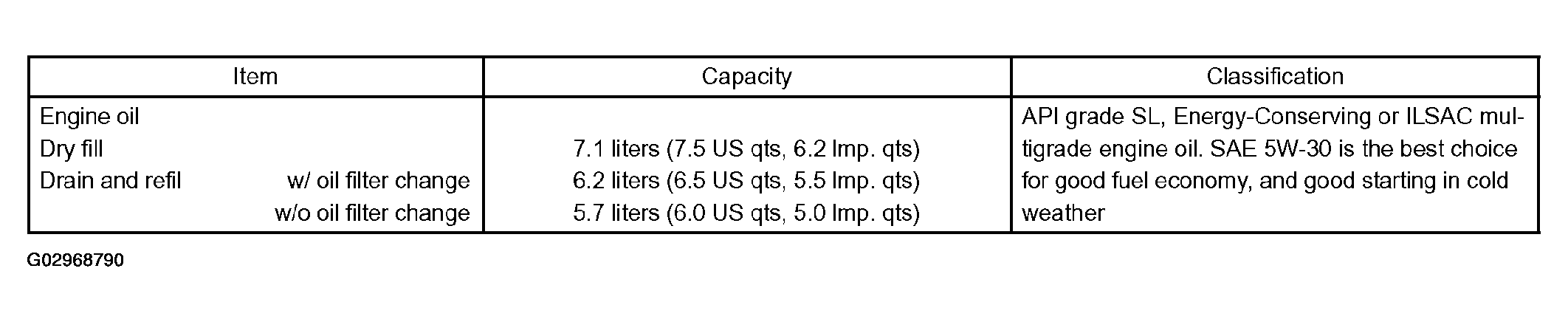

Fig 3: Lubricant Specifications Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
