Starting & Charging: Preparation

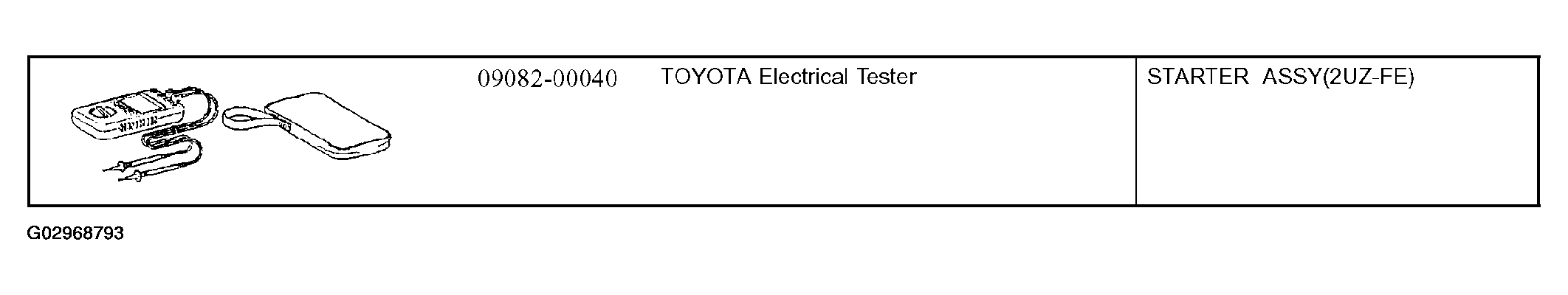

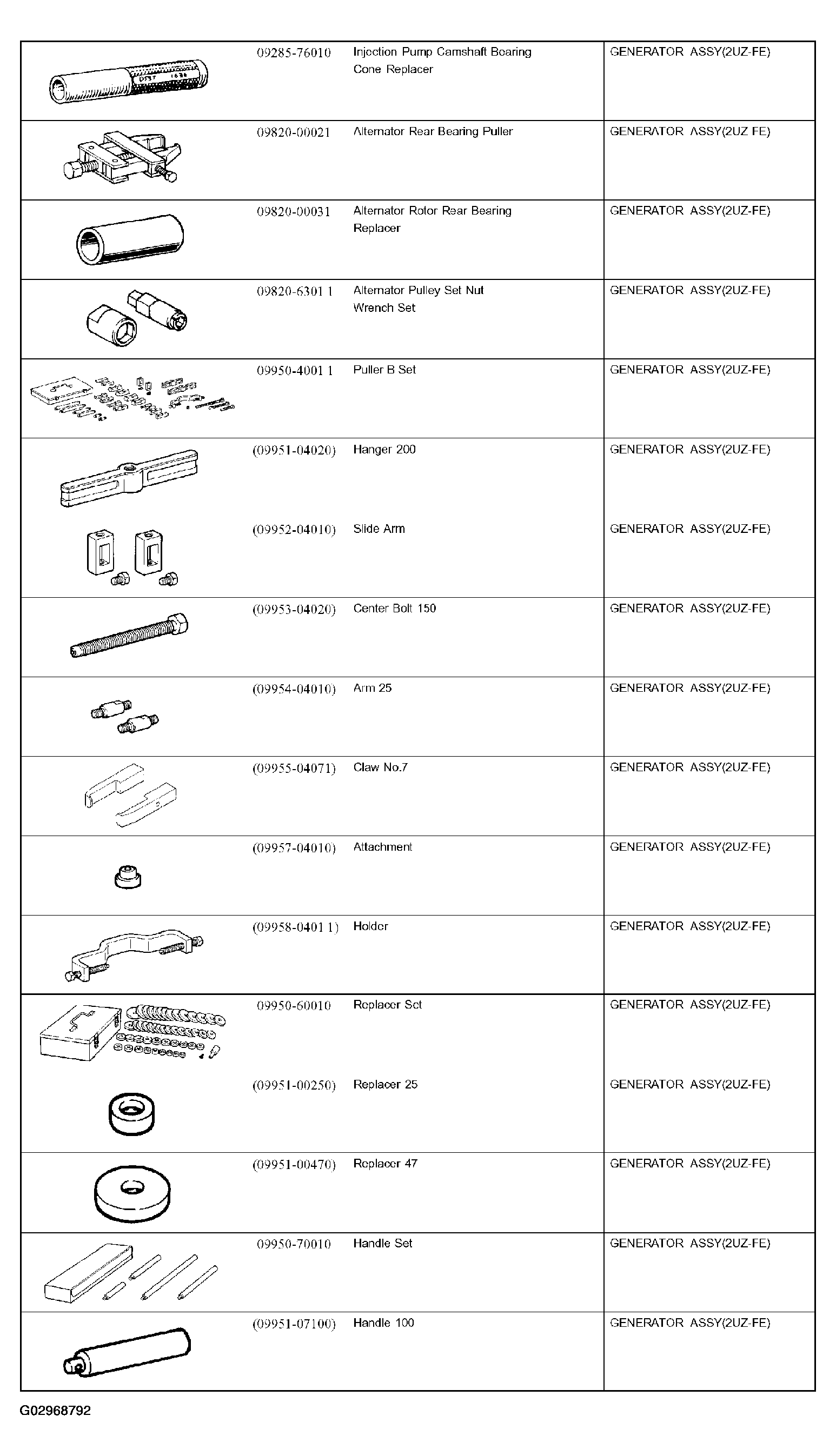

SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Recommended Tools
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Equipment
STARTING & CHARGING EQUIPMENT SPECIFICATION
| Dial indicator |
|
| Ammeter (A) |
|
| Ohmmeter |
|
| Torque wrench |
|
| V-block |
|
| Vernier calipers |
|
| Dial indicator with magnetic base |
|
| Press |
|
| Service Wire Harness |
|
| Pull scale |
|
