Diagnostic Trouble Code Table

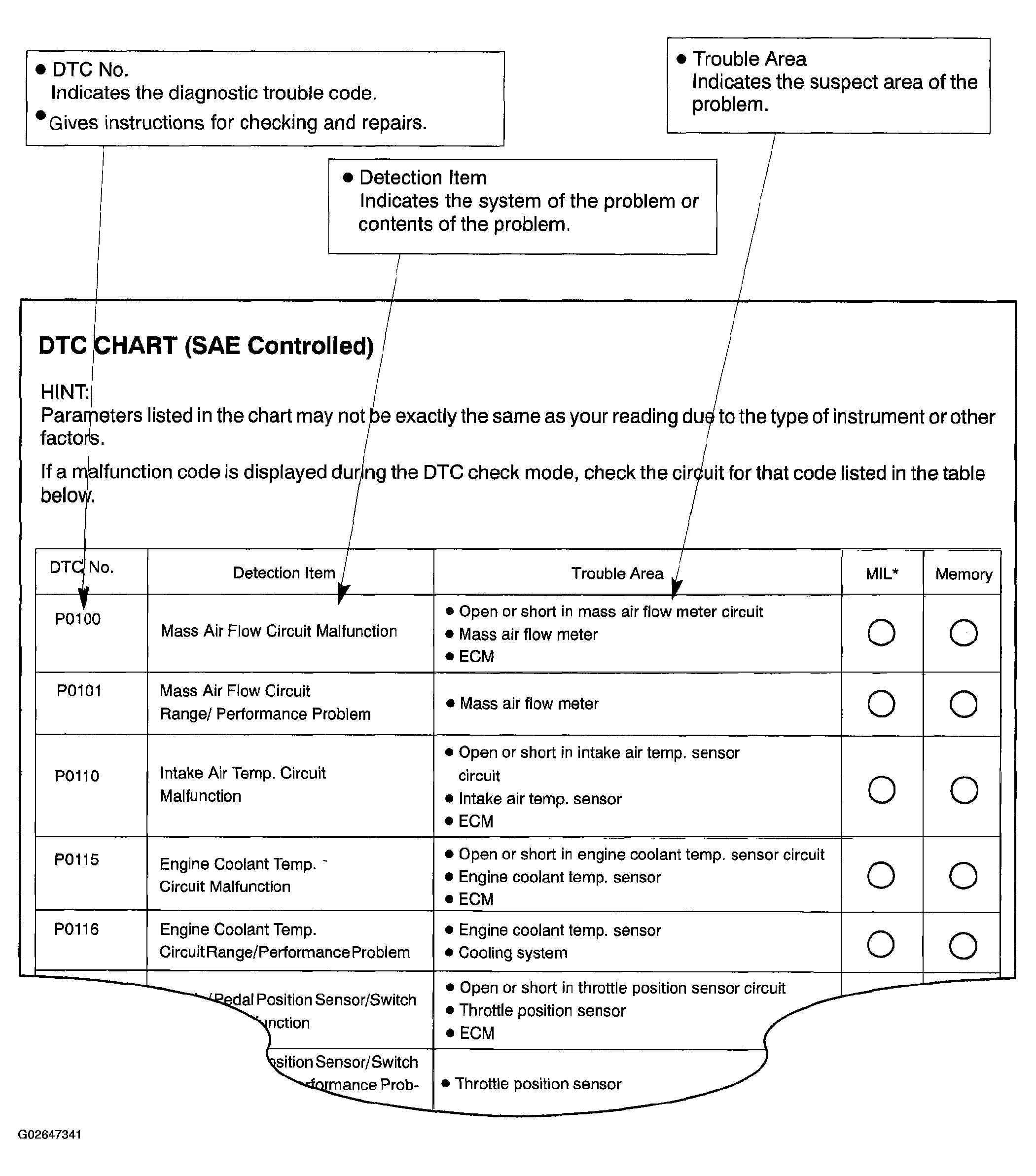

The inspection procedures are shown in the Fig 1 below. This table allows efficient and accurate troubleshooting using the diagnostic trouble codes displayed in the diagnostic trouble code table. Proceed with troubleshooting in accordance with the inspection procedures listed in the diagnostic table corresponding to the diagnostic trouble codes displayed. The diagnostic trouble code table for the Supplemental Restraint System is shown in Fig 1 as an example.
