Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

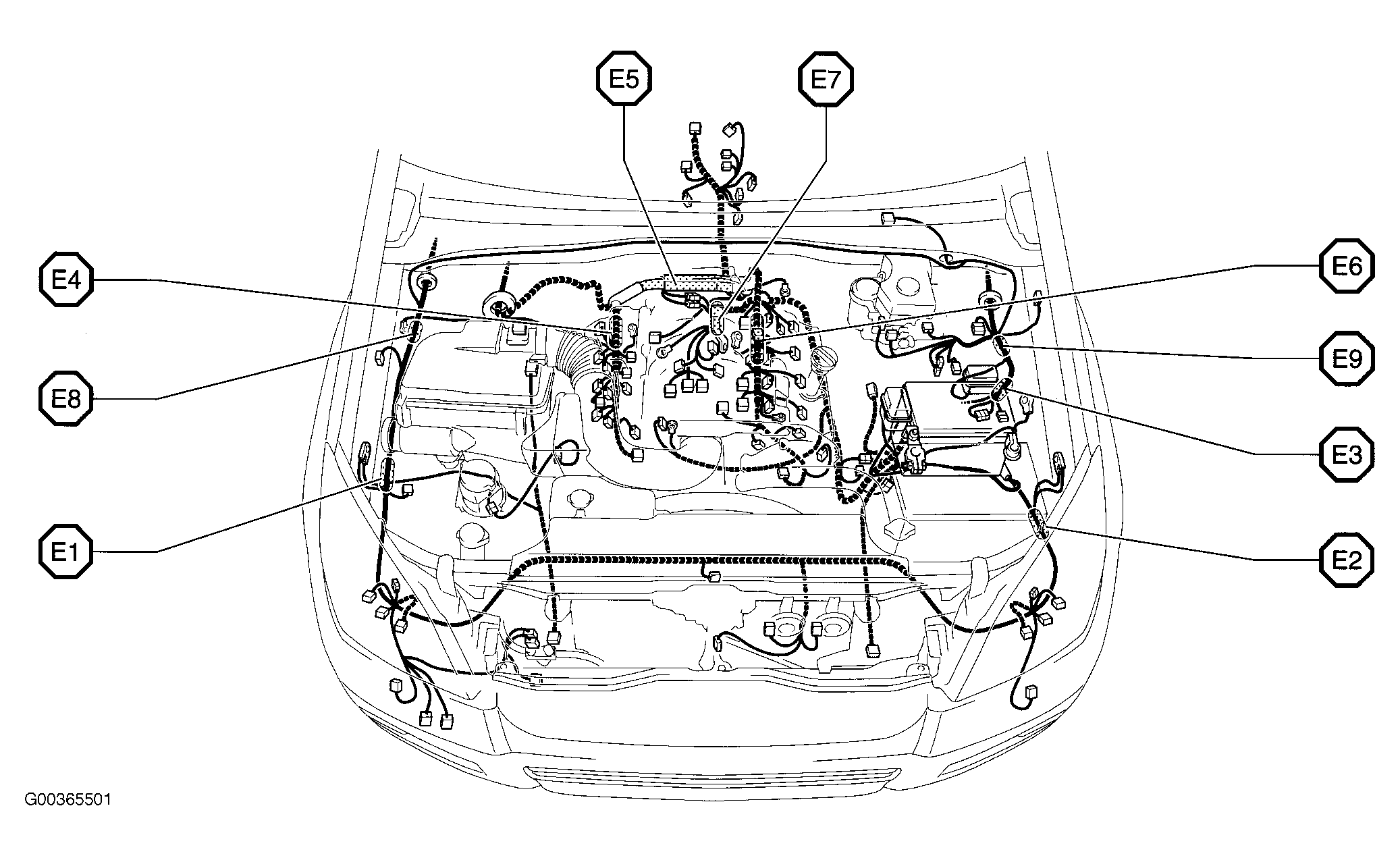

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

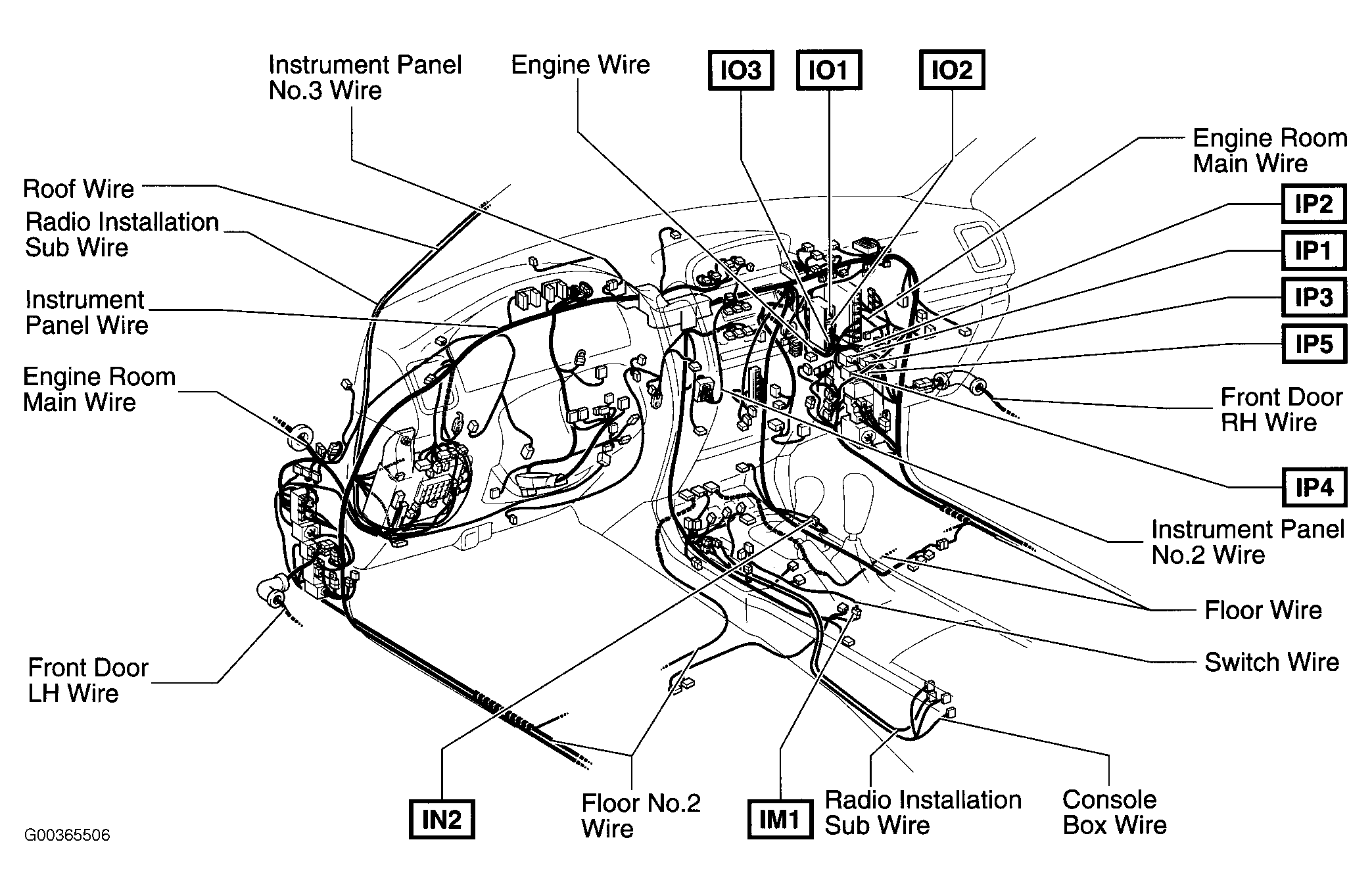

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

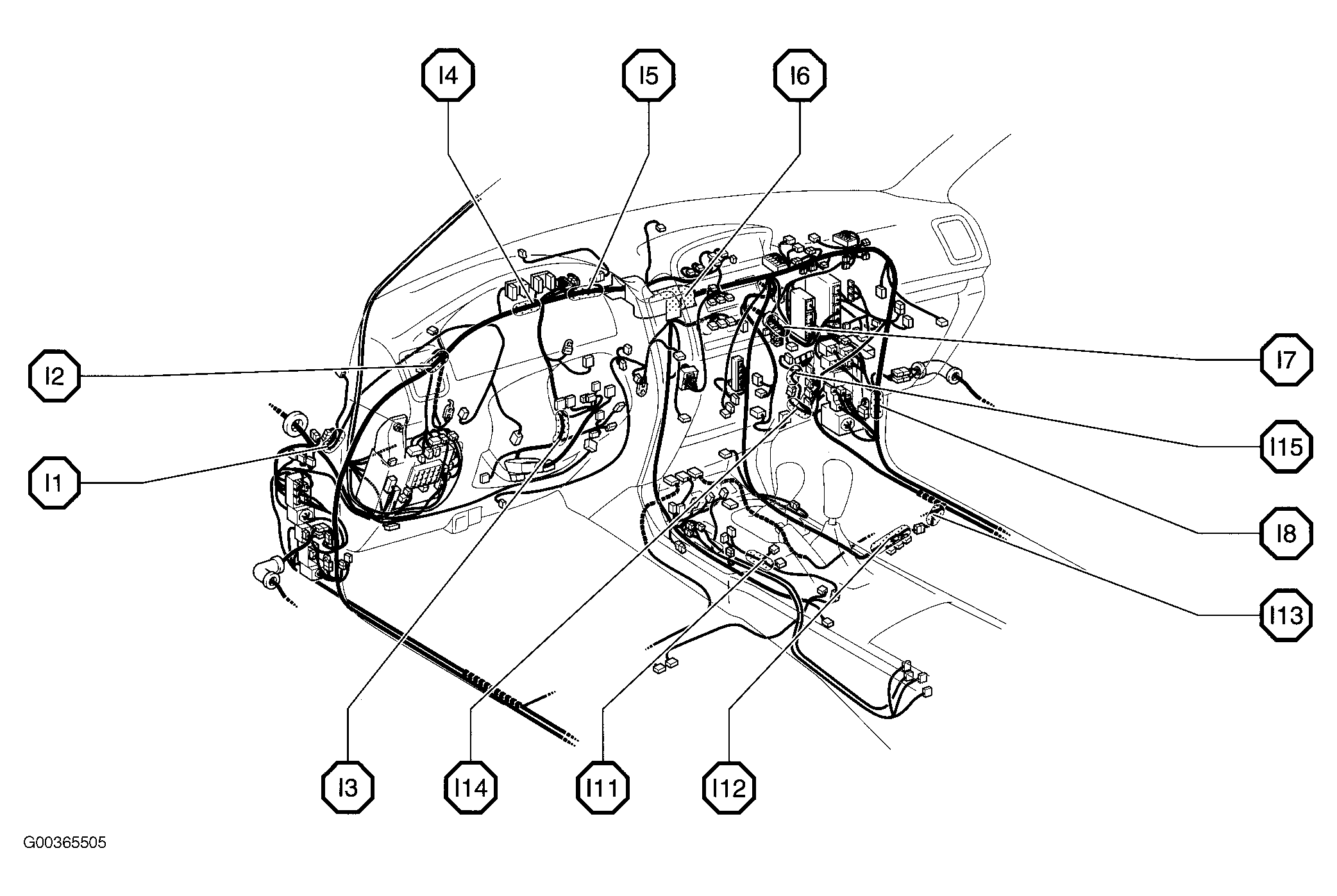

Fig 7: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

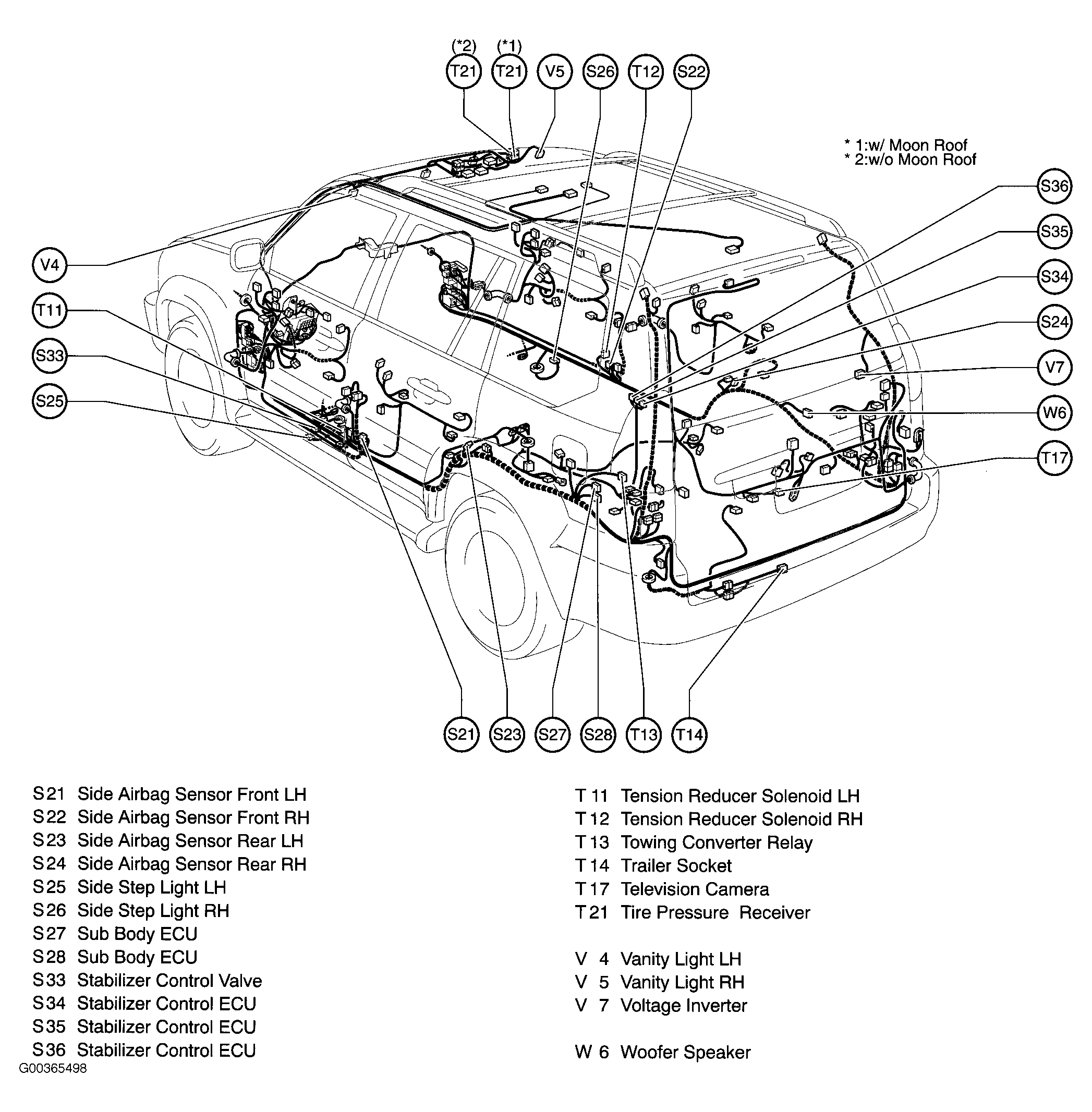

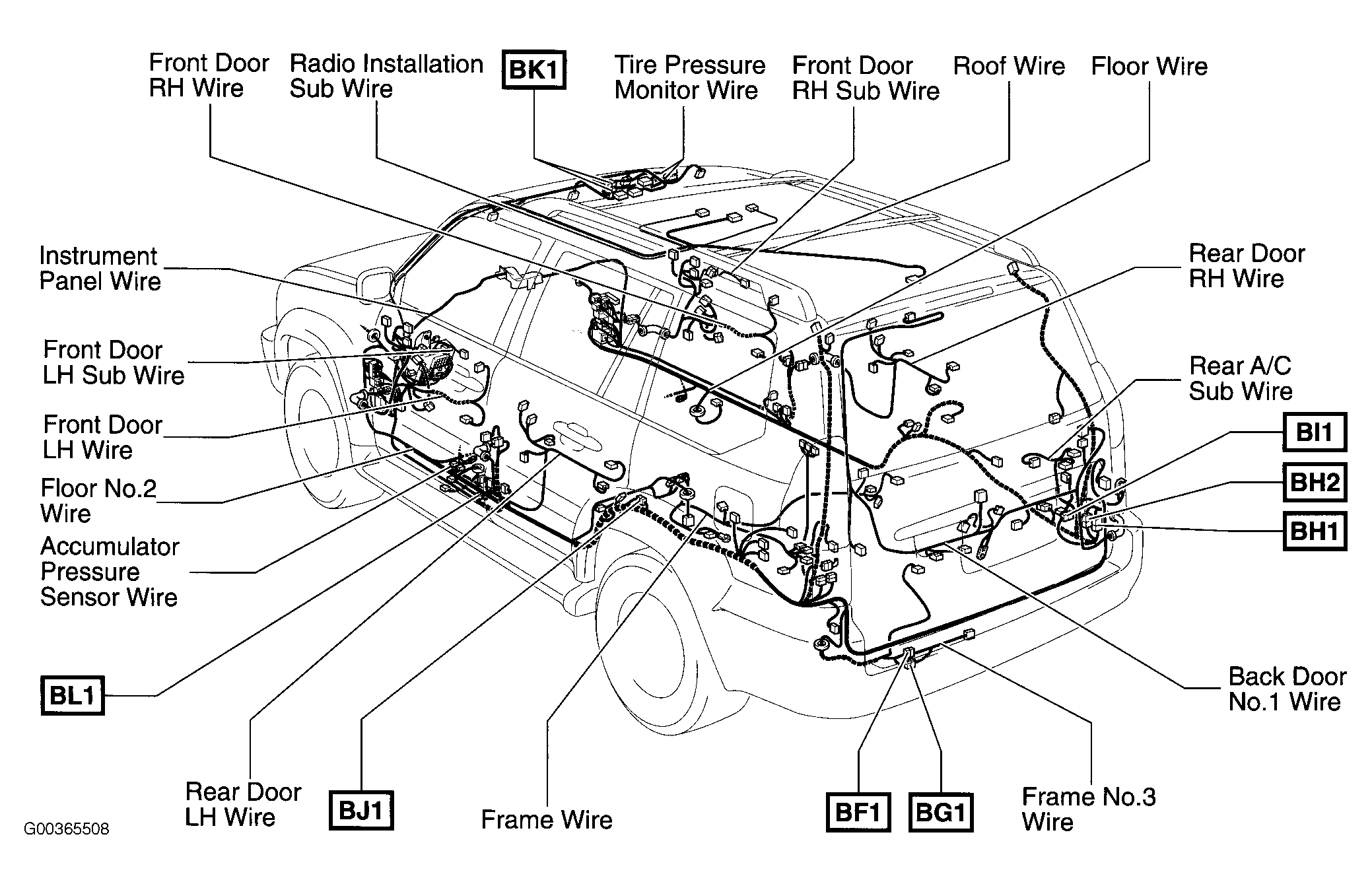

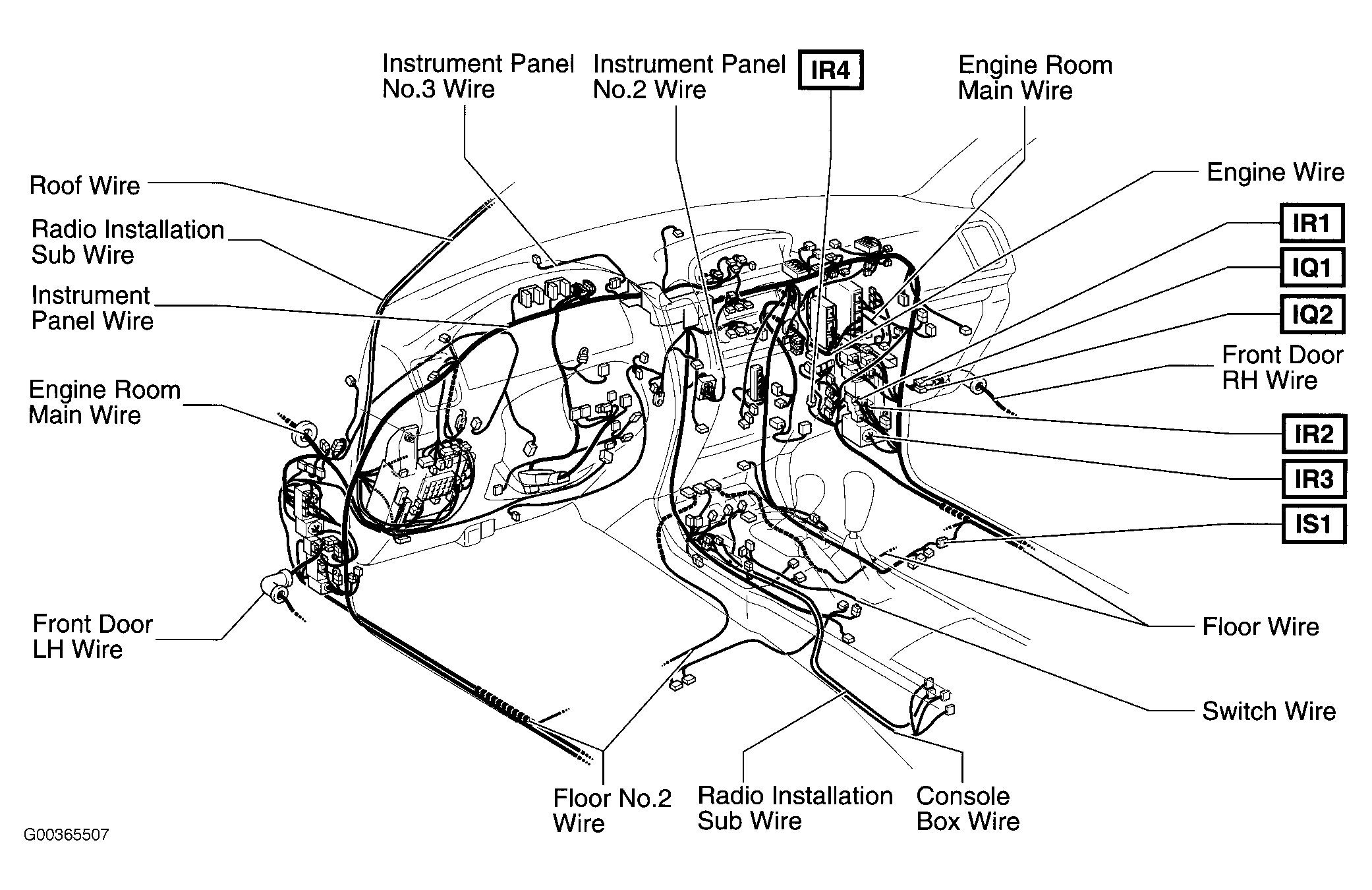

Fig 8: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

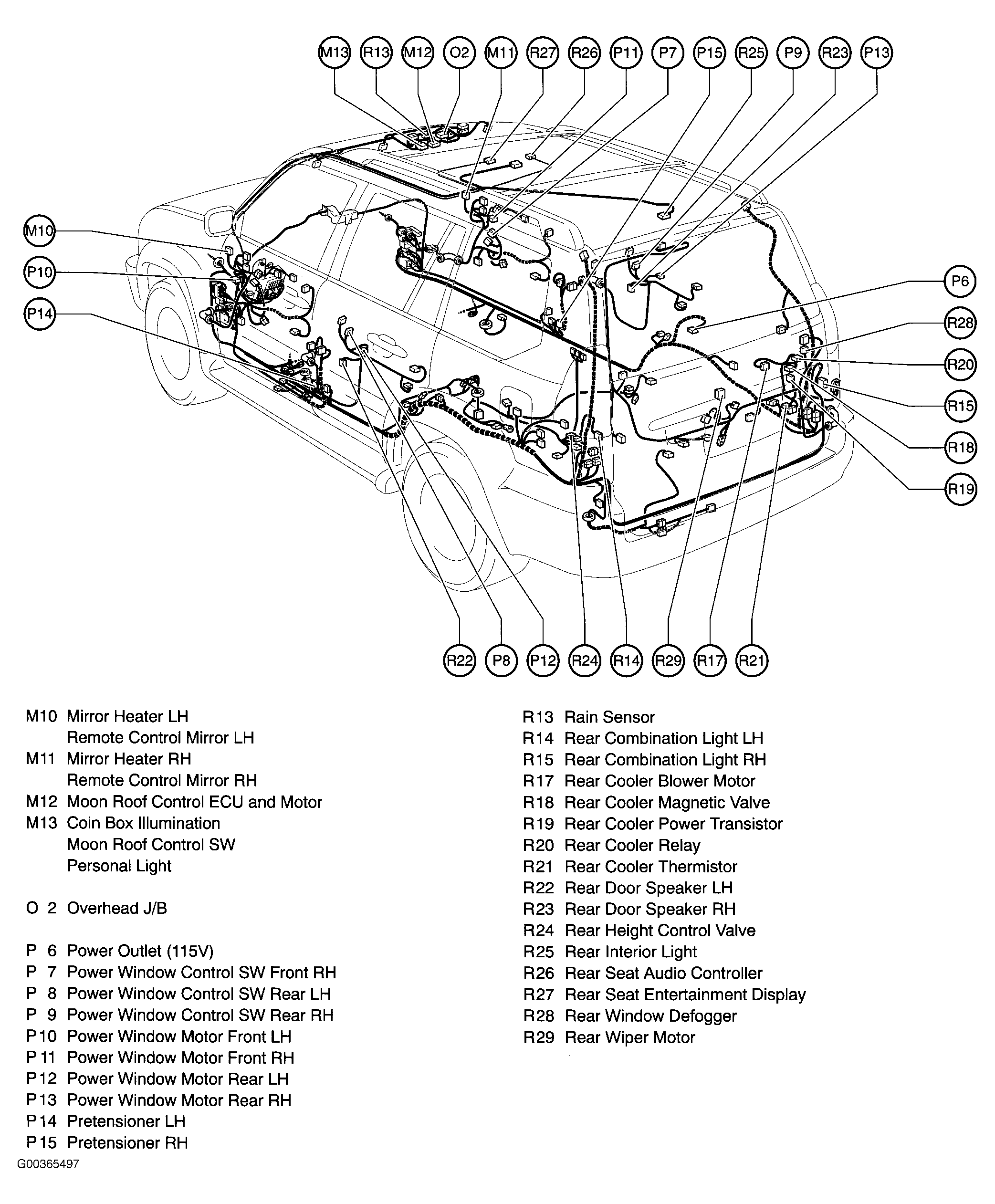

Fig 9: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

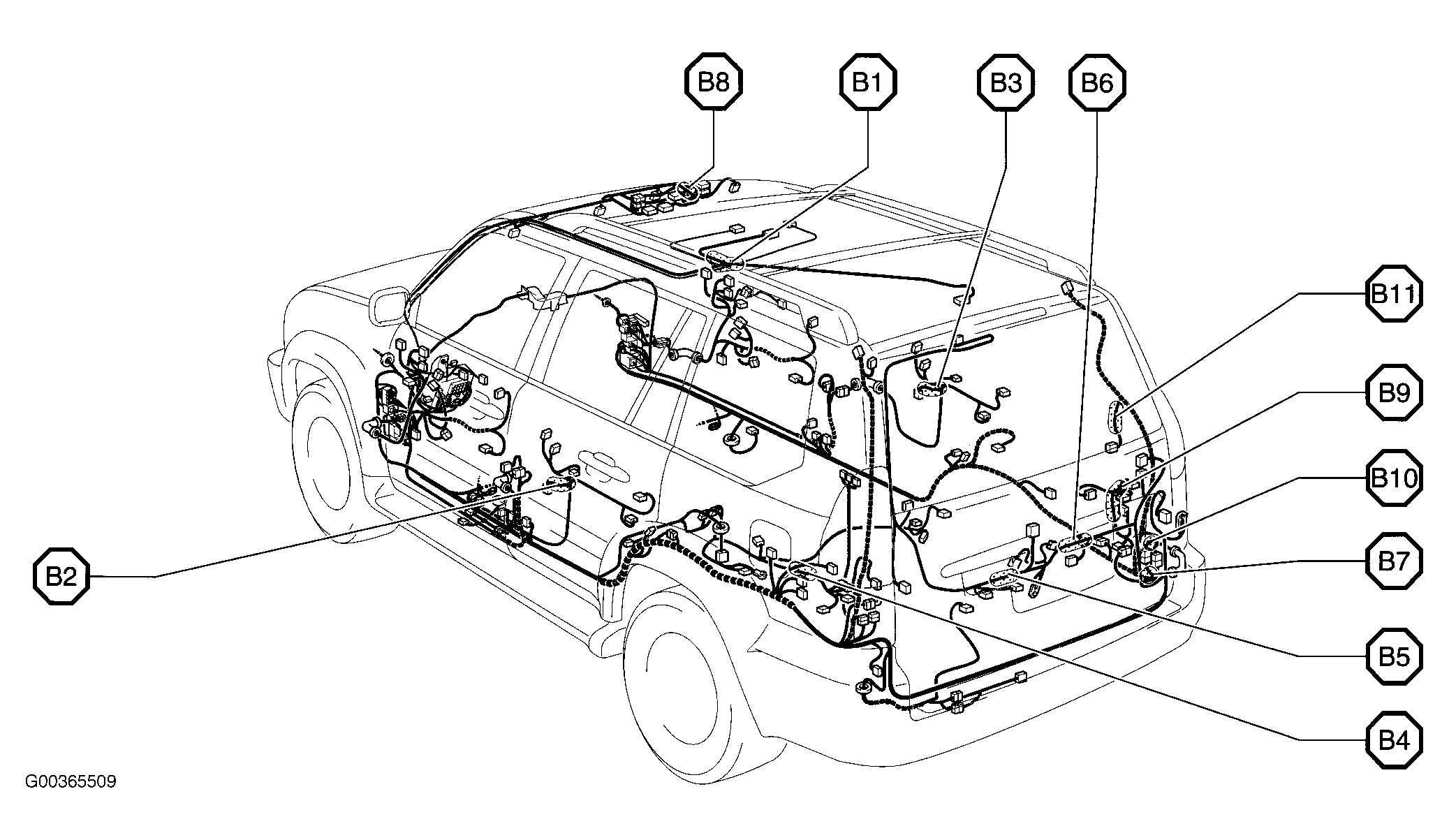

Fig 10: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VEHICLE OVERVIEW RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Cooler Relay
Tower Converter Relay

Fig 11: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

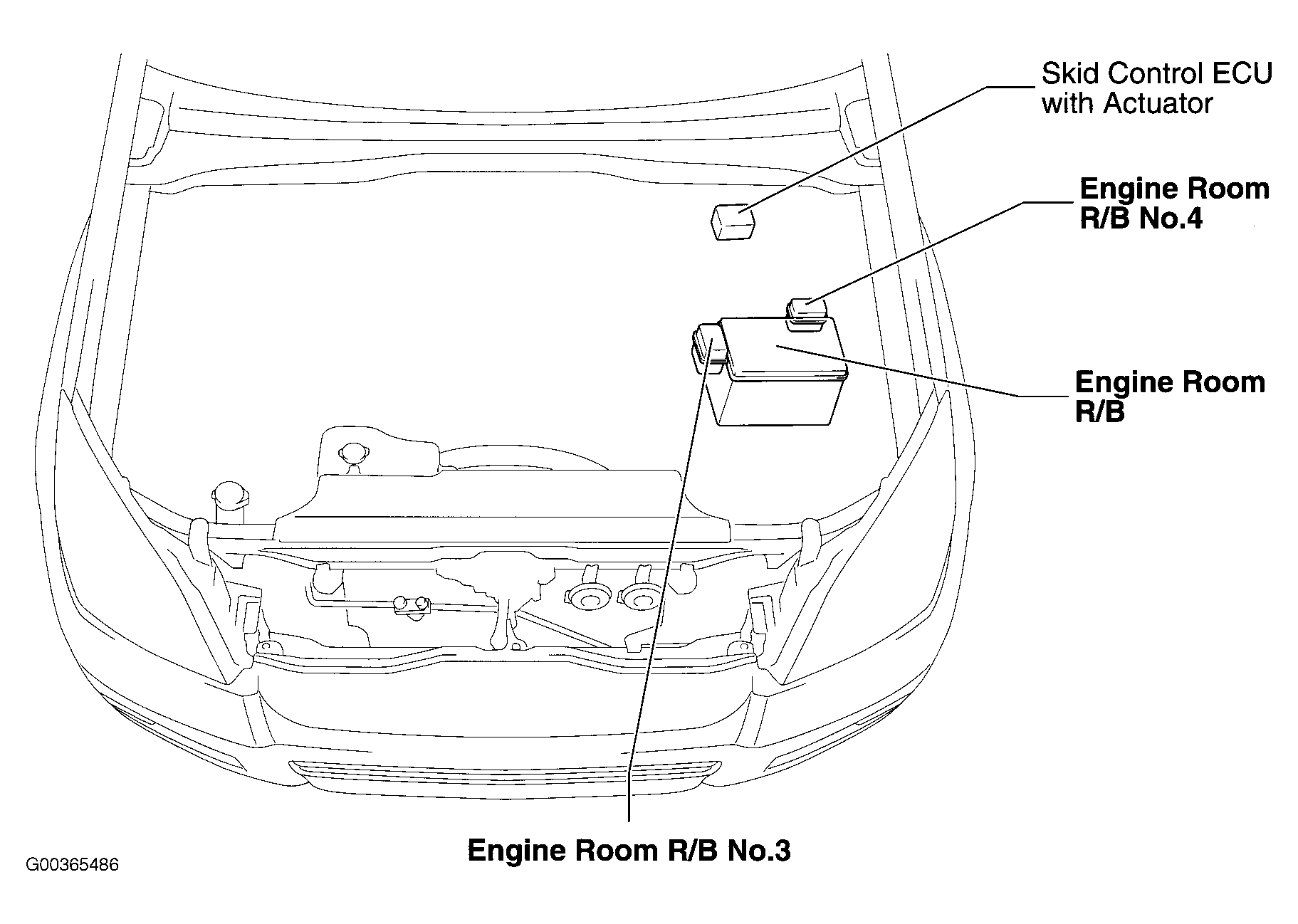

Fig 12: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Wiper Relay

Fig 14: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
IG Relay
Defog Relay
AC INV Relay
Fuel Pump Relay
Head Relay
DAC Relay

Fig 15: Engine Room R/B No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 3 RELAY IDENTIFICATION

RELAY DESCRIPTION
Air SUS Relay

Fig 16: Engine Room R/B No. 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK NO. 4 RELAY IDENTIFICATION

RELAY DESCRIPTION
BATT CHG Relay
Towing Tail Relay

Fig 17: Passenger Side R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
MIR HTR Relay
BK/UP LP Relay

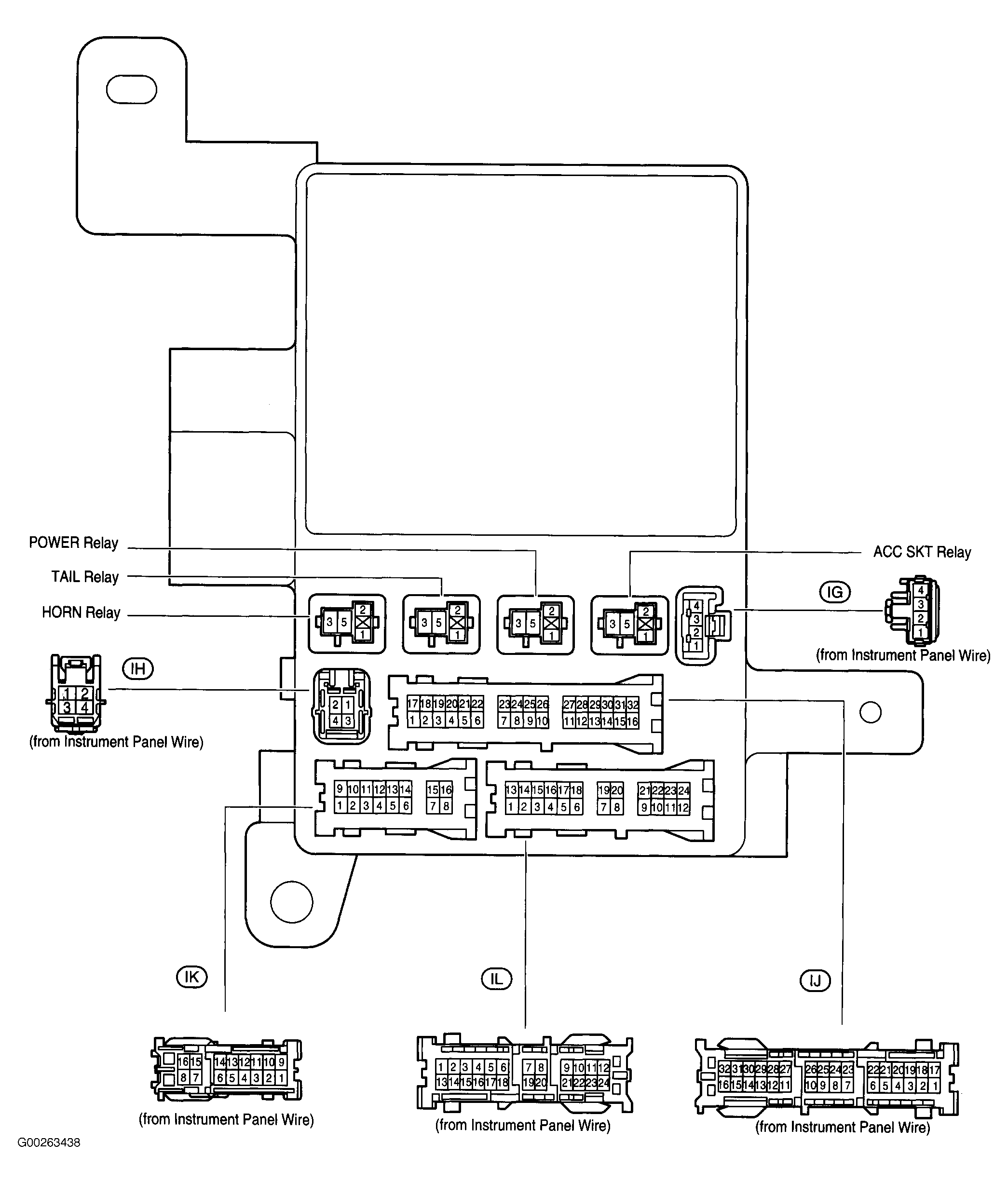

Fig 18: Driver Side J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Horn Relay
Tail Relay
Power Relay
ACC SKT Relay

Fig 19: Left Side Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Left Side Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Left Side Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Front Seats

Fig 23: Engine Compartment

Fig 24: Dash

Fig 25: Dash

Fig 26: Dash

Fig 27: Dash

Fig 28: Dash

Fig 29: Vehicle Overview

Fig 30: Vehicle Overview

Fig 31: Vehicle Overview

Fig 32: Front Seats

Fig 33: Front Seats
