Acceleration Sensor ASSY: Replacement

HINT:

See LOCATION

1. REMOVE REAR NO. 2 SEAT ASSY LH (SEE  OVERHAUL  )
2. REMOVE QUARTER SCUFF PLATE INSIDE LH (SEE  REPLACEMENT  )
3. REMOVE REAR DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (SEE  REPLACEMENT  )
5. REMOVE BACK DOOR WEATHERSTRIP (SEE  REPLACEMENT  )
6. REMOVE REAR FLOOR MAT SUPPORT PLATE REAR (SEE  REPLACEMENT  )
7. REMOVE QUARTER INSIDE TRIM BOARD LH (SEE  REPLACEMENT  )
8. REMOVE ACCELERATION SENSOR ASSY
   1. Disconnect the connector.
   2. Remove a clip, bolt and the acceleration sensor assy.

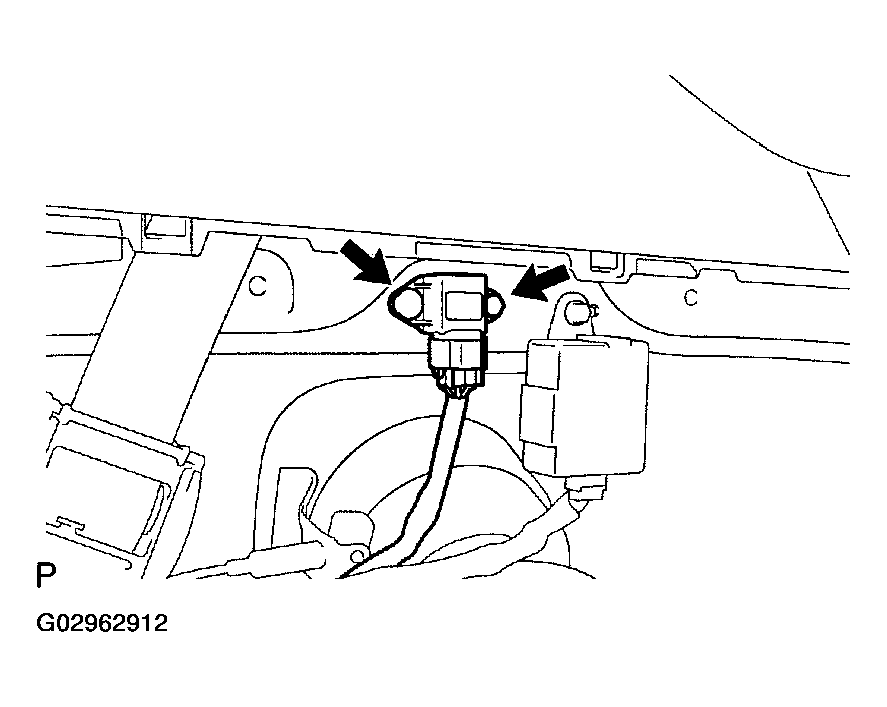

      Fig 1: Removing Acceleration Sensor Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL ACCELERATION SENSOR ASSY
   1. Install the acceleration sensor assy with a clip and a bolt.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

   2. Connect the connector.
10. INSTALL REAR NO. 2 SEAT ASSY LH (SEE  OVERHAUL  )
