Acceleration Sensor: Replacement

HINT:

See LOCATION

1. REMOVE FRONT DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
2. REMOVE COWL SIDE TRIM BOARD RH (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT PANEL FINISH PLATE (SEE  REPLACEMENT  )
5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (SEE  REPLACEMENT  )
6. REMOVE INSTRUMENT PANEL LOWER LH (SEE  REPLACEMENT  )
7. REMOVE ACCELERATION SENSOR
   1. Disconnect the connector from the acceleration sensor.
   2. Remove a bolt and the acceleration sensor.

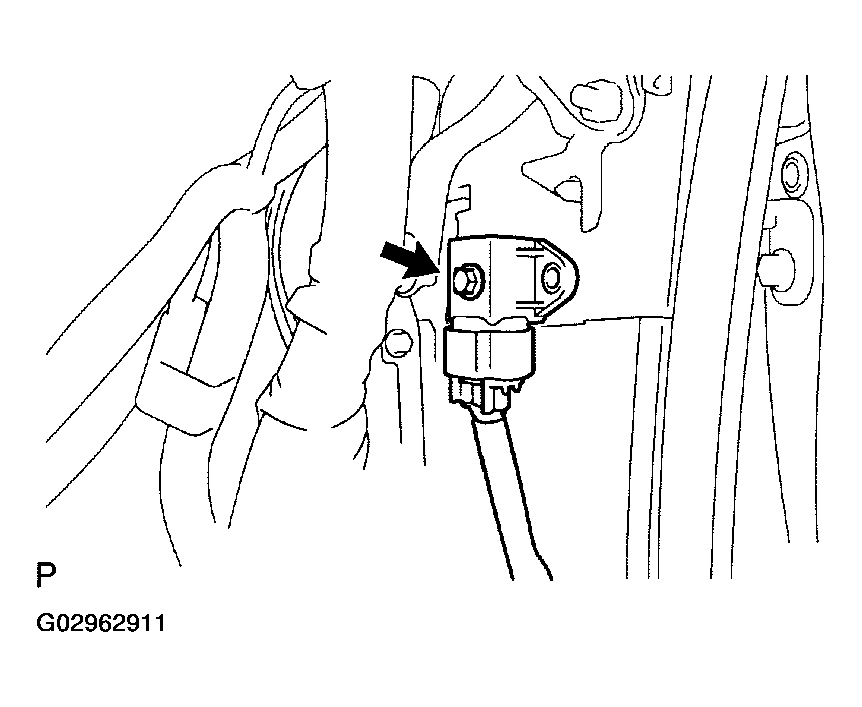

      Fig 1: Removing Acceleration Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL ACCELERATION SENSOR
   1. Install the acceleration sensor with a bolt.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

   2. Connect the connector to the acceleration sensor.
9. INSTALL INSTRUMENT PANEL LOWER LH
10. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
11. INSTALL INSTRUMENT PANEL FINISH PLATE
12. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1
13. INSTALL COWL SIDE TRIM BOARD RH
14. INSTALL FRONT DOOR SCUFF PLATE RH
