Front Stabilizer (KDSS): Components

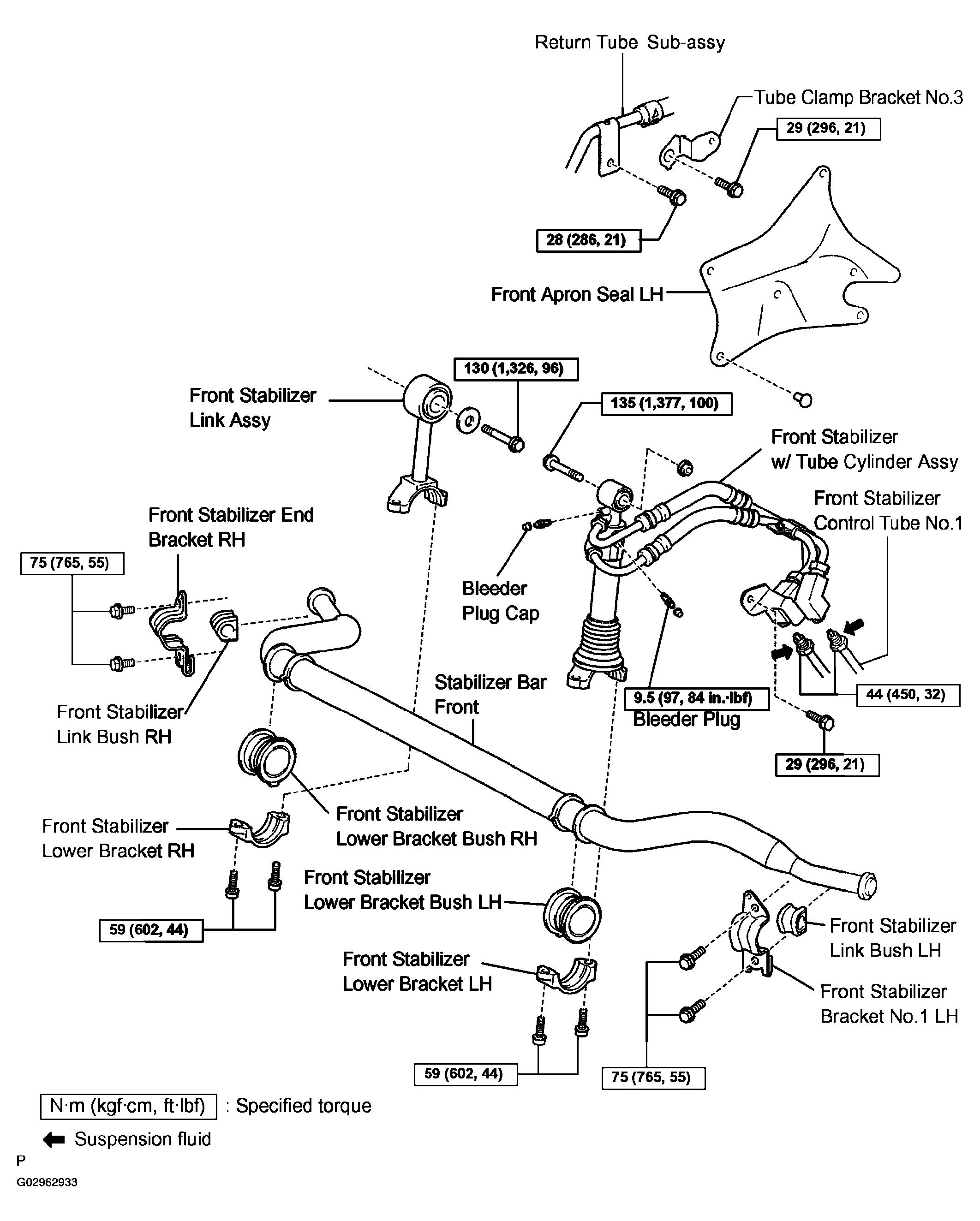

Fig 1: Identifying Front Stabilizer Components & Replacements (KDSS)
G02962933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
