Standard Value Of Ecu Terminal

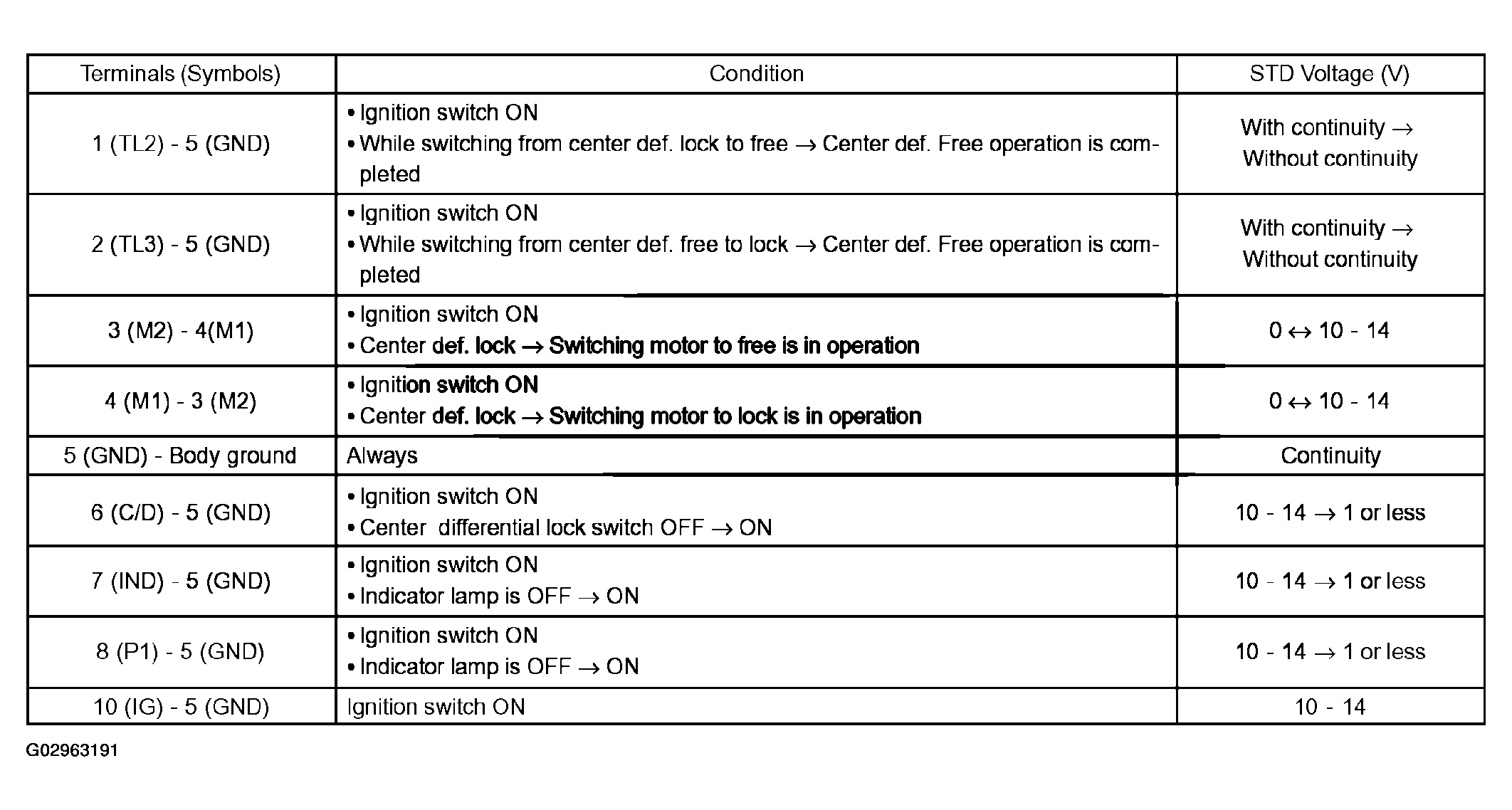

Fig 1: Standard Value Of ECU Terminal Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
