Transfer ASSY: Components

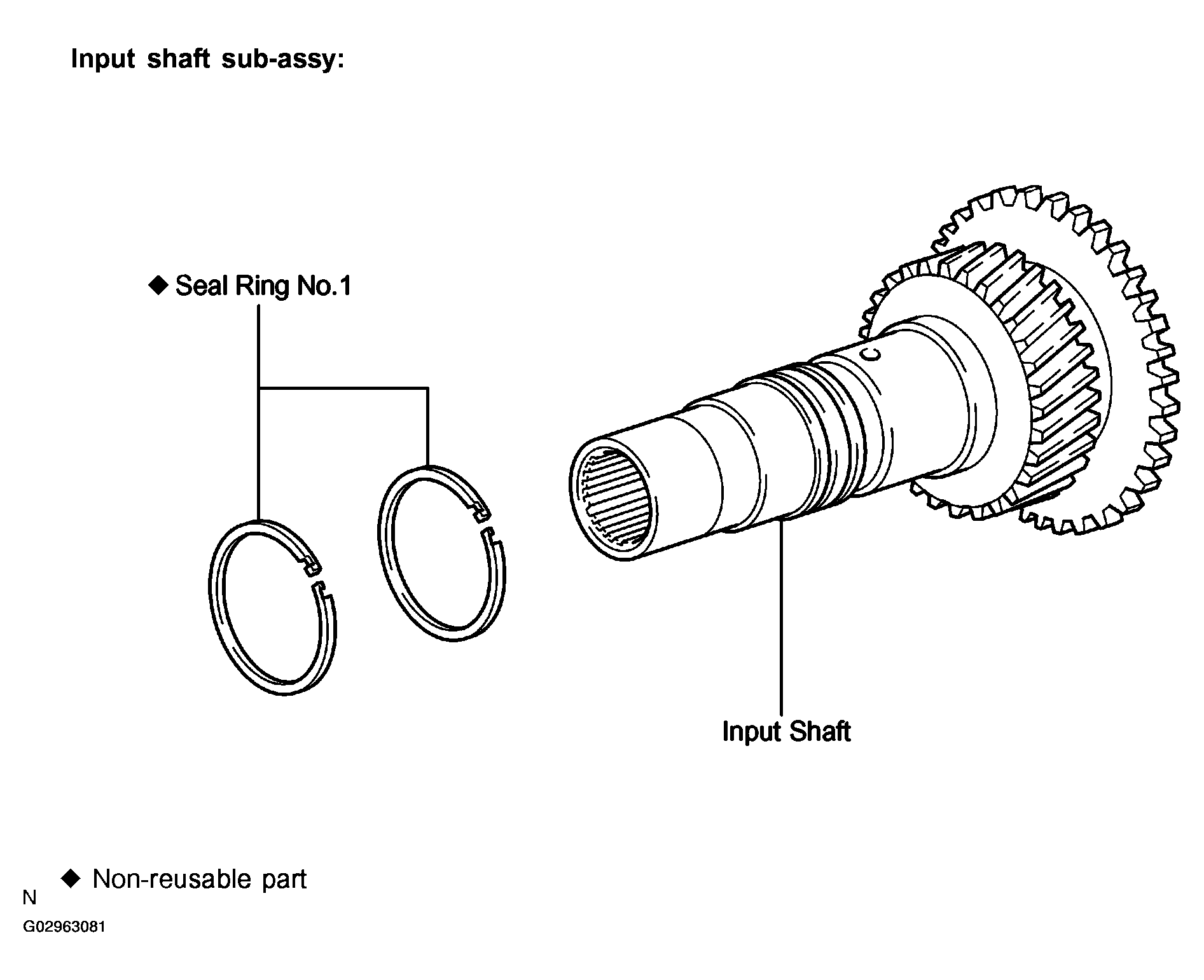

Fig 1: Identifying Transfer Assy Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

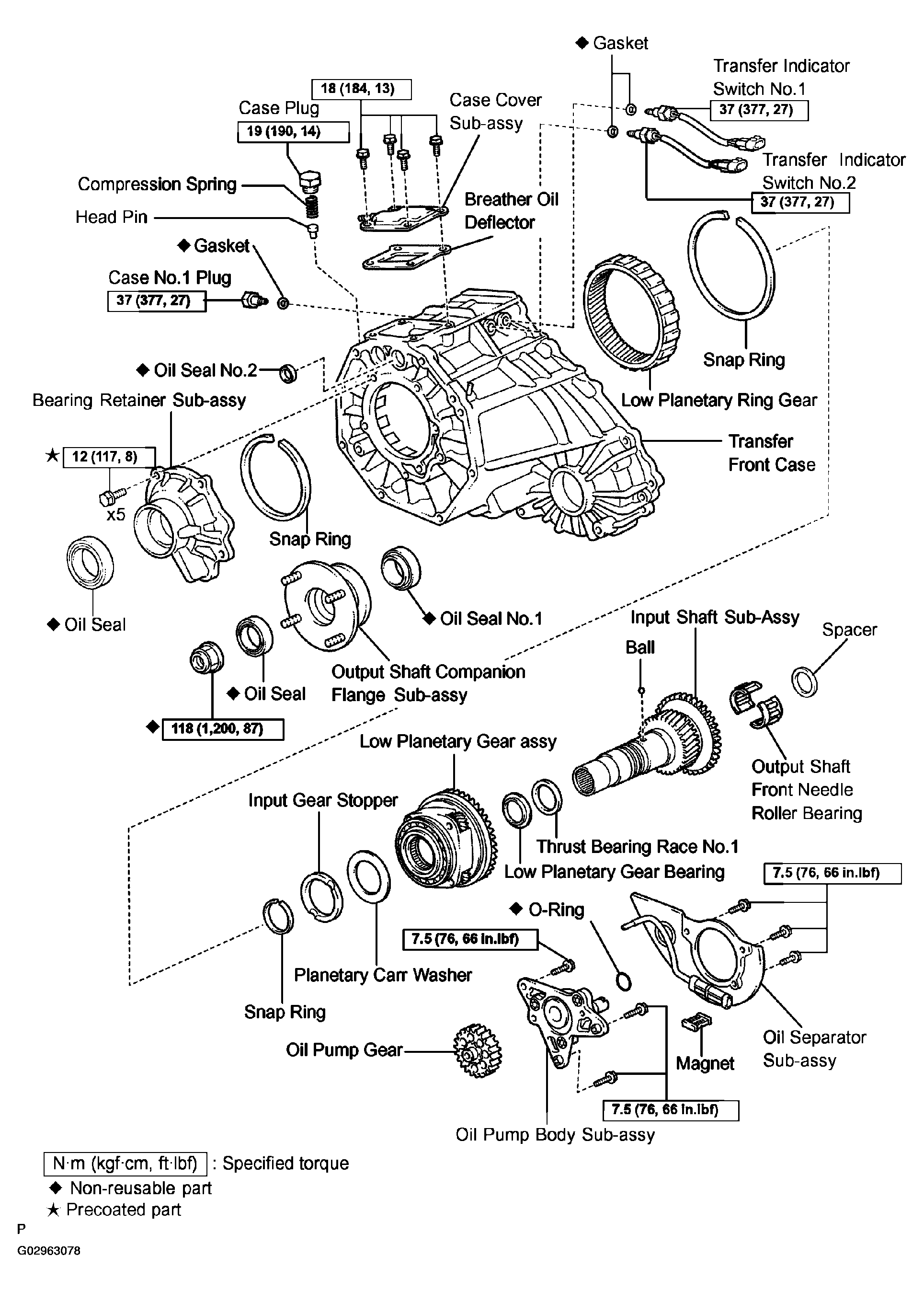

Fig 2: Identifying Transfer Assy Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

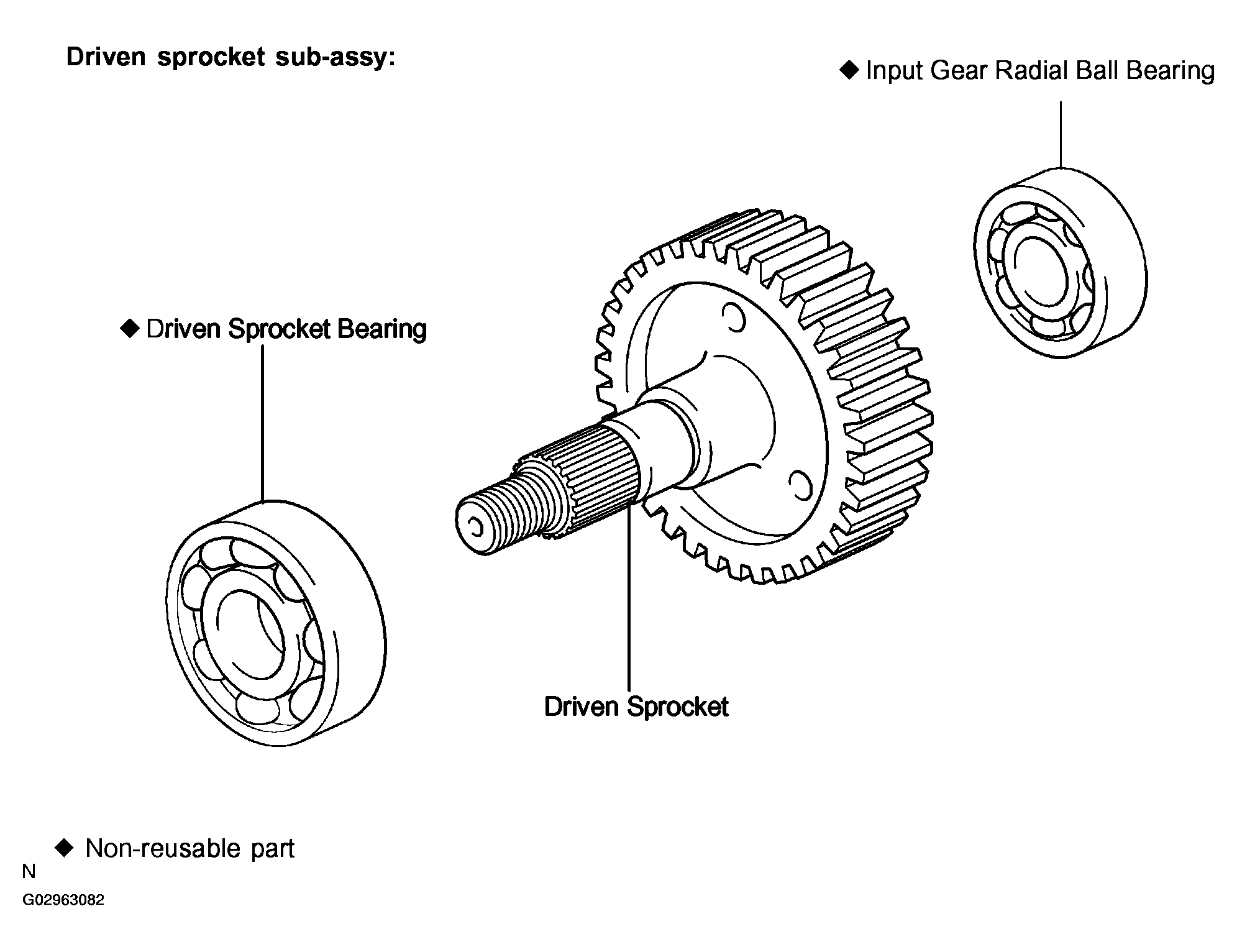

Fig 3: Identifying Transfer Assy Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

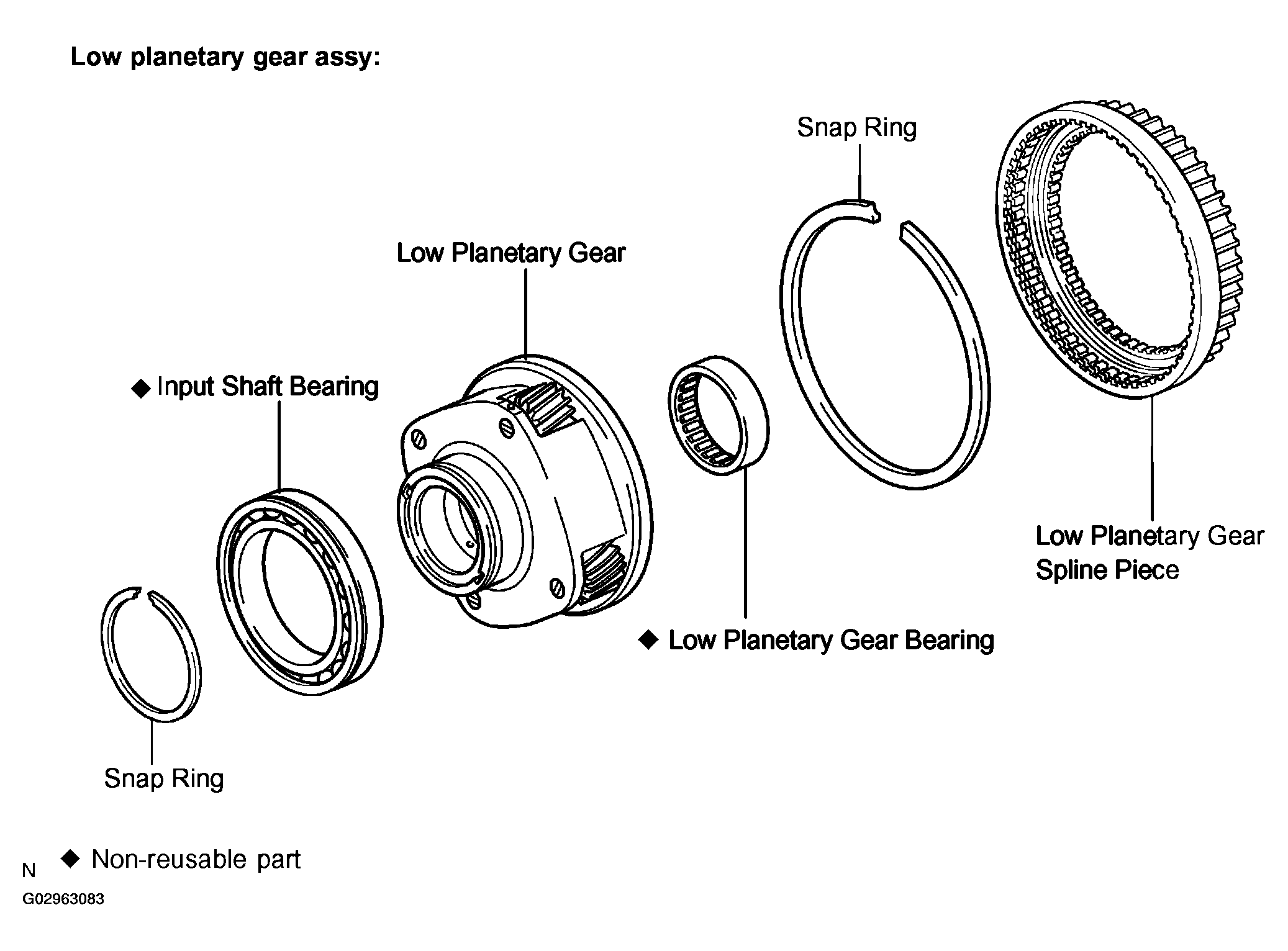

Fig 4: Identifying Transfer Assy Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

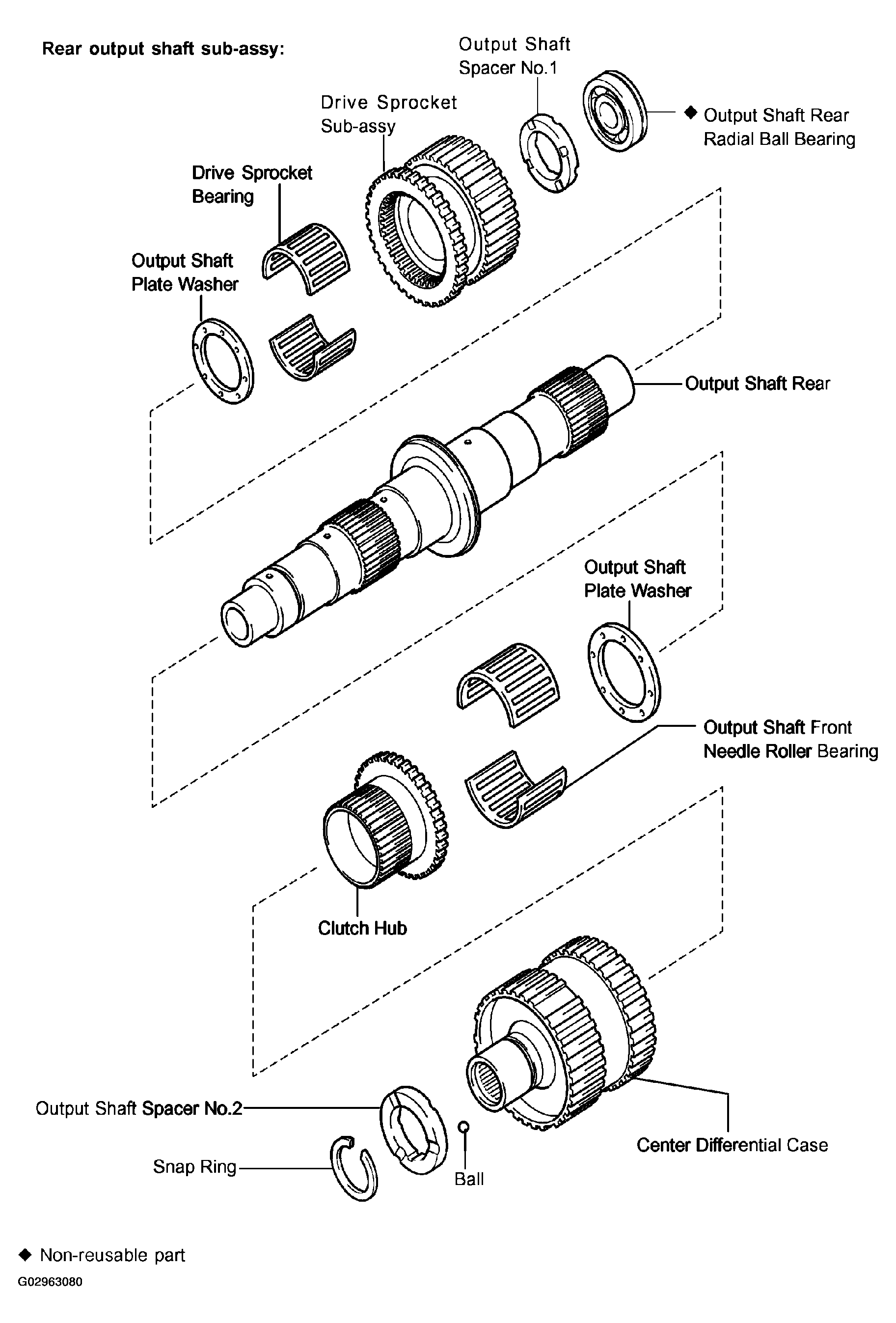

Fig 5: Identifying Transfer Assy Components (5 Of 7)

Fig 6: Identifying Transfer Assy Components (6 Of 7)

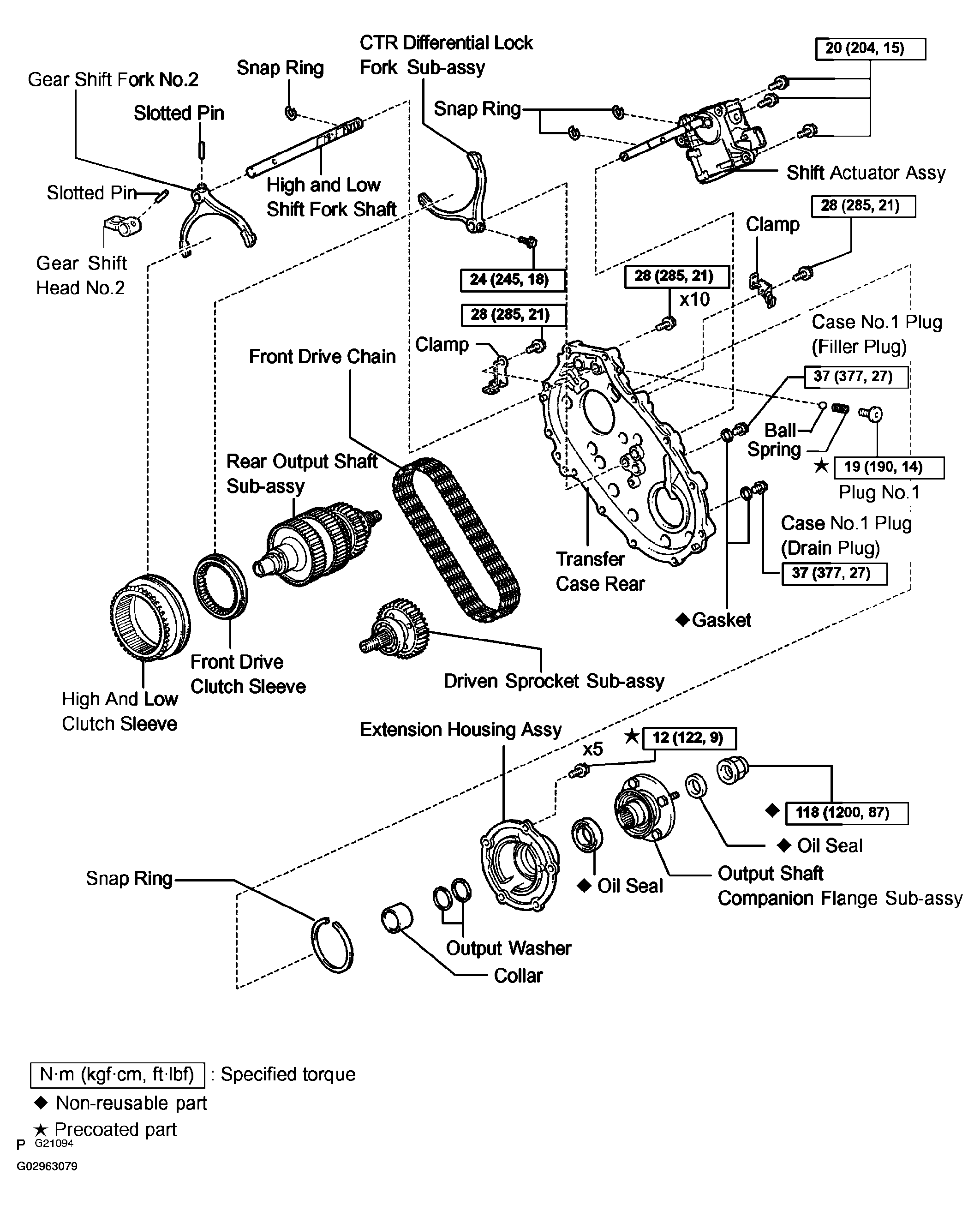

Fig 7: Identifying Transfer Assy Components (7 Of 7)
