Engine Unit: Components

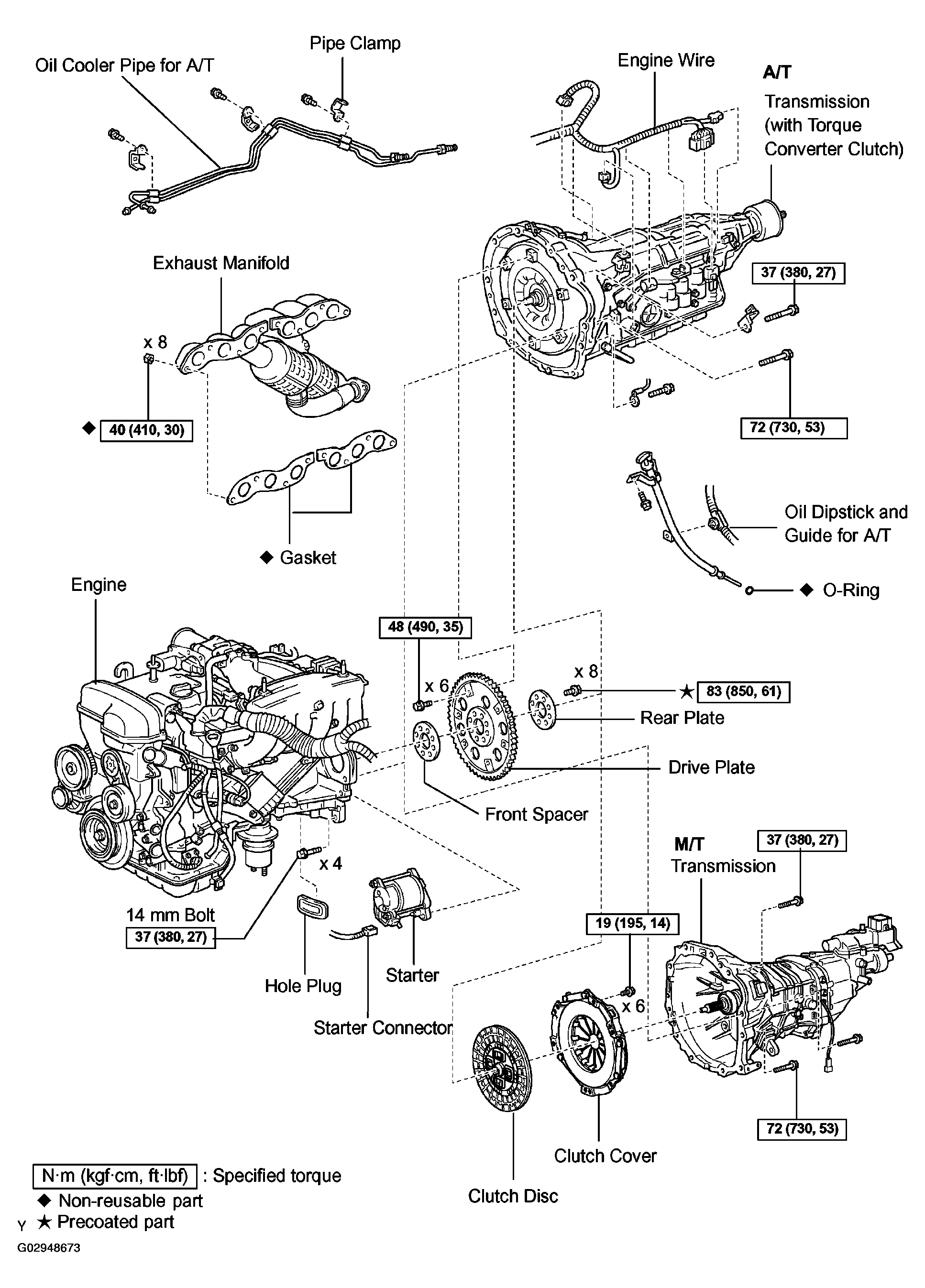

Fig 1: Engine Unit Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

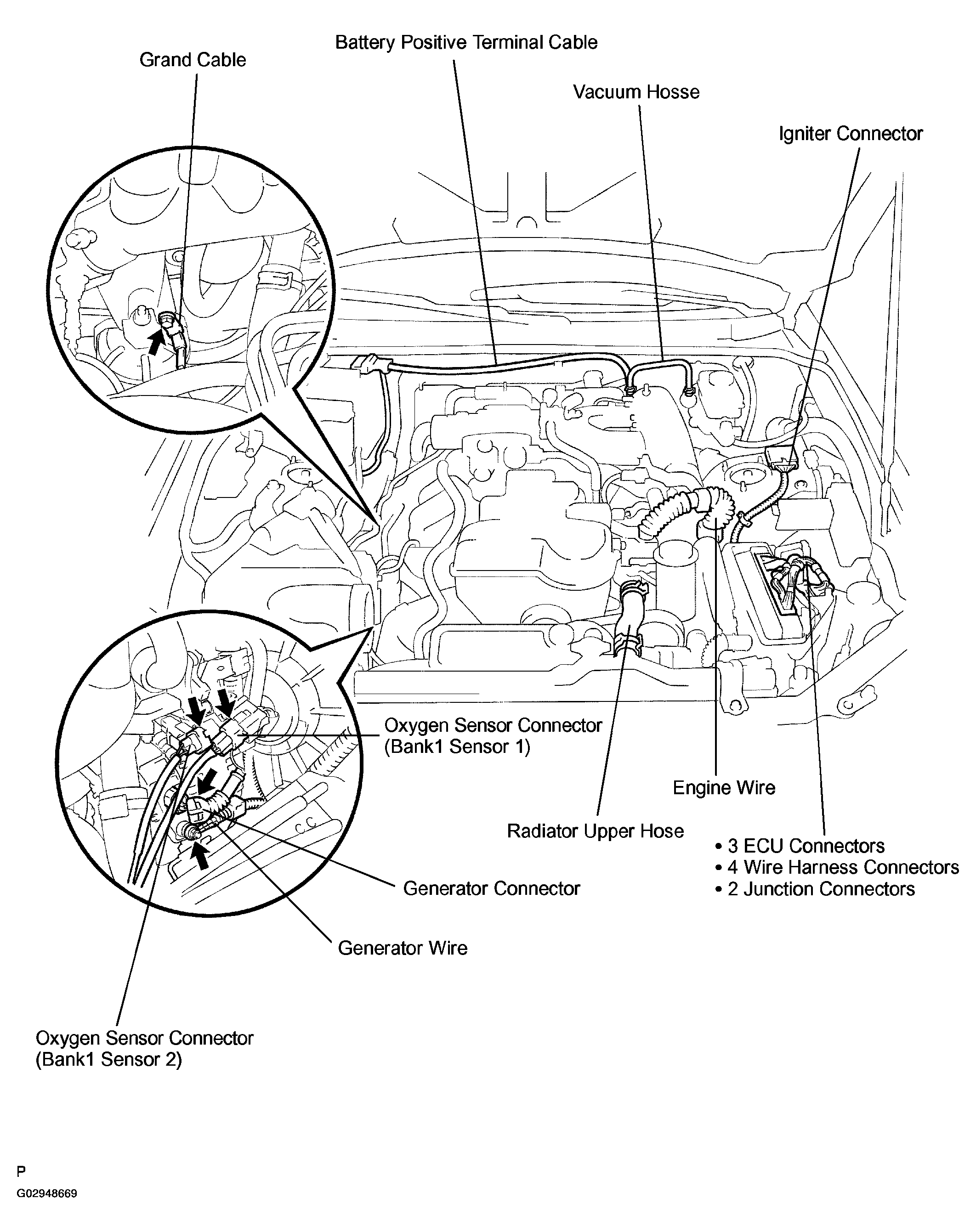

Fig 2: Identifying Engine Unit Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

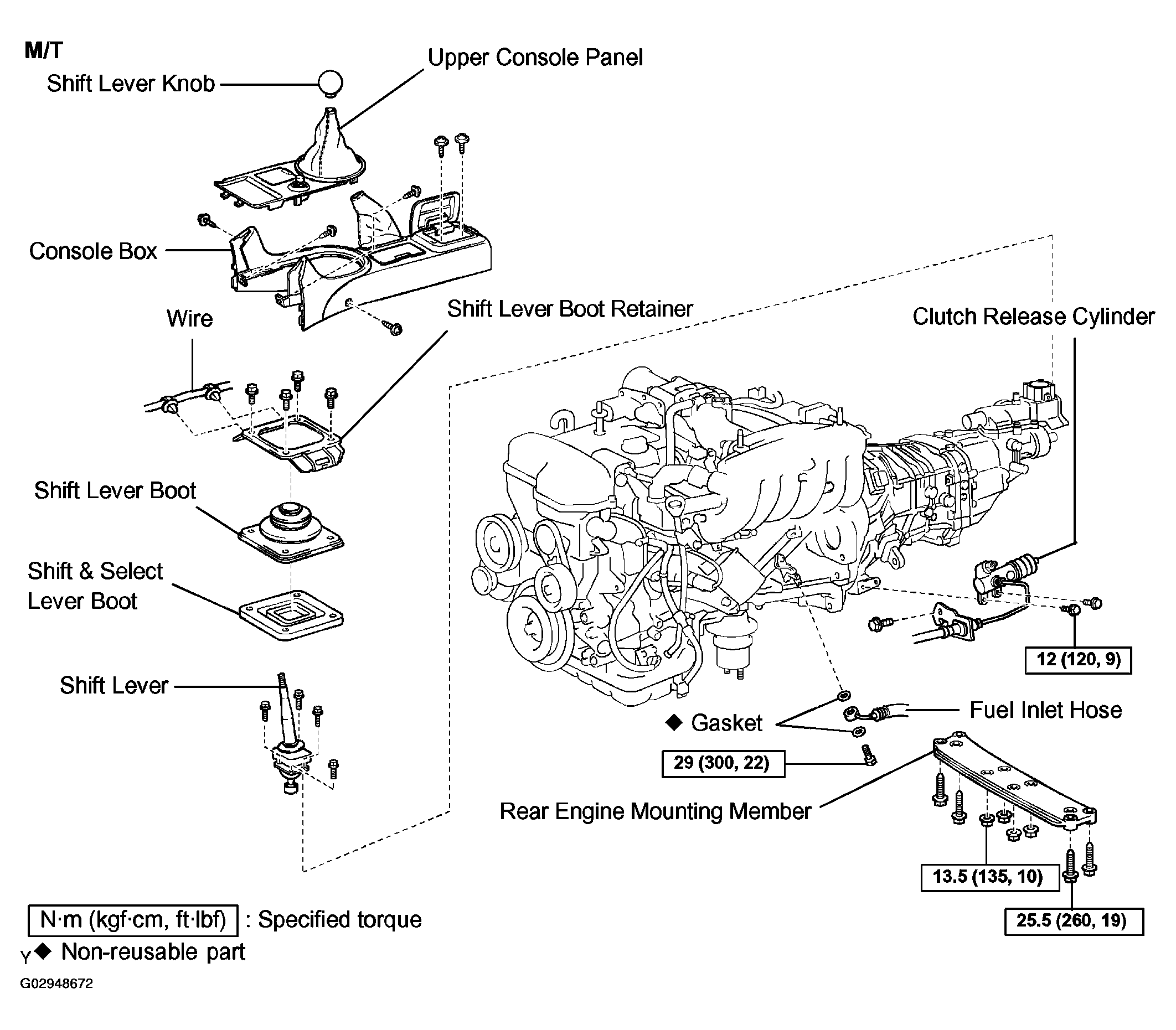

Fig 3: Engine Unit Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

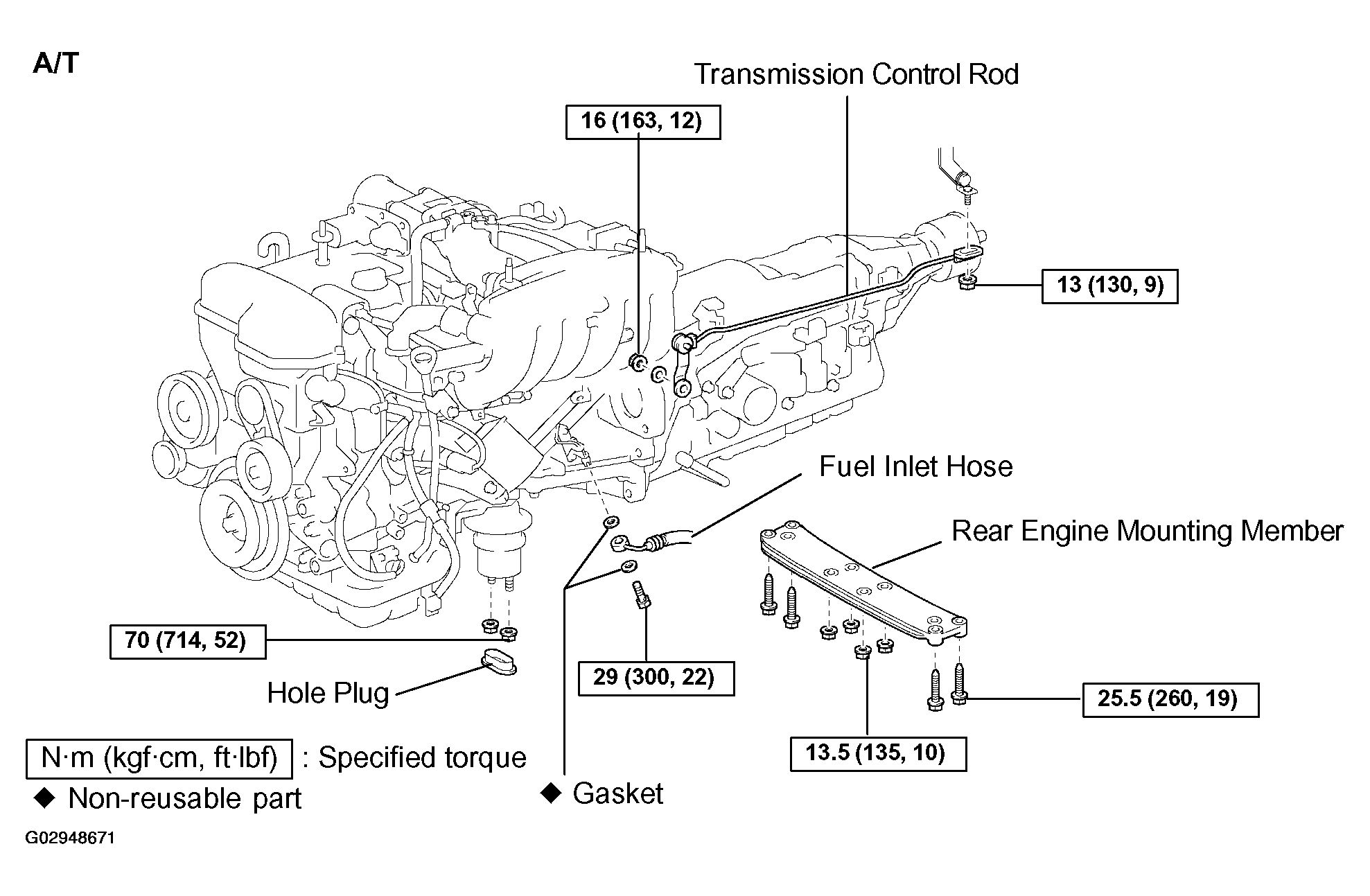

Fig 4: Engine Unit Components With Torque Specifications (4 Of 6)

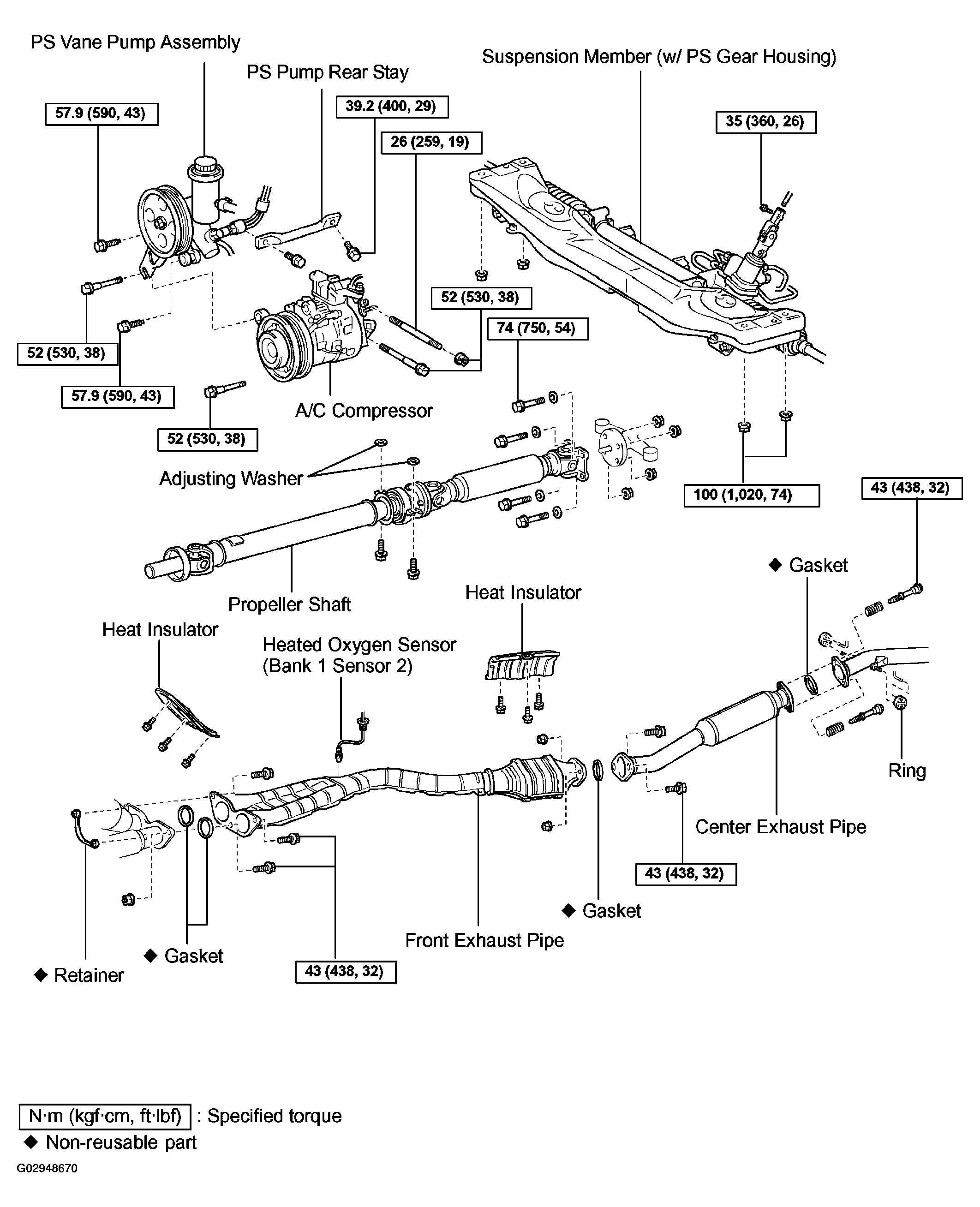

Fig 5: Engine Unit Components With Torque Specifications (5 Of 6)

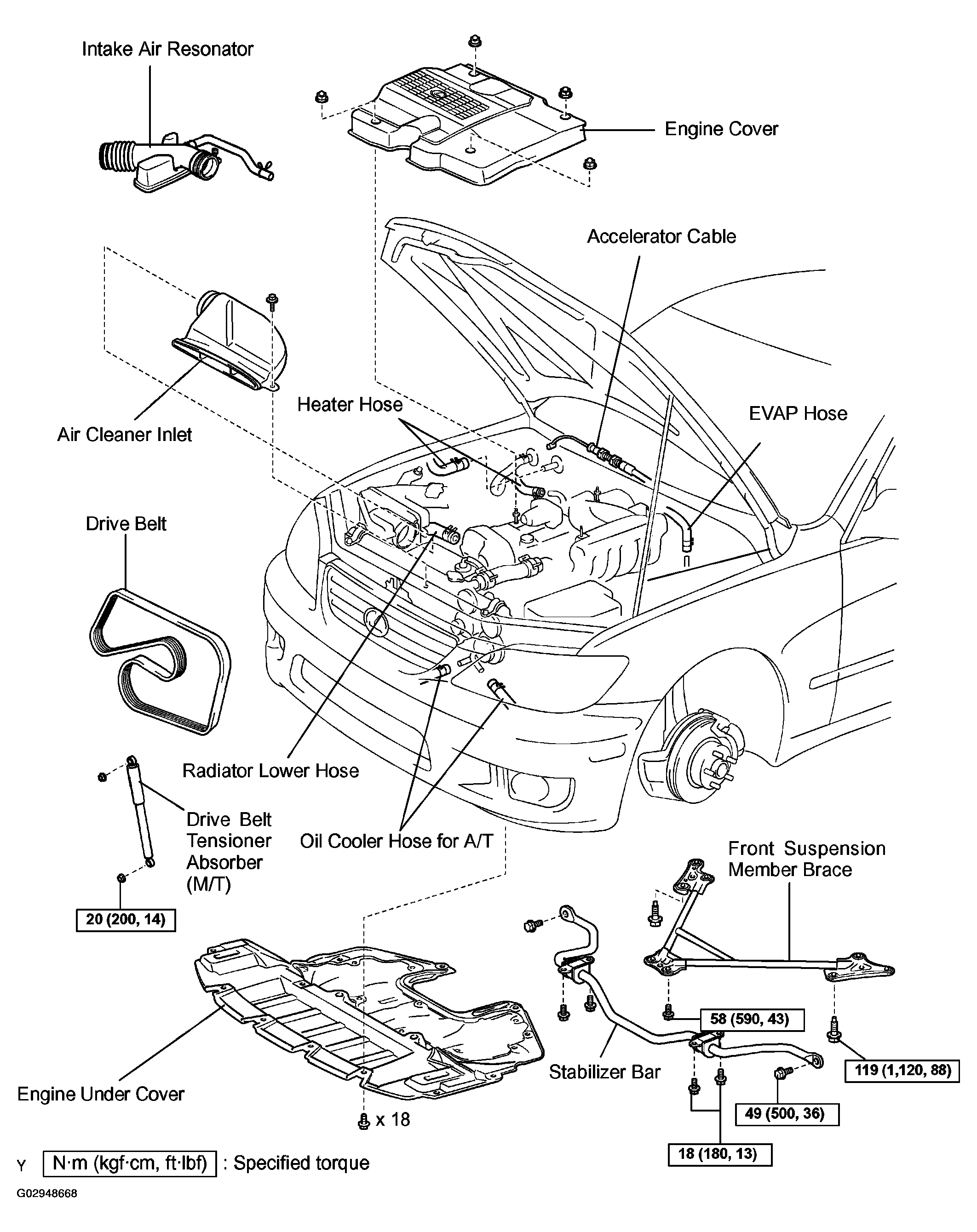

Fig 6: Engine Unit Components With Torque Specifications (6 Of 6)
