Back Door Glass: Components

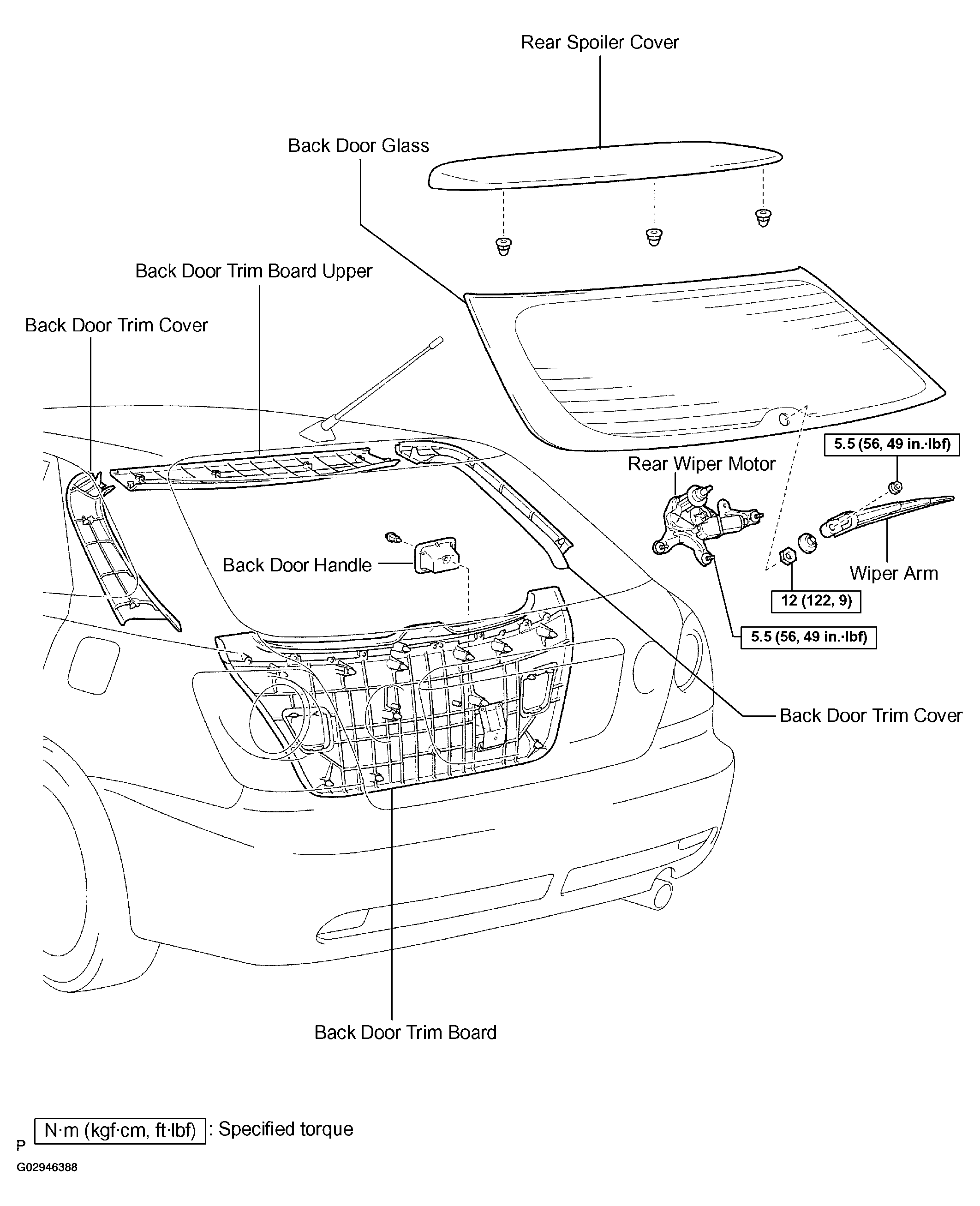

Fig 1: Back Door Glass Components With Torque Specifications
G02946388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
