Back Door Glass: Installation

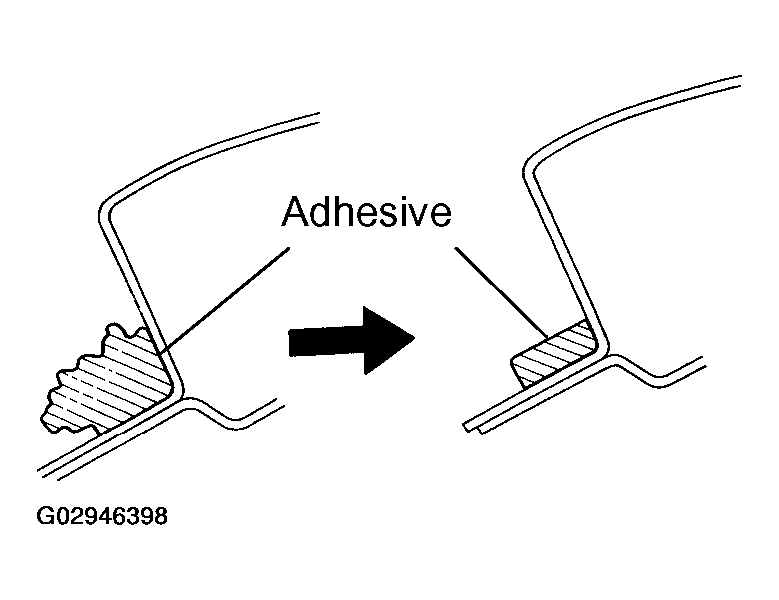

1. Using a knife, cut away any rough areas on the body.

   HINT:

   Leave as much of the adhesive on the body as possible.

2. Clean the cutting surface of the adhesive with a piece of shop rag soaked with cleaner.

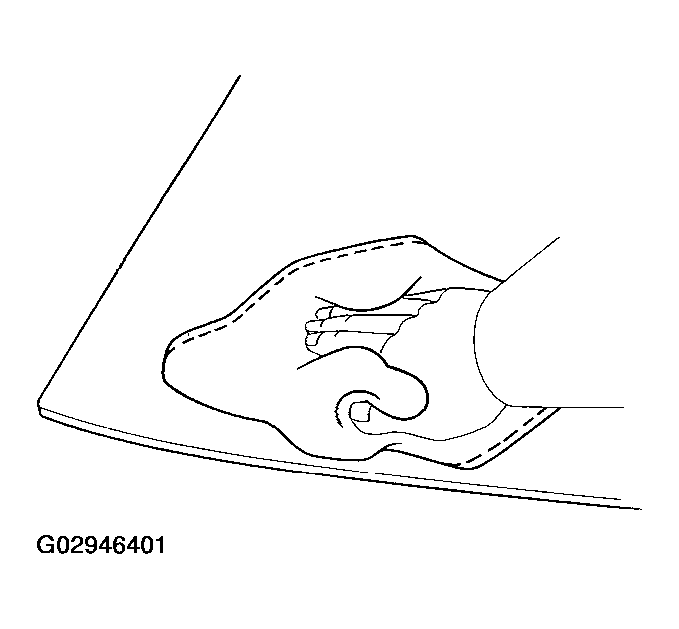

   Fig 1: Cleaning Cutting Surface Adhesive With A Piece Of Shop Rag Soaked With Cleaner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

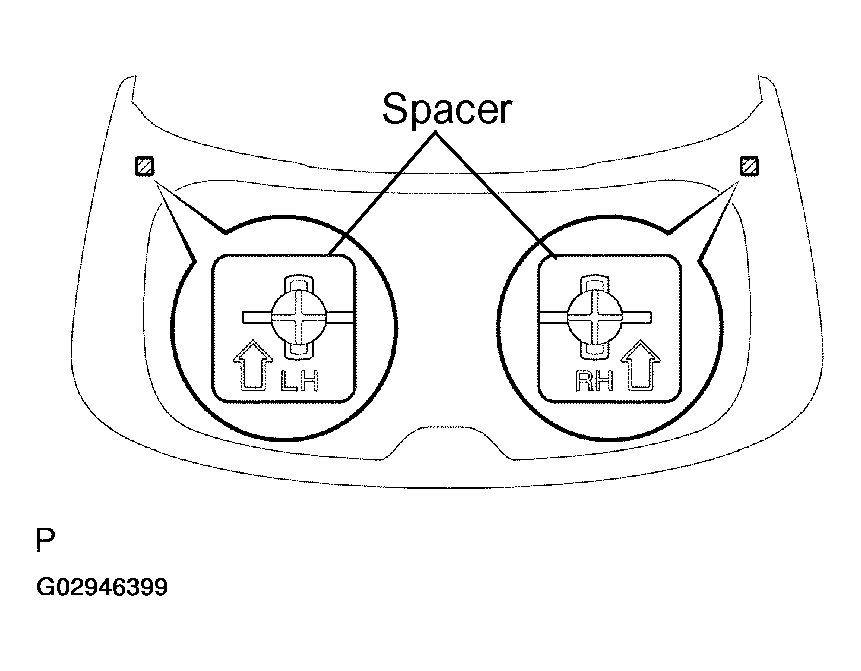

1. Remove the damaged spacers.
2. Cut off the old adhesive around the spacers installation area.
   NOTE: Be careful not to damage the body.
3. Clean the installation area.
4. Attach the new spacers to the glass with the ceramic notch on the glass aligned with the spacers as shown in the illustration.
   Fig 2: Removing Damaged Spacers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

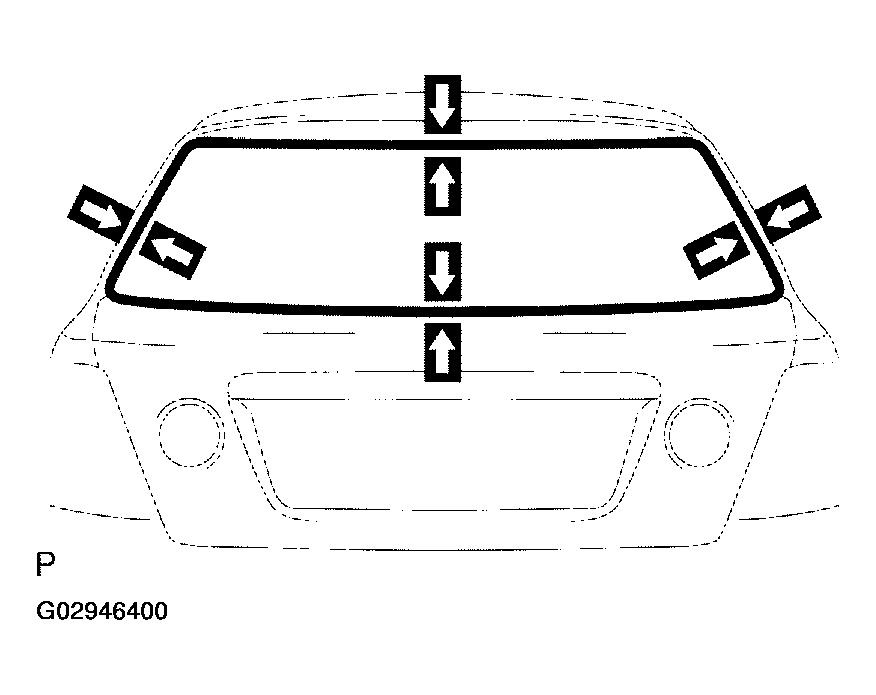

1. Place the glass in the correct position.
2. Check that all contacting part of the glass rim are perfectly even.
3. Place reference marks between the glass and body.
4. Remove the glass.
   Fig 3: Placing Glass Correct Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a cleaner, clean the contact surface which is black-colored area around the entire glass rim.

Fig 4: Cleaning Contact Surface

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

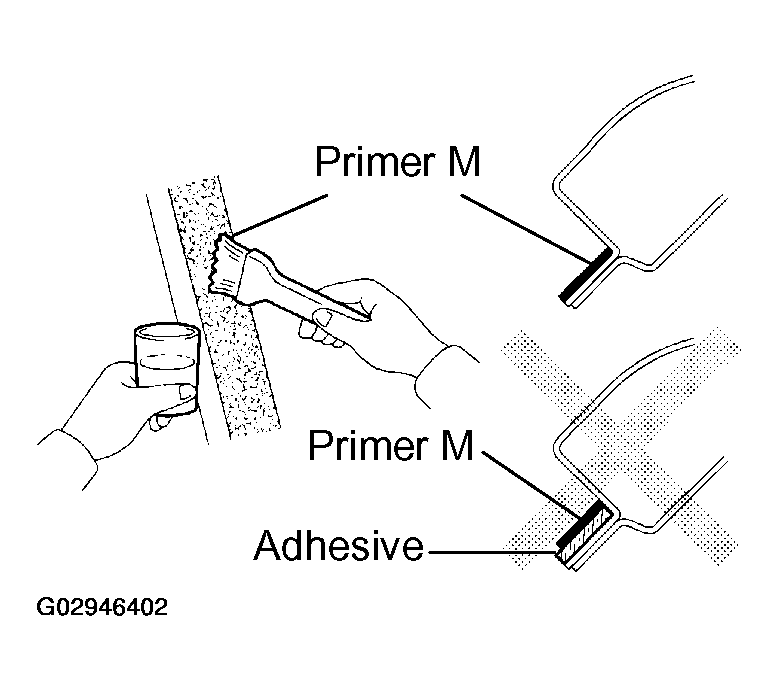

Using a brush, coat Primer M to the exposed part of body on the vehicle side.

Fig 5: Coating Primer M To Exposed Part Of Body On Vehicle Side

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G as shown in the illustration.
2. When the primer is coated to the area other than the specified by accident, wipe it off with a clean shop rag before the primer dries.

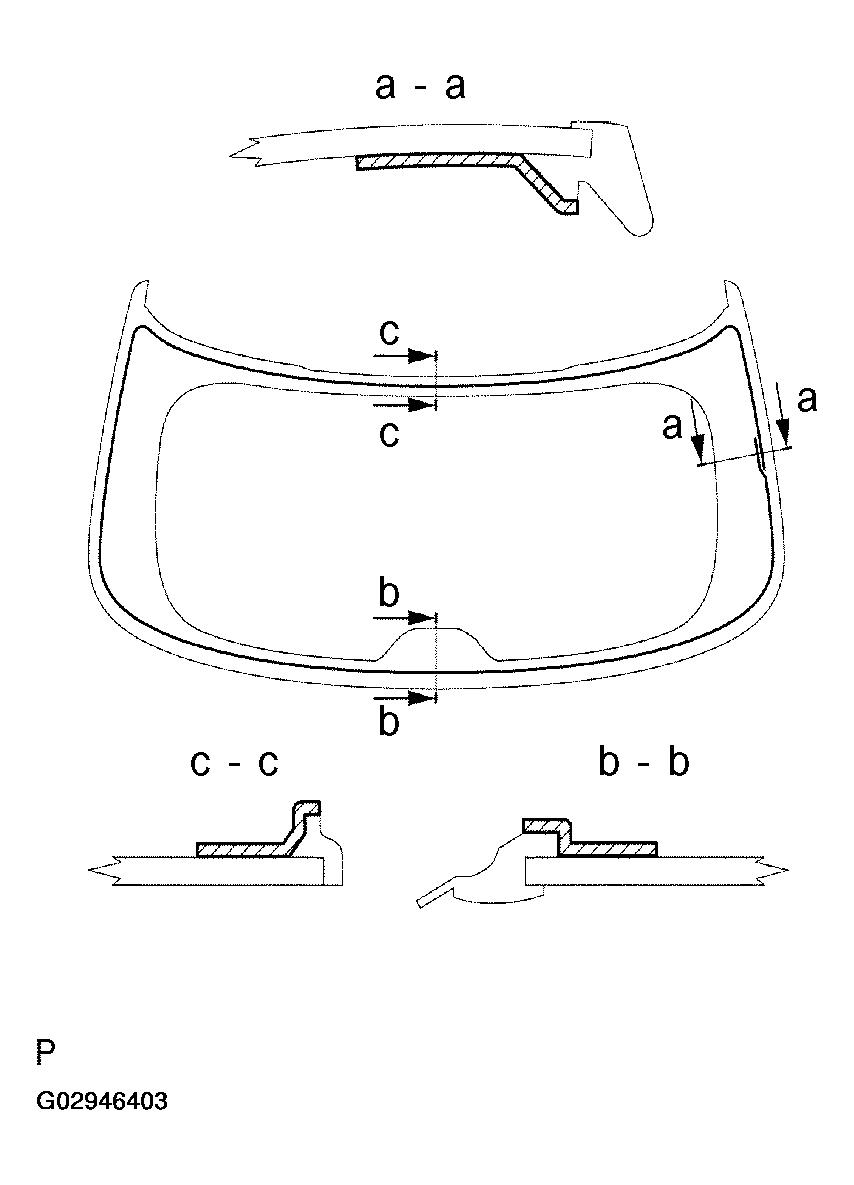

Fig 6: Coating Contact Surface Of Glass With Primer "G"

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Cut off the tip of the cartridge nozzle.
   1. Part No. 08850-00801 or equivalent.

   HINT:

   After cutting off the tip, finish off the adhesive within the time described in the table below.

   TEMPERATURE SPECIFICATION



   Temperature	Tackfree time
   35°C (95°F)	15 minutes
   20°C (68°F)	100 minutes
   5°C (41°F)	8 hours

2. Load the cartridge into the sealer gun.

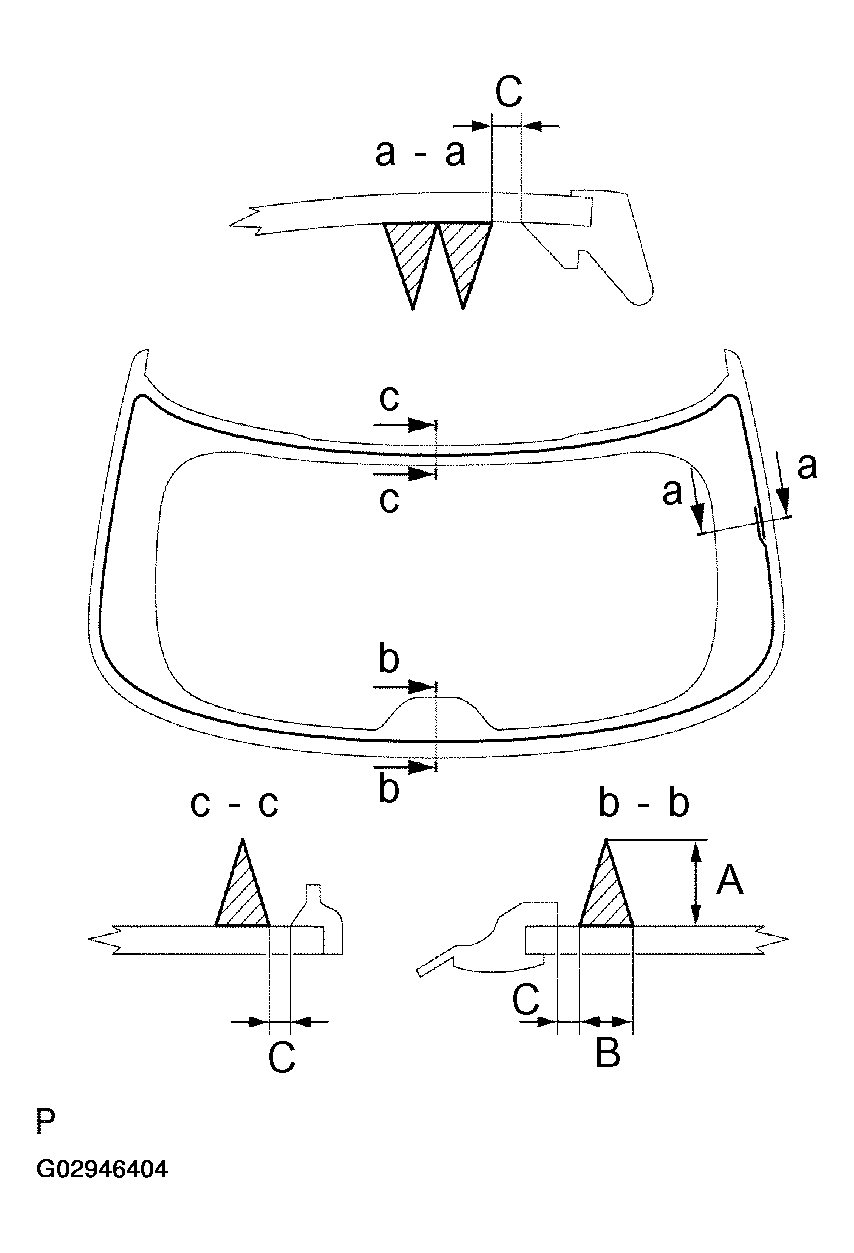

3. Coat the glass with adhesive as shown in the illustration.
   1. 12.0 mm (0.472 in.)
   2. 8.0 mm (0.315 in.)
   3. 3.0 mm (0.118 in.)
   Fig 7: Cutting Off Tip Cartridge Nozzle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

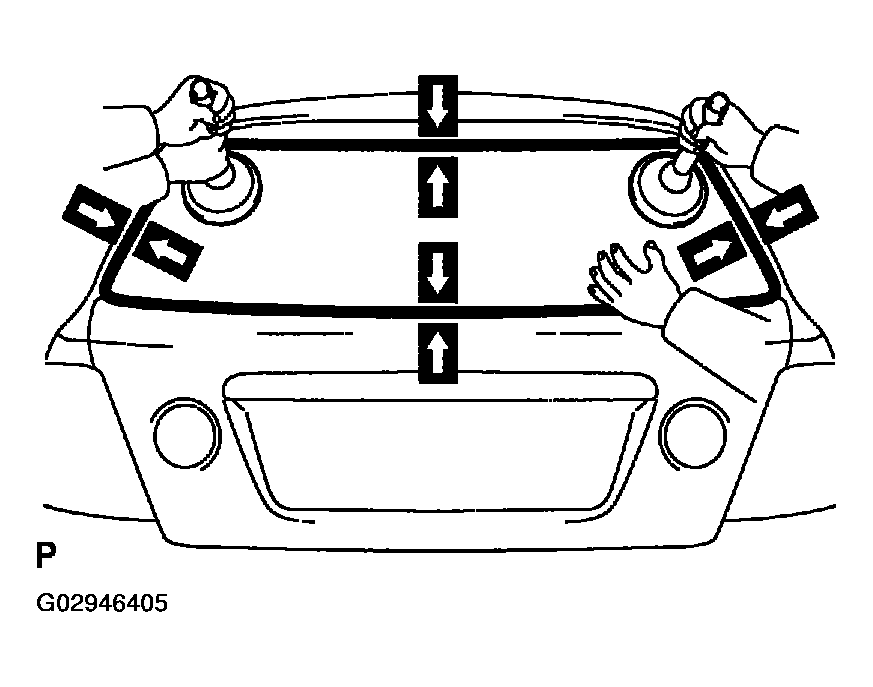

1. Position the glass so that the reference marks are lined up, and press in gently along the rim.
2. Using a spatula, apply adhesive on the glass rim.
3. Use a scraper to remove any excess or protruding adhesive.
   Fig 8: Positioning Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

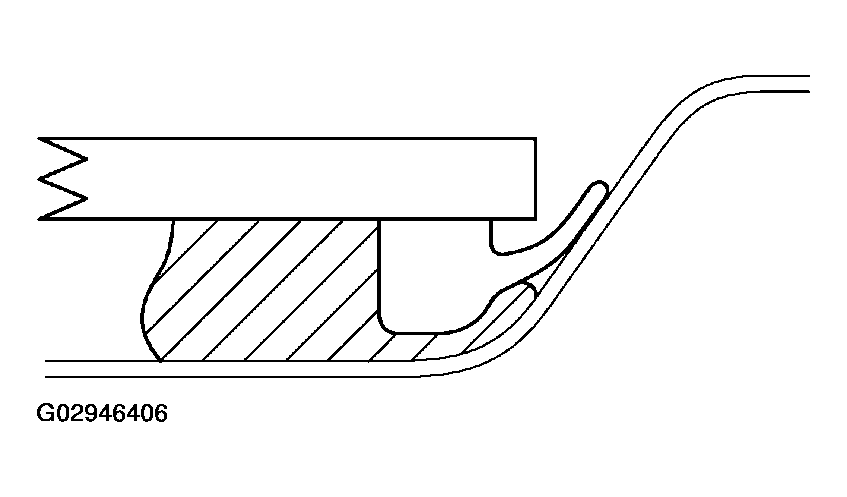

   HINT:

   Confirm that the molding is attached to the body panel as shown in the illustration.

4. Hold the back door glass in place securely with a protective tape or equivalent until the adhesive hardens.
   Fig 9: Confirming That Molding Is Attached To Body Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Conduct a leak test after the hardening time has elapsed.
2. Seal any leak with sealant.
   1. Part No. 08833-00030 or equivalent.

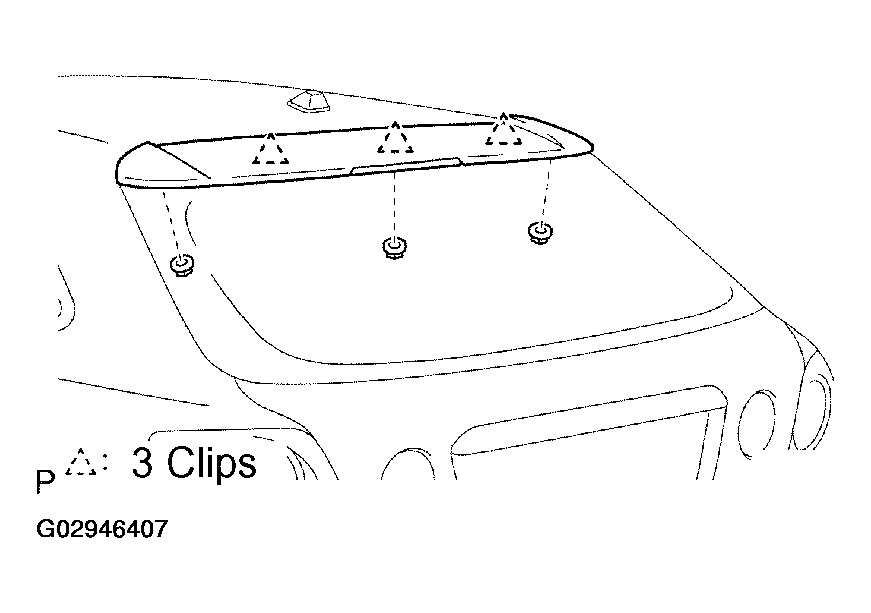

Install the rear spoiler cover with the 3 nuts.

Fig 10: Installing Rear Spoiler Cover With Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear wiper motor with the 3 bolts.
   1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
2. Connect the connector.
3. Install the nut and washer on the outer side of the back door panel.
   1. Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

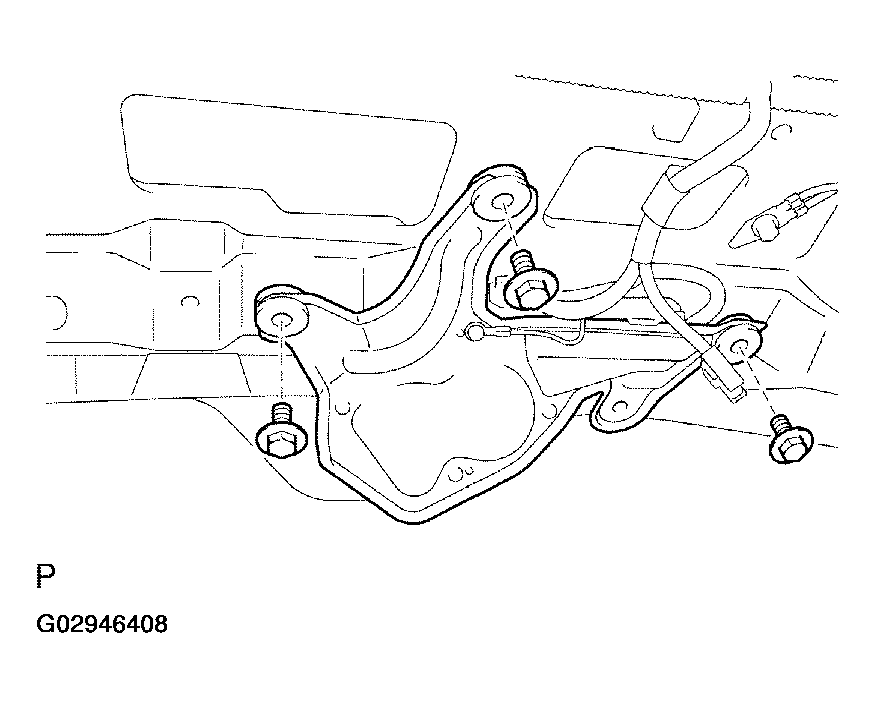

   Fig 11: Installing Rear Wiper Motor With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the wiper arm and tighten the nut by hand. Operate the wiper once and turn the wiper switch OFF.
2. Align the matchmarks on the wiper arm and wiper motor.
3. Install the rear wiper arm with the nut.
   1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
4. Install the wiper arm cover.

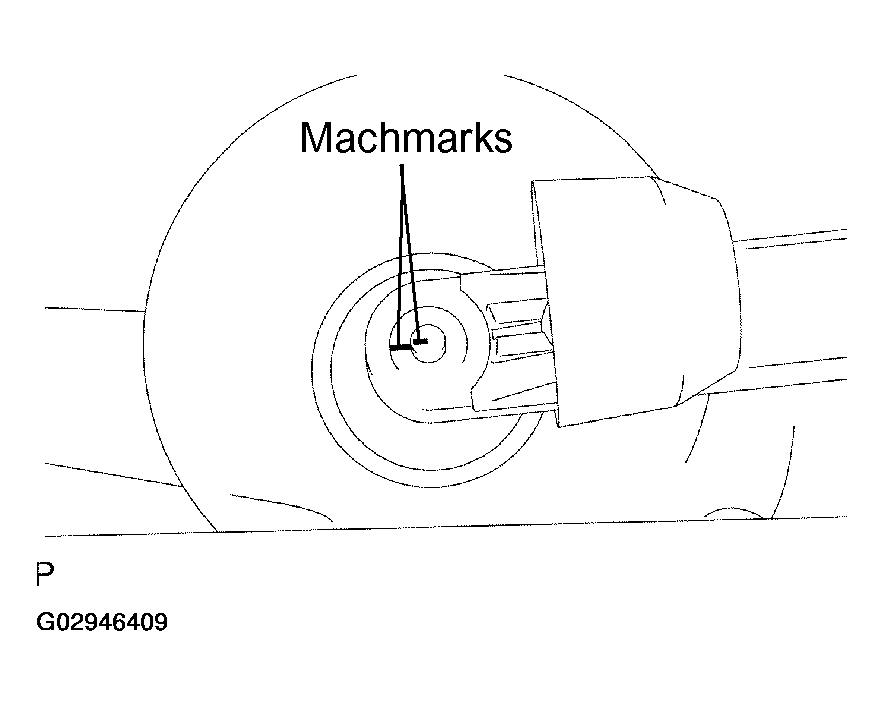

   Fig 12: Aligning Matchmarks On Wiper Arm & Wiper Motor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the back door trim board to the back door panel.
2. Install the back door handle with the clip.

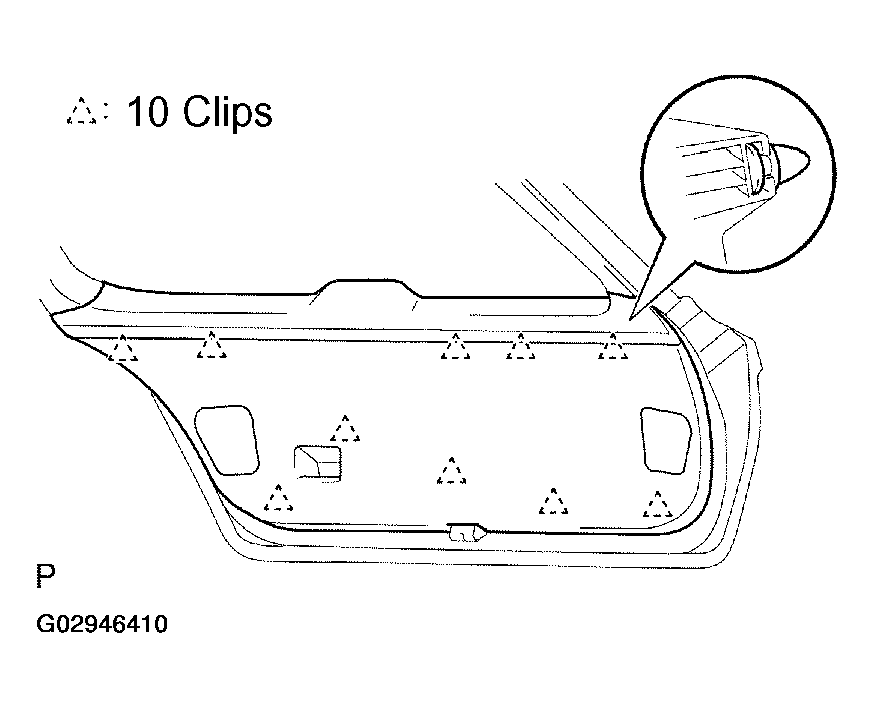

   Fig 13: Installing Back Door Trim Board To Back Door Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the trim cover to the body.

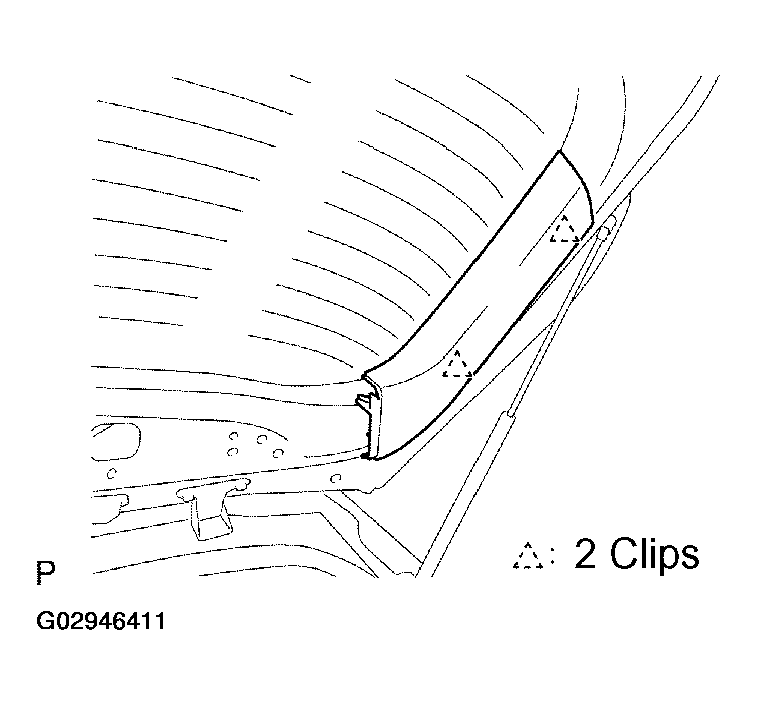

Fig 14: Installing Trim Cover To Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the back door trim board upper to the body.

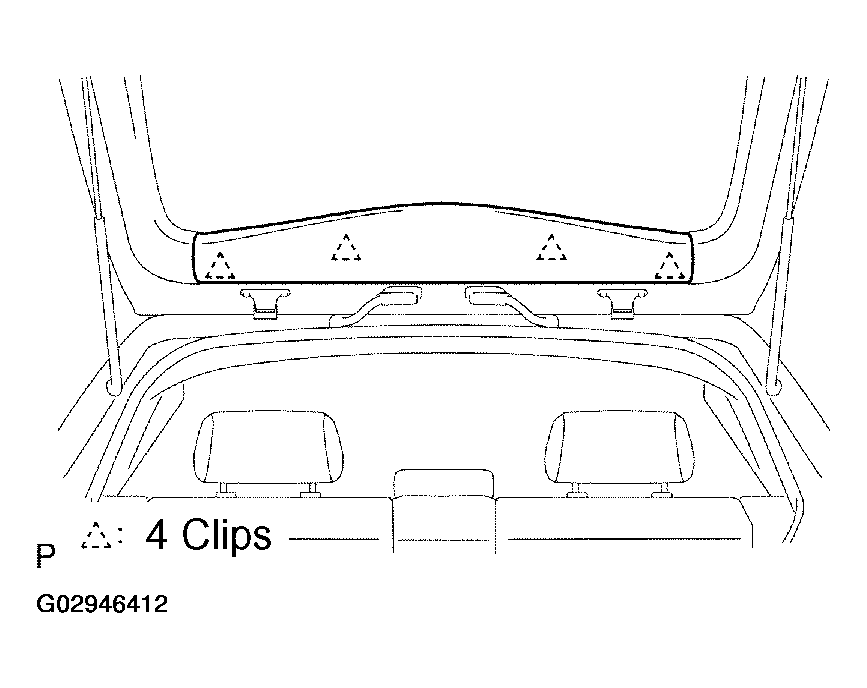

Fig 15: Installing Back Door Trim Board Upper To Body
