Charging Systems: Charging: Generator: Removal

REMOVE ENGINE UNDER COVER
M/T:
REMOVE DRIVE BELT TENSIONER ABSORBER

Remove the 2 nuts and absorber.
1. Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
REMOVE DRIVE BELT
Using SST, loosen the belt tension by turning the belt tensioner clockwise from the bottom side, and remove the drive belt.
1. SST 09216-00041
NOTE: At the time of installation, do an on-vehicle inspection (See CHARGING SYSTEM ).

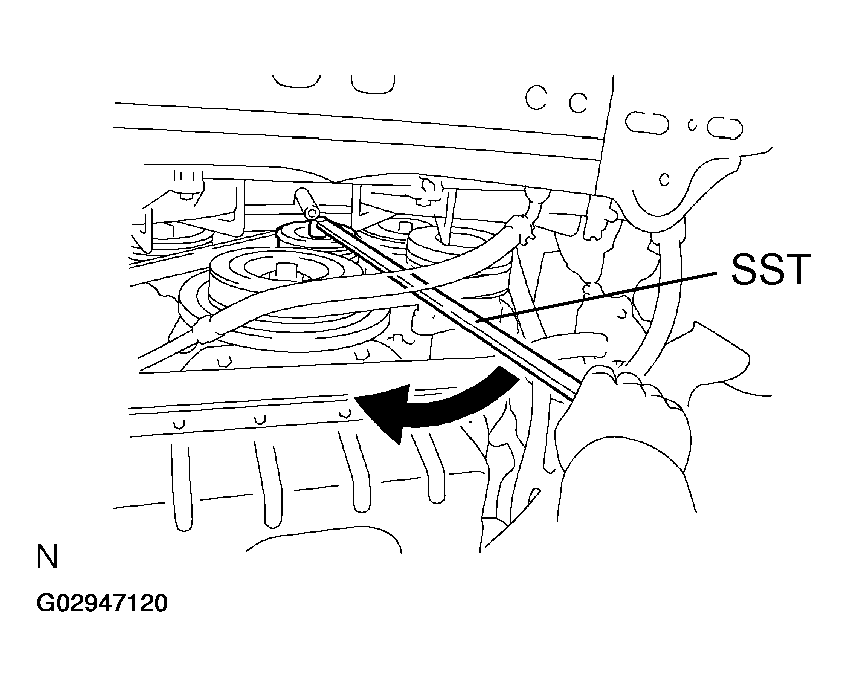

Fig 1: Removing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR
1. Disconnect the generator connector.
2. Remove the rubber cap and nut, and disconnect the generator wire.

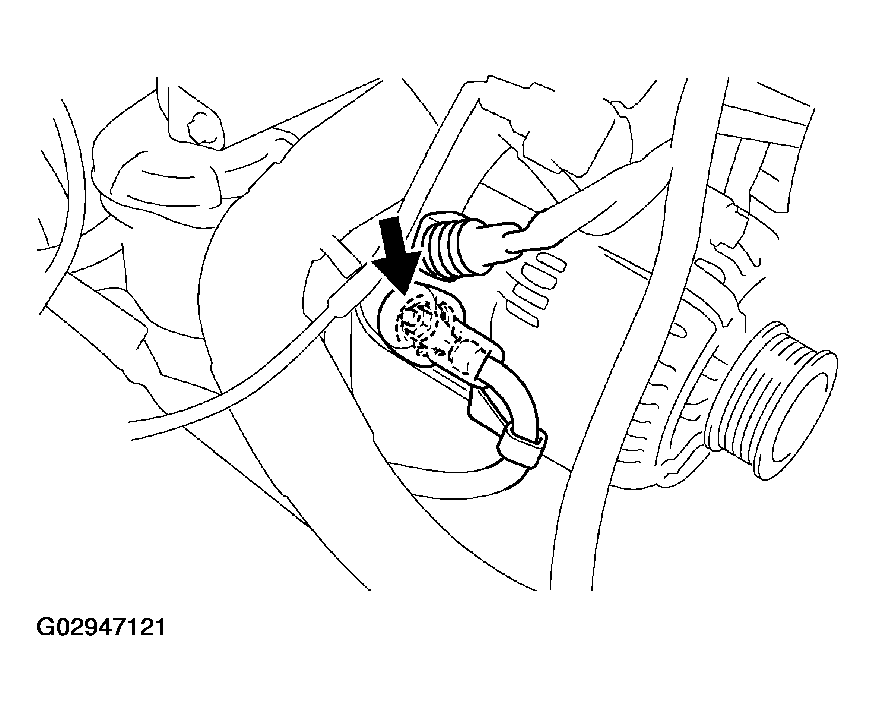

  Fig 2: Disconnecting Generator Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the engine wire clamp from the wire clip on the generator.

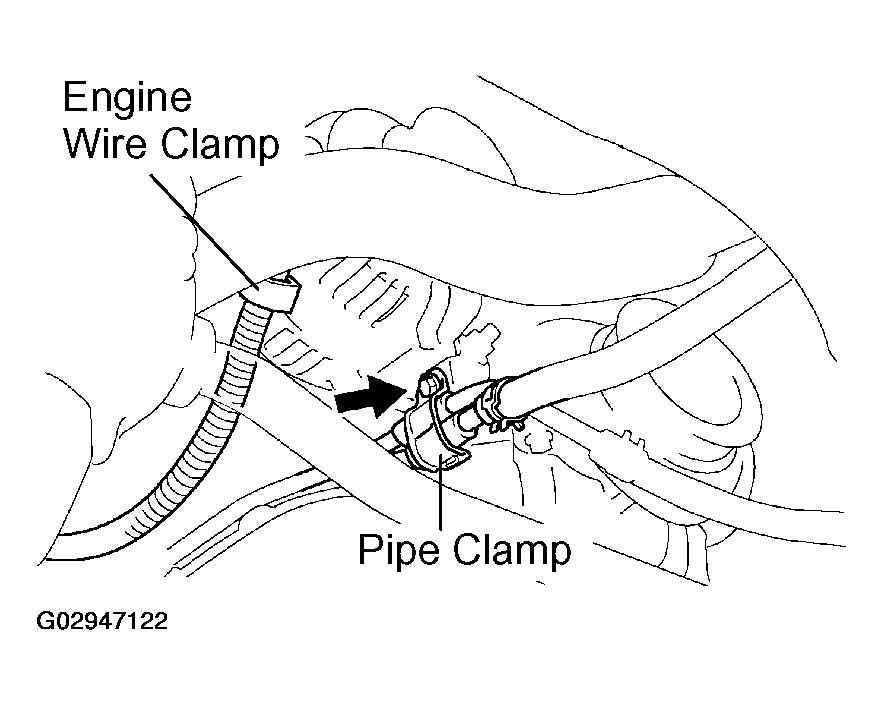

  Fig 3: Disconnecting Engine Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and pipe clamp, and disconnect the 2 A/T oil cooler pipes from the generator.
5. Remove the bolt, nut, pipe bracket and generator.
  1. Torque: 40 N.m (400 kgf.cm, 30 ft.lbf)

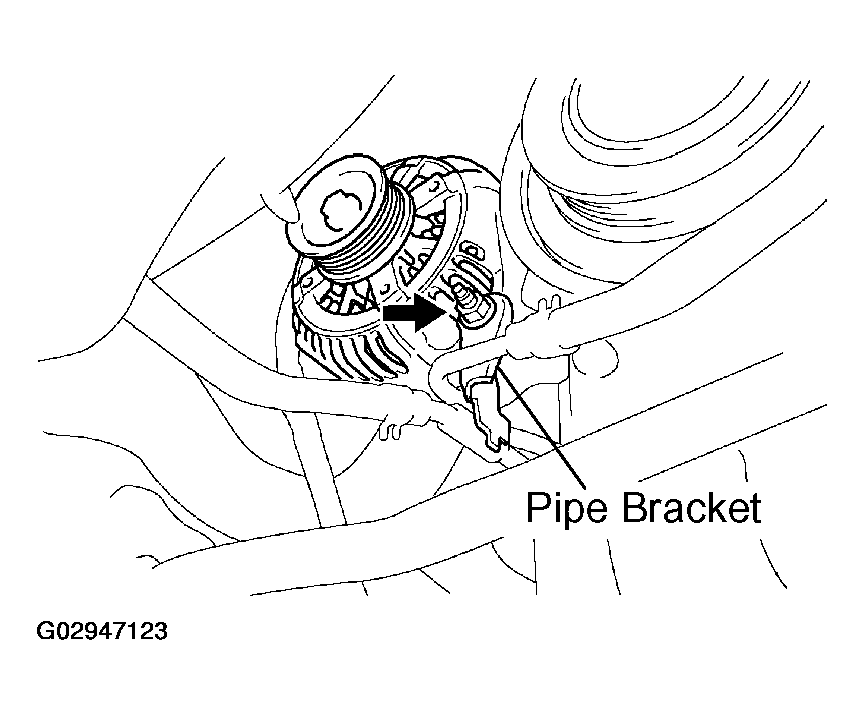

  Fig 4: Removing Pipe Bracket & Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
