Starter Relay: Inspection

  1. REMOVE RELAY BOX COVER
  2. REMOVE STARTER RELAY

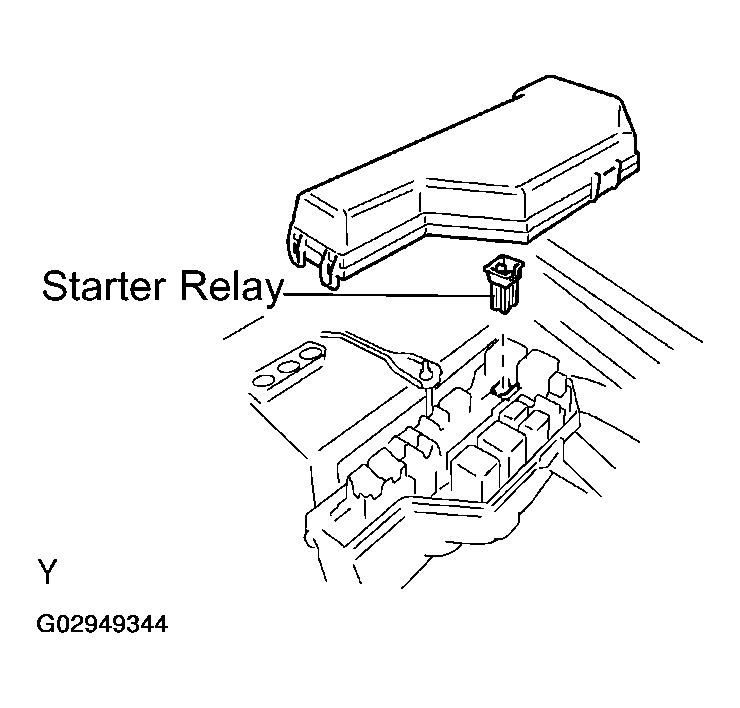

    Fig 1: Removing Starter Relay
    G02949344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT STARTER RELAY
    1. Using an ohmmeter, measure the resistance between the terminals.

    Standard:

    STARTER RELAY RESISTANCE SPECIFICATIONS

    Tester Connection Specified Condition
    3-5 10 kΩ or higher
    3-5 Below 1 Ω (Apply battery voltage to terminals 1 and 2)

    If the resistance is not as specified, replace the relay.

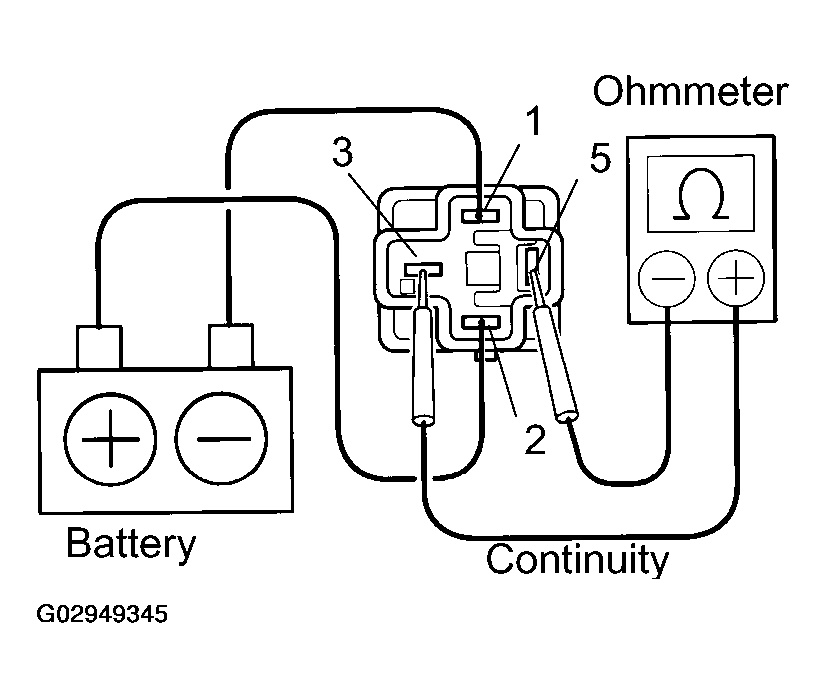

    Fig 2: Inspecting Starter Relay
    G02949345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REINSTALL STARTER RELAY
  5. REINSTALL RELAY BOX COVER
