Timing Belt: Removal

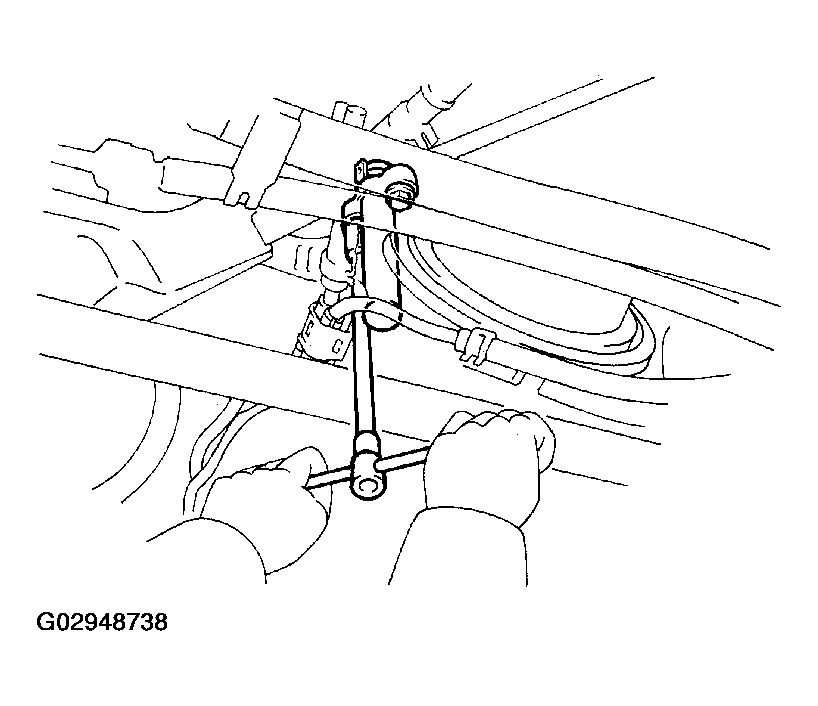

REMOVE DRIVE BELT TENSIONER ABSORBER

Remove the 2 nuts and absorber.

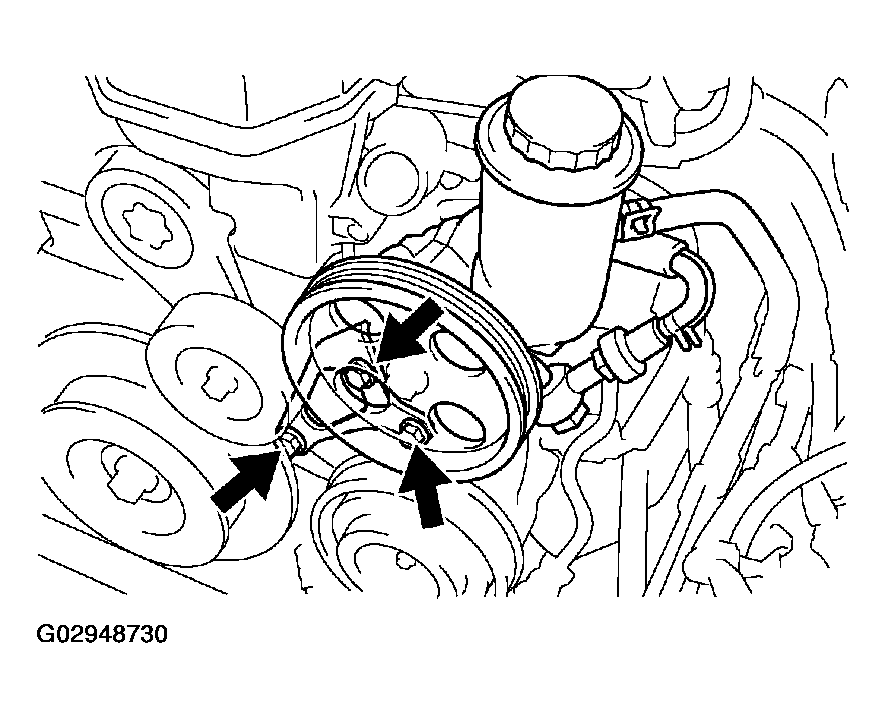

1. Remove the 3 bolts, plate washer and pump front bracket.
Fig 1: Removing Plate Washer And Pump Front Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the vane pump from the bracket.

Using a 5 mm hexagon wrench, remove the 4 bolts, oil filler cap, timing belt cover and gasket.

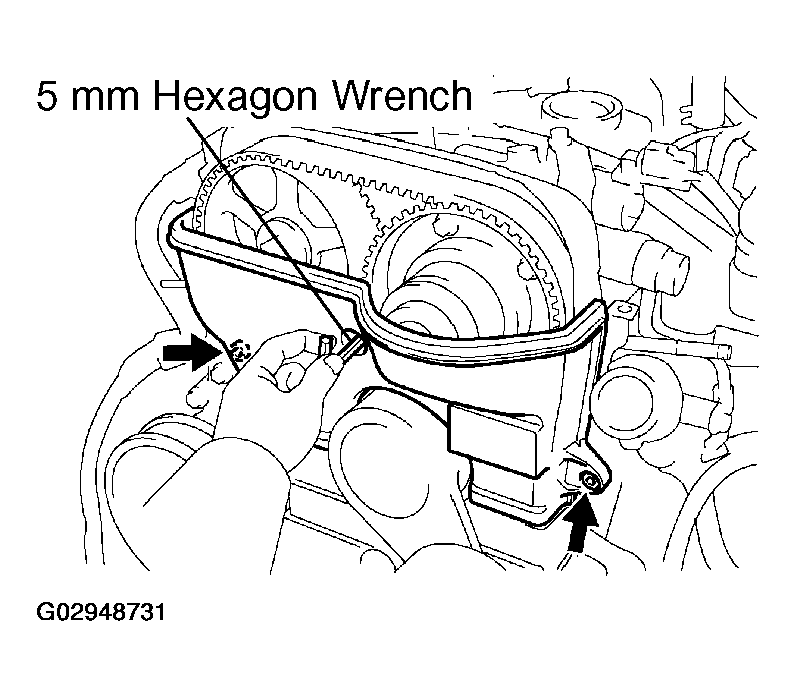

Using a 5 mm hexagon wrench, remove the 3 bolts, timing belt cover and gasket.

Fig 2: Using 5 mm Hexagon Wrench To Remove Bolts, Timing Belt Cover And Gasket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 bolts and tensioner.

Fig 3: Removing Bolts And Tensioner

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

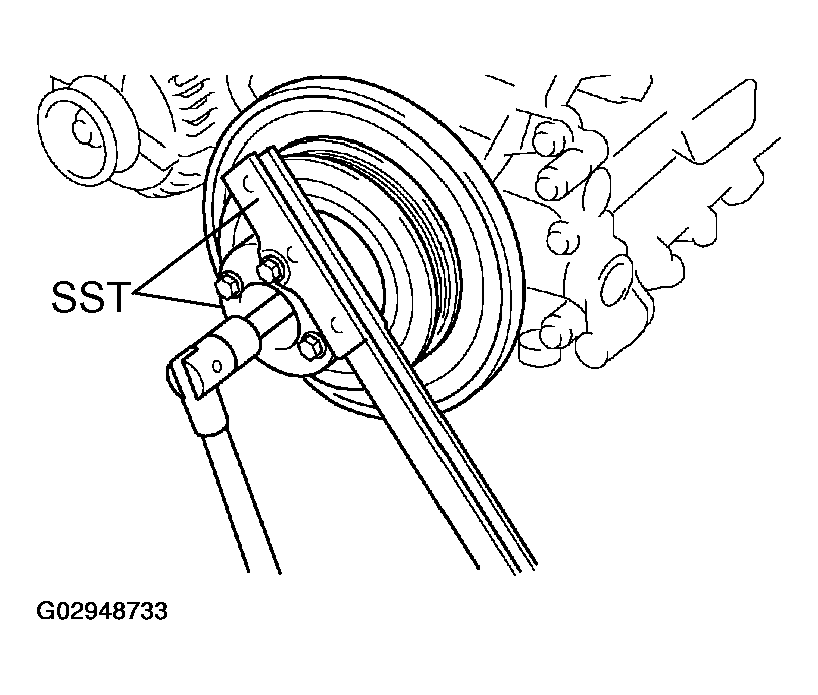

Using SST, loosen the pulley bolt.

SST 09213-70011, 09330-00021

Fig 4: Loosening Crankshaft Pulley Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

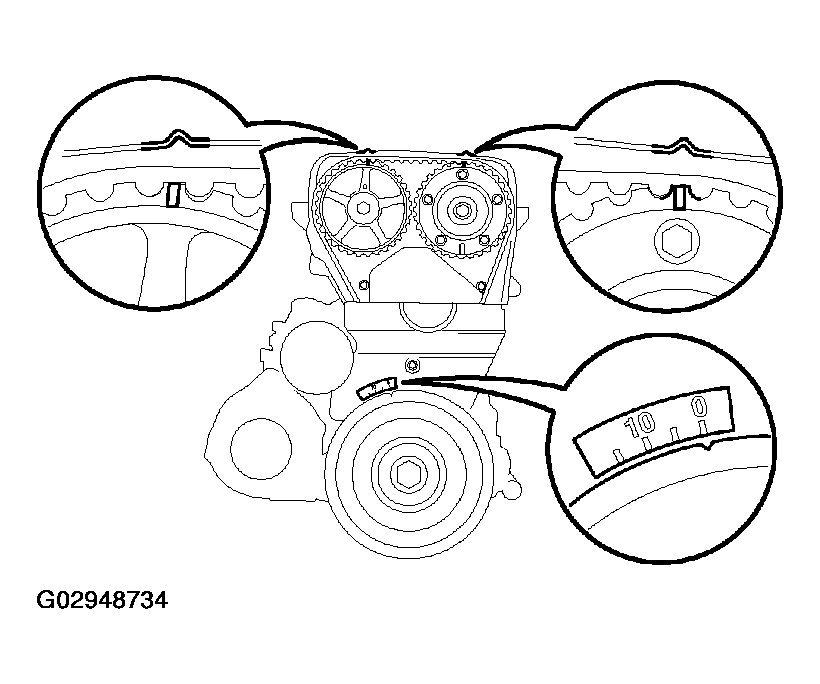

1. Turn the crankshaft pulley, and align its groove with timing mark "0" of the No. 1 timing belt cover.
   NOTE: Always turn the crankshaft clockwise.
   Fig 5: Aligning Crankshaft Pulley Groove With Timing Mark "0" Of No 1 Timing Belt Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the timing marks (TDC mark) of the camshaft timing pulleys are aligned with the timing marks of the No. 4 timing belt cover.

   If not, turn the crankshaft 1 revolution (360°).

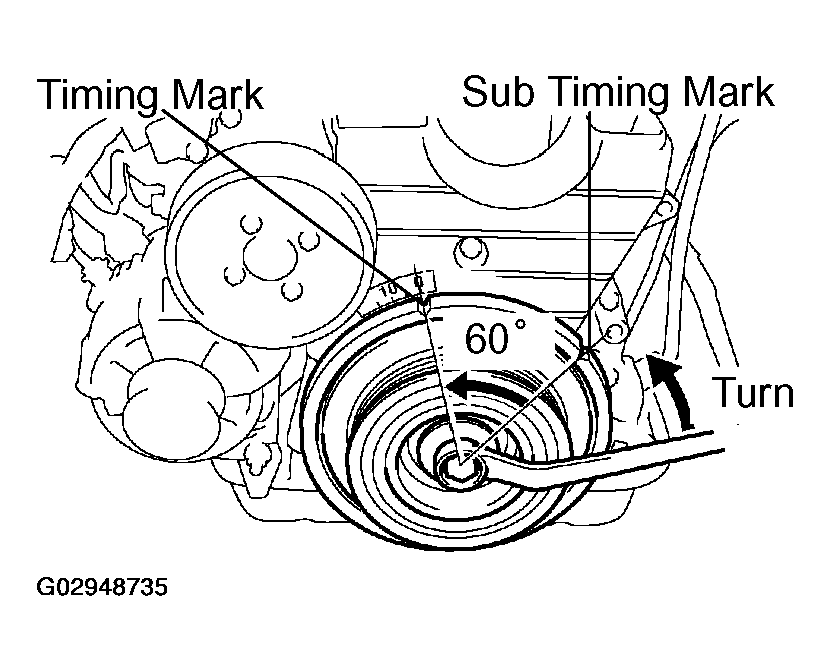

3. Turn the crankshaft pulley 60° counterclockwise to place the sub timing mark (60° mark BTDC) on the crankshaft pulley at the timing mark "0" position of the No. 1 timing belt cover.
   NOTE: If the timing belt is disengaged, having the crankshaft pulley at the wrong angle can cause the piston head and valve head to come into contact with each other when you remove the camshaft timing pulleys (steps  13 and  19), thus resulting damage. So, always set the crankshaft pulley at the correct angle.
   Fig 6: Turning Crankshaft Pulley 60° Counterclockwise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

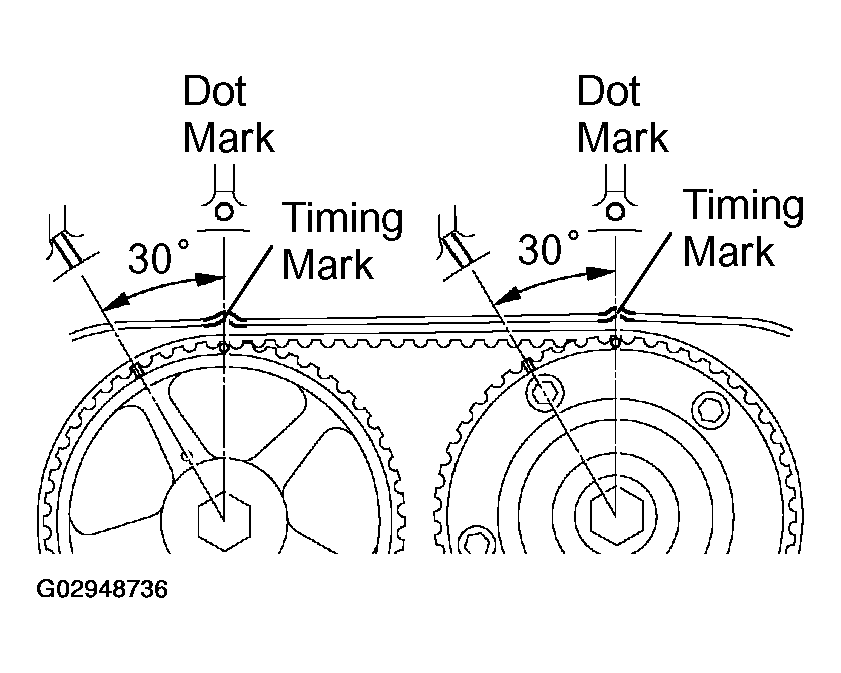

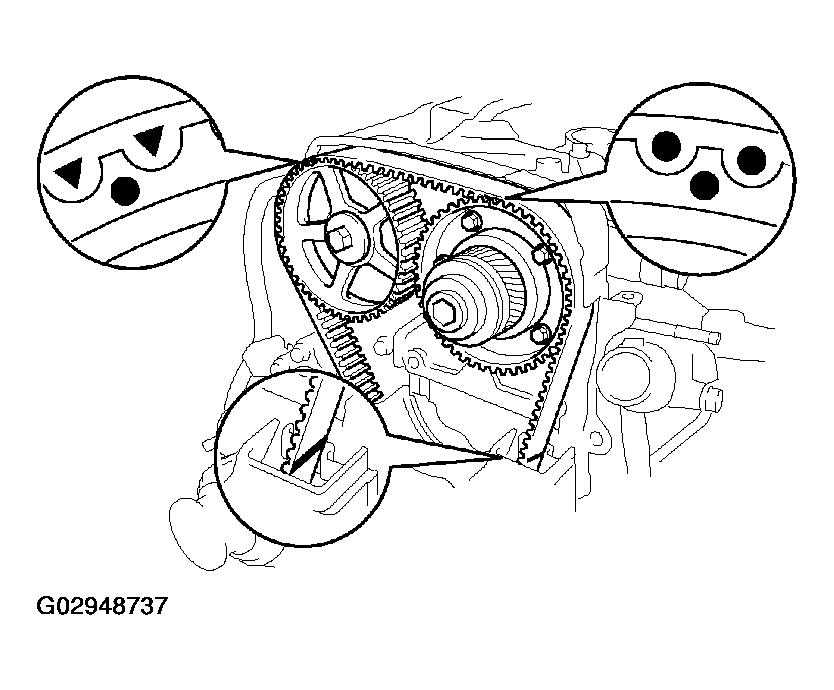

4. Check that the dot marks (60° mark BTDC) of the camshaft timing pulleys are aligned with the timing marks of the No. 4 timing belt cover.
Fig 7: Aligning Dot Marks Of Camshaft Timing Pulleys With Timing Marks Of No 4 Timing Belt Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the crankshaft pulley bolt.

HINT:

Re-using timing belt:

Place matchmarks on the timing belt and camshaft timing pulleys as shown in the illustration.

Fig 8: Placing Matchmarks On Timing Belt And Camshaft Timing Pulleys

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

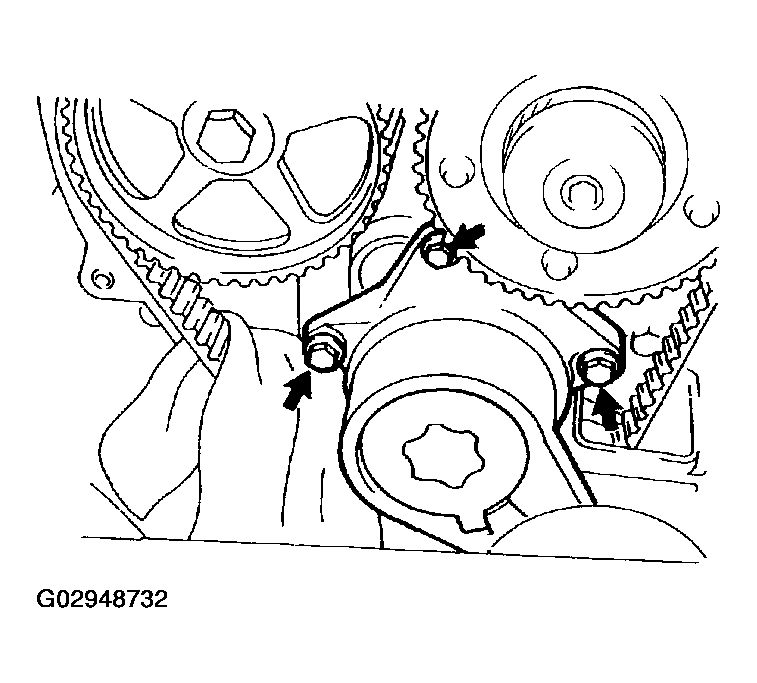

1. Alternately loosen the 2 bolts, and remove them, the tensioner and dust boot.
Fig 9: Removing Tensioner And Dust Boot
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the timing belt from the camshaft timing pulleys.

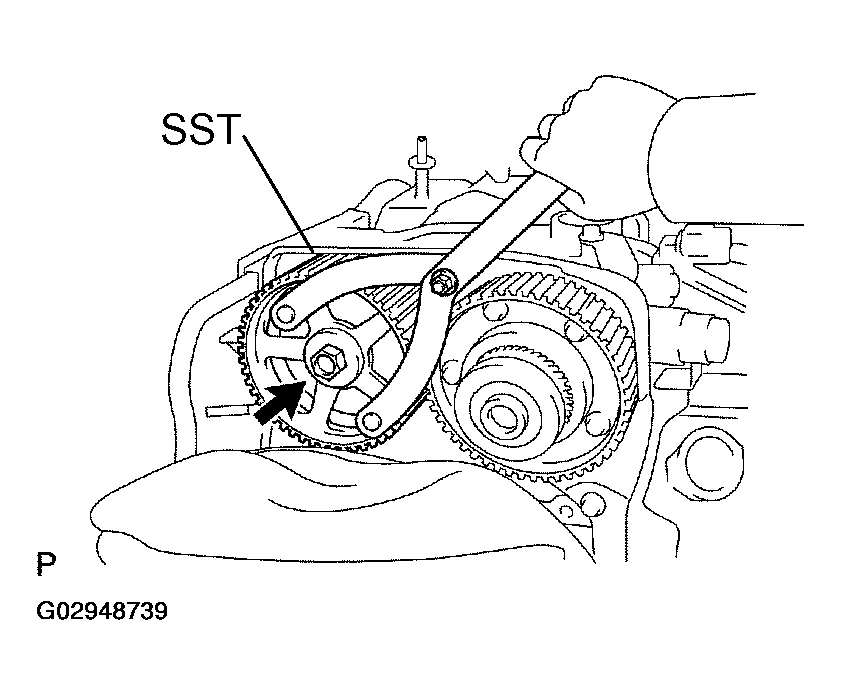

Using SST, remove the bolt and timing pulley.

SST 09960-10010 (09962-01000, 09963-01000)

Fig 10: Removing Exhaust Camshaft Timing Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 4 nuts and engine cover.

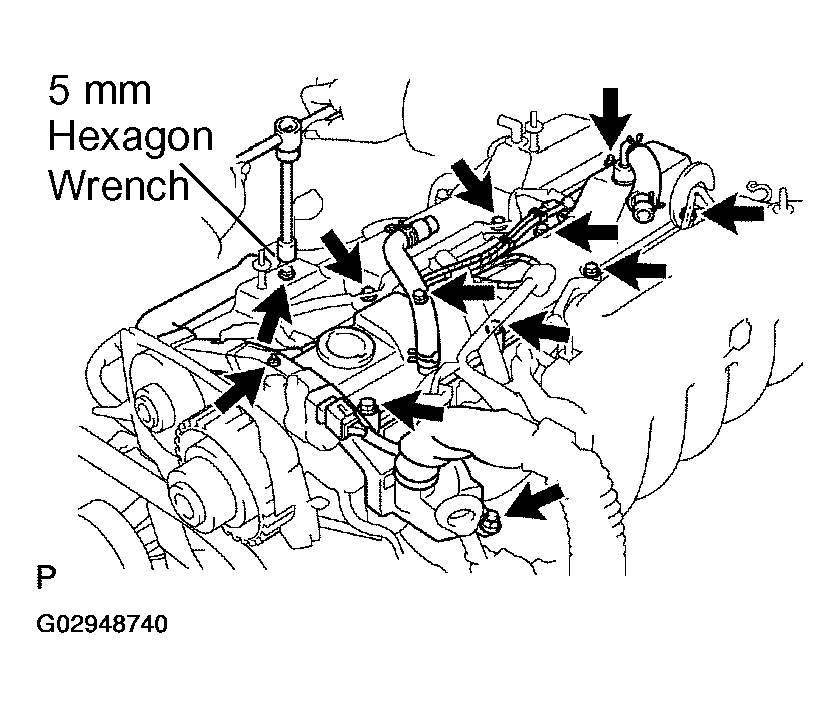

1. Using a 5 mm hexagon wrench, remove the bolts, and disconnect the engine wire protector from the No. 2 cylinder head cover.
Fig 11: Using 5 mm Hexagon Wrench To Remove Bolts And Disconnect Engine Wire Protector From No. 2 Cylinder Head Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut, and disconnect the engine wire protector from the intake manifold.
3. Remove the 2 bolts, and disconnect the high-tension cords with the clamp from the No. 2 cylinder head.
4. Remove the 2 nuts from the No. 1 cylinder head cover.

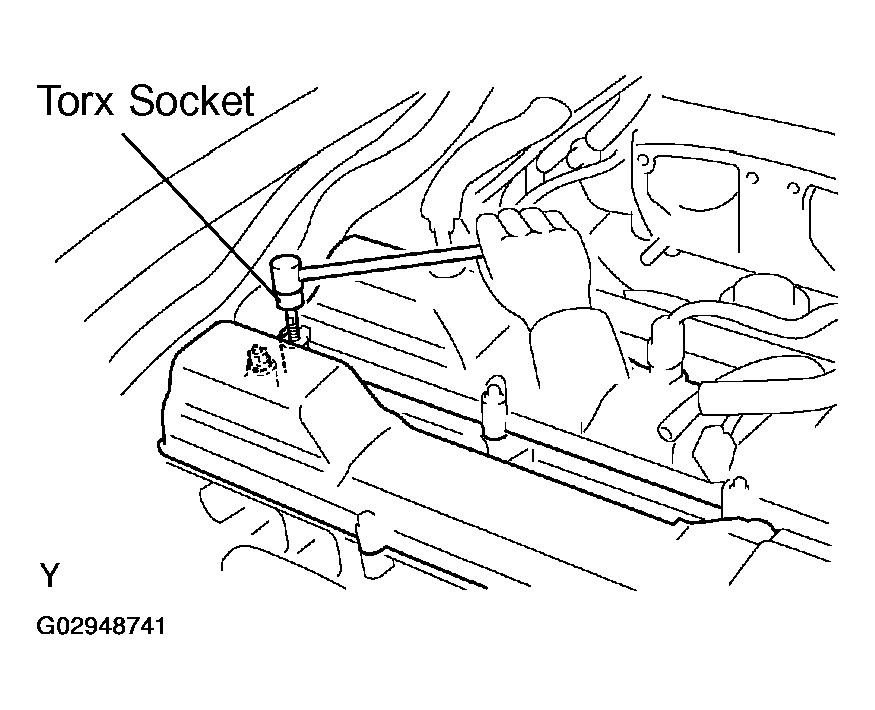

5. Using a torx socket (E5), remove the 2 stud bolts.
Fig 12: Using Torx Socket (E5) To Remove Stud Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 6 bolts, No. 1 cylinder head cover and gasket.

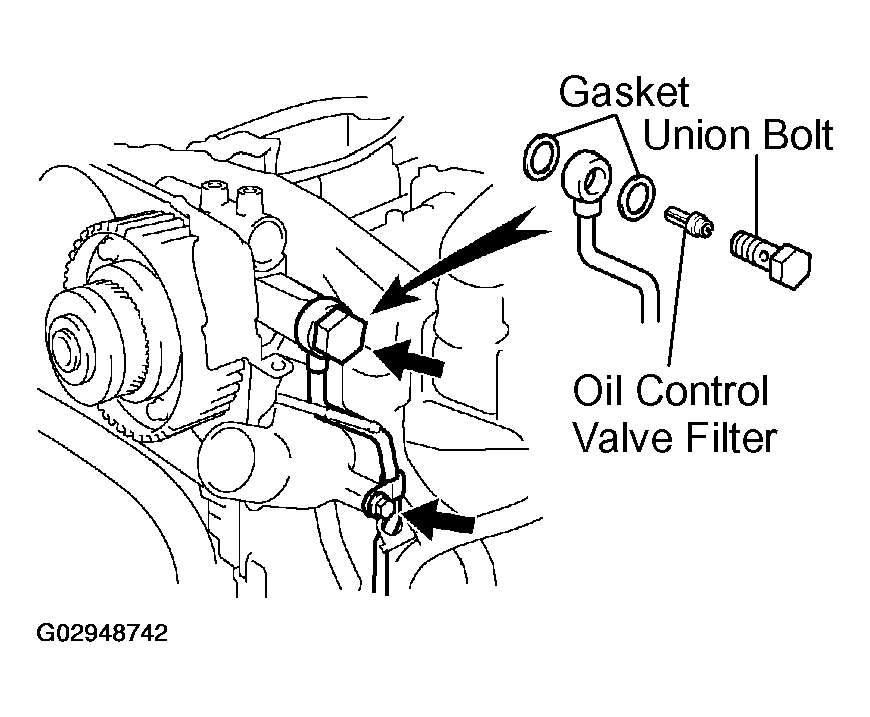

Remove the bolt, union bolt, oil control valve filter and 2 gaskets, and disconnect the No. 1 oil pipe from the No. 3 camshaft bearing cap.

Fig 13: Removing Union Bolt And Oil Control Valve Filter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

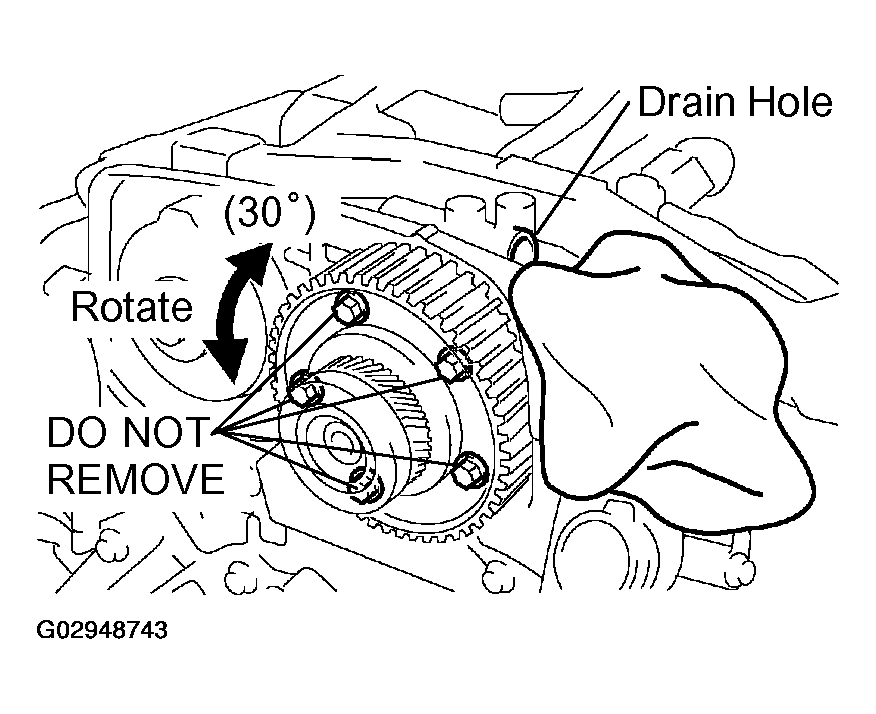

1. Rotate the VVT-i pulley from left to right 2 to 3 times within its range of movement (30°) and use a waste cloth to collect the oil from the camshaft timing oil control valve installation hole.
   NOTE: Approximately 20 cc (1.2 cu in.) of oil will be ejected, so take care not to spill it.
   Fig 14: Rotating VVT-I Pulley And Collecting Oil From Camshaft Timing Oil Control Valve Installation Hole

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

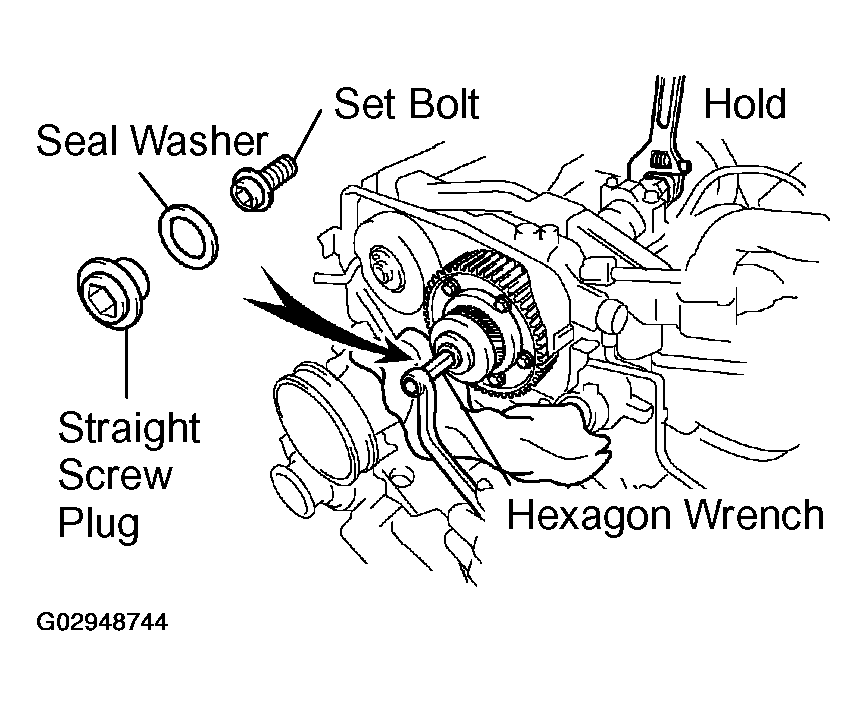

2. Holding the hexagon portion of camshaft with a wrench.
3. Using a 14 mm hexagon wrench, remove the straight screw plug and seal washer.
   NOTE: Some oil may spill, so put a waster cloth below the plug white doing the operation.
   Fig 15: Removing Straight Screw Plug And Seal Washer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a 10 mm hexagon wrench, and remove the set bolt and VVT-i pulley.
5. Remove the wrench.

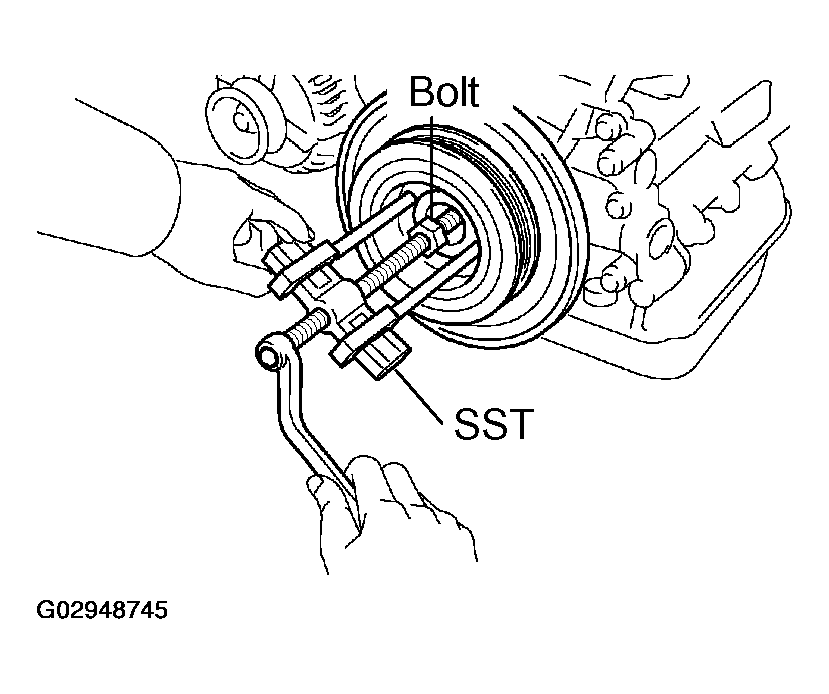

Using SST and bolt (diameter: 8 mm, pitch: 1.5 mm), remove the crankshaft pulley.

SST 09950-50013 (09951-05010, 09552-05010, 09553-05020, 09554-05031)

Bolt: Part No. 90119-18001

Fig 16: Using SST Bolt To Remove Crankshaft Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 5 bolts, timing belt cover and gasket.

HINT:

When re-using timing belt:

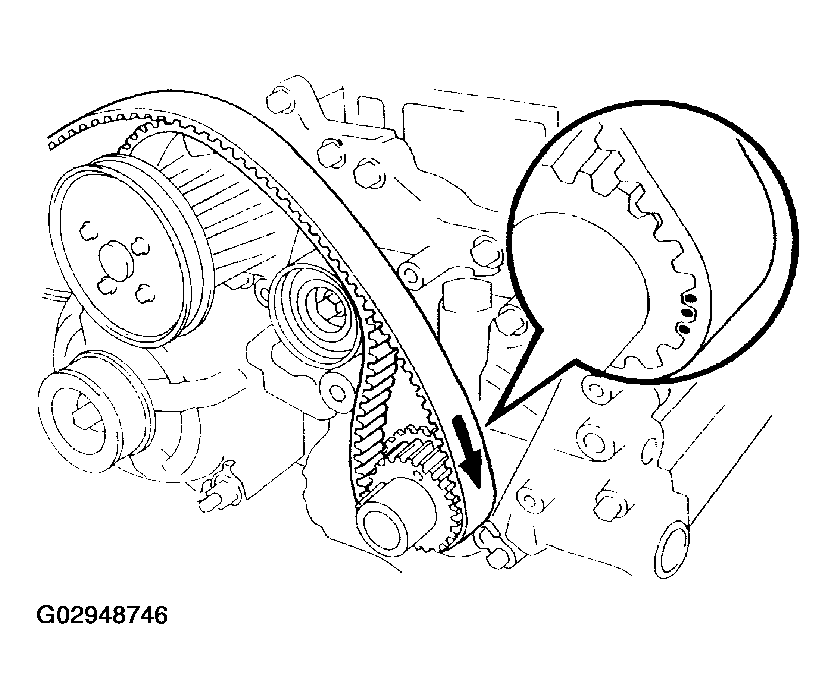

Draw an arrow on the timing belt in the direction of engine revolution, and place matchmarks on the timing belt and crankshaft timing pulley.

Fig 17: Drawing An Arrow On Timing Belt And Placing Matchmarks On Timing Belt And Crankshaft Timing Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

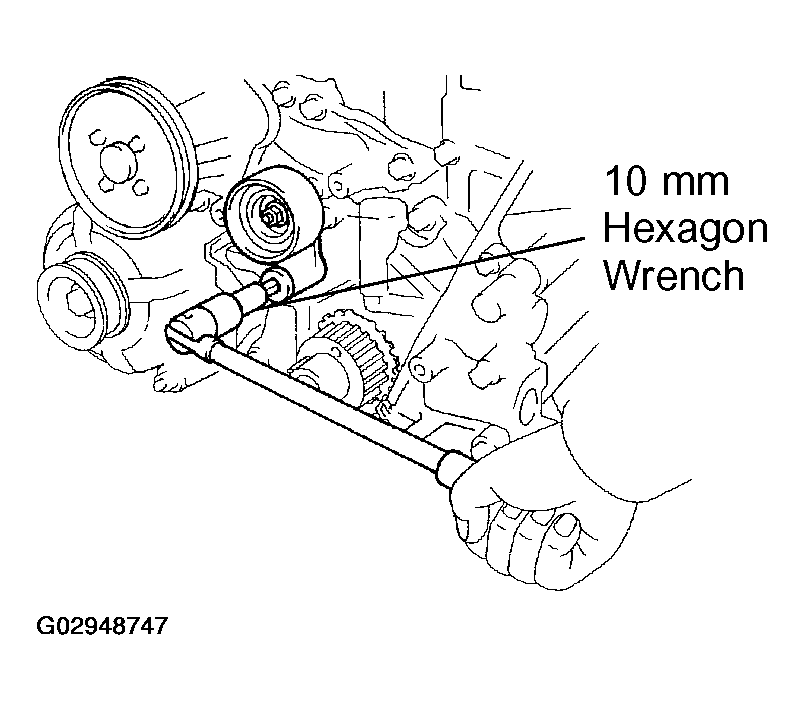

Using a 10 mm hexagon wrench, remove the pivot bolt, plate washer and idler pulley.

Fig 18: Using 10 mm Hexagon Wrench To Remove Pivot Bolt, Plate Washer And Idler Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and timing belt plate.
2. Remove the crankshaft timing pulley.

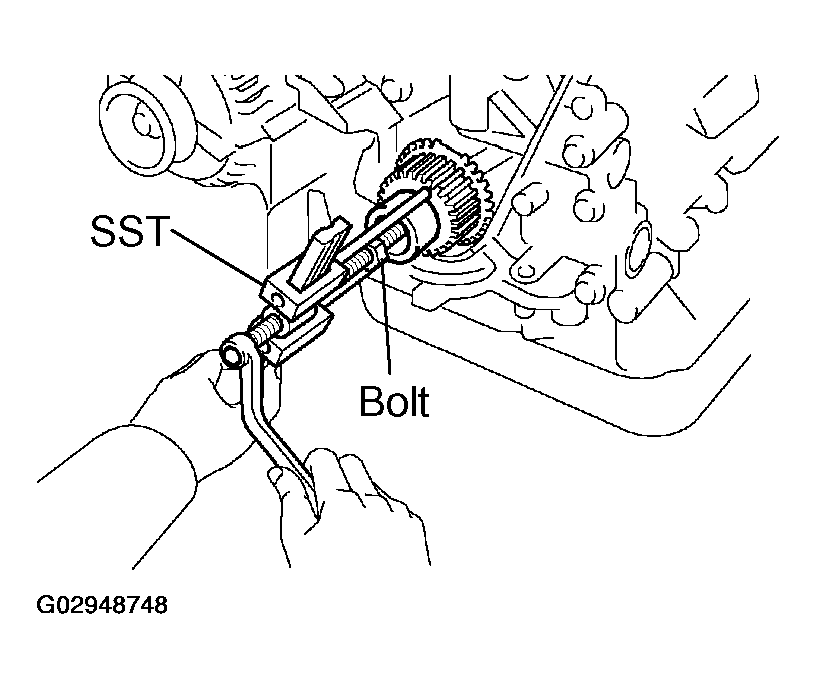

   If the pulley cannot be removed by hand, use SST and bolt (diameter: 8 mm, pitch: 1.5 mm) to remove the crankshaft timing pulley.

   SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05011)

   Bolt: Part No. 90119-18001

Fig 19: Removing Crankshaft Timing Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
