DTC P2111/P2112: Throttle Actuator Control System-Stuck Open/Closed
>>
Typical Enabling Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Conditions

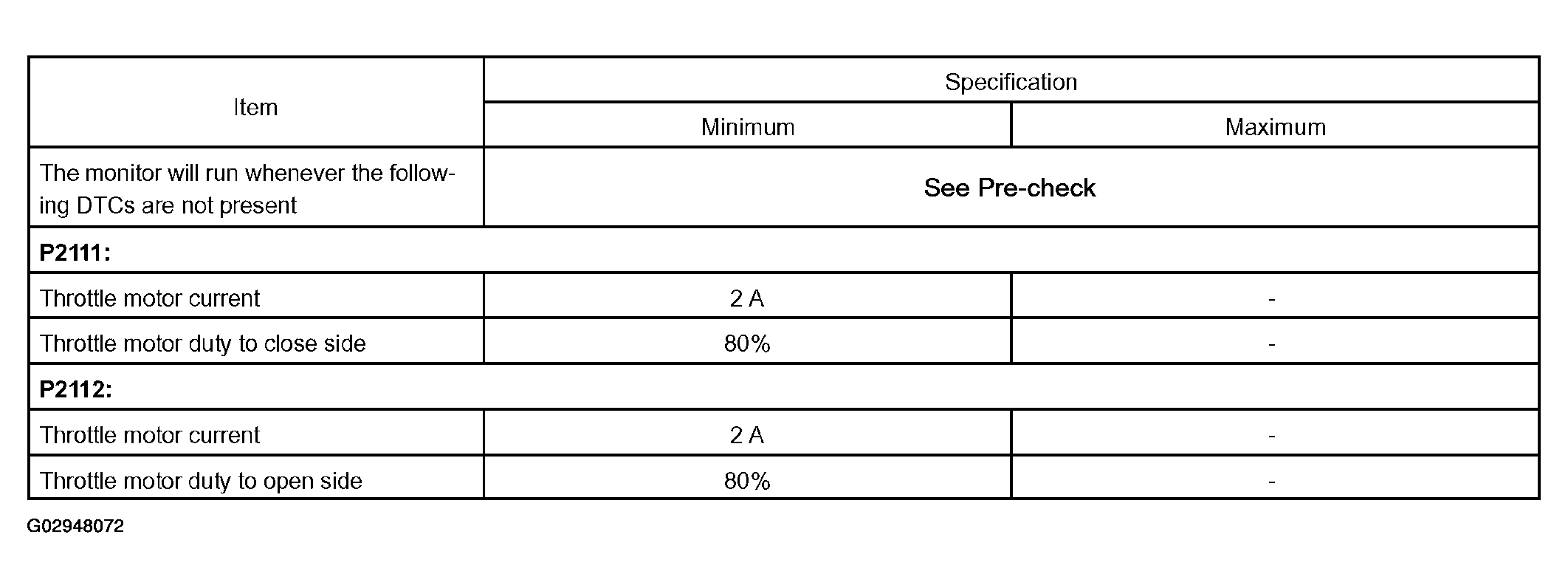

Fig 1: DTC P2111/P2112 Typical Enabling Conditions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
