SST (Special Service Tools)

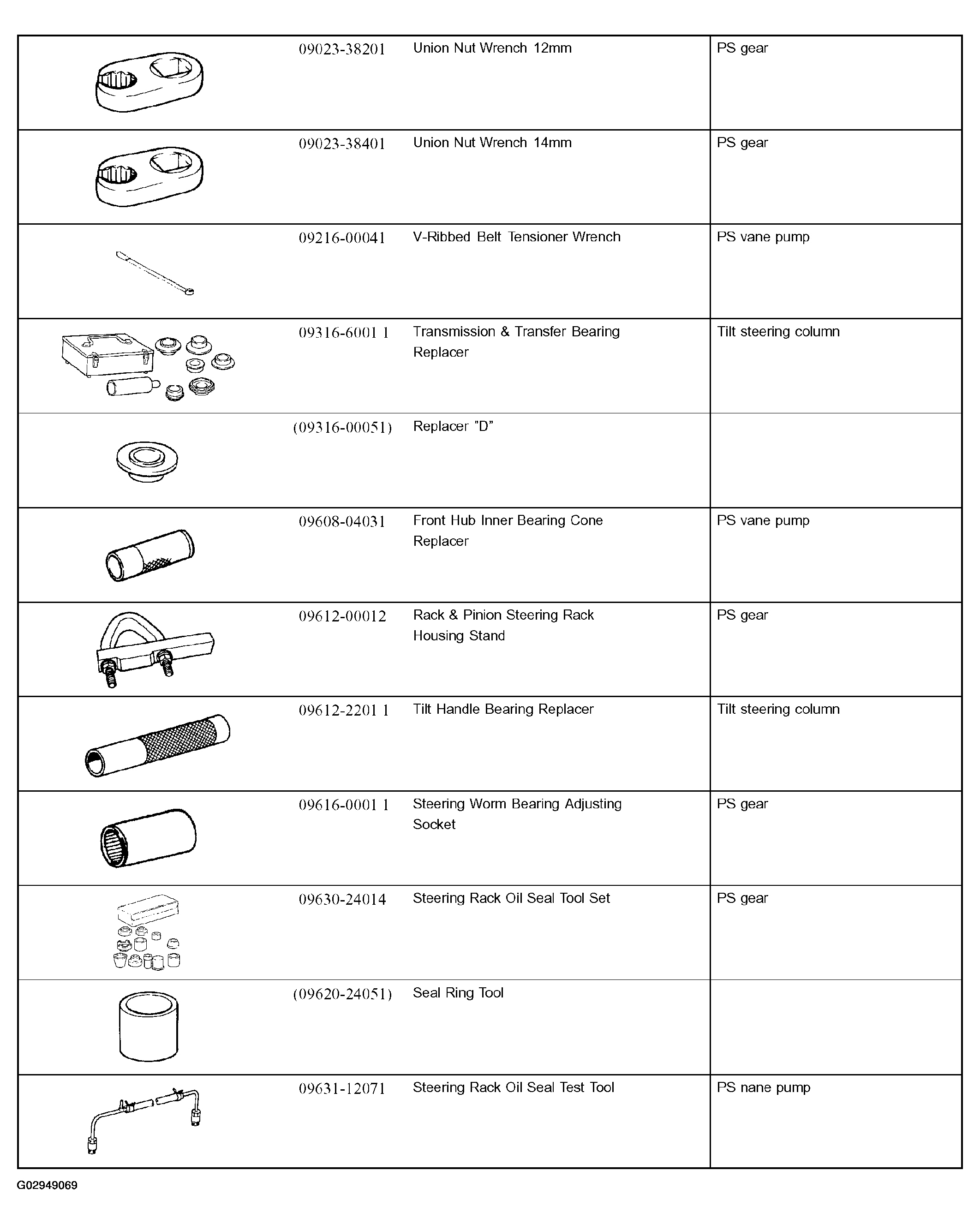

Fig 1: Identifying Special Service Tools - Steering (1 Of 4)
G02949069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

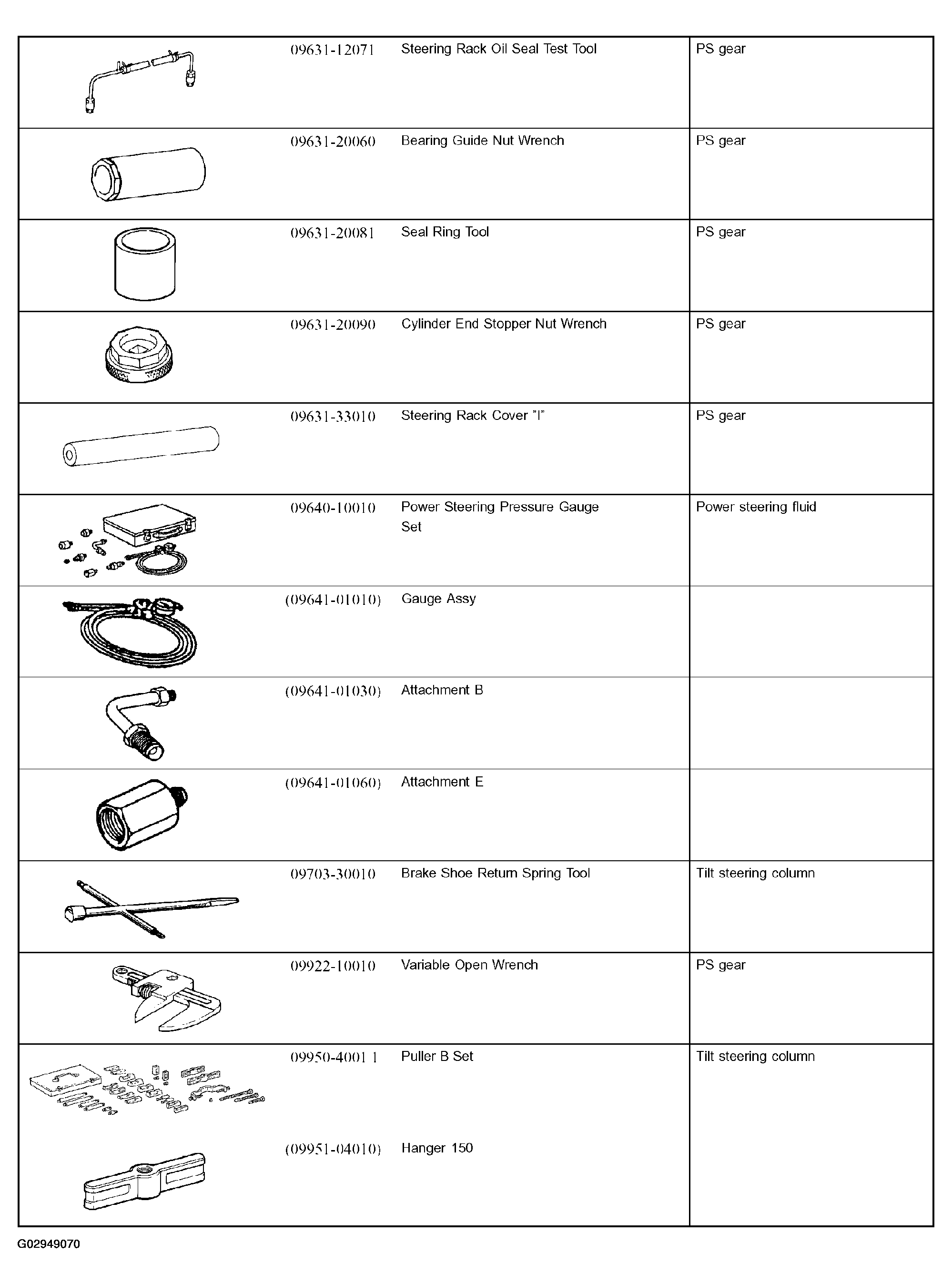

Fig 2: Identifying Special Service Tools - Steering (2 Of 4)
G02949070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Special Service Tools - Steering (3 Of 4)
G02949071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

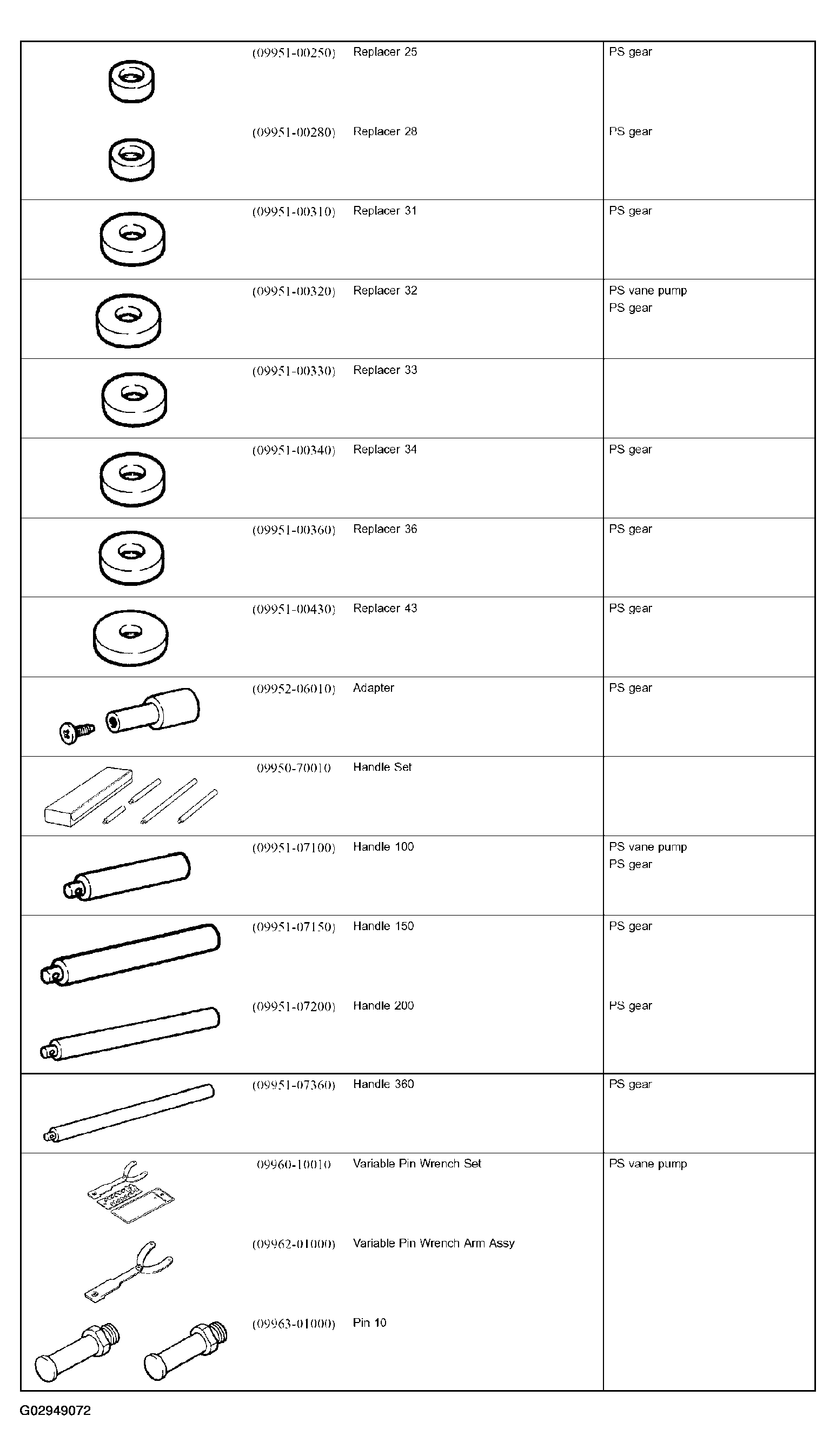

Fig 4: Identifying Special Service Tools - Steering (4 Of 4)
G02949072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
