Vehicle Lift And Support Locations

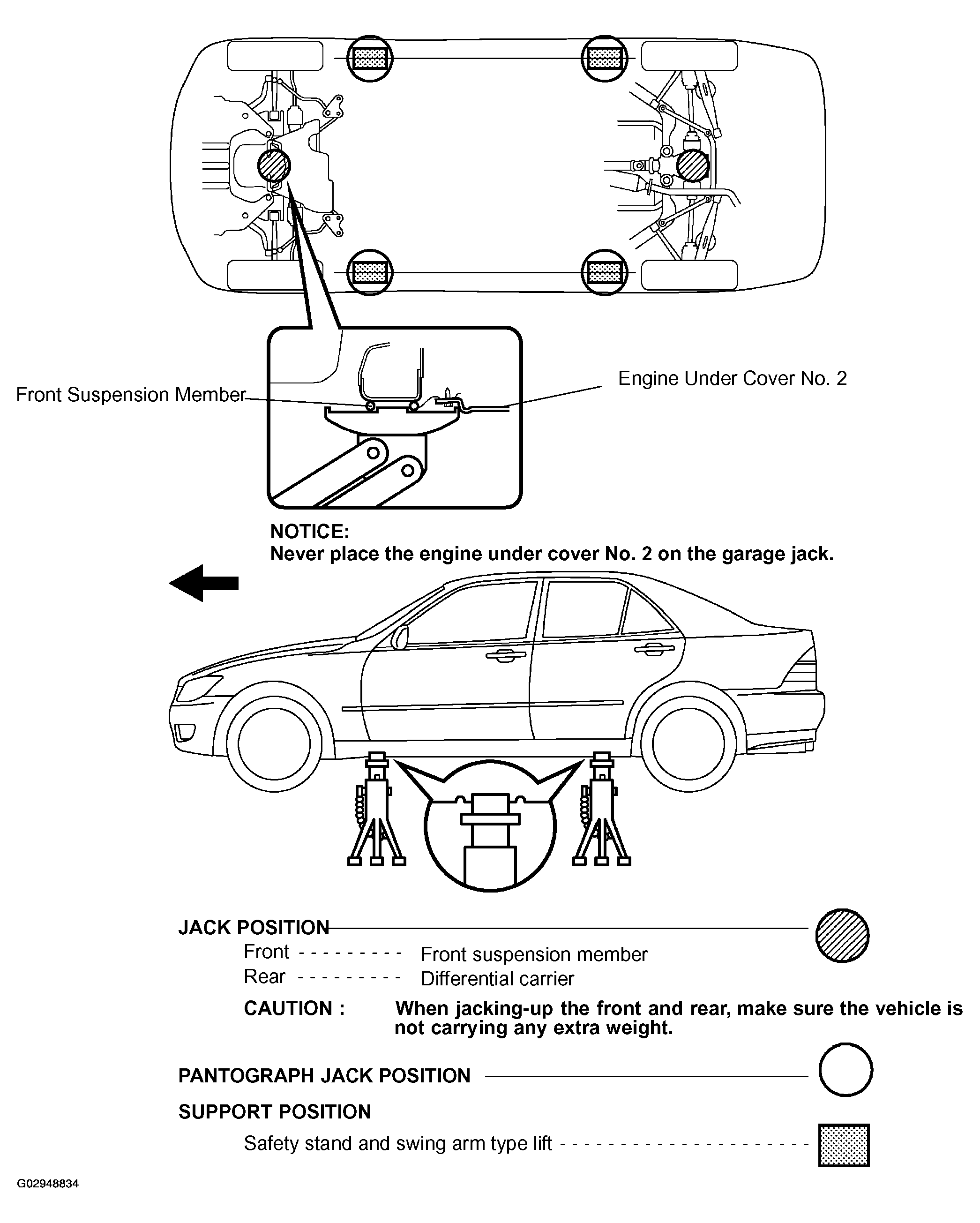

Fig 1: Locating Vehicle Lift And Support
G02948834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

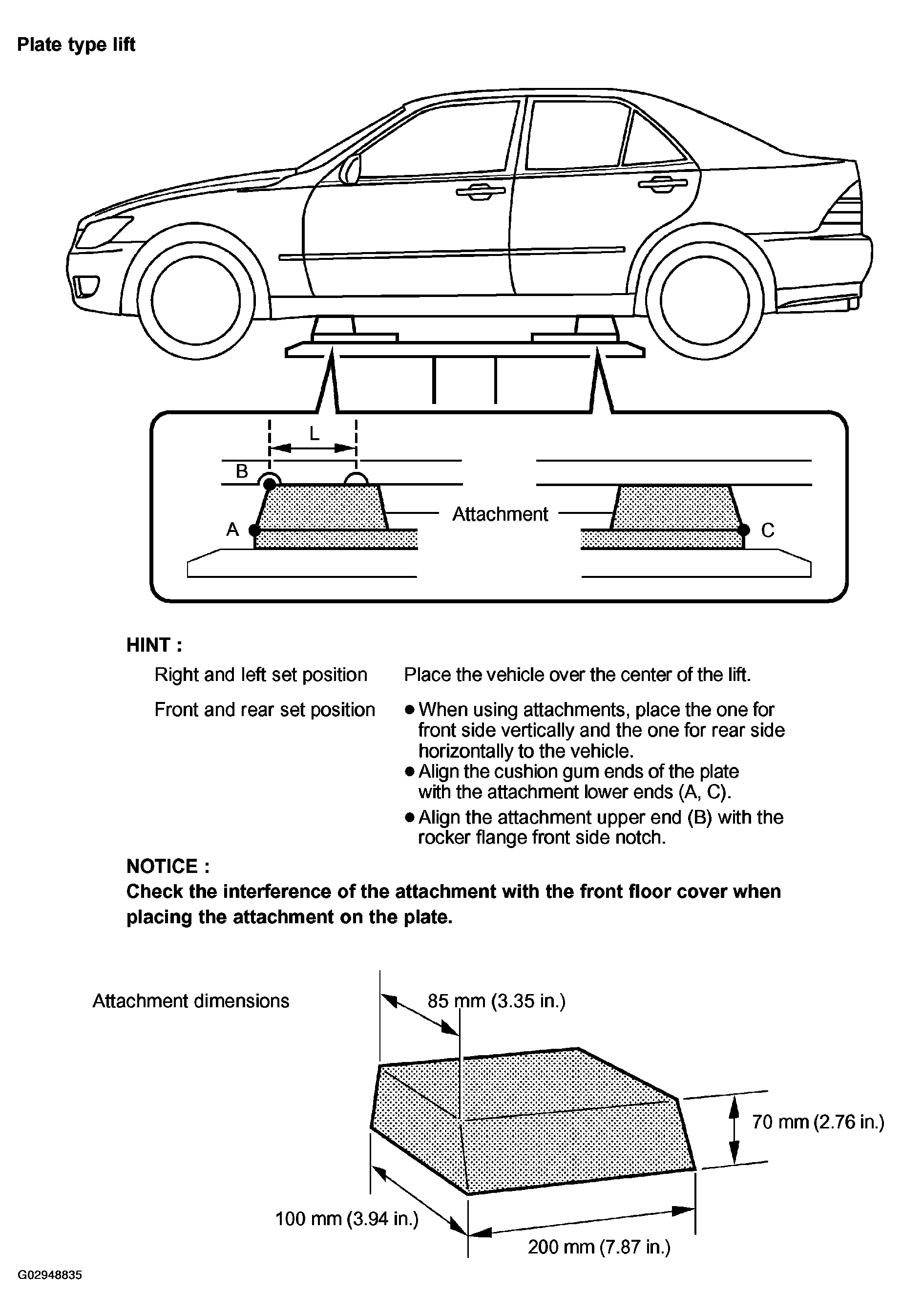

Fig 2: Locating Vehicle Lift And Support (Plate Type Lift)
G02948835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
