Diagnostic Trouble Code Chart
If a DTC is displayed during the DTC check, check the circuit listed in the table below.

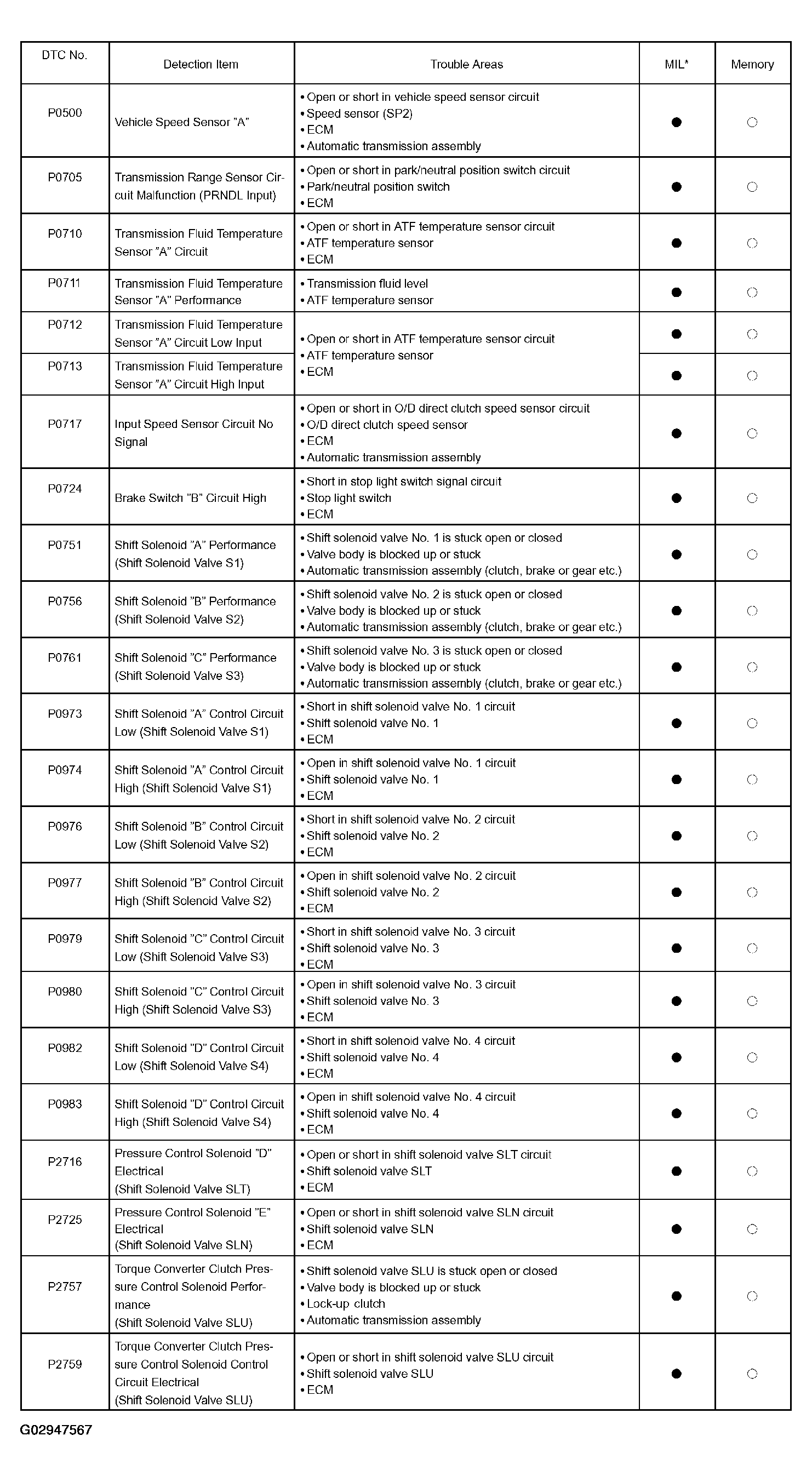

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC P0705 | Transmission Range Sensor Circuit Malfunction (PRNDL Input) |
| DTC P0710, P0712, P0713 | Transmission Fluid Temperature Sensor "A" Circuit, Transmission Fluid Temperature Sensor "A" Circuit Low/High Input |
| DTC P0711 | Transmission Fluid Temperature Sensor "A" Performance |
| DTC P0717 | Input Speed Sensor Circuit No Signal |
| DTC P0724 | Brake Switch "B" Circuit High |
| DTC P0751, P0756, P0761 | Shift Solenoid "A" Performance (Shift Solenoid Valve S1)/(Shift Solenoid Valve S2)/(Shift Solenoid Valve S3) |
| DTC P0973, P0974, P0976, P0977, P0979, P0980 | Shift Solenoid "A"/"B"/"C" Control Circuit Low/High (Shift Solenoid Valve S1/)/(Shift Solenoid Valve S2)/(Shift Solenoid Valve S3) |
| DTC P0982, P0983 | Shift Solenoid "D" Control Circuit Low/High (Shift Solenoid Valve S4) |
| DTC P2716 | Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT) |
| DTC P2725 | Pressure Control Solenoid "E" Electrical (Shift Solenoid Valve SLN) |
| DTC P2757 | Torque Converter Clutch Pressure Control Solenoid Performance(Shift Solenoid Valve SLU) |
| DTC P2759 | Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical |
HINT:
This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
