Automatic Transmission - Diagnostics
>>
How To Proceed With Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
How To Proceed With Troubleshooting

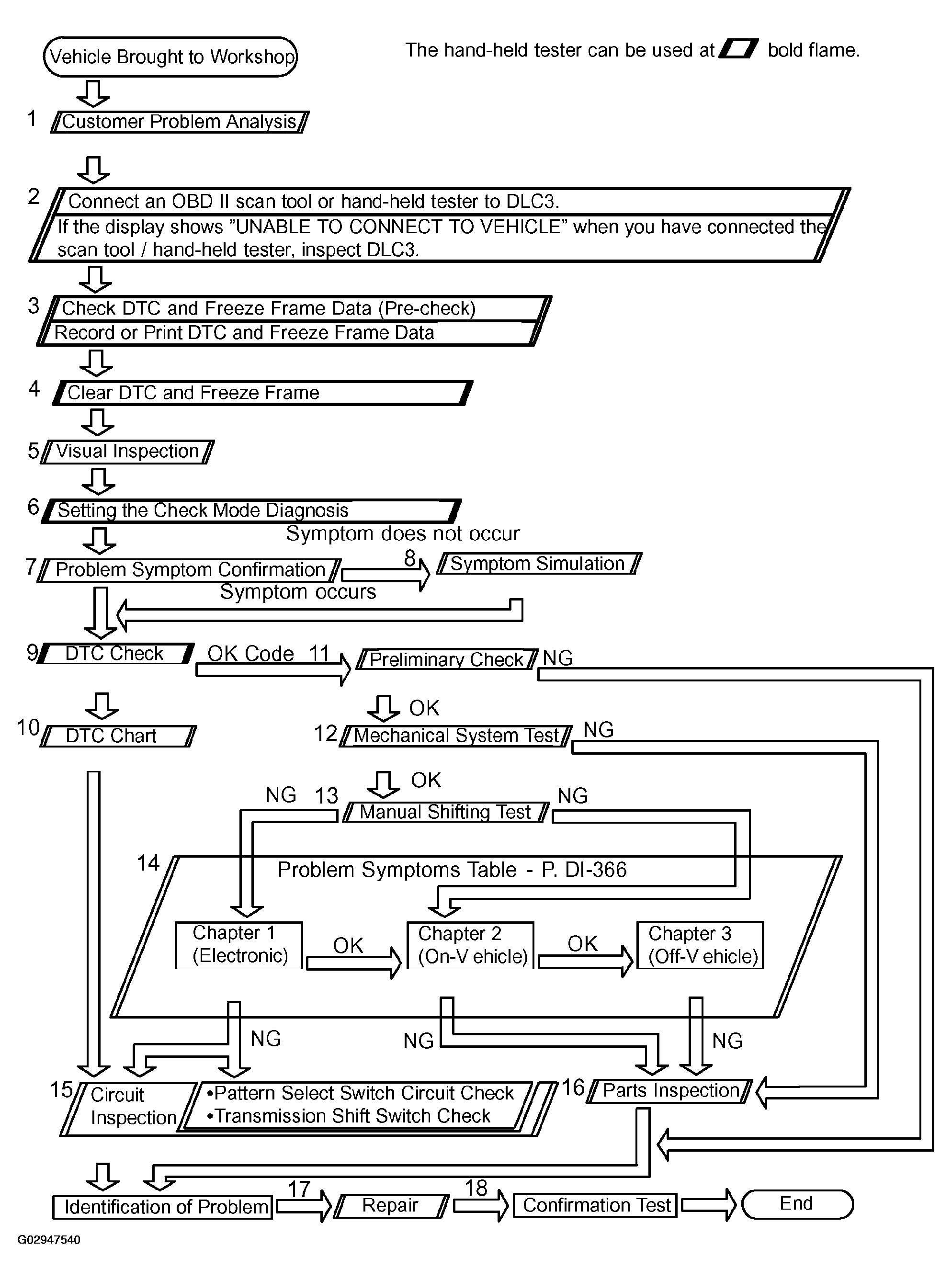

Fig 1: Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
