Inspection Procedure

NG: Replace the shift lock control ECU (E-shift main switch) (See  FLOOR SHIFT ASSEMBLY  ).

OK: Go to next step.

PREPARATION:

1. Turn the ignition switch to ON.
2. Shift the shift lever into the M position.

CHECK:

Check the odo trip display panel when the transmission shift switch is pressed.

OK:

NG: Go to step 3.

OK: Replace the ECM (See  ENGINE CONTROL MODULE (ECM)  ).

PREPARATION:

1. Turn ignition switch to ON.
2. Remove the ECM with connectors still connected.

CHECK:

Check voltage between each terminal of SFTU or SFTD and E1 of ECM.

OK:

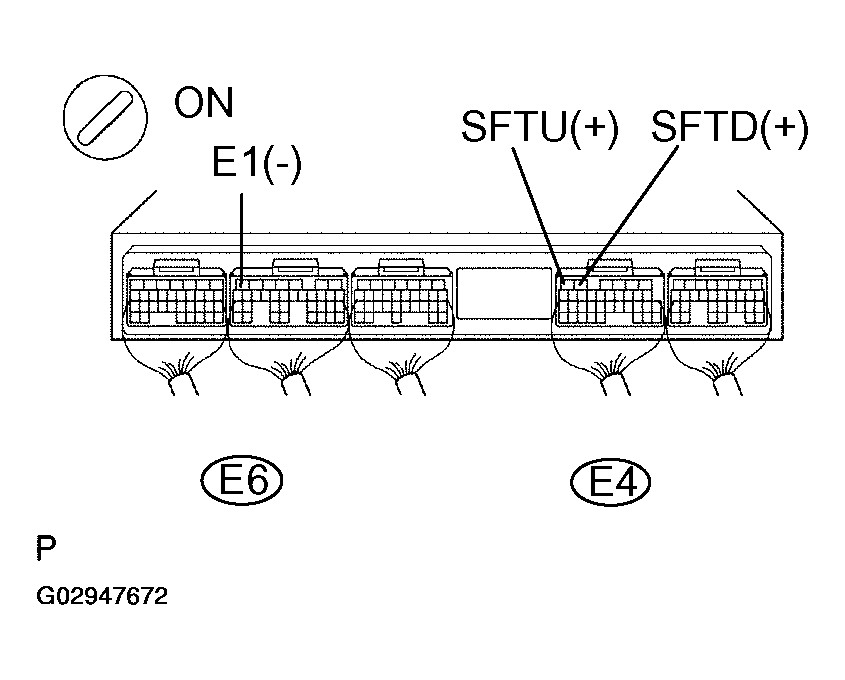

Fig 1: Checking Voltage Between Each Of Terminals SFTU, SFTD And E1 Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 4.

OK: Proceed to next circuit inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).

PREPARATION:

1. Remove the steering wheel pad.
2. Disconnect the transmission shift switch connector.

CHECK:

Check resistance between each terminal of transmission shift switch connector.

OK:

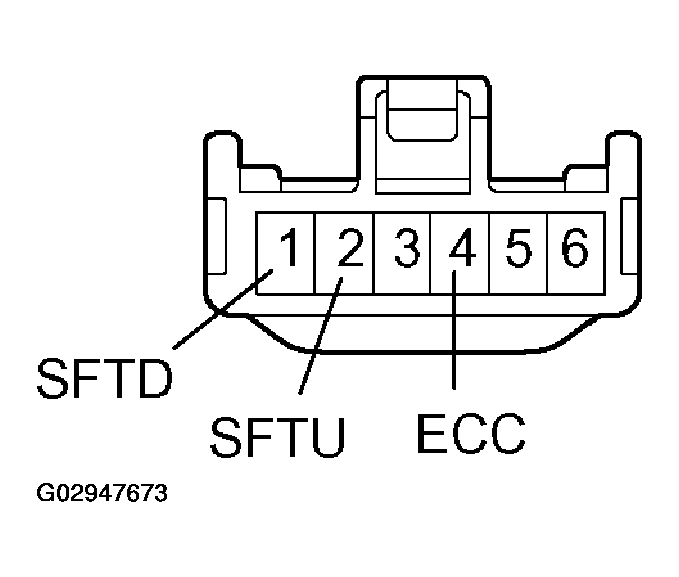

Fig 2: Checking Transmission Shift Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Replace the transmission shift switch (See  TILT STEERING COLUMN  1).

OK: Repair or replace harness or connector (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
