Terminals Of ECM

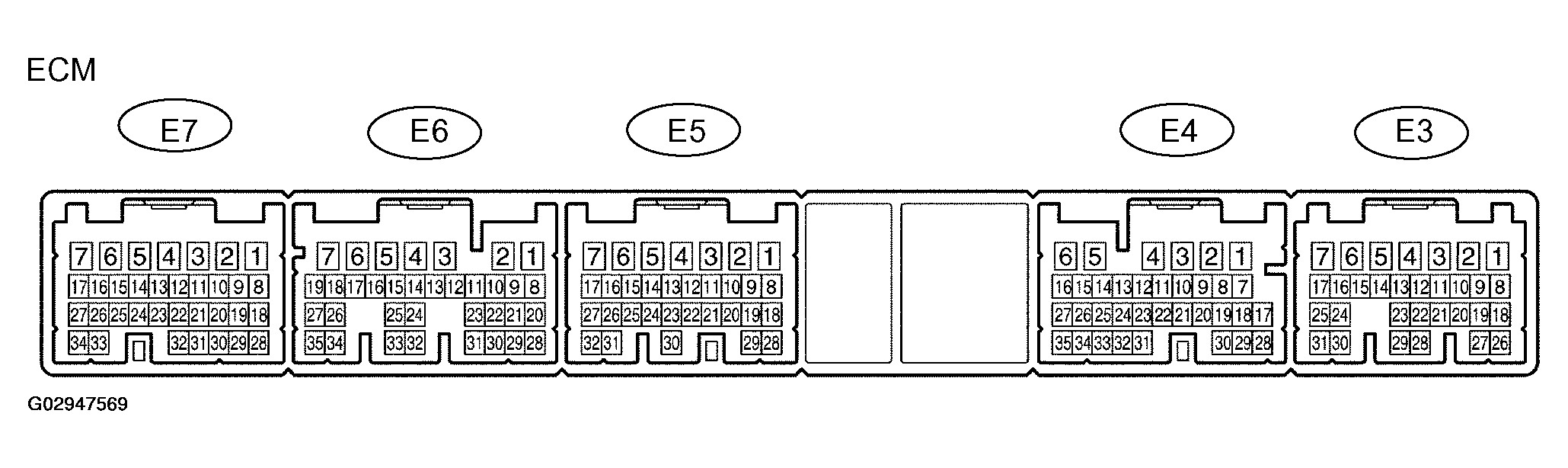

Fig 1: Identifying Connector Terminals ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Each ECM terminals standard normal voltage is shown in Fig 2

Look under "Symbols (Terminals No.)" for the terminals to be inspected.

The standard normal voltage between the terminals is shown under "STD Voltage".

Use Fig 1 as a reference for the ECM terminals.

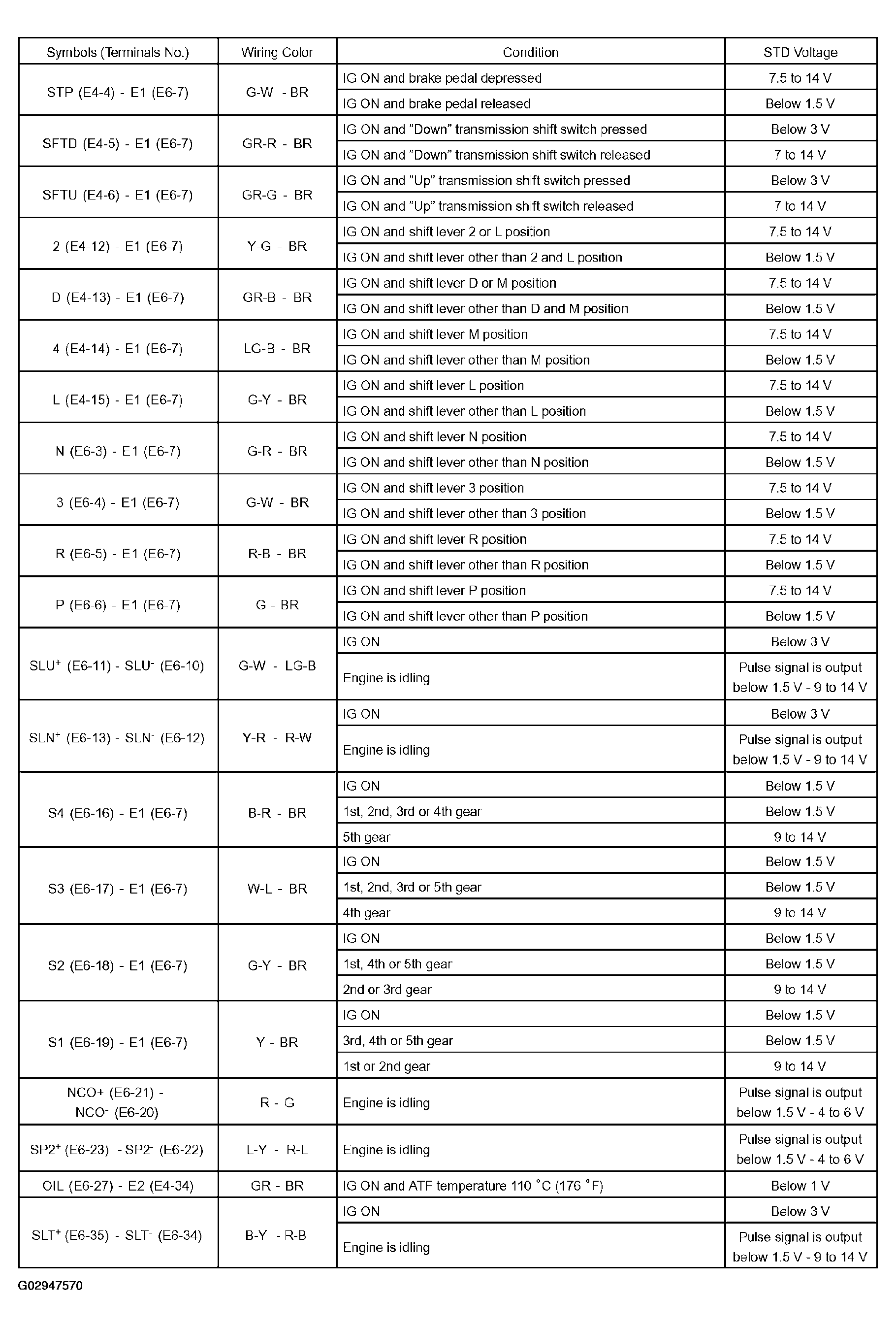

Fig 2: ECU Terminals Standard Normal Voltage Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
