Wireless Door Lock Control System: Pre-Check

Only wireless function (Remote control) will not operate.

(If a new transmitter or a transmitter of the same type that works properly with the vehicle is not available.)

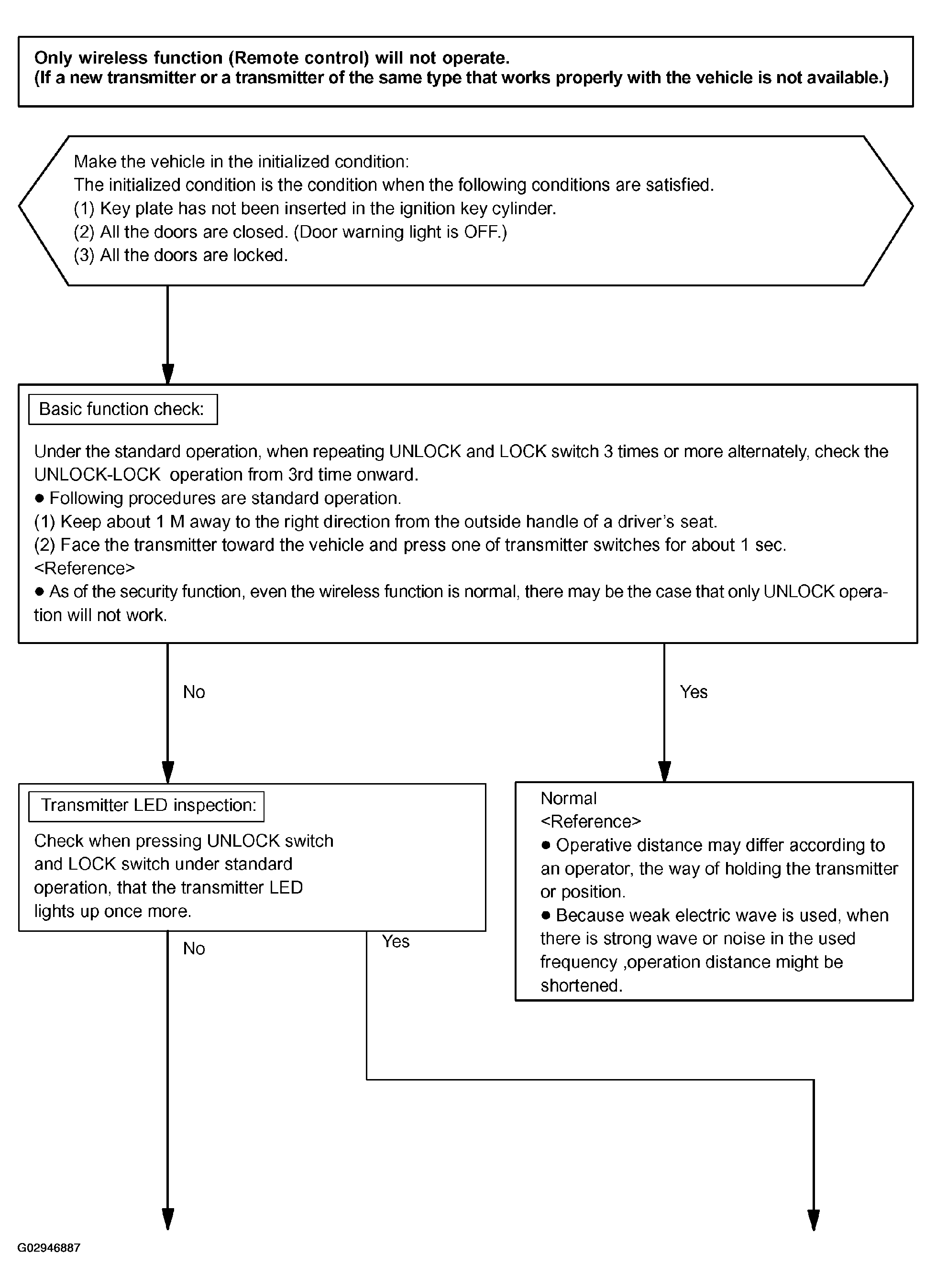

Fig 1: Diagnostic Flow Chart - Wireless Door Lock Control System (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

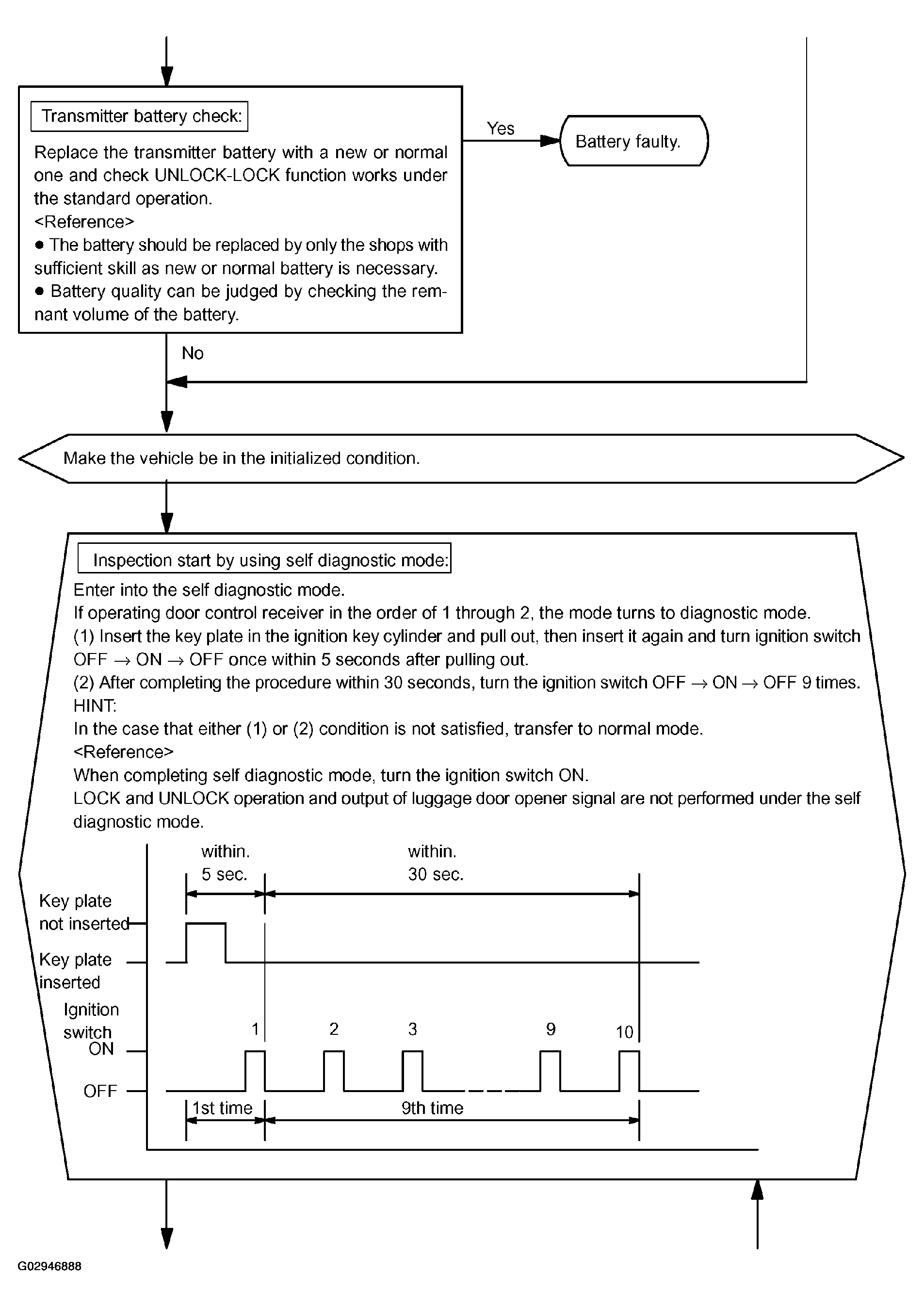

Fig 2: Diagnostic Flow Chart - Wireless Door Lock Control System (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

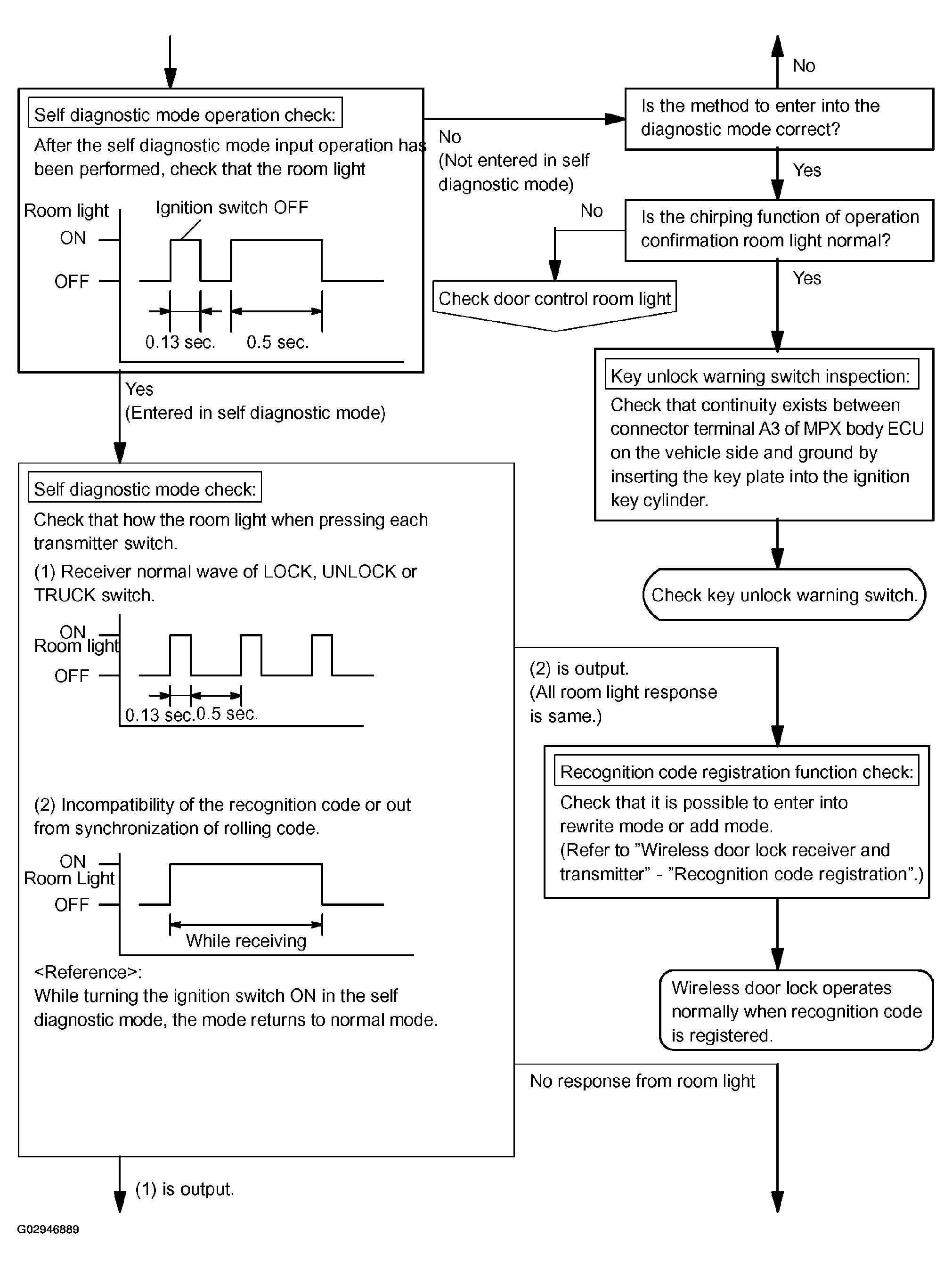

Fig 3: Diagnostic Flow Chart - Wireless Door Lock Control System (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

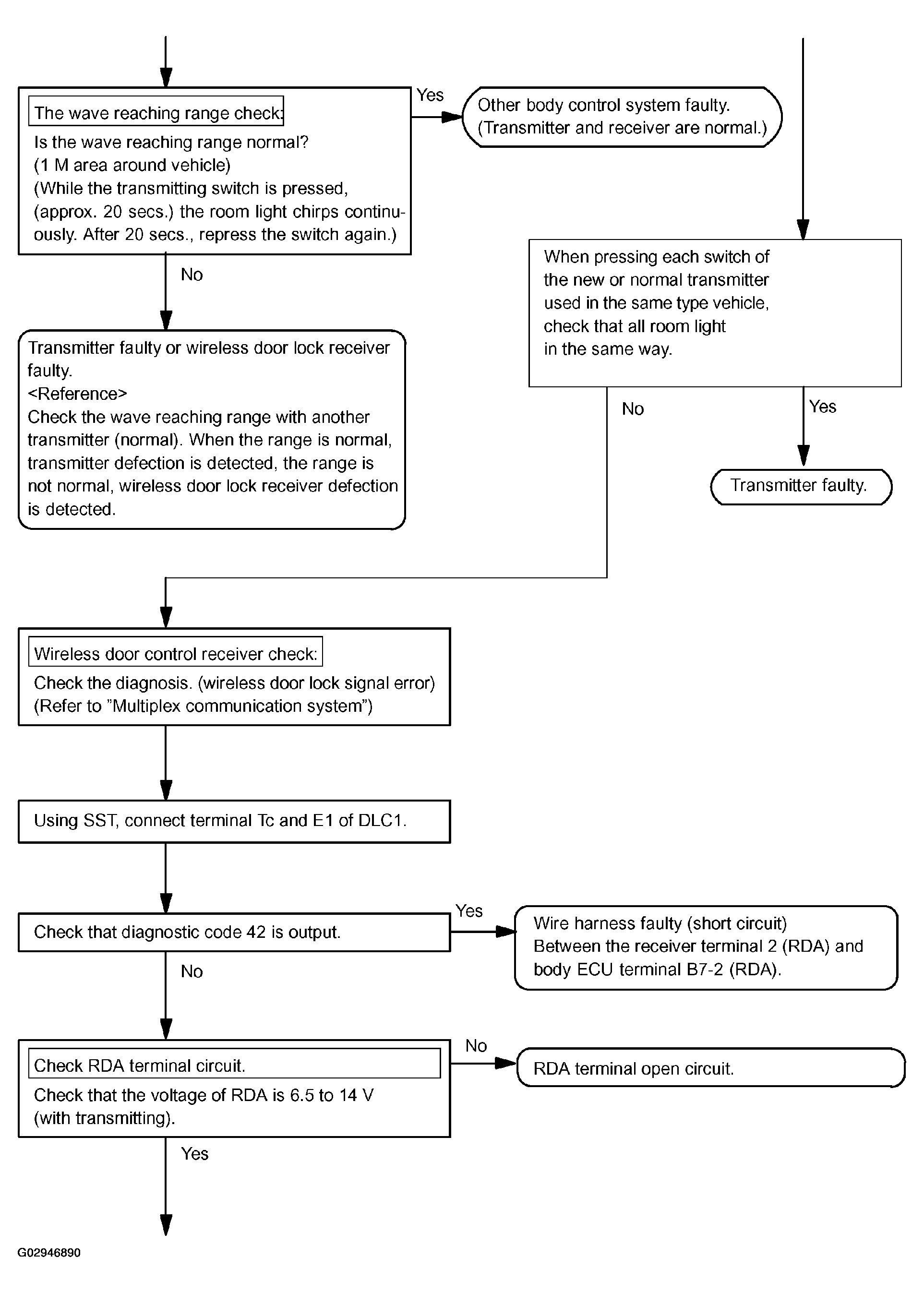

Fig 4: Diagnostic Flow Chart - Wireless Door Lock Control System (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

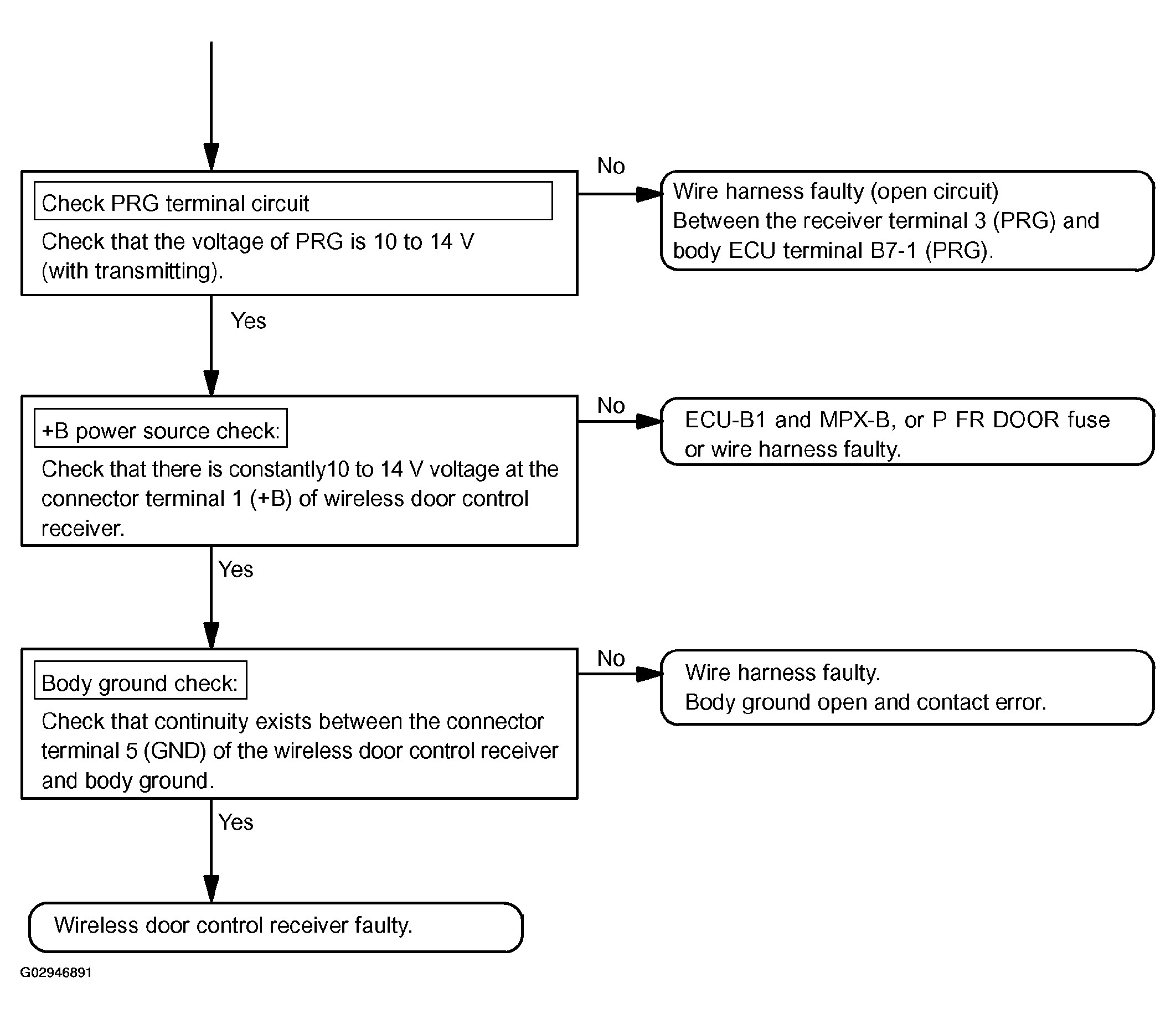

Fig 5: Diagnostic Flow Chart - Wireless Door Lock Control System (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
