Power Seat Control System

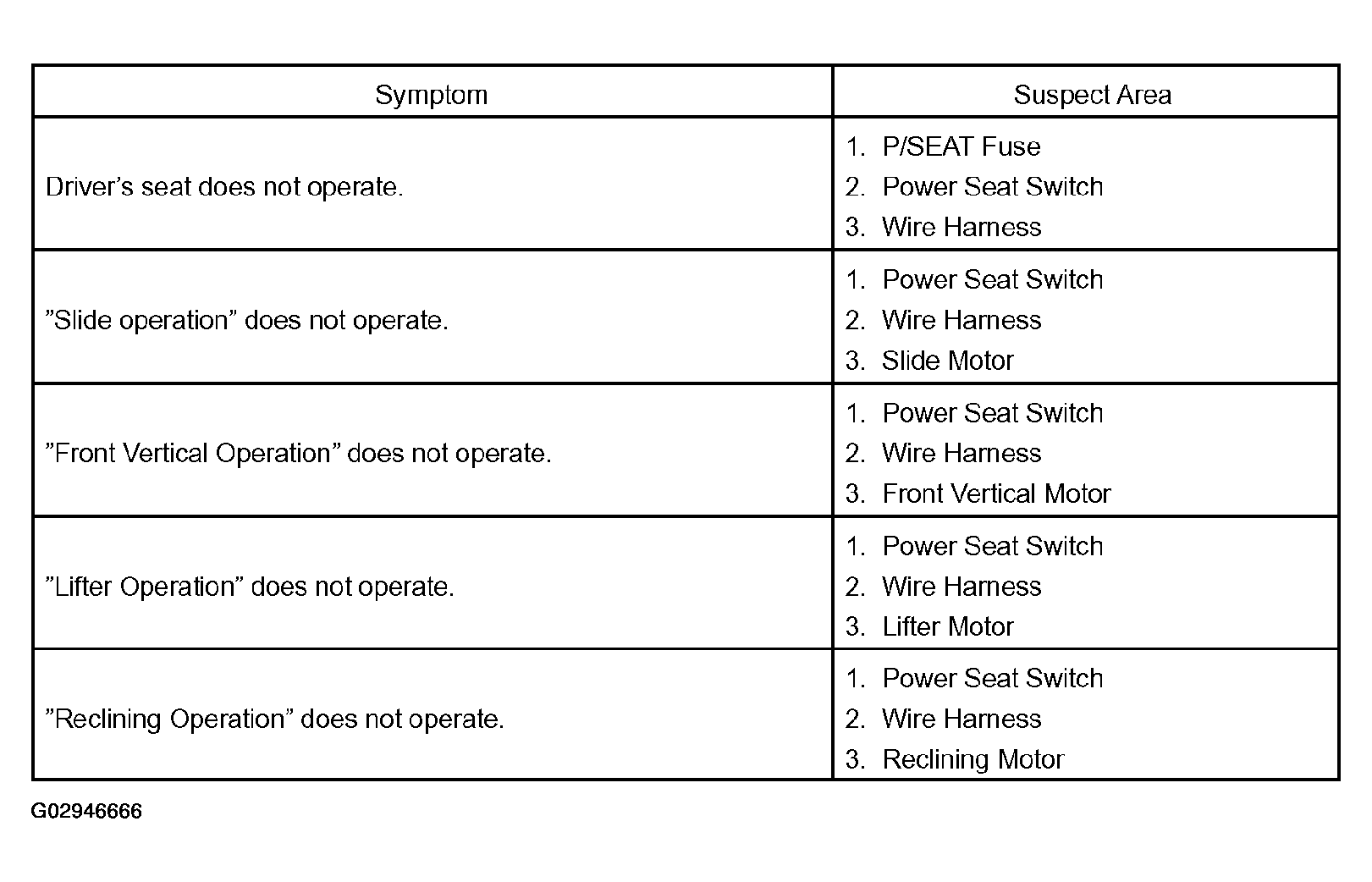

Fig 1: Problem Symptoms Chart - Power Seat Control System
G02946666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(D): Driver's Seat

(P): Passenger's Seat
