Charging Systems: Charging: Generator: Disassembly

  1. REMOVE REAR END COVER
    1. Remove the nut and terminal insulator.

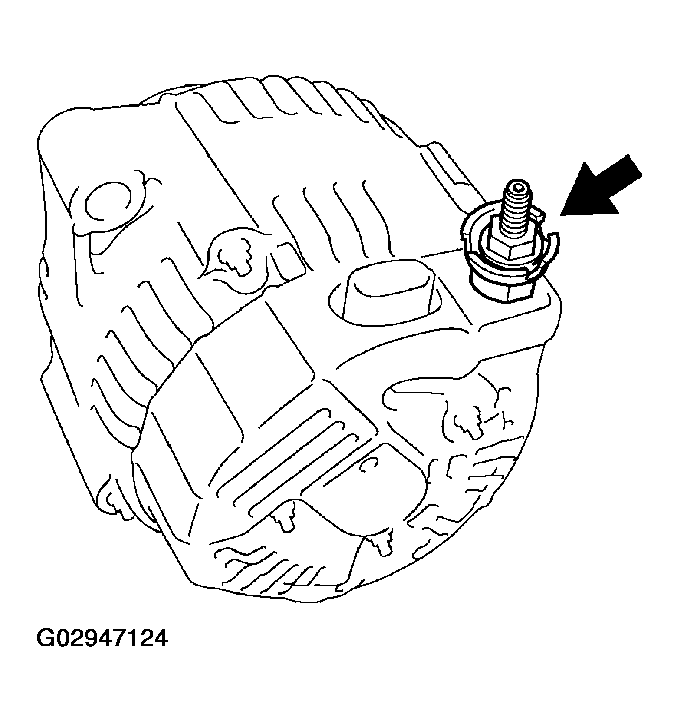

      Fig 1: Removing Nut & Terminal Insulator
      G02947124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 3 nuts, plate terminal, end cover and brush holder cover.

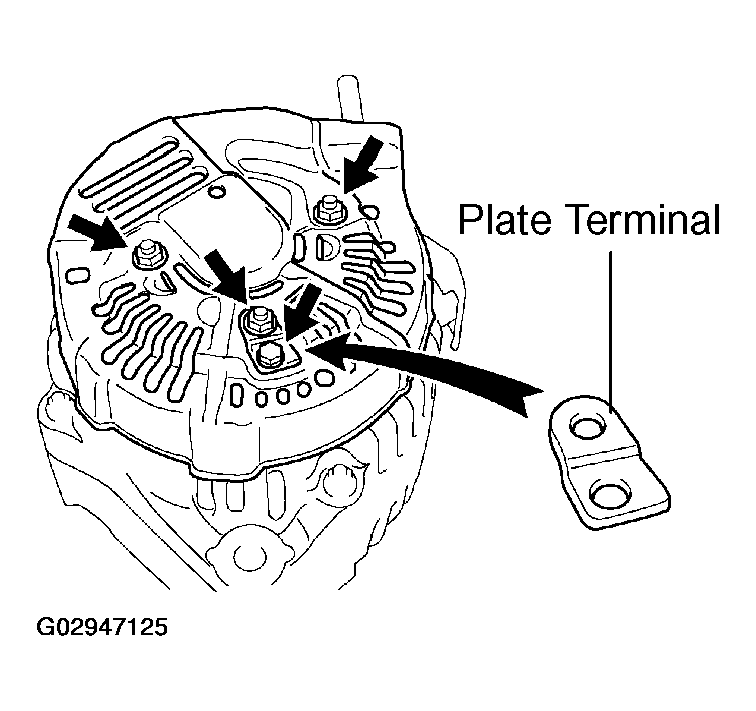

      Fig 2: Removing Bolt, Nuts, Plate Terminal, End Cover & Brush Holder Cover
      G02947125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BRUSH HOLDER AND VOLTAGE REGULATOR
    1. Remove the 5 screws, brush holder and voltage regulator.
    2. Remove the seal plate from the rectifier end frame.

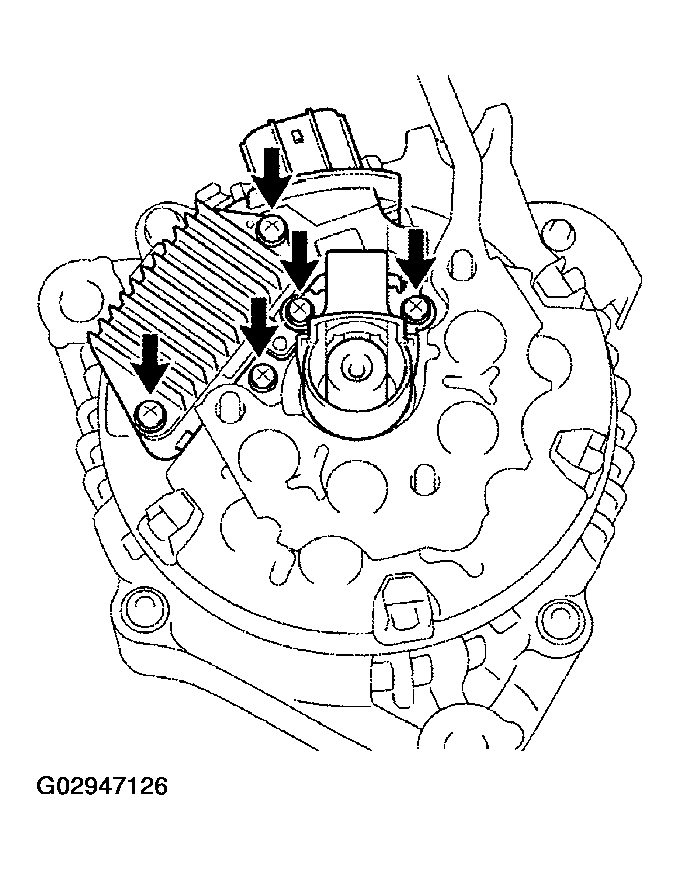

      Fig 3: Removing Brush Holder & Voltage Regulator
      G02947126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE RECTIFIER HOLDER
    1. Remove the 4 screws and rectifier holder.
    2. Remove the 4 rubber insulators.

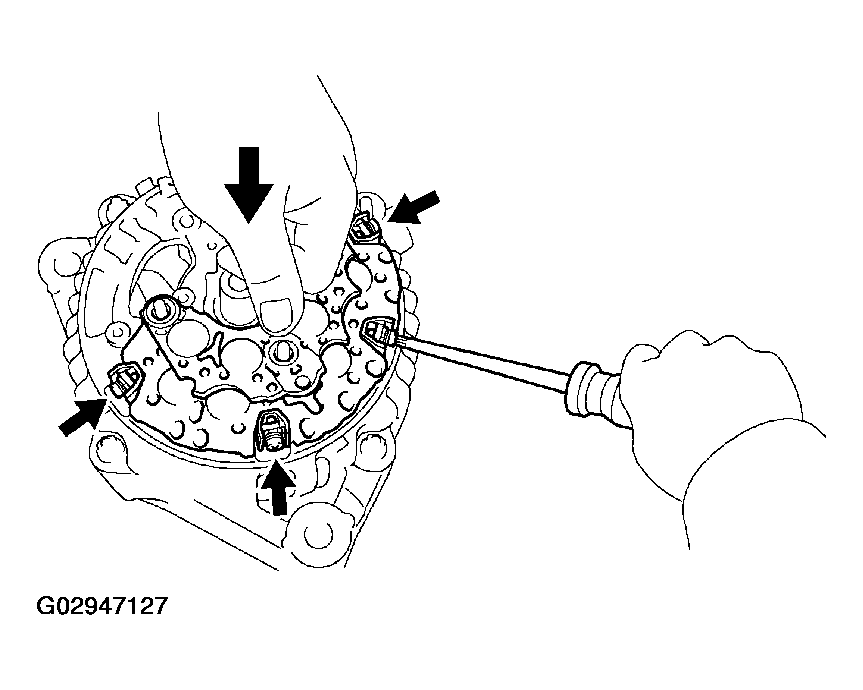

      Fig 4: Removing Rectifier Holder
      G02947127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE PULLEY
    1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
      1. SST 09820-6301 1
      2. Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

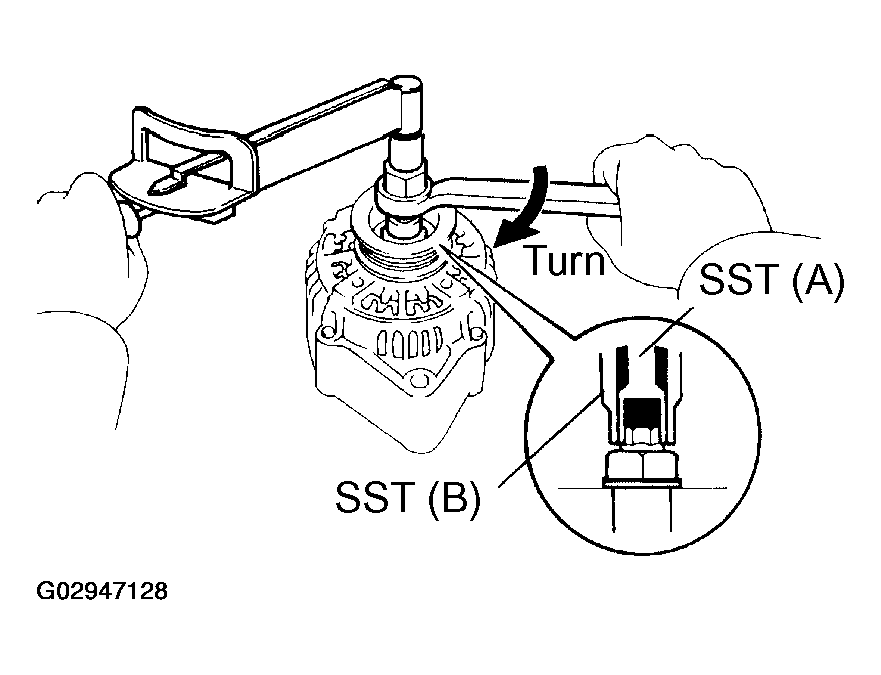

      Fig 5: Tightening SST Clockwise
      G02947128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that SST (A) is secured to the rotor shaft.
    3. Mount SST (C) in a vise.

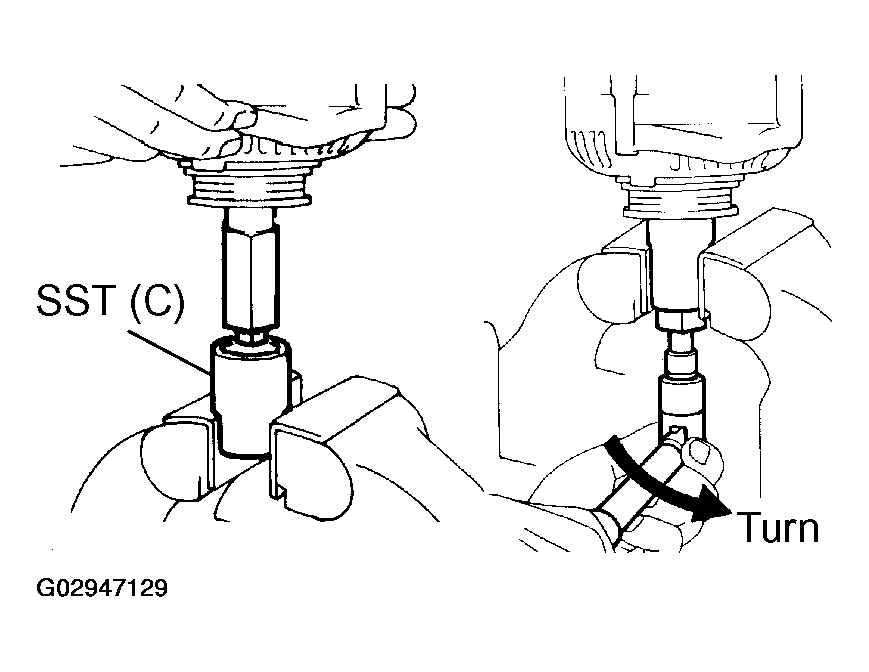

      Fig 6: Mounting SST In Vise
      G02947129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).
    5. To loosen the pulley nut, turn SST (A) in the direction shown in the illustration.
      NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half of a turn.
    6. Remove the generator from SST (C).
    7. Turn SST (B), and remove SST (A and B).

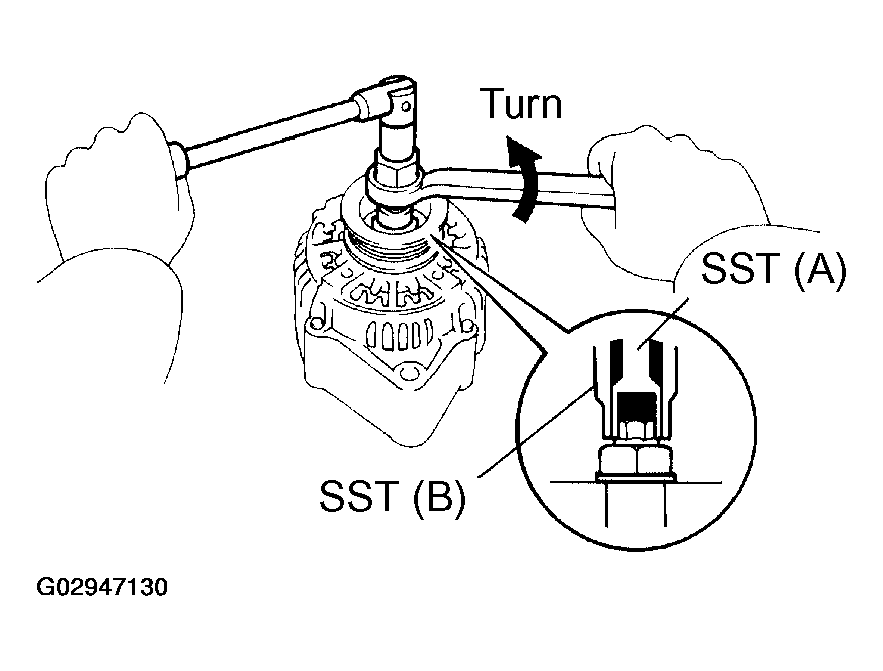

      Fig 7: Turning & Removing SST
      G02947130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the pulley nut and pulley.
  5. REMOVE RECTIFIER END FRAME
    1. Remove the 4 nuts and wire clip.

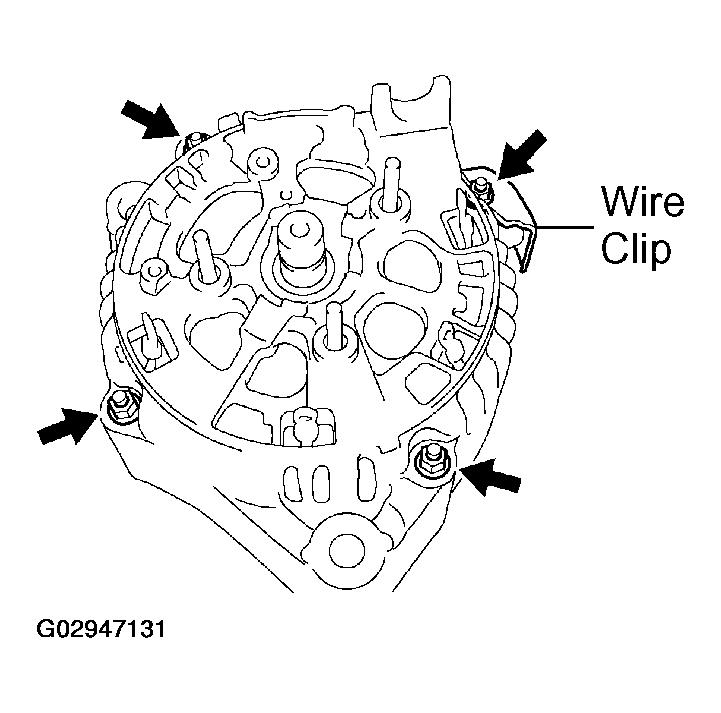

      Fig 8: Removing Nuts & Wire Clip
      G02947131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the rectifier end frame.
      1. SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04041)

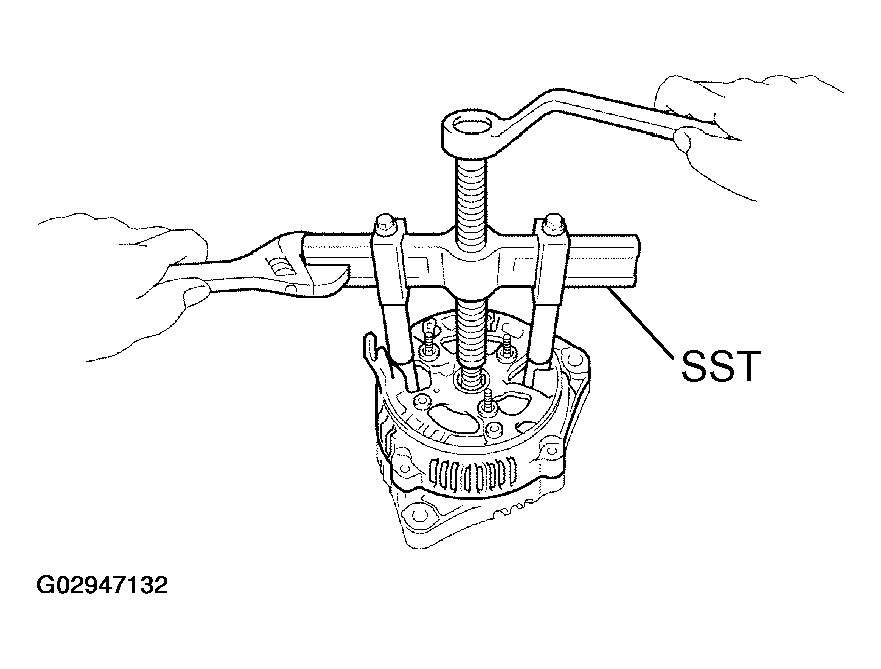

        Fig 9: Removing Rectifier End Frame Using SST
        G02947132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the generator washer.
  6. REMOVE ROTOR FROM DRIVE END FRAME
