Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

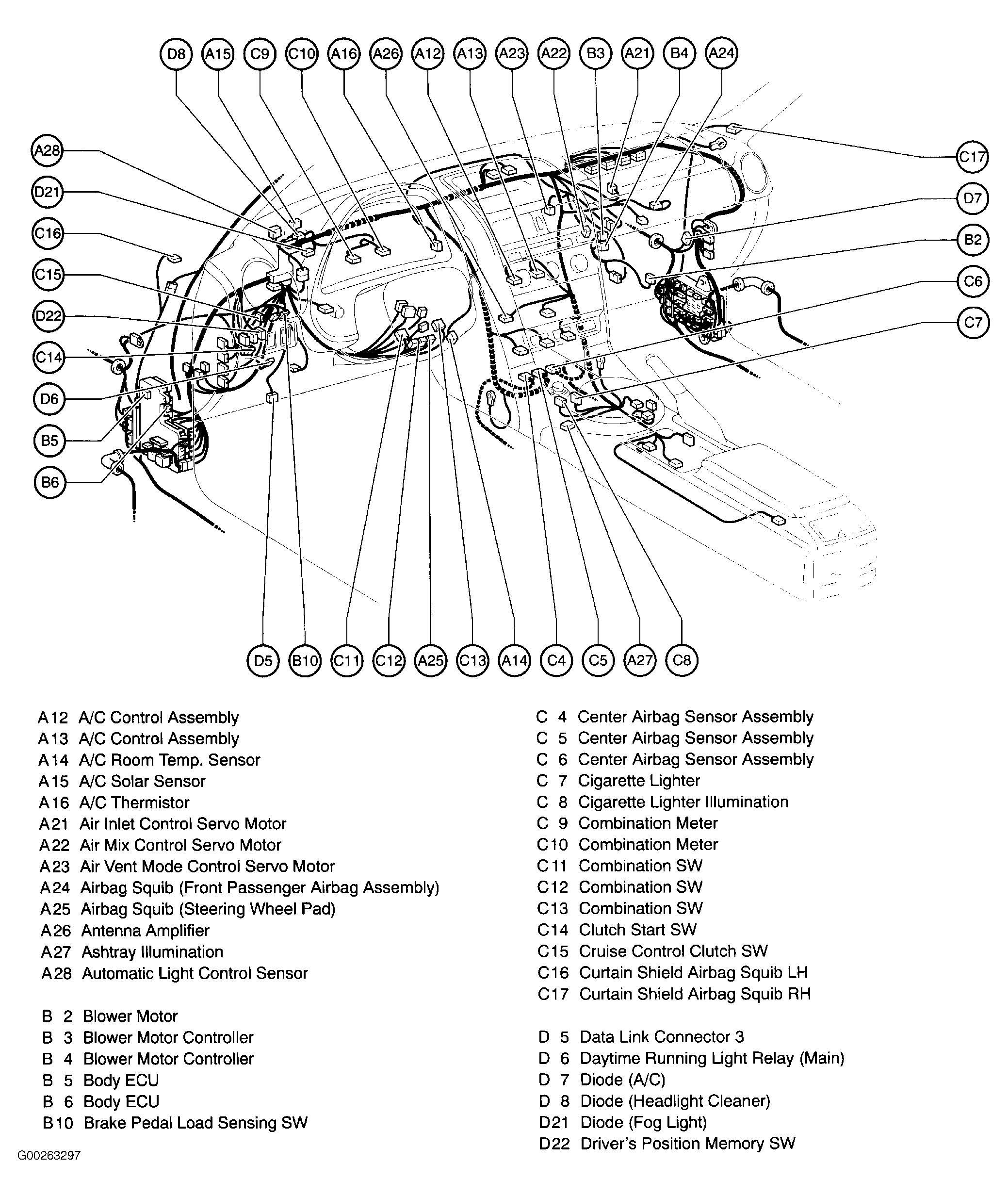

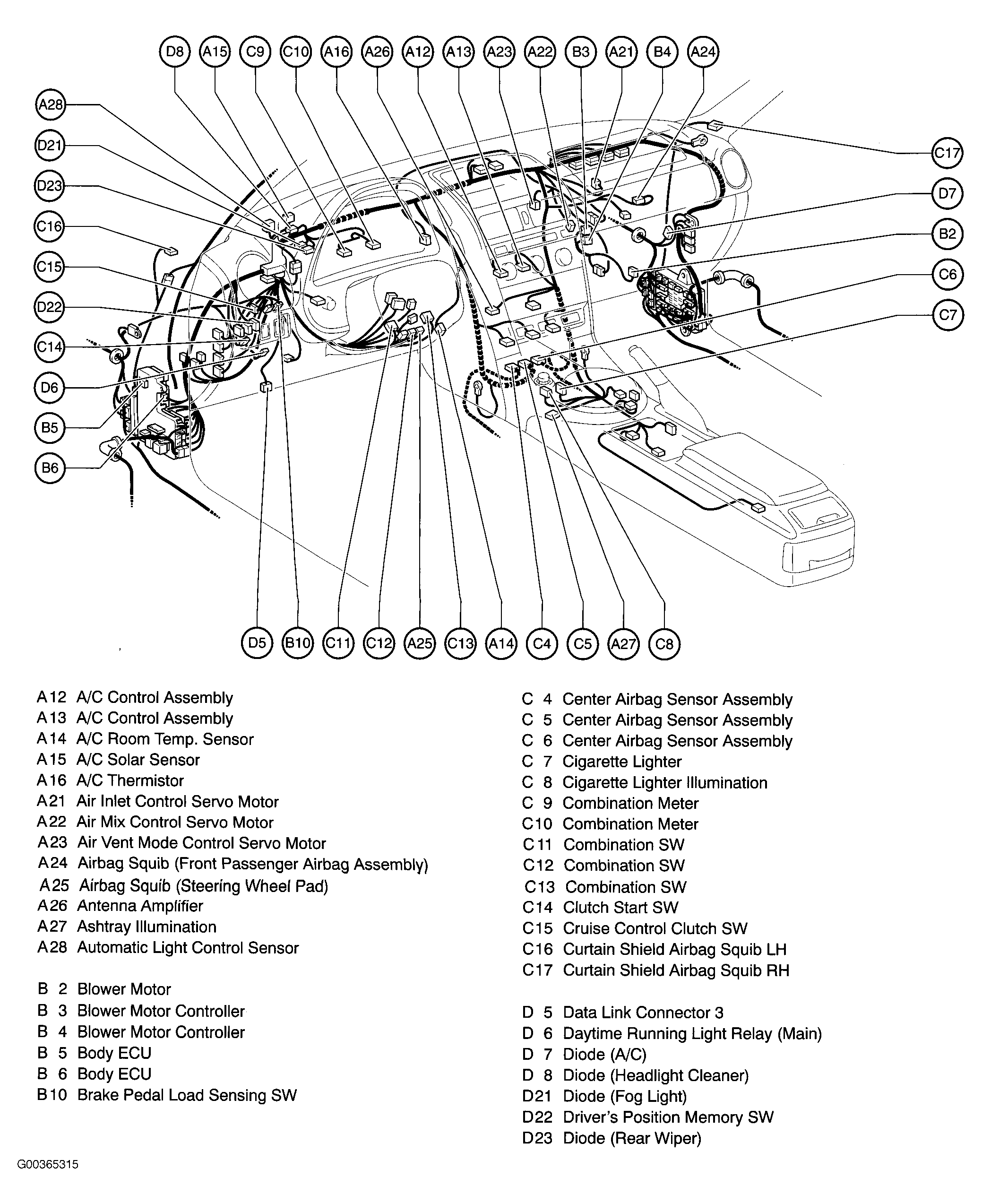

| A/C Control Assembly | Center of dashboard. See Figure. |
| Blower Motor Controller | Behind upper right center of dash. See Figure. |
| Body ECU | Behind lower left end of dash, integral with driver side J/B. See Figure. |
| Center Air Bag Sensor Assembly | Below center of dash, on transmission tunnel. See Figure. |
| Engine Control Module | On left front of engine compartment, in protective case. See Figure. |
| Headlight Beam Level Control ECU | Behind left end of dash. See Figure. |
| Headlight Control ECU (Left) | Behind left headlight assembly. See Figure. |
| Headlight Control ECU (Right) | Behind right headlight assembly. See Figure. |

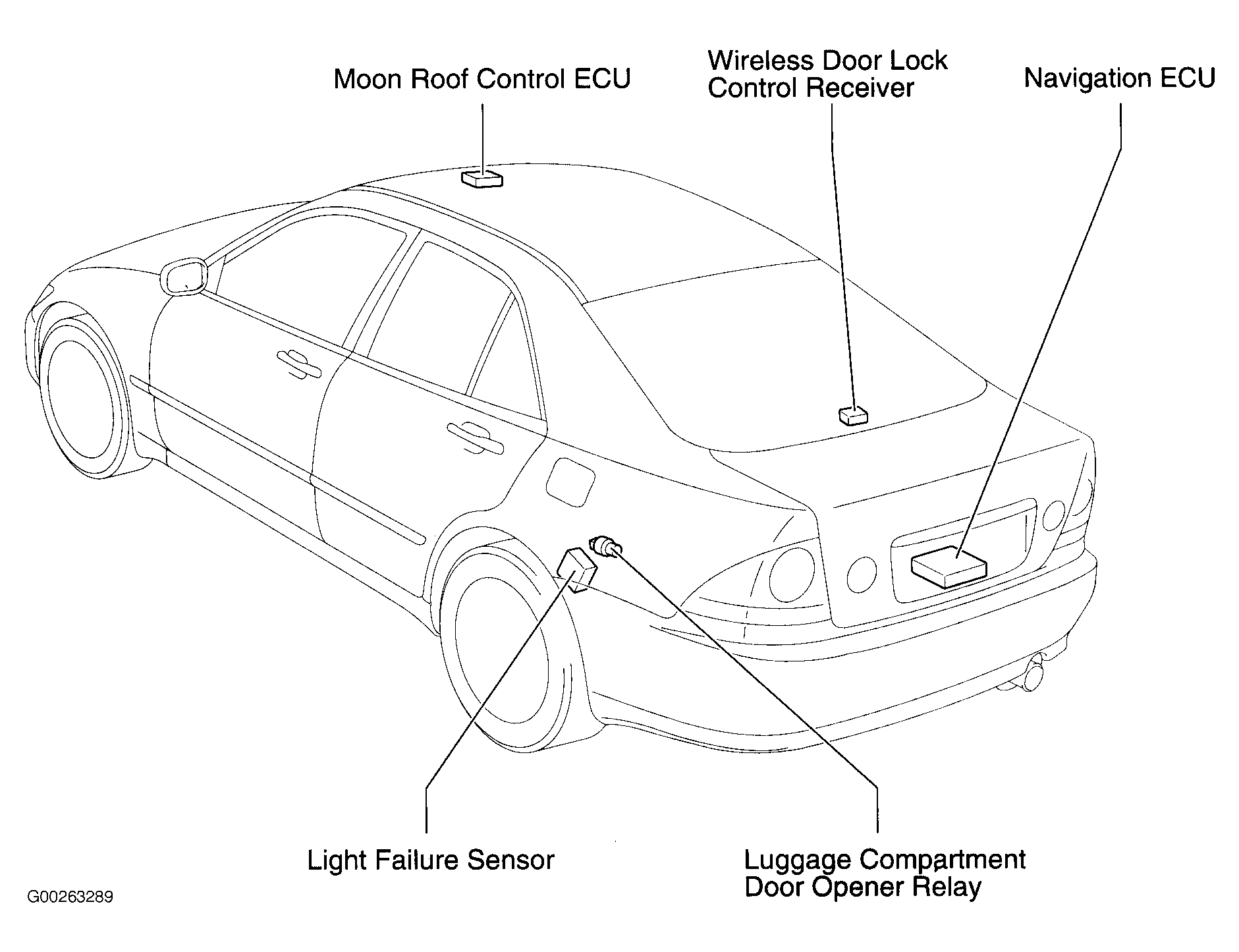

| Moon Roof Control ECU (Sedan) | On front center of roof. See Figure. |

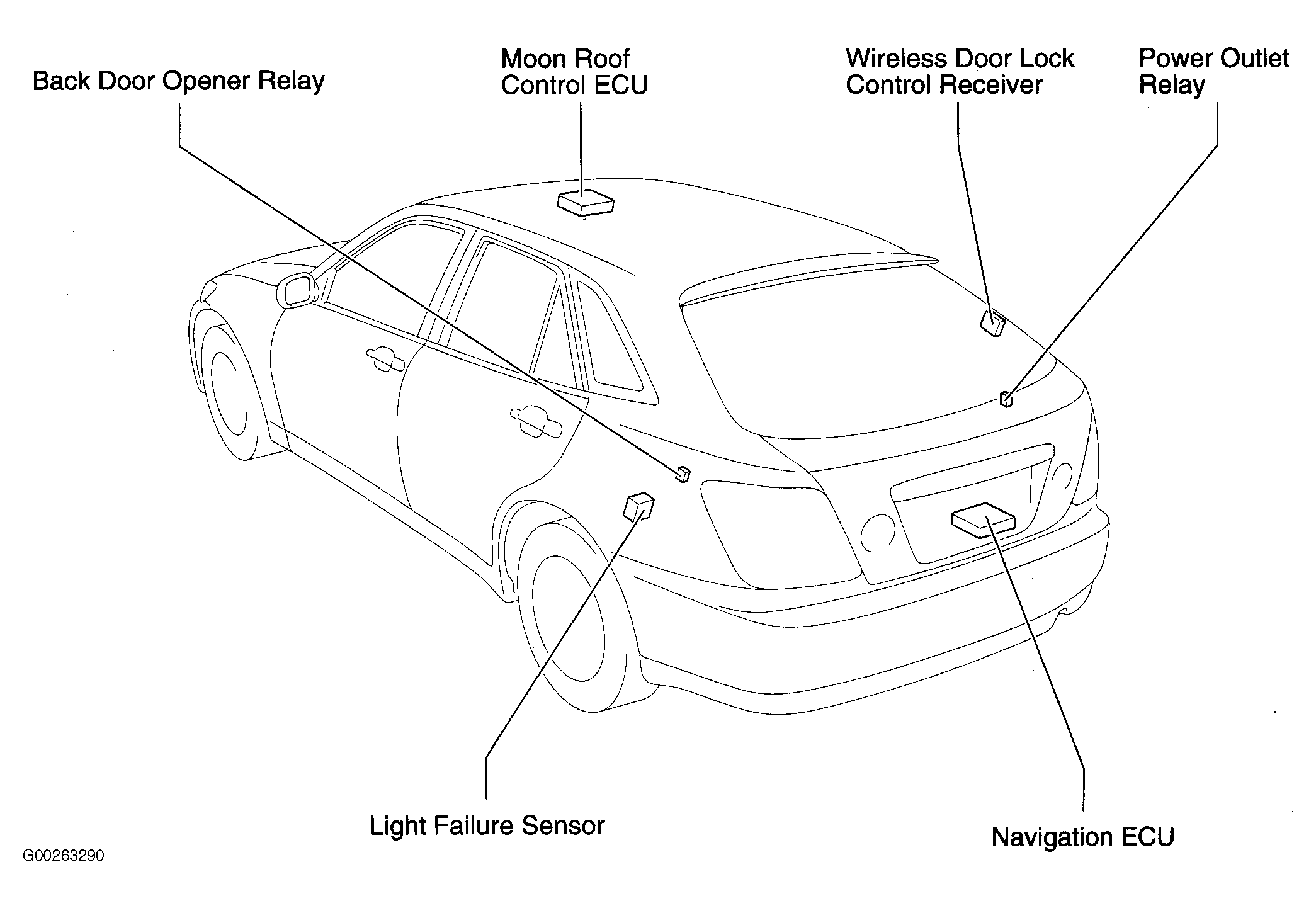

| Moon Roof Control ECU (Wagon) | On front center of roof. See Figure. |
| Navigation ECU (Sedan) | Rear of luggage compartment. See Figure. |
| Navigation ECU (Wagon) | Rear center of luggage compartment. See Figure. |

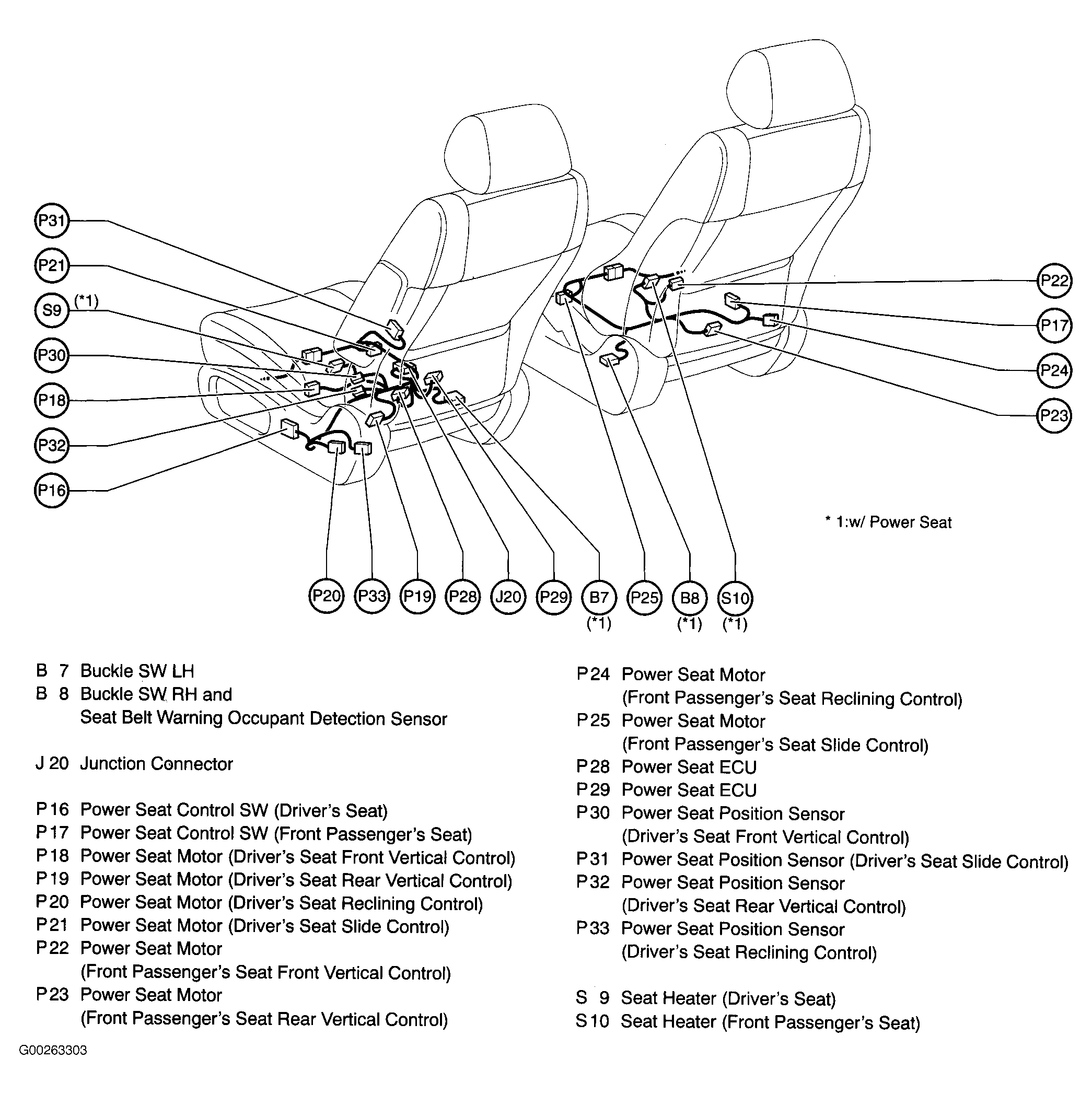

| Power Seat ECU (Left) | Below left front seat. See Figure. |
| Power Seat ECU (Right) | Below right front seat. See Figure. |
| Shift Lock Control ECU | Below right side of transmission shift lever. See Figure. |
| Skid Control ECU | Left end of dash. See Figure. |
| Theft Deterrent ECU | Behind left end of dash. See Figure. |
| Wireless Door Lock Control Receiver (Sedan) | Below center of rear window, on speaker shelf. See Figure. |
| Wireless Door Lock Control Receiver (Wagon) | Right rear of vehicle. See Figure. |
