Combination Meter: Disassembly

HINT:

Installation is in the reverse order of removal. Only if there is a specified procedure for installation it is shown.

  1. REMOVE INSTRUMENT PANEL LWR (See  COMPONENTS  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL
  3. REMOVE COMBINATION METER ASSEMBLY
  4. REMOVE COMBINATION METER GLASS
  5. REMOVE COMBINATION METER PLATE NO. 1
  6. REMOVE COMBINATION METER CASE
    1. Separate the wire harness connector at the upper side of the combination meter assembly from the combination meter computer.
    2. Remove the 6 screws as shown in Fig 1 , and remove the combination meter.

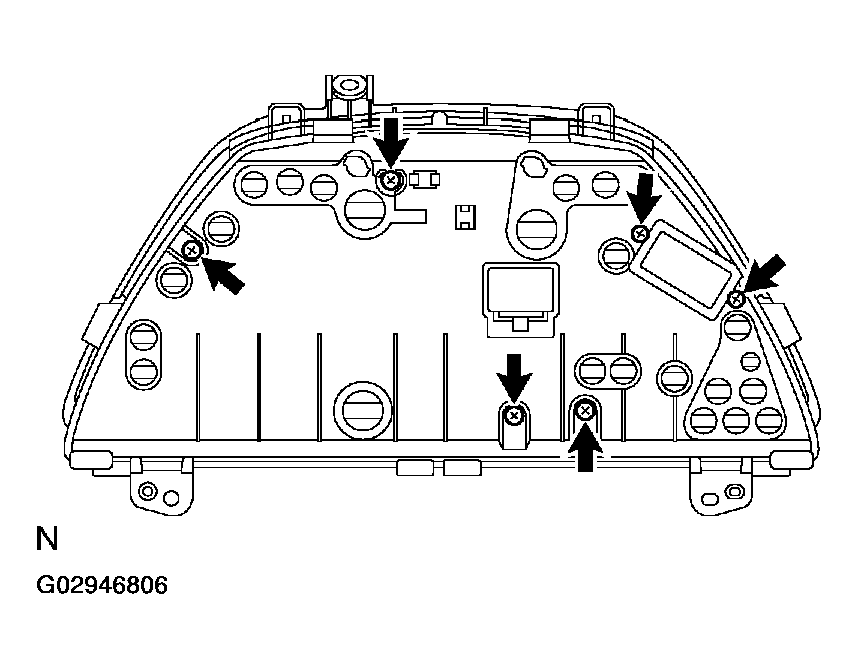

    3. Fig 1: Removing Combination Meter Case
      G02946806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE THE WIRE HARNESS
  8. REMOVE SPEEDOMETER ASSEMBLY

    Pull the speed meter assembly in the direction indicated by the arrow in the illustration and disconnect the engagement of the combination meter computer assembly to remove the speed meter assembly.

    NOTE: Use gloves so as not to scratch or stain the panel surface. Do not apply unnatural force.
    Fig 2: Removing Speedometer Assembly
    G02946807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ENGINE TACHO METER ASSEMBLY

    HINT:

    Remove it in the same procedure as for the speed meter assembly.

  10. REMOVE FUEL RECEIVER GAUGE

    HINT:

    Remove it in the same procedure as for the speed meter assembly.

  11. REMOVE TRIP KNOB
  12. REMOVE COMBINATION METER COMPUTER ASSEMBLY
  13. INSTALL FUEL RECEIVER GAUGE

    Install the fuel receiver gauge to the combination meter computer assembly, and check that the gauge terminal shown in Fig 3 are fitted in securely.

    Fig 3: Installing Fuel Receiver Gauge
    G02946808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL ENGINE TACHO METER ASSEMBLY

    Install the engine tacho meter assembly to the combination meter computer assembly, and check that the gauge terminals shown in Fig 4 are fitted in securely.

    Fig 4: Installing Engine Tacho Meter Assembly
    G02946809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL SPEEDOMETER ASSEMBLY

    Install the speedometer assembly to the combination meter computer assembly, and check that the gauge terminals shown in Fig 5 are fitted in securely.

    Fig 5: Installing Speedometer Assembly
    G02946810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL WIRE HARNESS

    Route the wire harness as shown in Fig 6 and install it to the combination meter case.

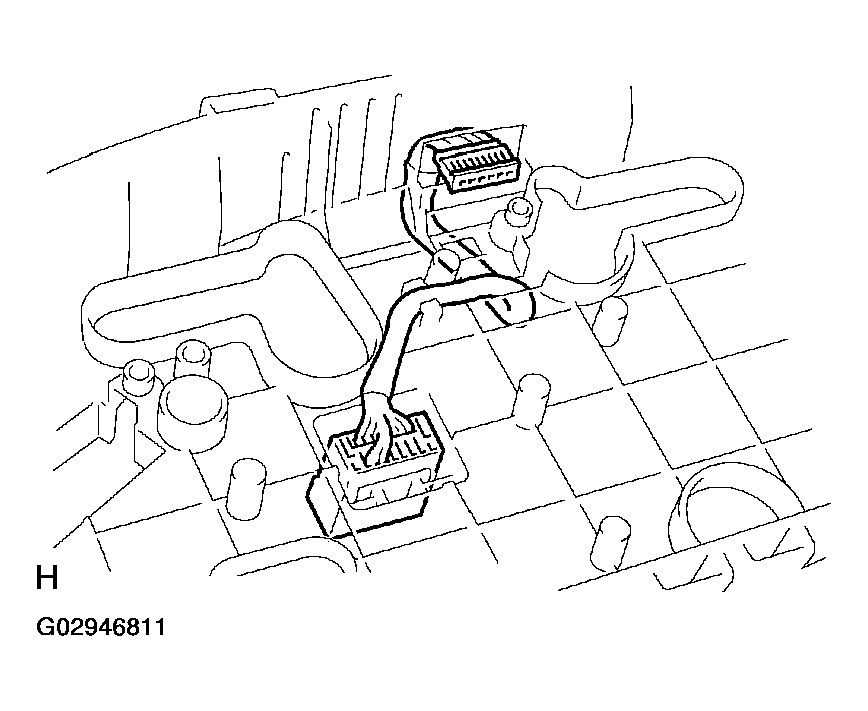

    Fig 6: Installing Wire Harness
    G02946811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
