Evaporative Emission (EVAP) Control System: Components

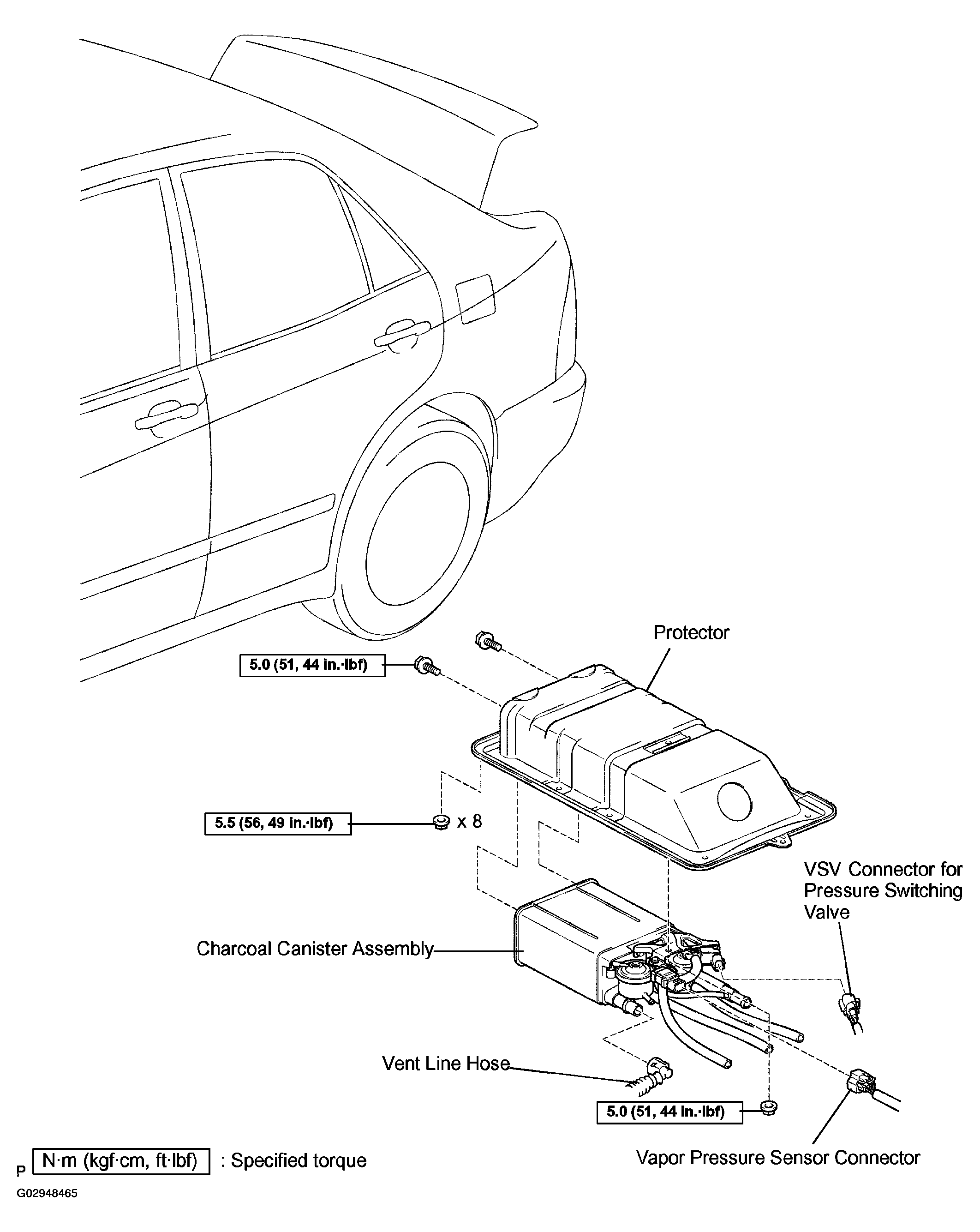

Fig 1: EVAP Control System Replacement Components With Torque Specifications
G02948465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
