Three-Way Catalytic Converter (TWC) System: Components

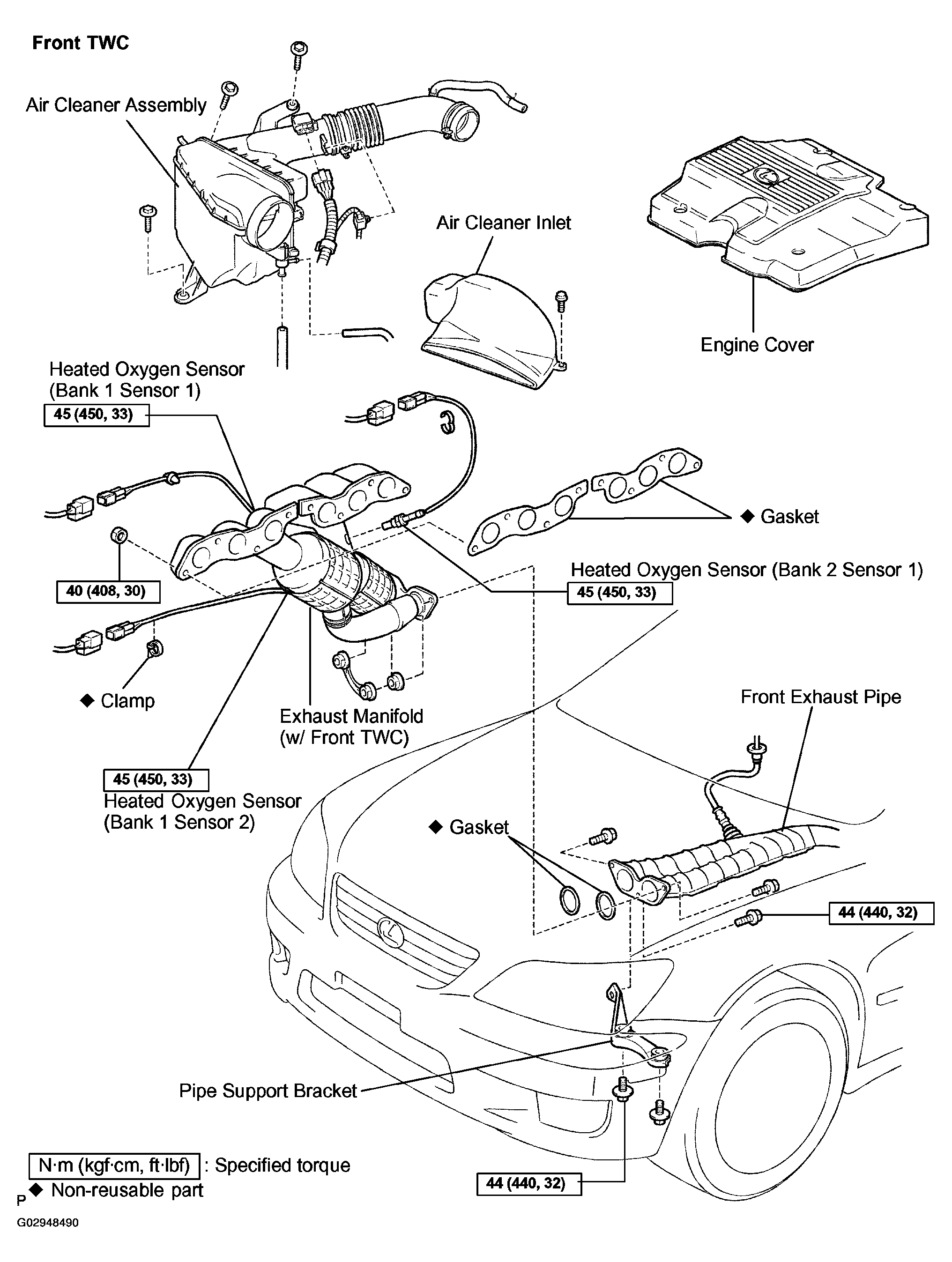

Fig 1: Exploded View Of TWC Converter System Components With Torque Specifications (Front TWC)
G02948490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

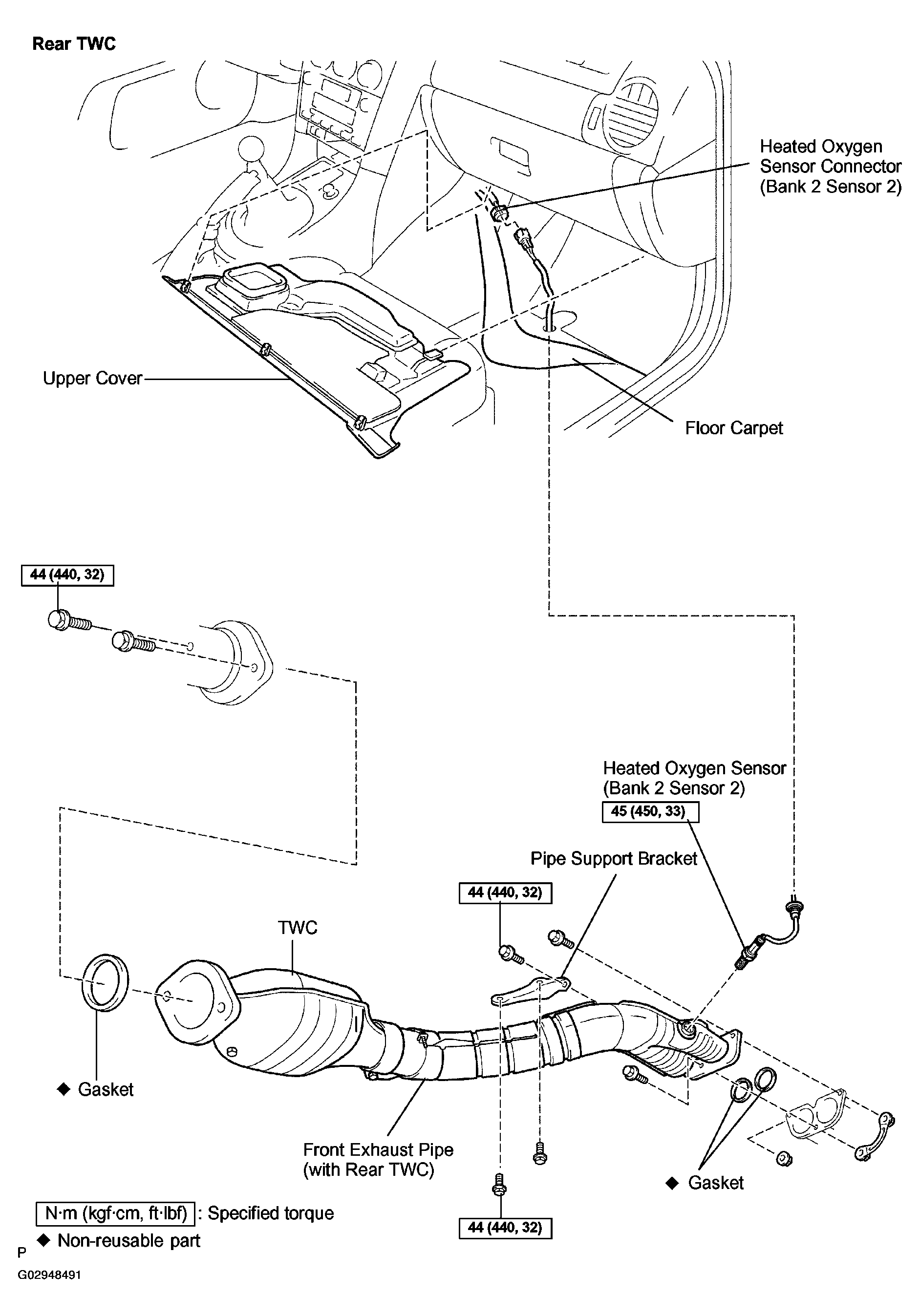

Fig 2: Exploded View Of TWC Converter System Components With Torque Specifications (Rear TWC)
G02948491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
