Throttle Body: Components

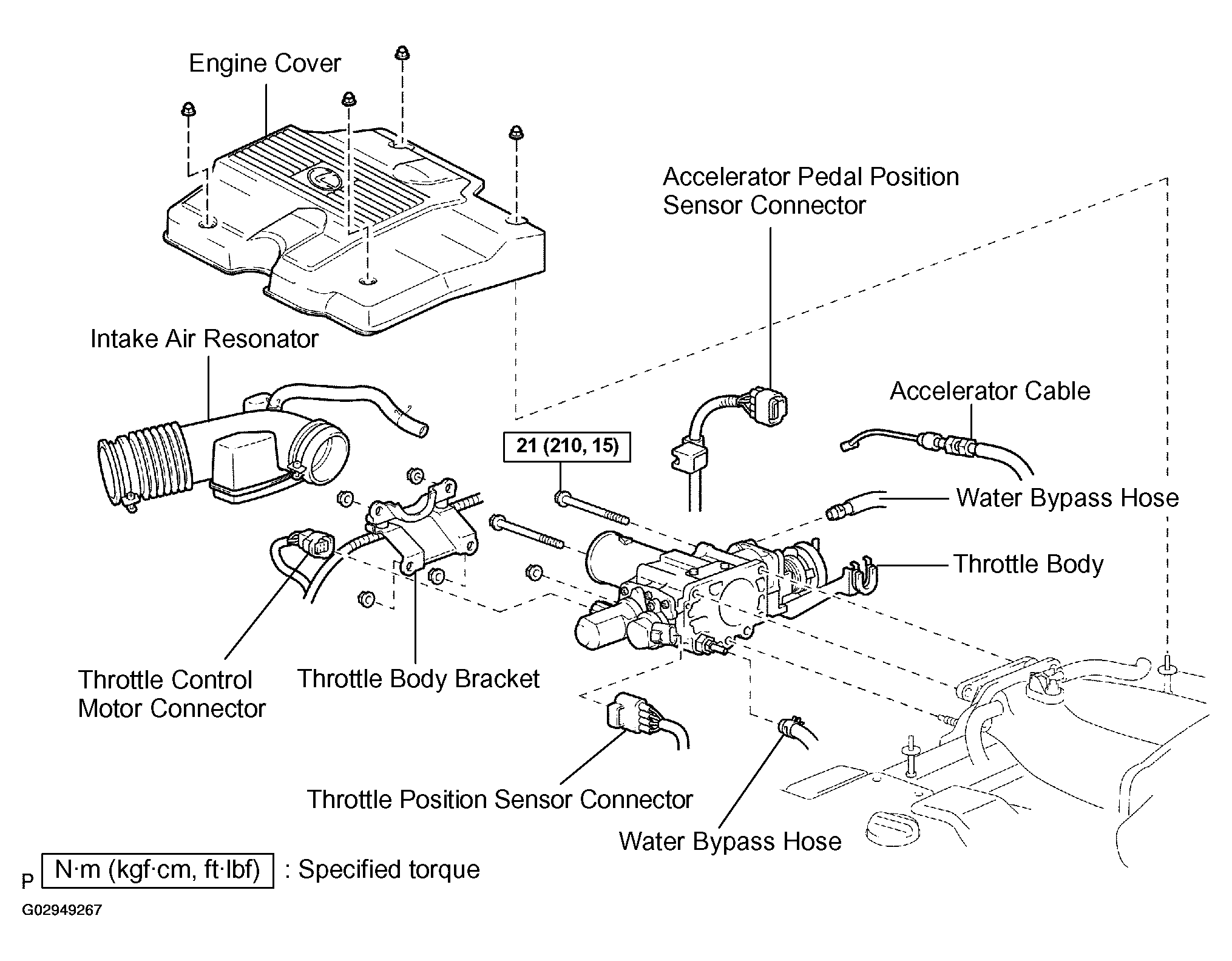

Fig 1: Exploded View Of Throttle Body Components With Torque Specifications (1 Of 2)
G02949267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

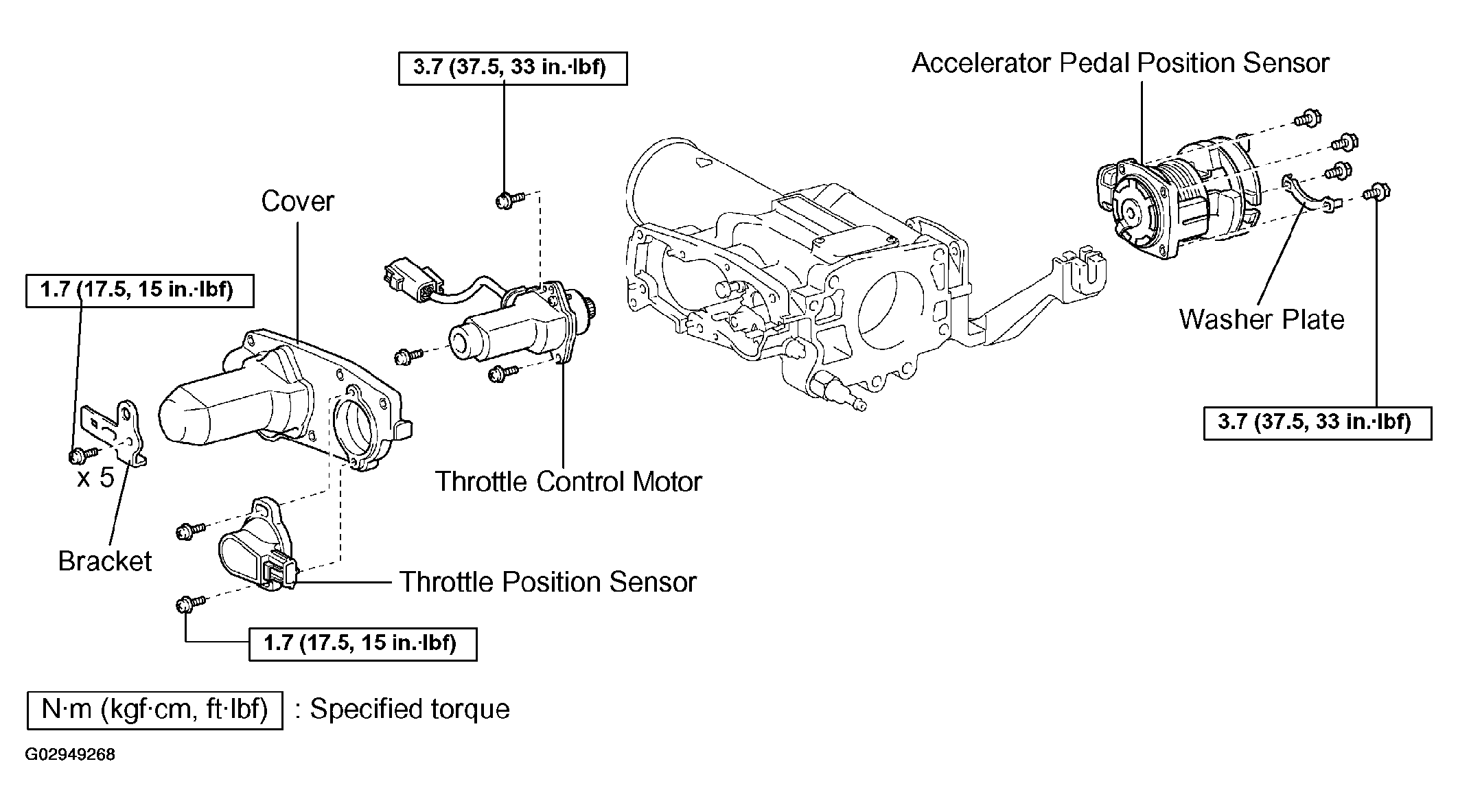

Fig 2: Exploded View Of Throttle Body Components With Torque Specifications (2 Of 2)
G02949268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
