Oil Pump: Reassembly

  1. INSTALL DRIVE AND DRIVEN ROTORS
    1. Place the drive and driven rotors into oil pump body with the mark facing upward.

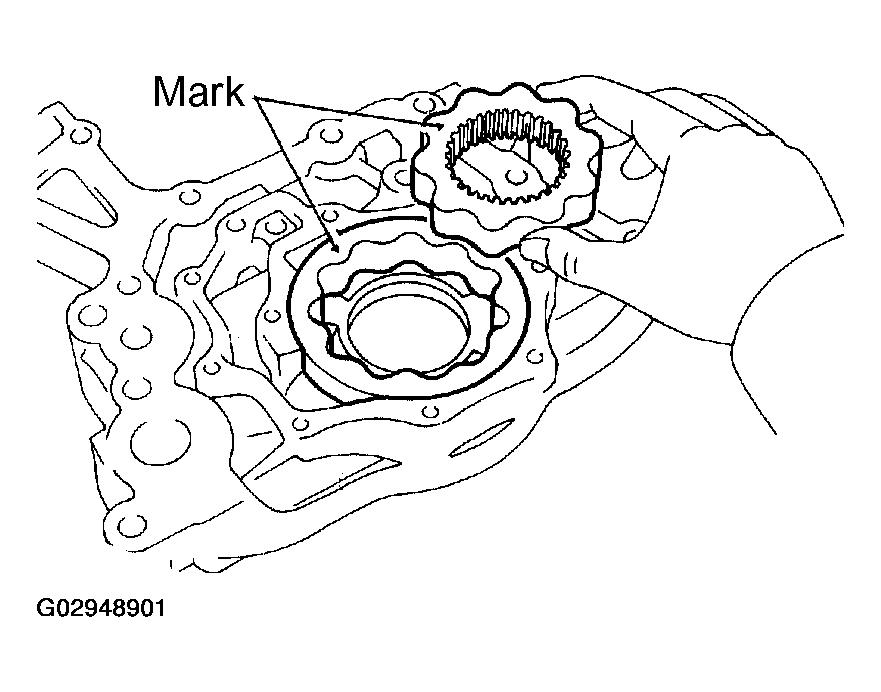

      Fig 1: Placing Drive & Driven Rotors Into Oil Pump Body With Mark Facing Upward
      G02948901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the pump body cover with the 10 screws.
      1. Torque: 10 N.m (105 kgf.cm, 8 ft.lbf)

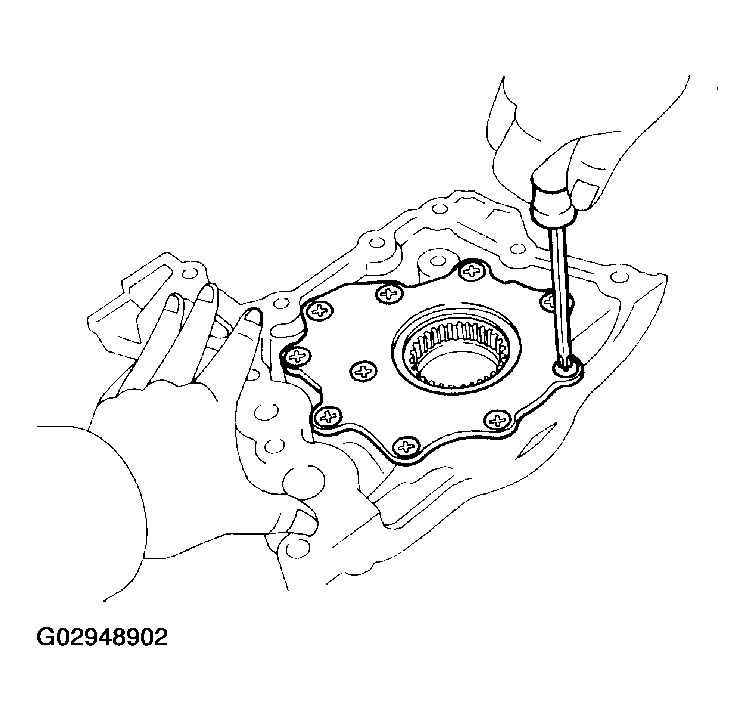

    Fig 2: Installing Pump Body Cover
    G02948902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL RELIEF VALVE
    1. Carefully mount the pump body in a soft jaw vise.
      NOTE: Be careful not to damage the pump body.
    2. Insert the relief valve and compression spring into the oil pump body hole.
    3. Install the plug with a new gasket.
      1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

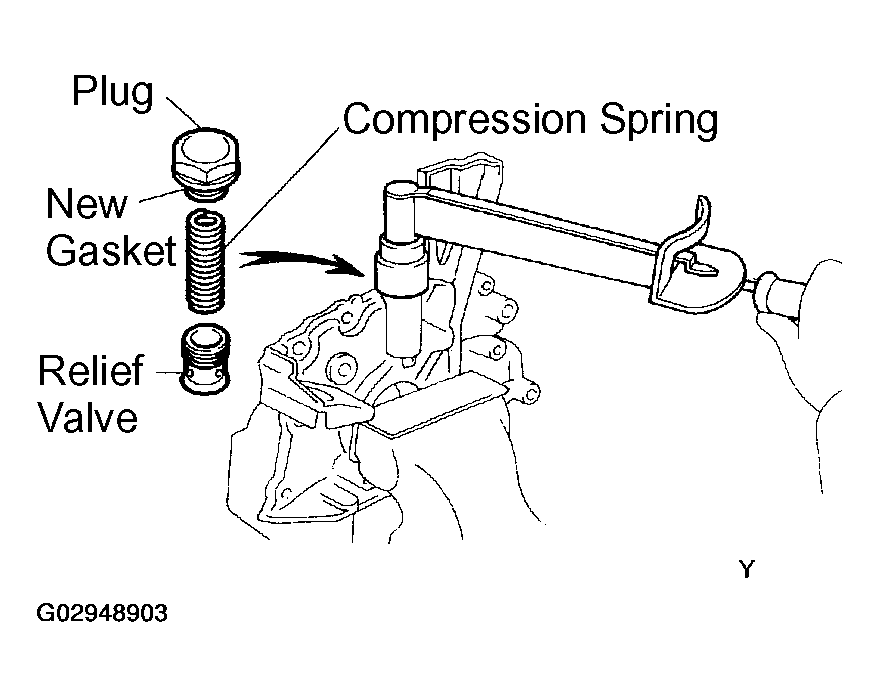

    Fig 3: Inserting Relief Valve
    G02948903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
