Cylinder Block: Replacement

REPLACE CONNECTING ROD BUSHING

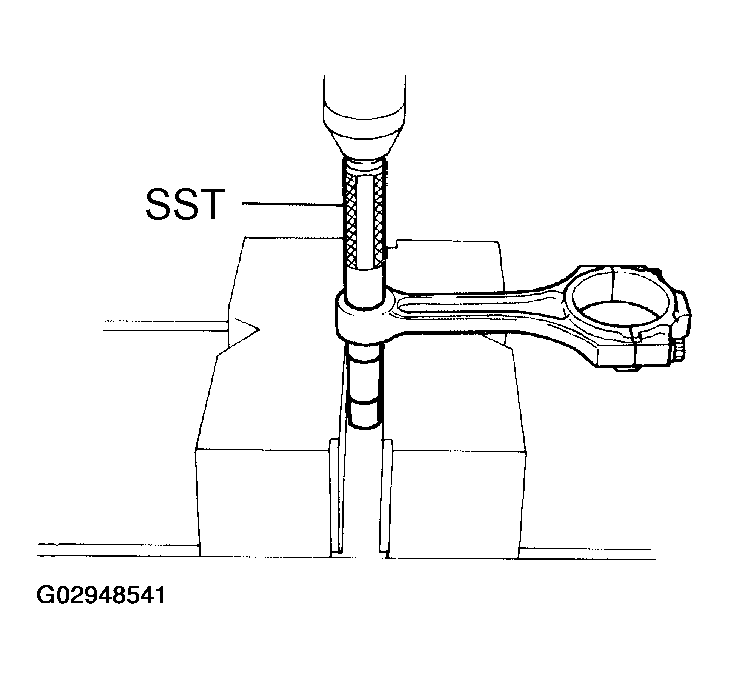

1. Using SST and a press, press out the bushing.
  SST 09222-30010

  Fig 1: Using SST And Press To Press Out Bushing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

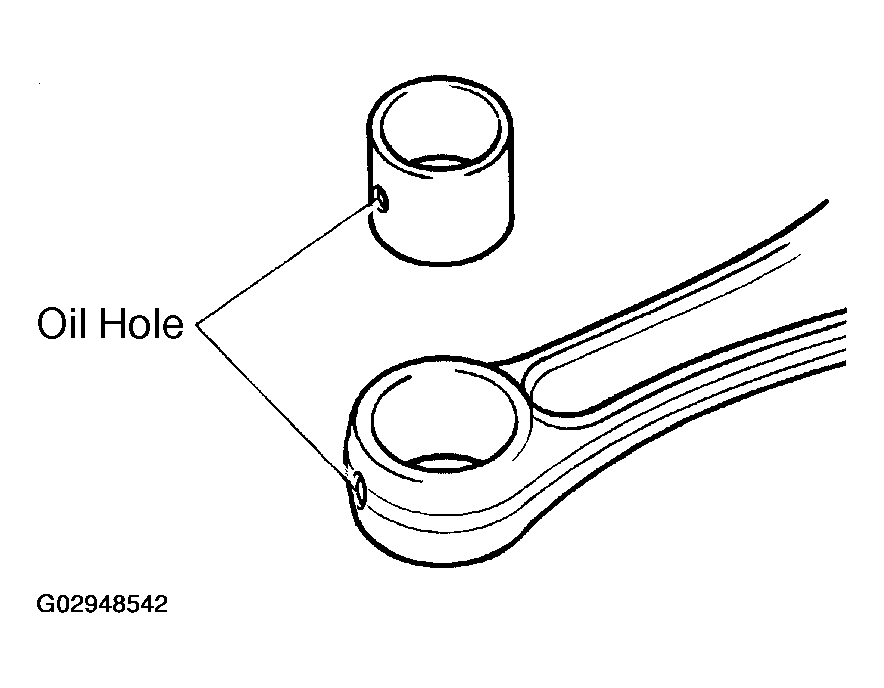

2. Align the oil holes of a new bushing and the connecting rod.
3. Using SST and a press, press in the bushing.
  SST 09222-30010

  Fig 2: Using SST And Press To Press In Bushing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a pin hole grinder, bore the bushing to obtain the standard specified clearance (See INSPECTION ) between the bushing and piston pin.

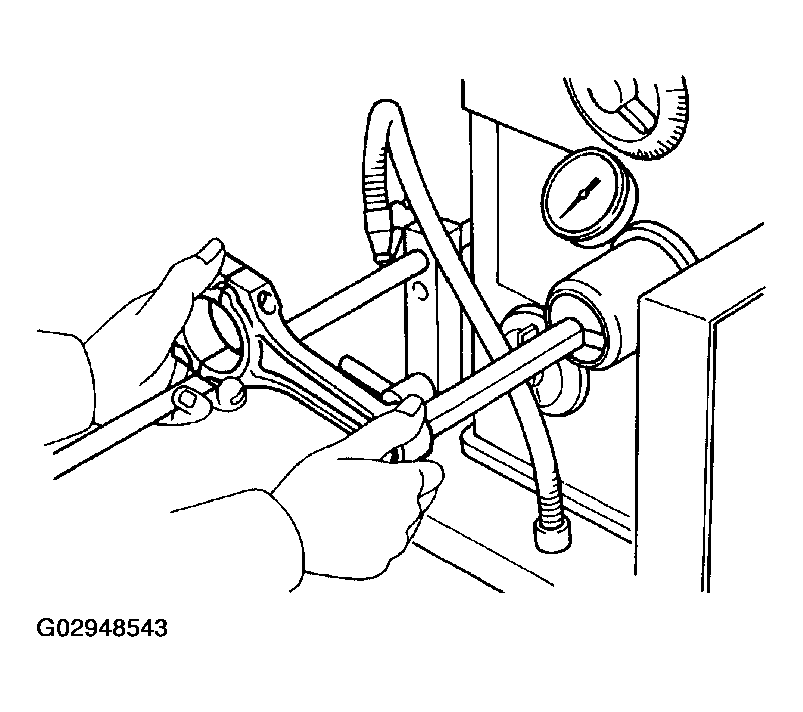

  Fig 3: Boring Bushing Using Pin Hole Grinder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

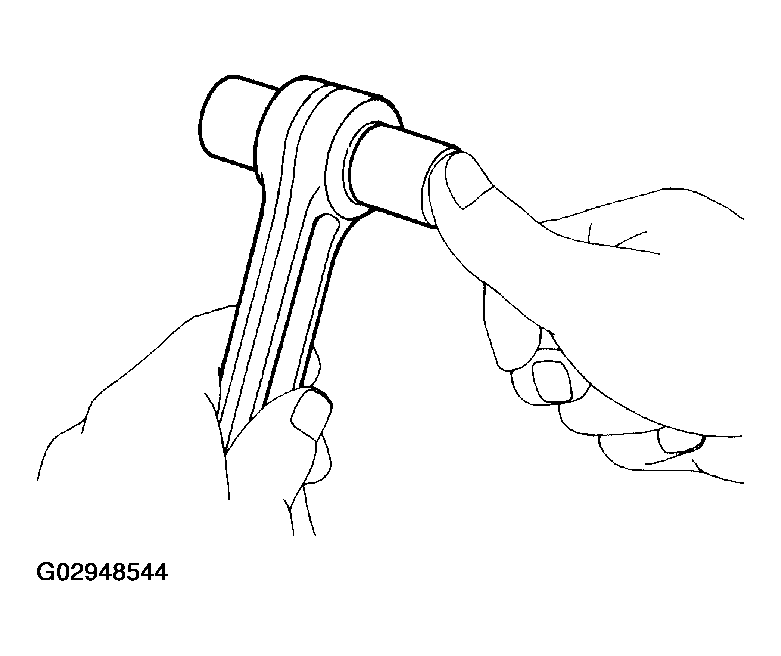

5. Check the piston pin fit at room temperature.
  Coat the piston pin with engine oil and push it into the connecting rod with your thumb.

  Fig 4: Checking Piston Pin Fit At Room Temperature
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE CRANKSHAFT FRONT OIL SEAL
HINT:

There are 2 methods (a) and (b) to replace the oil seal.
1. If the oil pump is removed form the cylinder block.
  1. Using a screwdriver, pry out the oil seal.

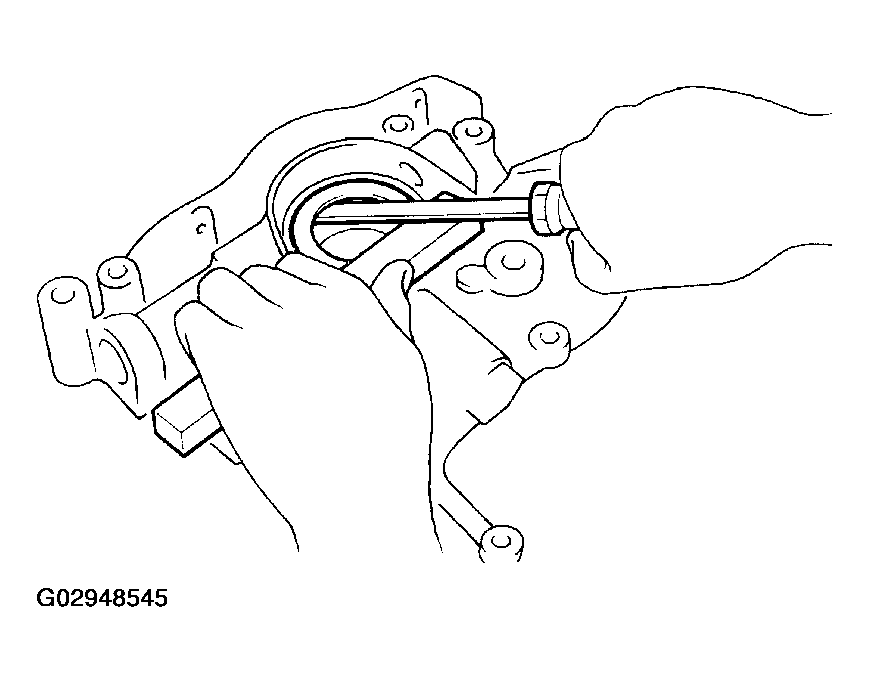

    Fig 5: Prying Out Oil Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

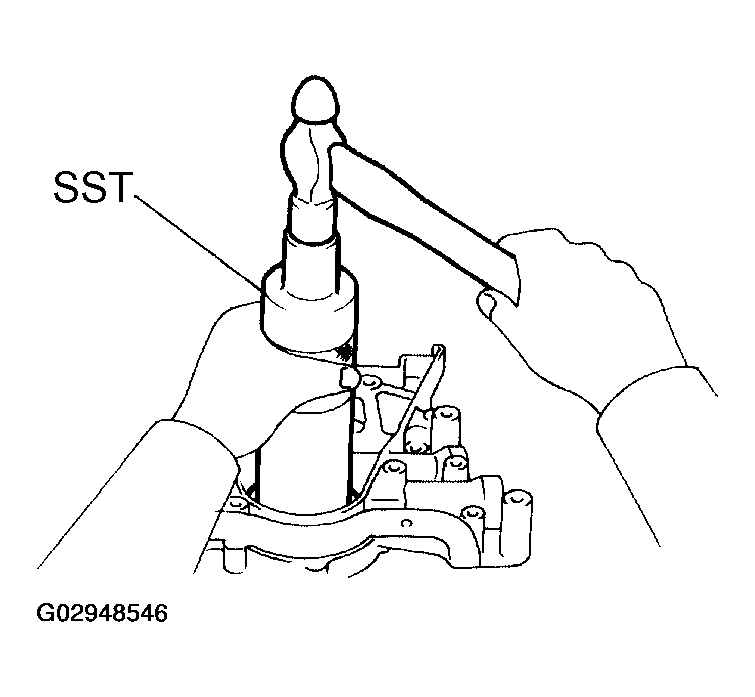

  2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.
    SST 09316-60011 (09316-00011)

    Fig 6: Taping In New Oil Seal Using SST And Hammer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Apply MP grease to the oil seal lip.
2. 4If the pump is installed on the cylinder block.

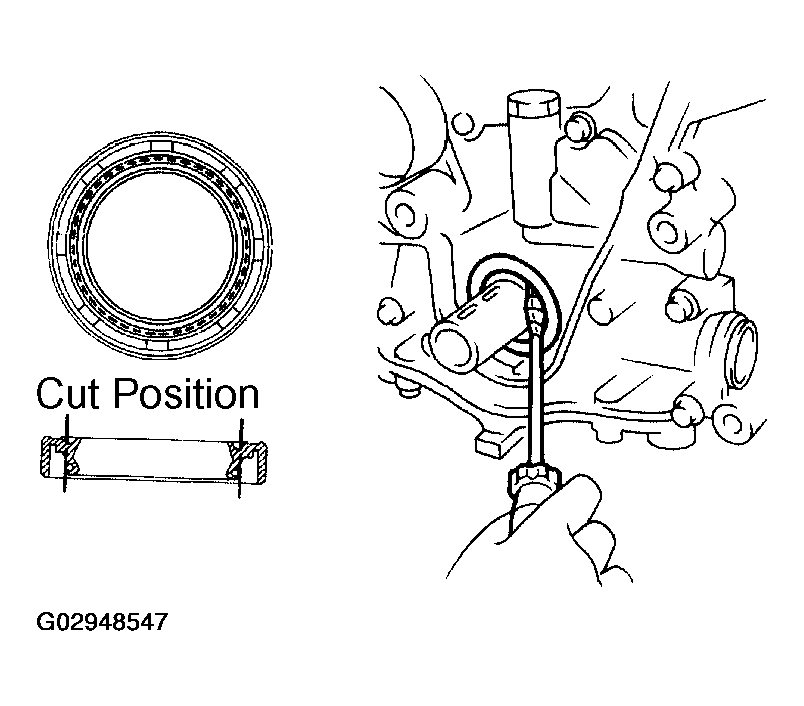

  1. Using a knife, cut off the oil seal lip.
  2. Using a screwdriver, pry out the oil seal.
    NOTE: Be careful not to damage the crankshaft. Tape the screwdriver tip.

    Fig 7: Prying Out Oil Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Apply MP grease to a new oil seal lip.

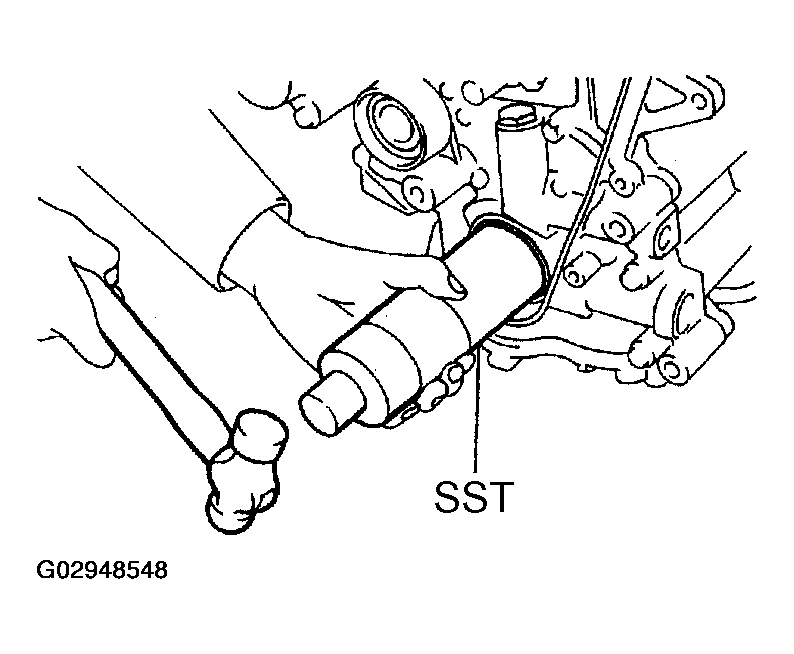

  4. Using SST and a hammer, tap in the oil seal until its surface is flush with the oil pump body edge.
    SST 09316-60011 (09316-00011)

    Fig 8: Using SST And Hammer To Tap In Oil Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REPLACE CRANKSHAFT REAR OIL SEAL
  HINT:

  There are 2 methods (a) and (b) to replace the oil seal.
  1. If the rear oil seal retainer is removed from the cylinder block.

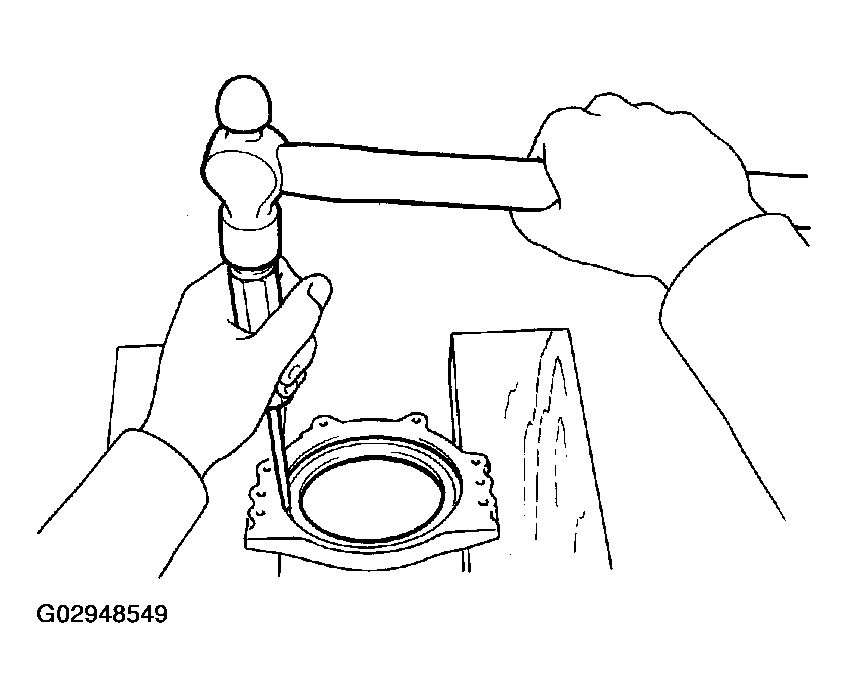

    1. Using a screwdriver and hammer, tap out the oil seal.

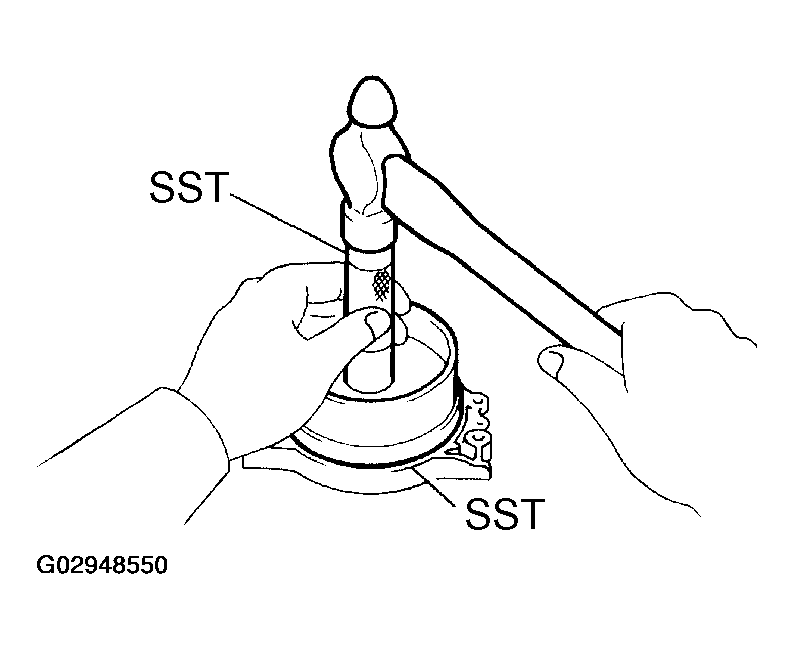

      Fig 9: Using Screwdriver And Hammer To Tap Out Oil Seal
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the rear oil seal retainer edge.
      SST 09223-15030, 09950-70010 (09951-07100)

      Fig 10: Using SST And Hammer To Tap In New Oil Seal
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply MP grease to the oil seal lip.
  2. If the rear seal retainer is installed on the cylinder block.
    1. Using a knife, cut off the oil seal lip.
    2. Using a screwdriver, pry out the oil seal.
      NOTE: Be careful not to damage the crankshaft. Tape the screwdriver tip.

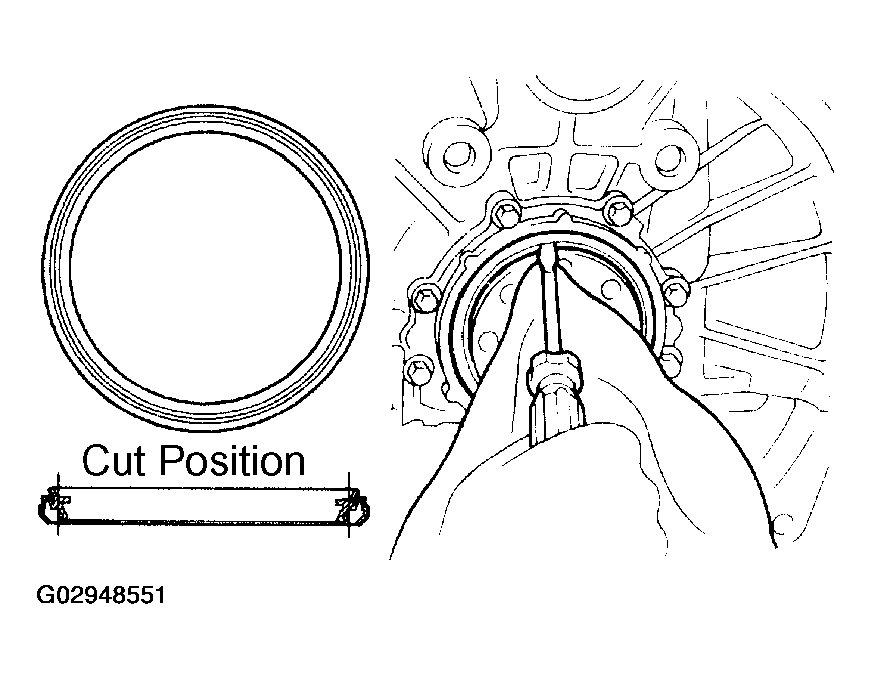

      Fig 11: Using Screwdriver To Pry Out Oil Seal
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply MP grease to a new oil seal lip.

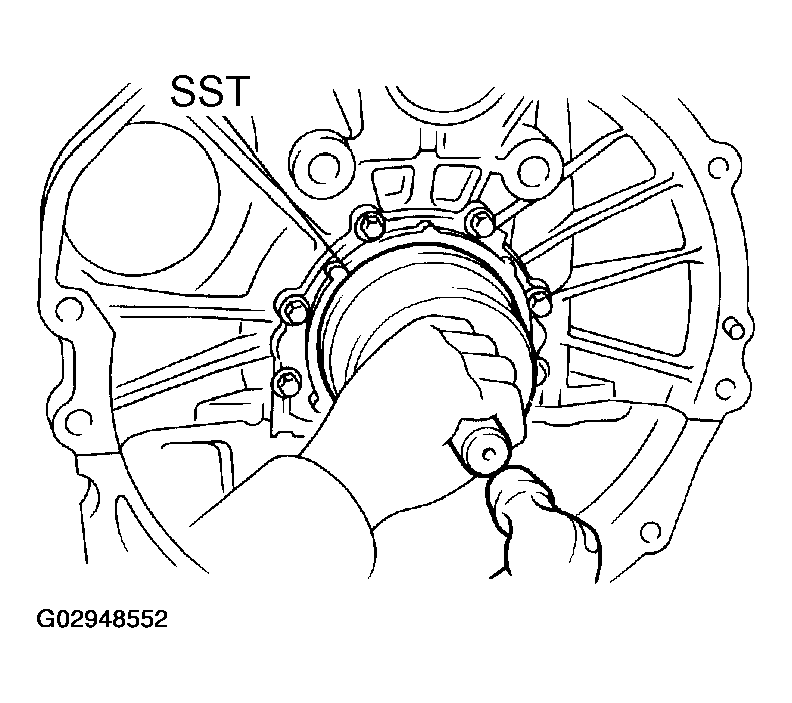

    4. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
      SST 09223-15030, 09950-70010 (09951-07100)

      Fig 12: Using SST And Hammer To Tap In Oil Seal
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
