Fuel Pressure Pulsation Damper: Installation

1. Install the fuel inlet pipe and pulsation damper with 2 new gaskets.

   HINT:

   Different the gaskets are used for the upper (large side) and lower (small side).

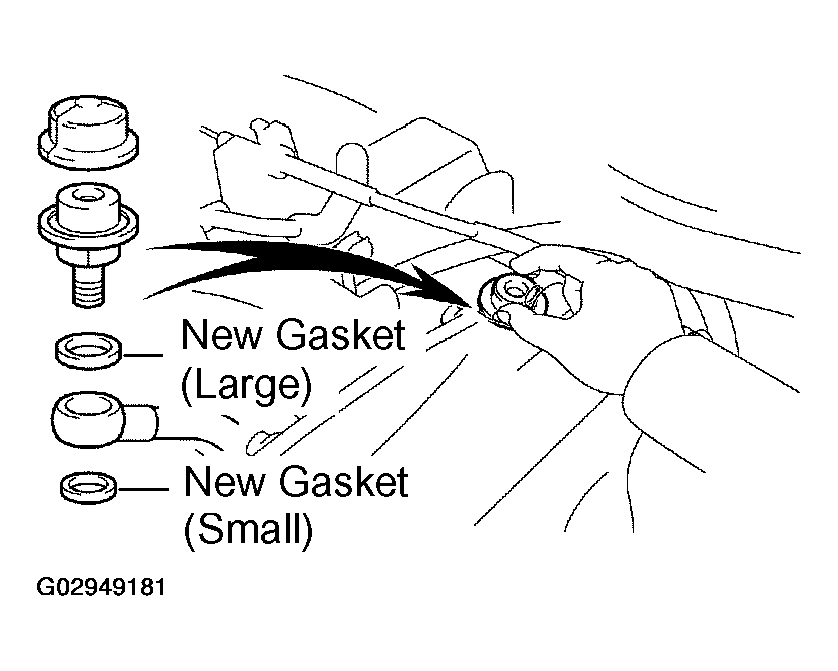

   Fig 1: Installing Fuel Inlet Pipe And Pulsation Damper With Gaskets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, tighten the pulsation damper.
   1. SST 09612-24014 (09617-24011)

   Torque: 32.5 N.m (325 kgf.cm, 24 ft.lbf)

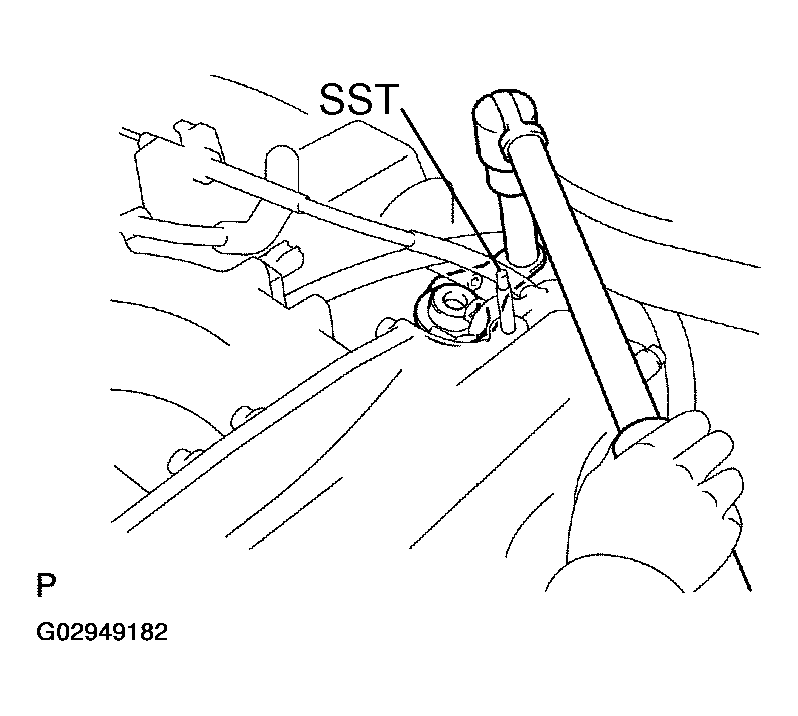

   Fig 2: Using SST To Tightening Pulsation Damper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bolt holding the fuel inlet pipe to the intake manifold.
   1. Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
4. Install the nut holding the No.2 vacuum pipe to the intake manifold.
   1. Torque: 21 N.m (210 Kgf.cm, 15 ft.lbf)

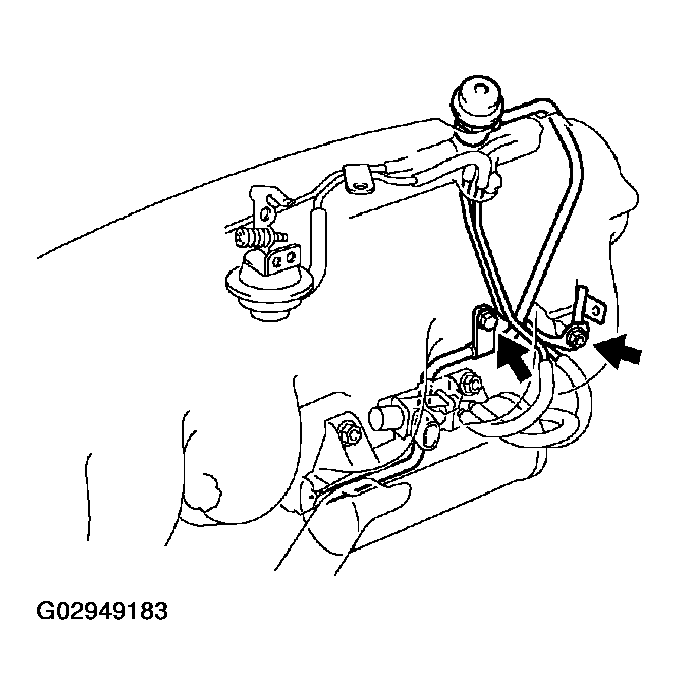

Fig 3: Installing Nut Holding No.2 Vacuum Pipe To Intake Manifold And Bolt Holding The Fuel Inlet Pipe To Intake Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the vacuum hose (from No.2 vacuum pipe) to the air intake chamber.
2. Connect the EVAP hose to the EVAP pipe.
3. Connect the VSV connector for the EVAP.

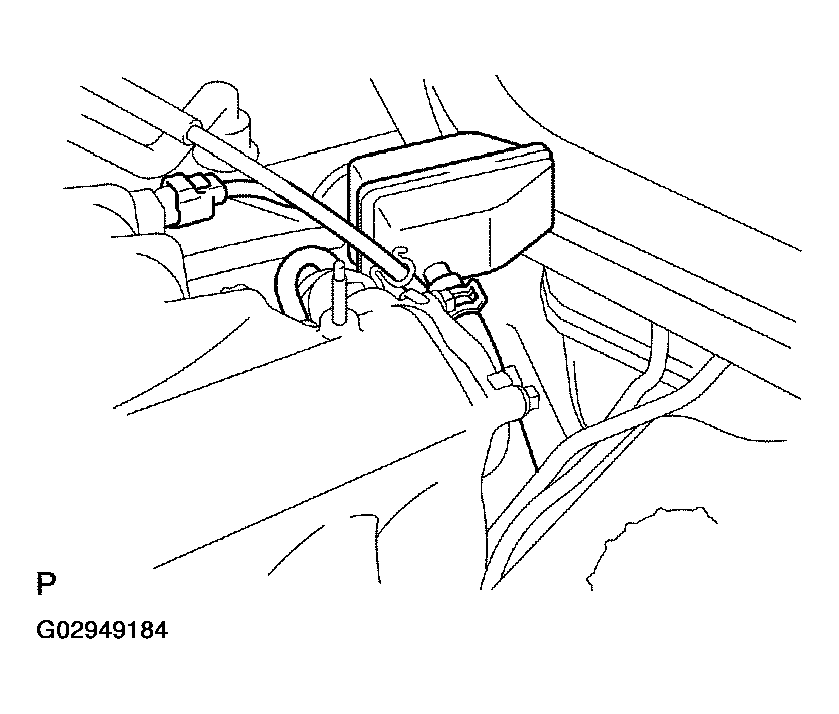

Fig 4: Connecting Connector And Hoses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the engine cover with the 4 nuts.
