On-Vehicle Inspection

Remove 4 nuts and engine cover.

Check operation sound from each injector.

1. With the engine running or cranking, use a sound scope to check that there is normal operating noise in proportion to engine speed.

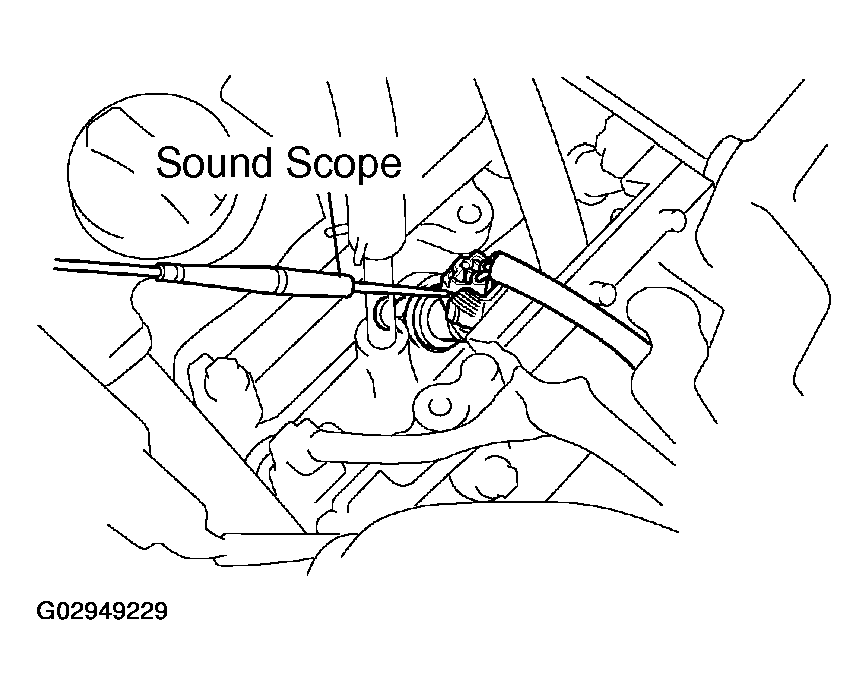

Fig 1: Using Sound Scope To Check Normal Operating Noise In Proportion To Engine Speed
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If you have no sound scope, you can check the injector transmission operation with a screwdriver.

If no sound or an unusual sound is heard, check the wiring connector, injector or injection signal from the ECM.

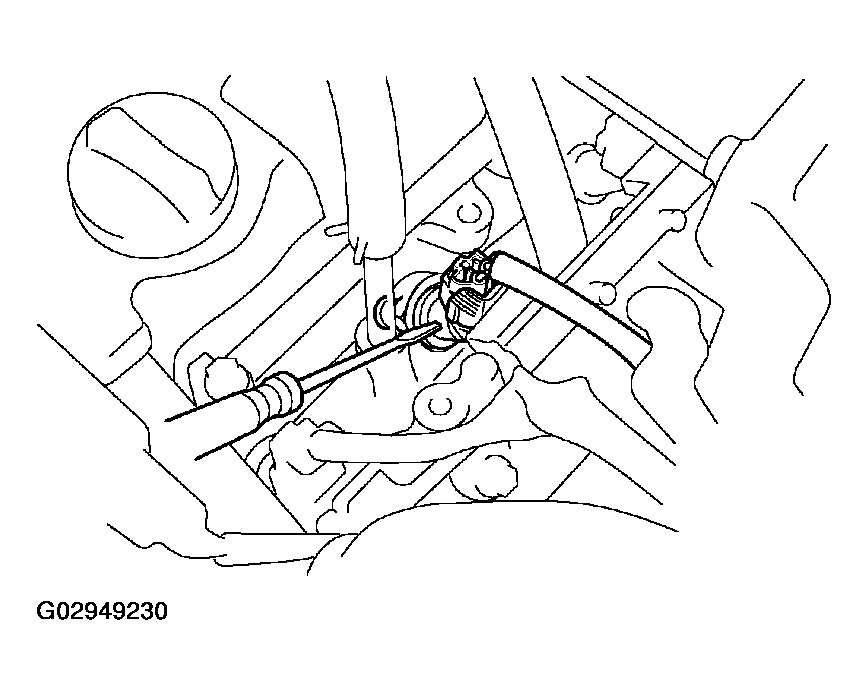

Fig 2: Checking Wiring Connector, Injector Or Injection Signal From ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the injector connectors.
2. Using an ohmmeter, measure the resistance between the terminals.

   Resistance: 13.4-14.2 Ω at 20°C (68°F)

   If the resistance is not as specified, replace the injector.

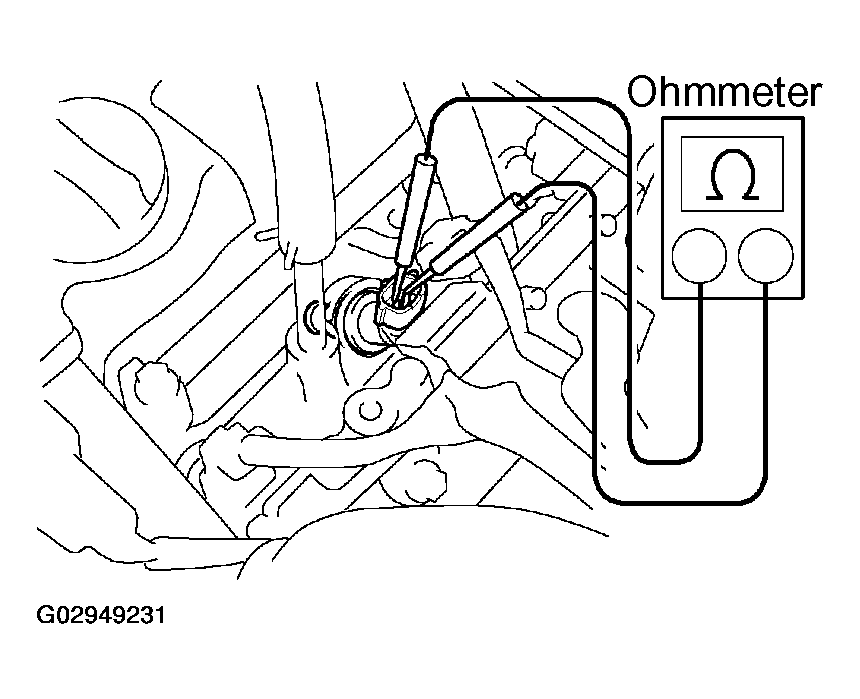

   Fig 3: Using An Ohmmeter To Measure Resistance Between Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Reconnect the injector connectors.

Install the engine cover with the 4 nuts.
