Circuit Description

Refer to DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT DTC P0117 ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT DTC P0118 ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT .

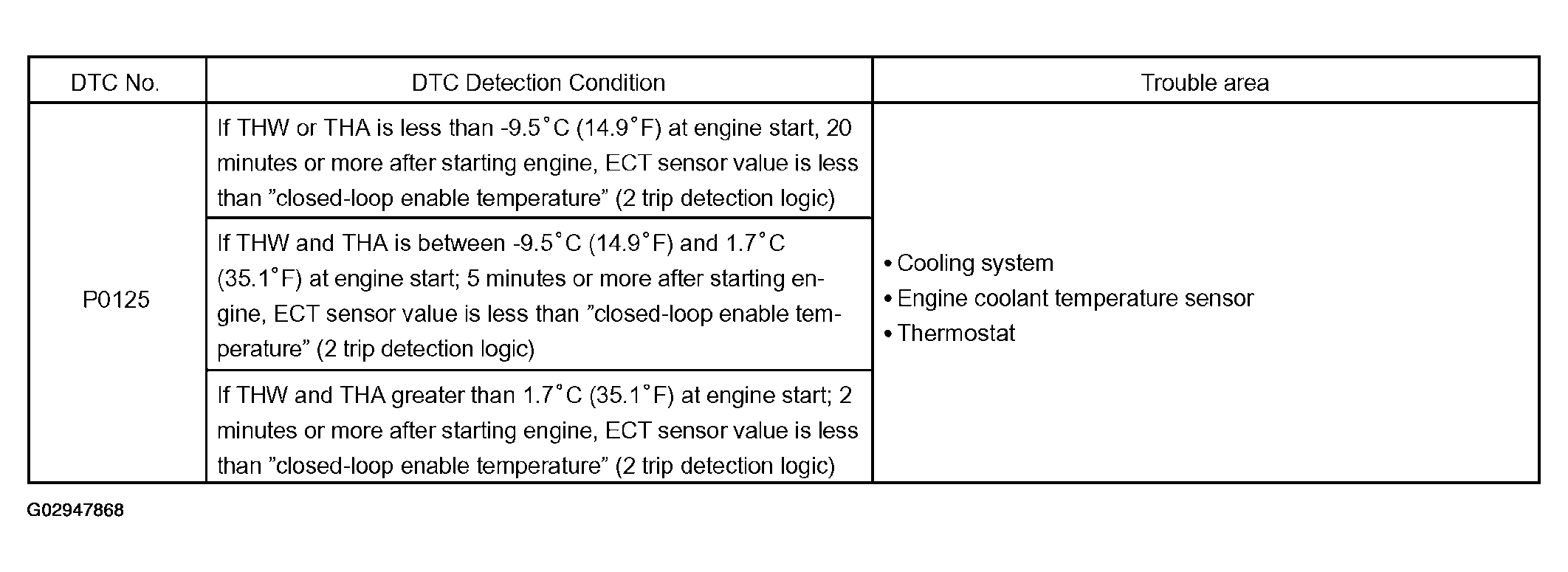

Fig 1: DTC P0125 Trouble Detection Table
G02947868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
