Typical Malfunction Thresholds

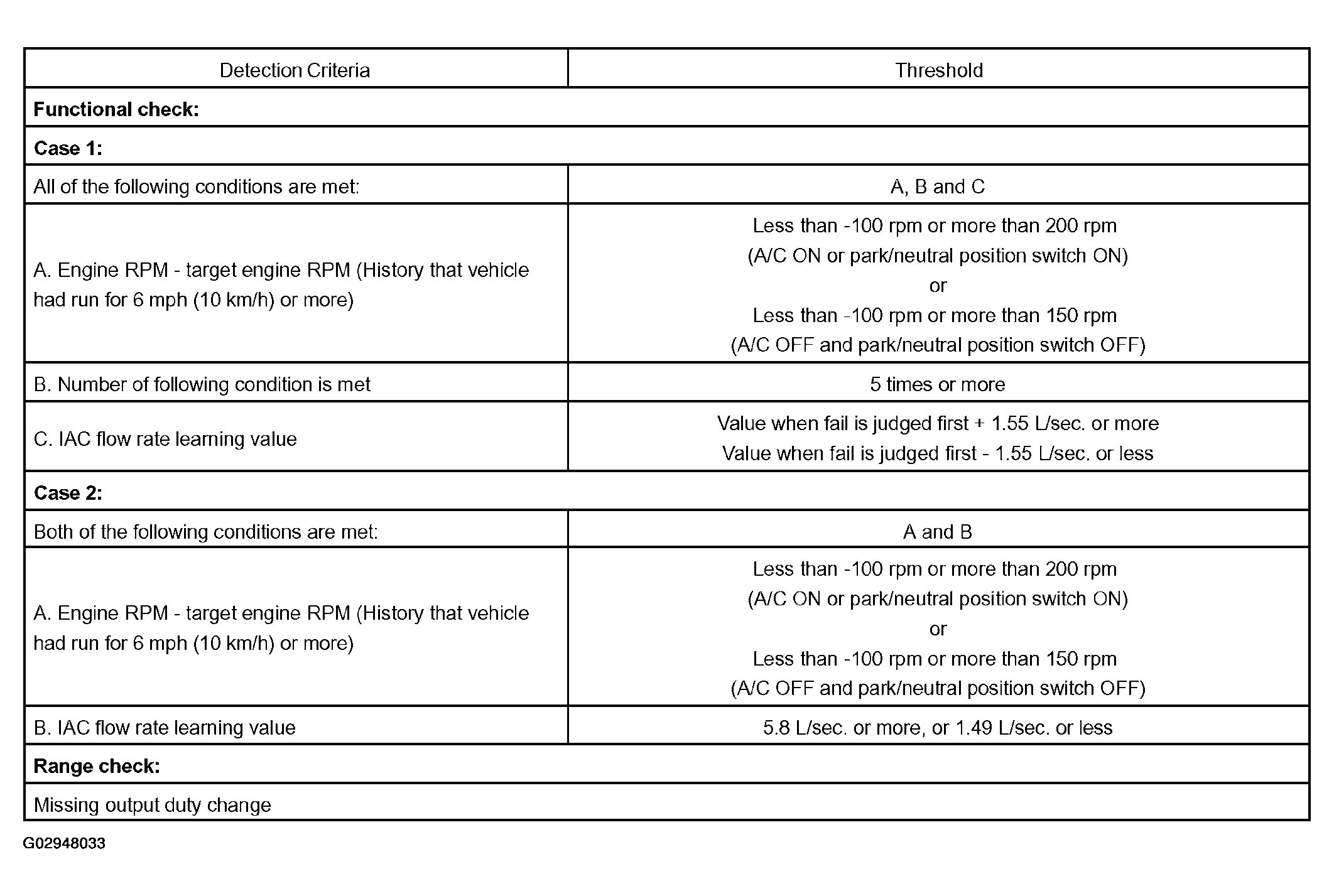

Fig 1: DTC P0505 Typical Malfunction Thresholds
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
