SST (Special Service Tools)

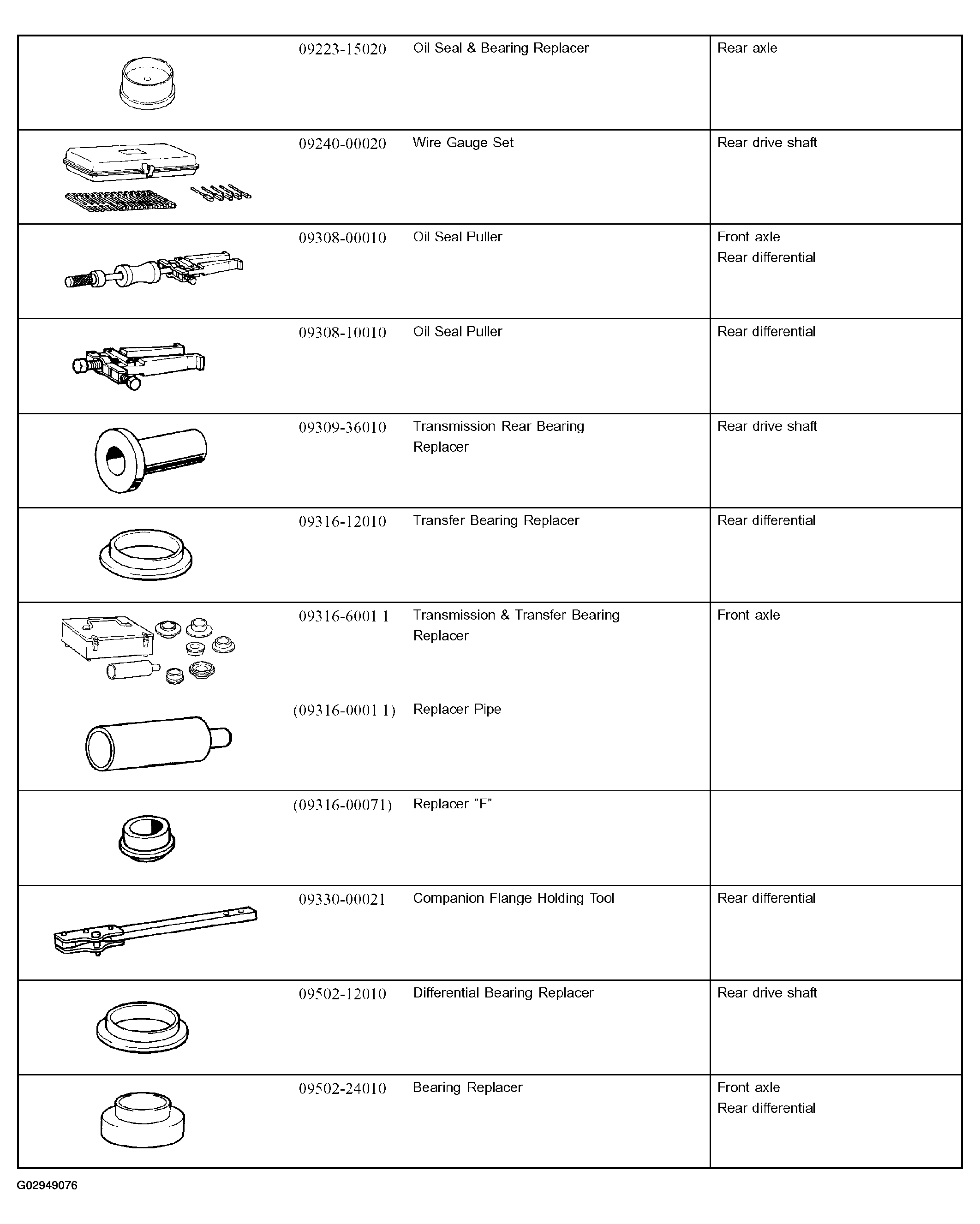

Fig 1: Identifying Special Service Tools - Suspension And Axle (1 Of 6)
G02949076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

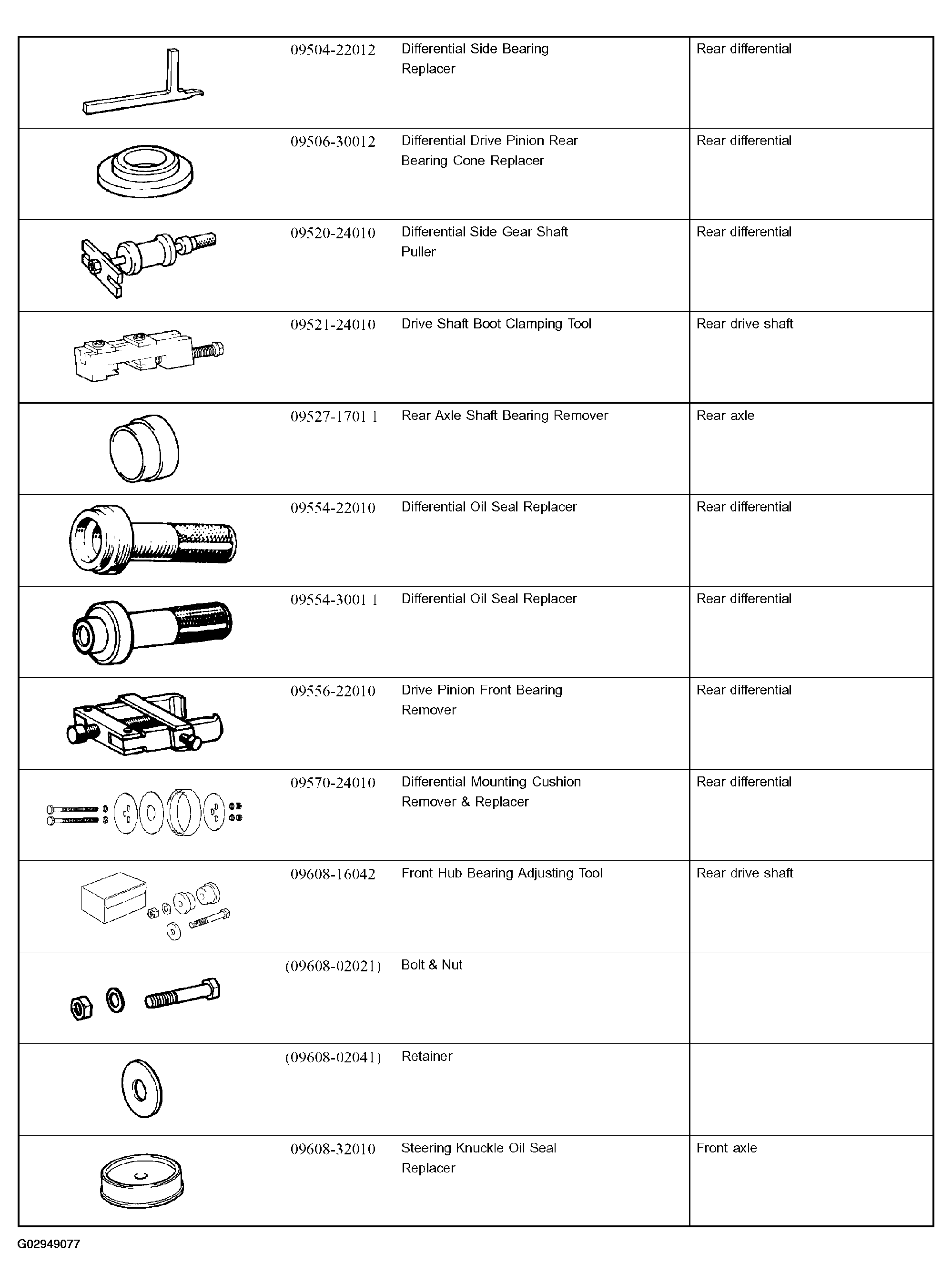

Fig 2: Identifying Special Service Tools - Suspension And Axle (2 Of 6)
G02949077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

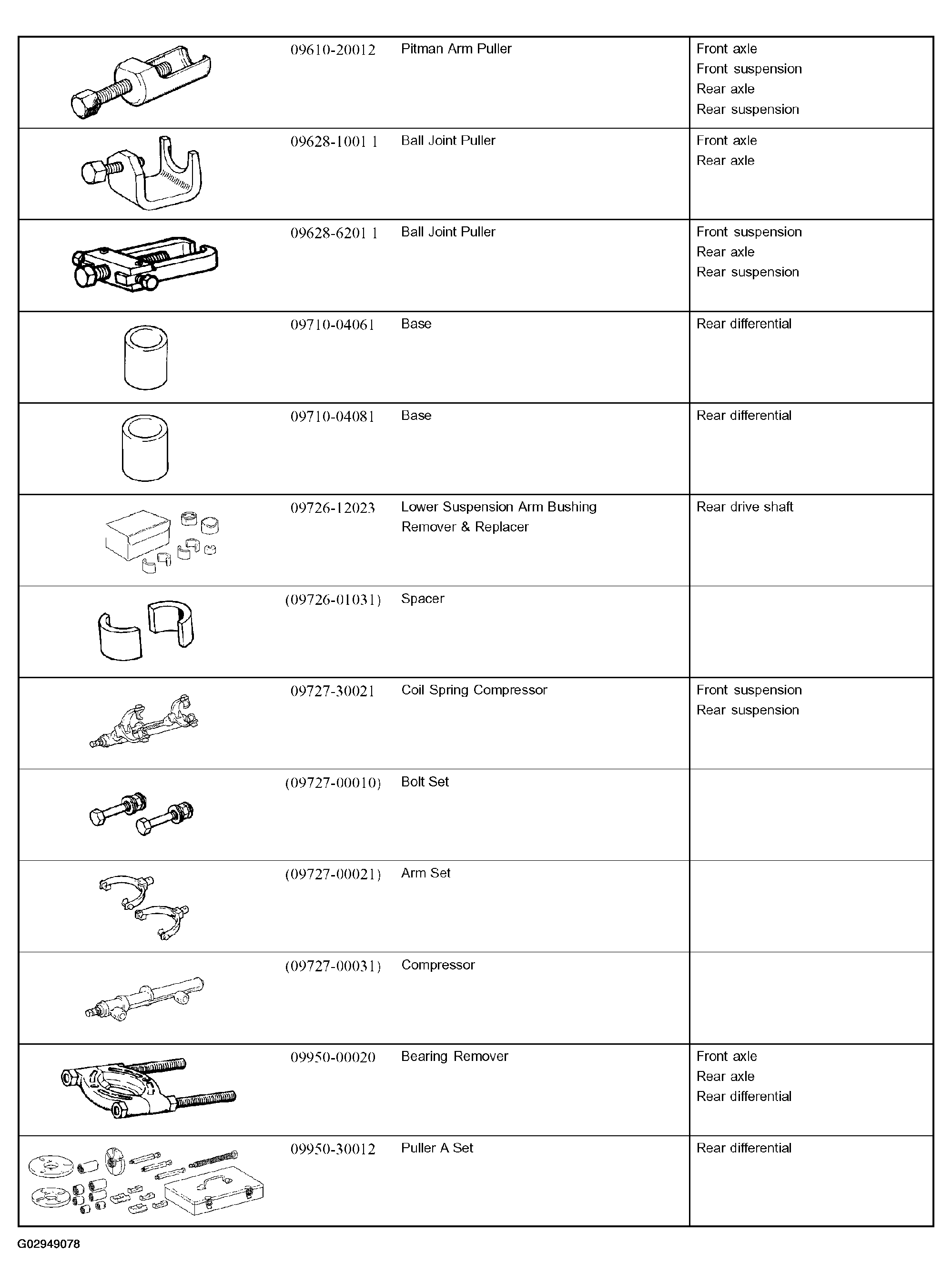

Fig 3: Identifying Special Service Tools - Suspension And Axle (3 Of 6)
G02949078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

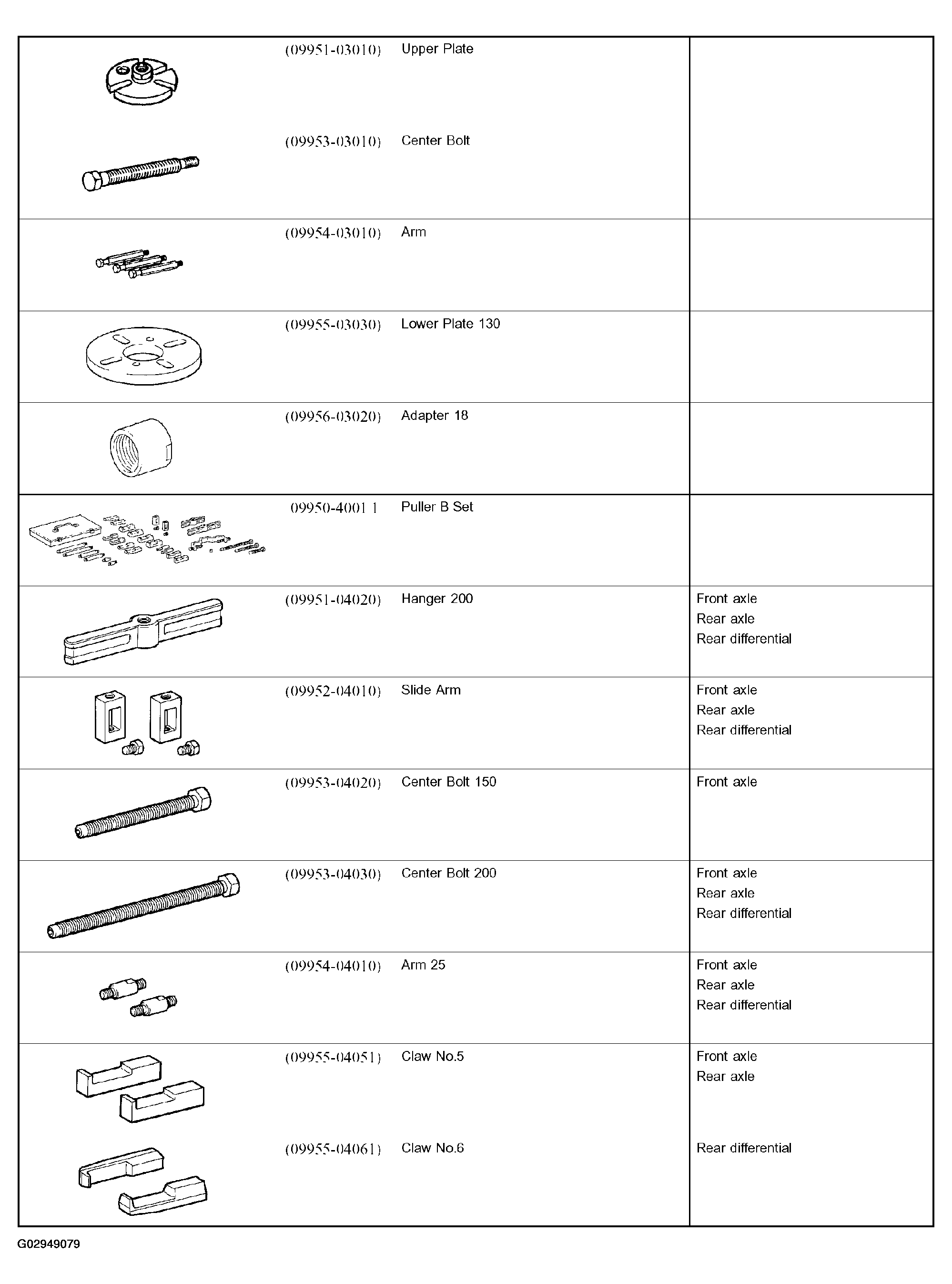

Fig 4: Identifying Special Service Tools - Suspension And Axle (4 Of 6)
G02949079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

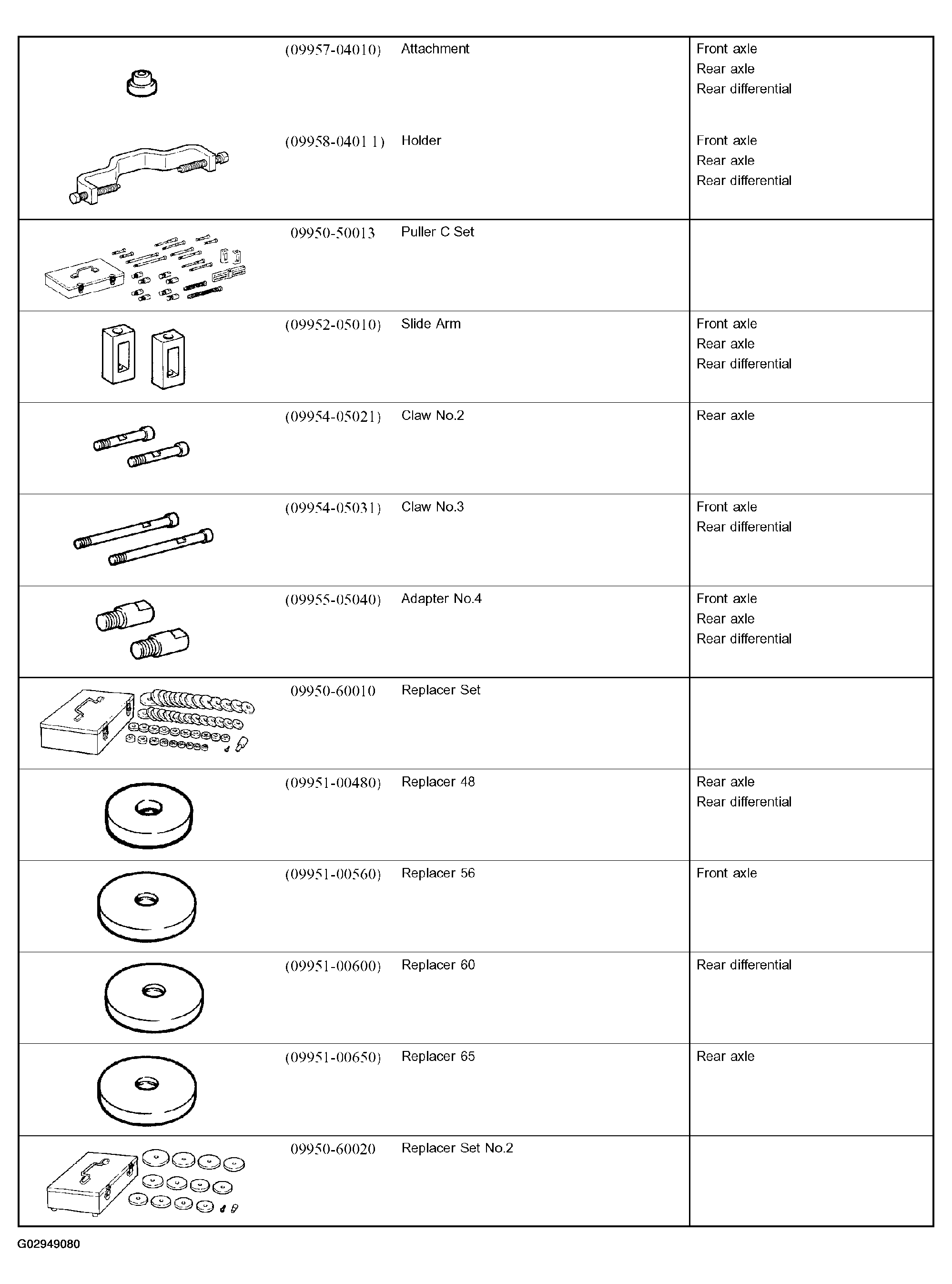

Fig 5: Identifying Special Service Tools - Suspension And Axle (5 Of 6)
G02949080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

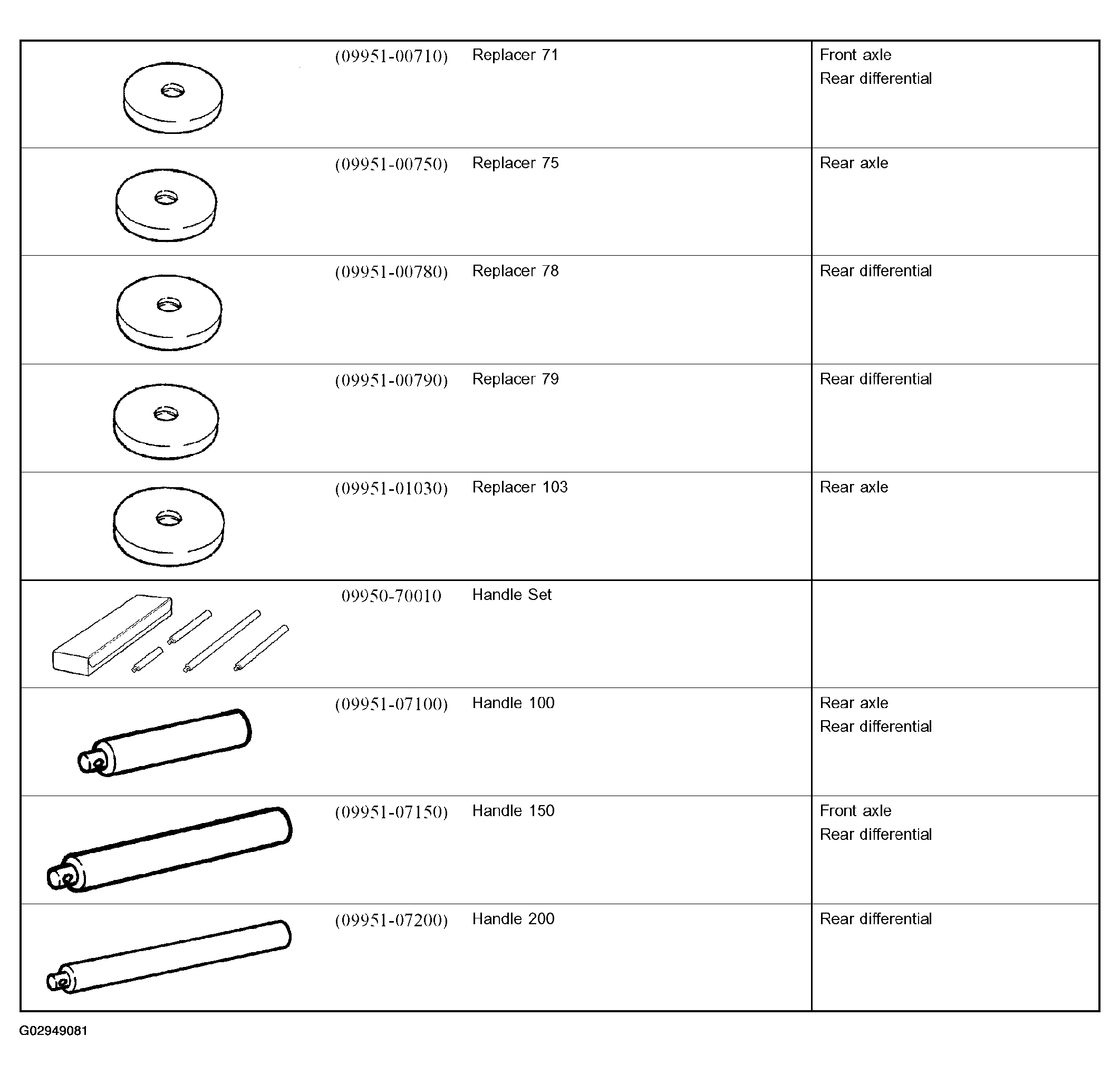

Fig 6: Identifying Special Service Tools - Suspension And Axle (6 Of 6)
G02949081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
