Extension Housing: Replacement

REMOVE REVERSE RESTRICT PIN
1. Using a hexagon wrench, remove the screw plug.
2. Using a pin punch and hammer, drive out the slotted spring pin.
3. Pull off the lever housing and slide out the shaft.
INSPECT REVERSE RESTRICT PIN

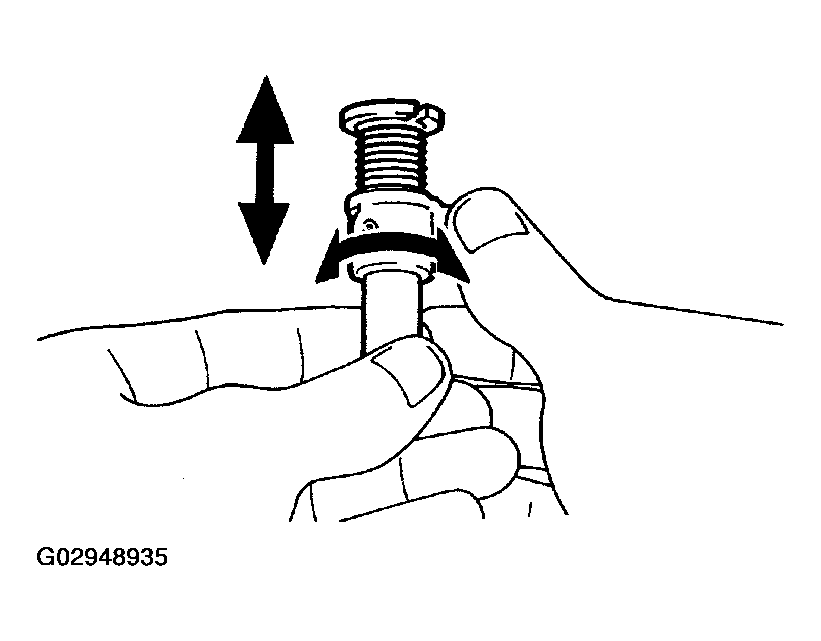

1. Turn and push the reverse restrict pin by hand.
2. Check for smooth operation.
INSTALL REVERSE RESTRICT PIN
1. Install the lever housing.

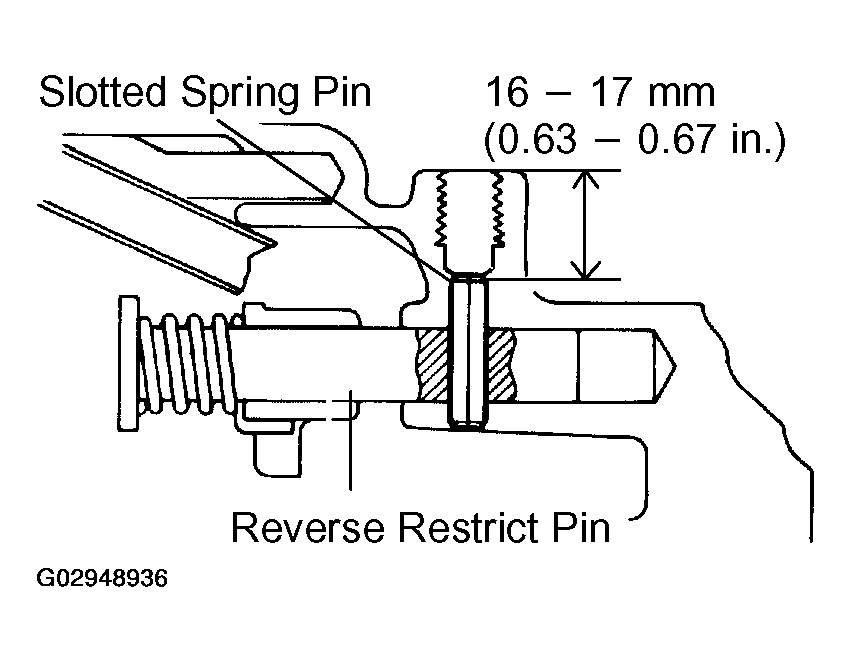

2. Using a pin punch and hammer, drive in the slotted spring pin, as shown.
  1. Drive in depth: 16-17 mm (0.63-0.67 in.)
3. Apply sealant to the plug.
  1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
4. Install and torque the screw plug.
  1. Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)
IF NECESSARY, REPLACE REAR BEARING OUTER RACE

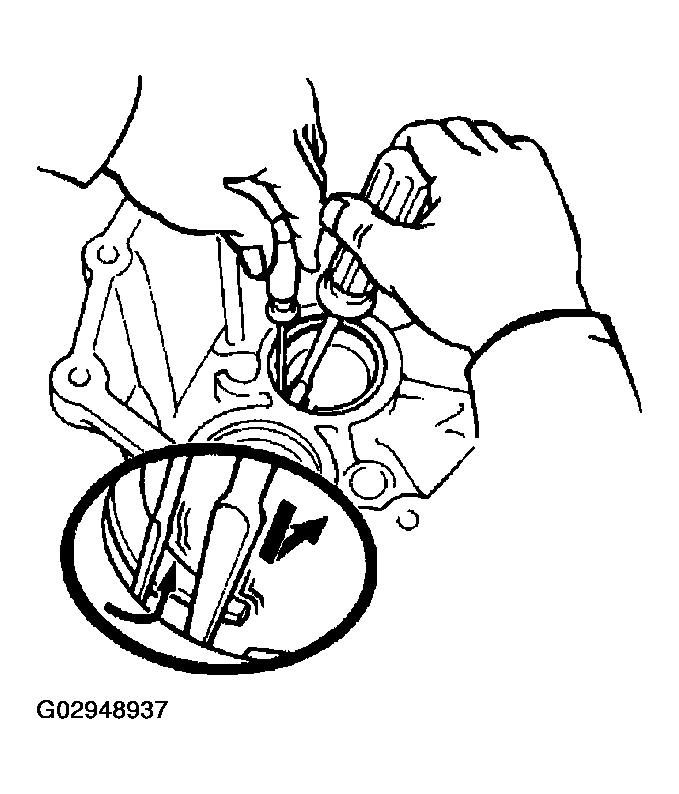

1. Using 2 screwdrivers, remove the snap ring.

  Fig 3: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

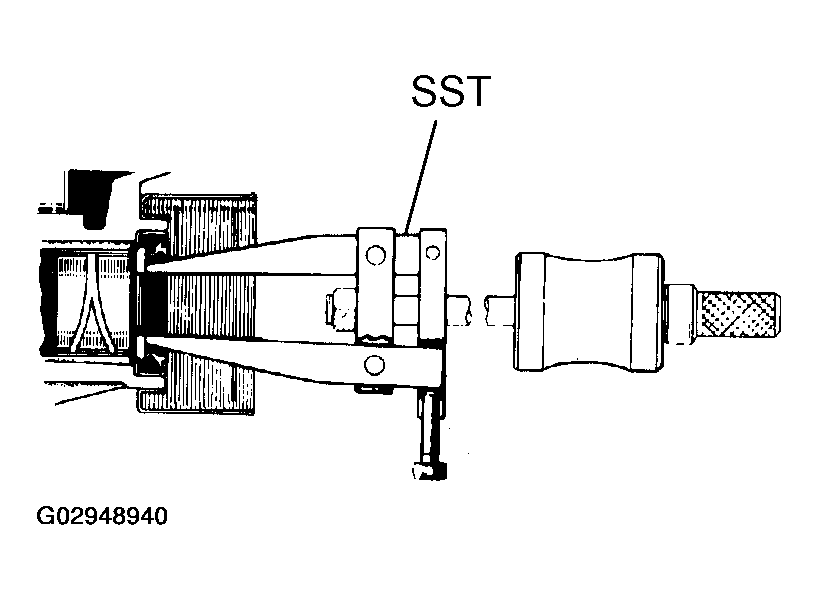

2. Using SST, remove the outer race.
  SST 09308-00010

  Fig 4: Removing Outer Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

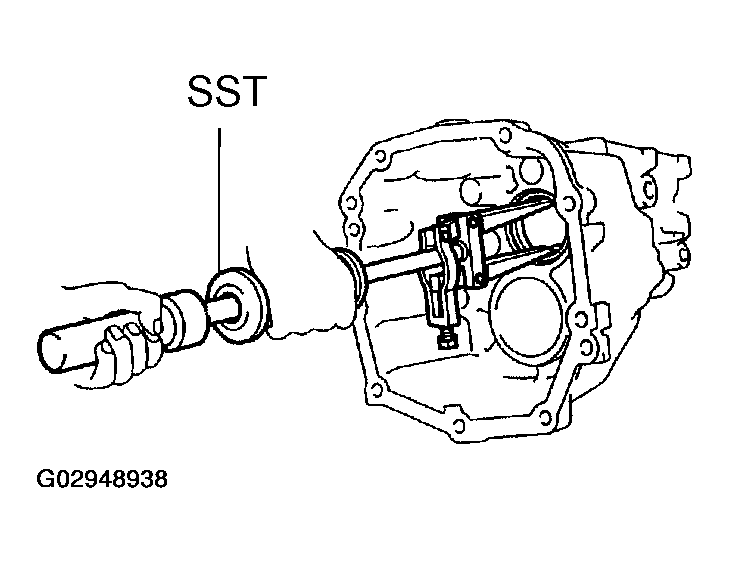

3. Using SST, install a new outer race.
  SST 09950-60010 (09951-00560), 09950-70010 (09951-07150)

  Fig 5: Installing New Outer Race
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, install the snap ring.
IF NECESSARY, REPLACE OIL SEAL

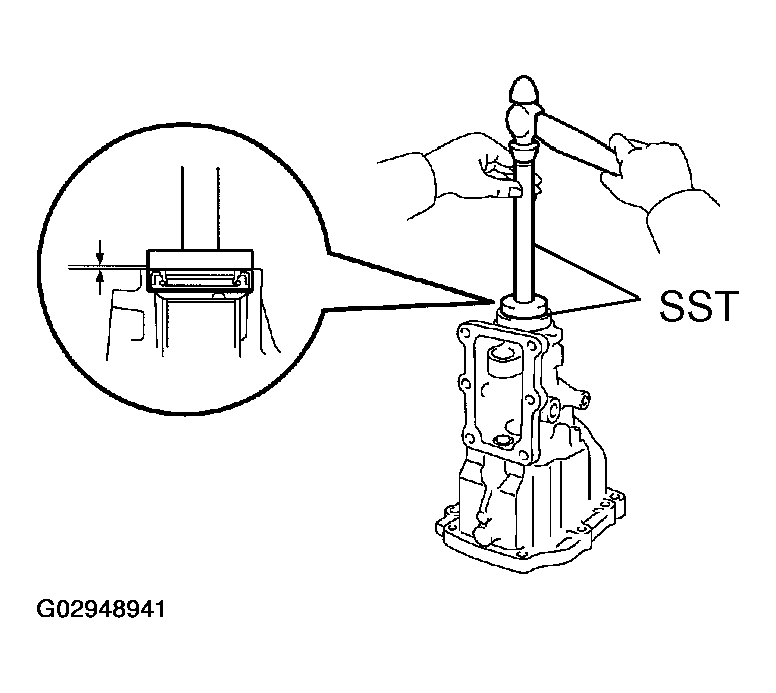

1. Using SST, remove the oil seal.
  SST 09308-00010 or 09308-10010 w/output shaft installed

  Fig 6: Removing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

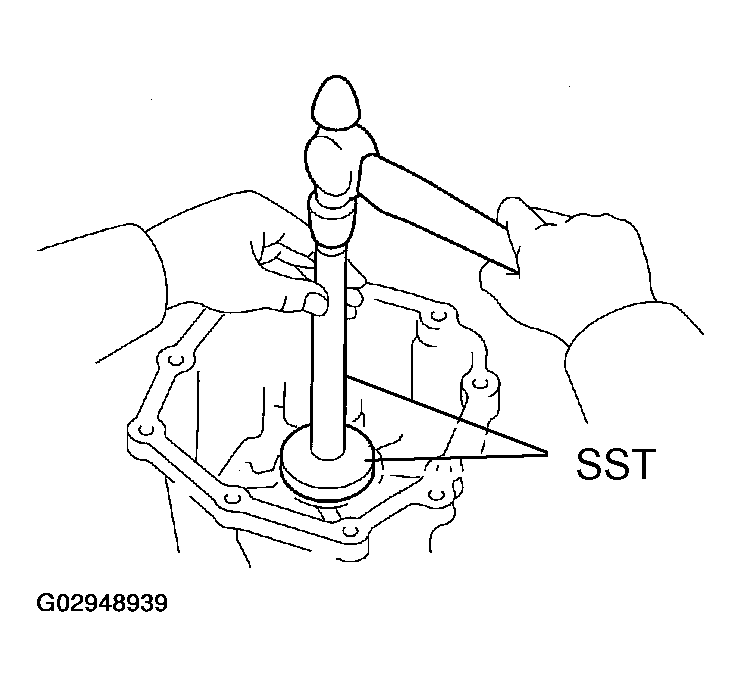

2. Using SST and a hammer, drive in a new oil seal.
  SST 09950-60010 (09951-00560), 09950-70010 (09951-07150)
  1. Drive in depth: 0 +/- 0.5 mm (0 +/- 0.020 in.)
  Fig 7: Driving In Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
