Manual Transmission Unit: Installation

  1. INSTALL TRANSMISSION
    1. Raise the engine front side.
    2. Align the input spline with a clutch disc and install the transmission to the engine.

      HINT:

      Turn the transmission a little in the clockwise and jack up until just before the transmission housing touches the body.

    3. Install the transmission and wire harness clamp with the 8 bolts.
      1. Torque:
      2. Bolt A (12 mm head bolt): 71.6 N.m (730 kgf.cm, 53 ft.lbf)
      3. Bolt B (10 mm head bolt): 37.3 N.m (380 kgf.cm, 28 ft.lbf)

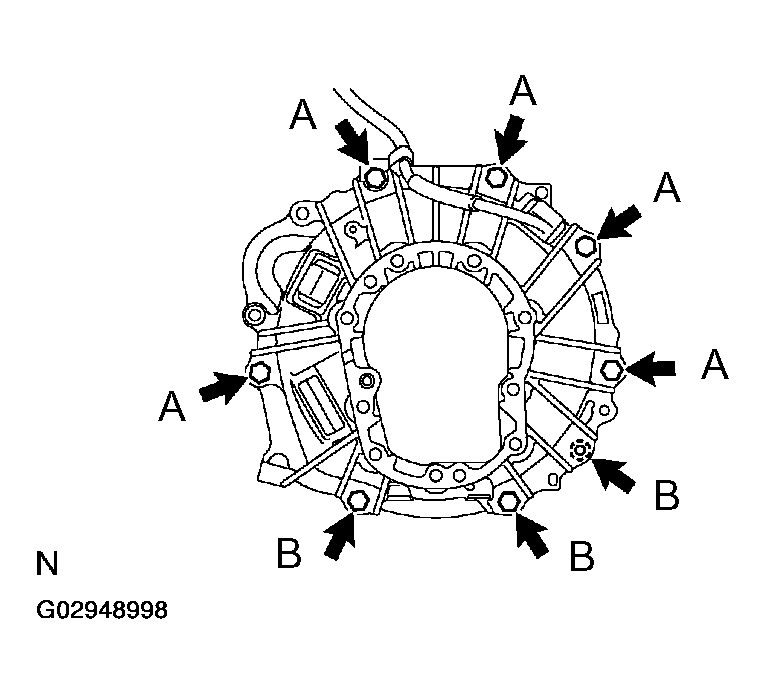

      Fig 1: Installing Transmission
      G02948998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ENGINE REAR MOUNTING

    Install the engine rear mounting with 4 the bolts.

    1. Torque: 25.5 N.m (260 kgf.cm, 19 ft.lbf)

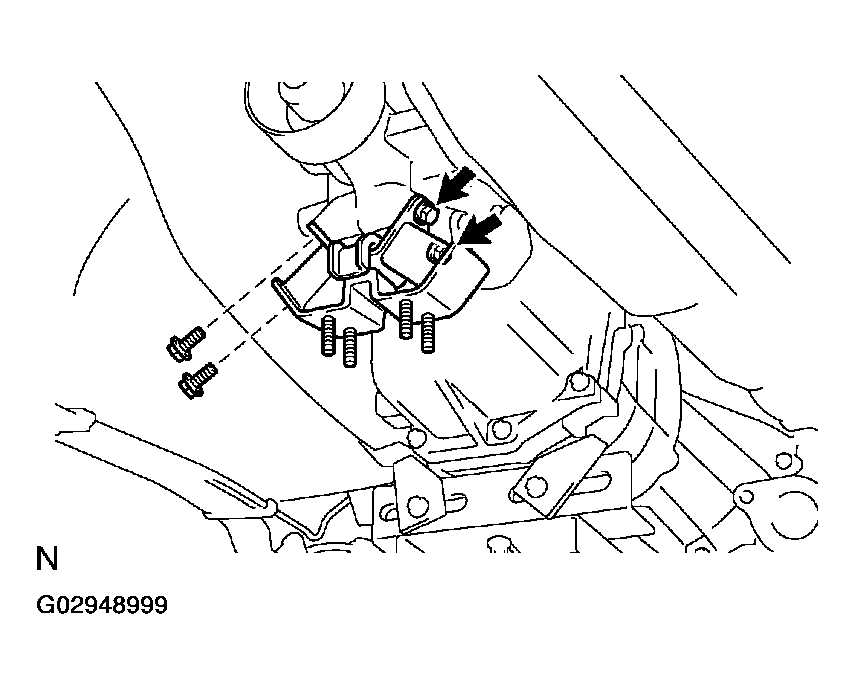

    Fig 2: Installing Engine Rear Mounting
    G02948999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR ENGINE MOUNTING MEMBER

    Install the rear engine mounting member with the 4 bolts and 4 nuts.

    1. Torque:
    2. Bolt: 25 N.m (255 kgf.cm, 18 ft.lbf)
    3. Nut: 13.5 N.m (138 kgf.cm, 10 ft.lbf)

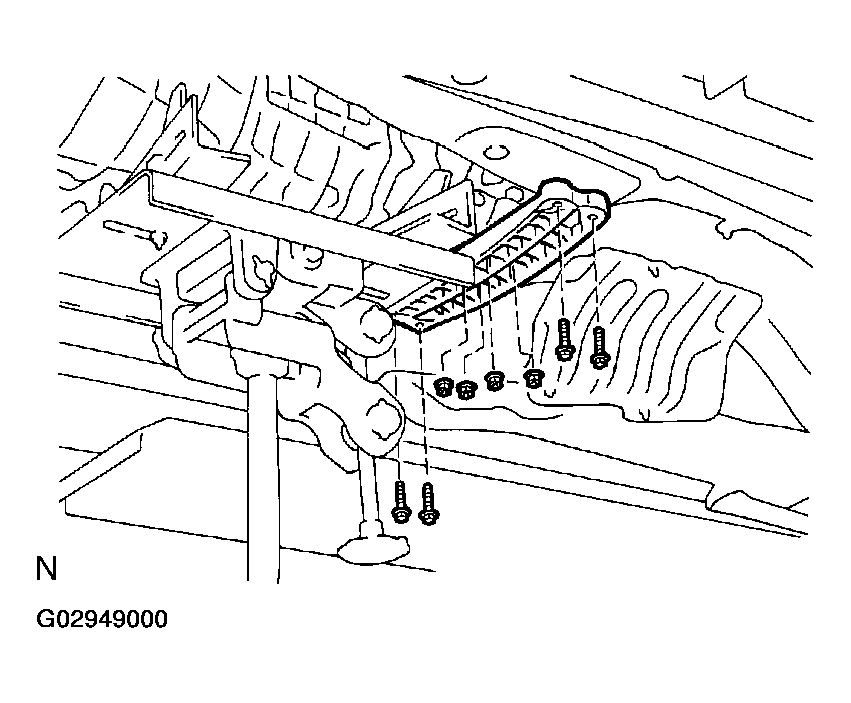

    Fig 3: Installing Rear Engine Mounting Member
    G02949000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STARTER
    1. Install the starter with the 2 bolts.
      1. Torque: 37.3 N.m (380 kgf.cm, 28 ft.lbf)
    2. Install the wire with the nut.
      1. Torque: 9.8 N.m (10 kgf.cm, 7 ft.lbf)
    3. Connect the connector.
  5. CONNECT SPEED SENSOR CONNECTOR AND WIRE HARNESS
    1. Connect the wire harness to the clamp.
    2. Connect the connector.

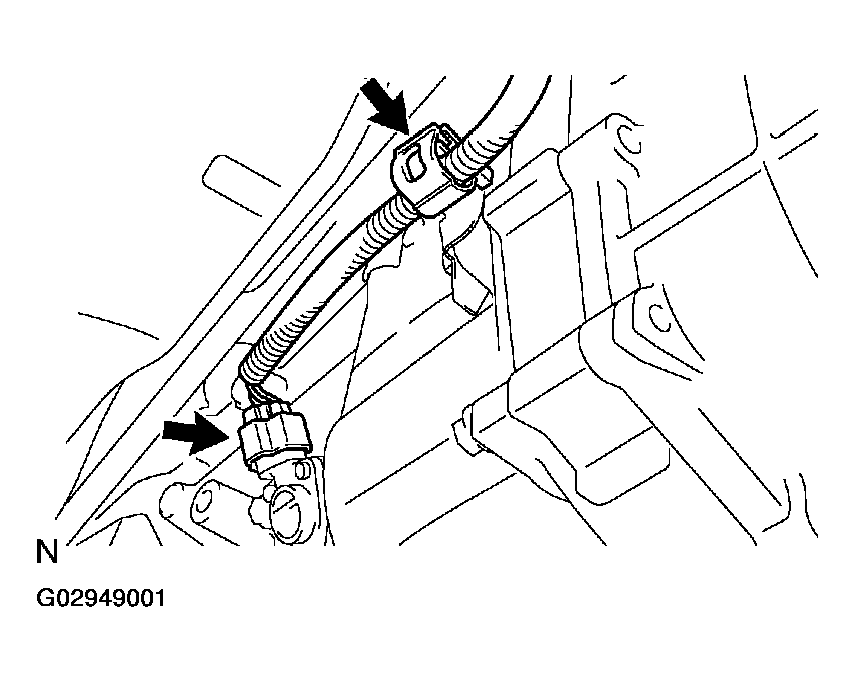

      Fig 4: Connecting Speed Sensor Connector And Wire Harness
      G02949001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT BACK-UP LIGHT SWITCH CONNECTOR

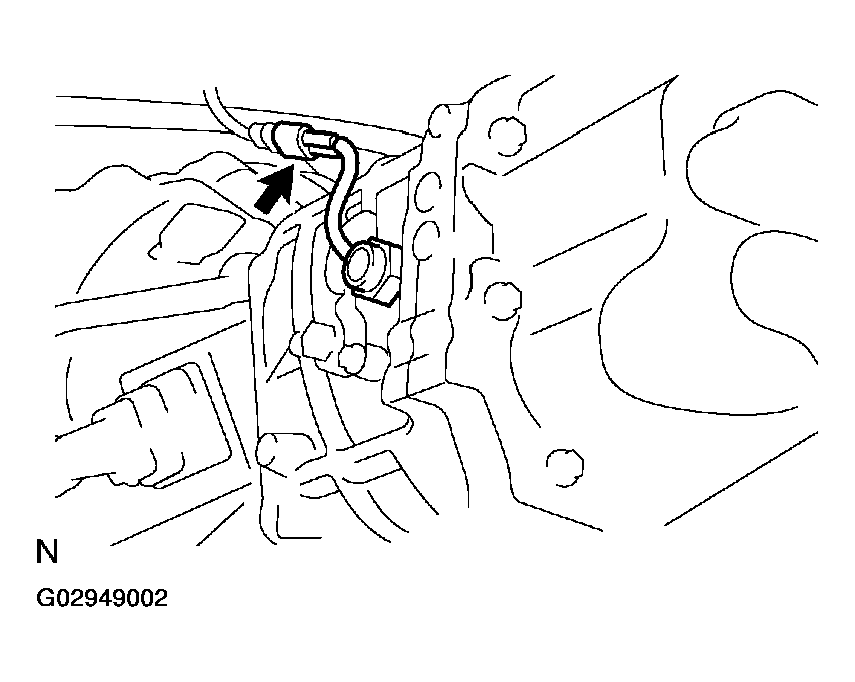

    Fig 5: Connecting Back-Up Light Switch Connector
    G02949002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CONNECT CLUTCH RELEASE CYLINDER, CLUTCH LINE BRACKET AND EARTH WIRE
    1. Connect the clutch line and earth wire with the bolt.
      1. Torque:
      2. Bolt A: 37.3 N.m (380 kgf.cm, 28 ft.lbf)
    2. Connect the clutch release cylinder with the 2 bolts.
      1. Torque:
      2. Bolt B: 11.7 N.m (119 kgf.cm, 9 ft.lbf)

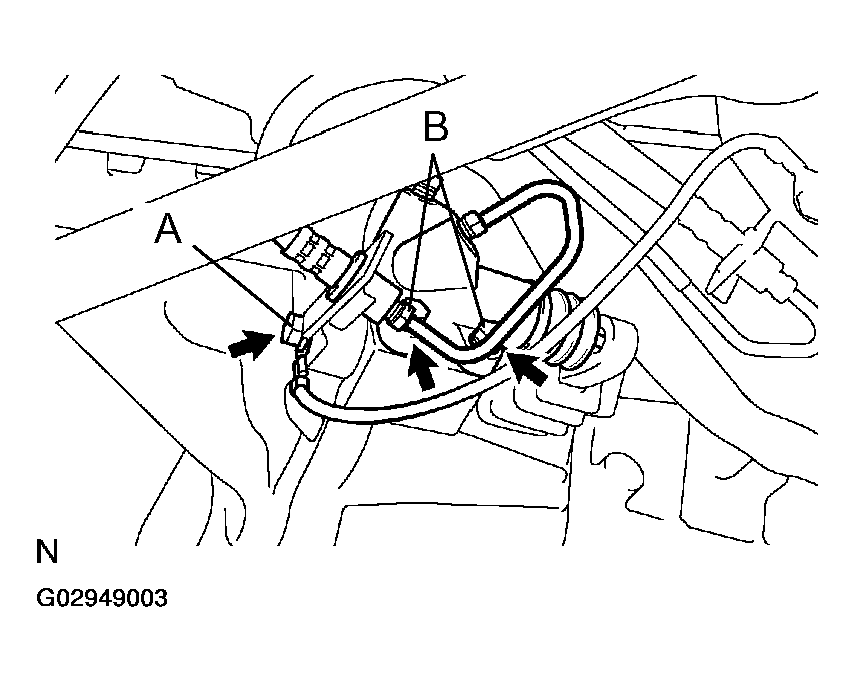

    3. Fig 6: Connecting Clutch Release Cylinder, Clutch Line Bracket And Earth Wire
      G02949003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL PROPELLER SHAFT (See  INSTALLATION  )
  9. INSTALL FRONT AND CENTER EXHAUST PIPES (See  EXHAUST SYSTEM  )
  10. FILL WITH TRANSMISSION OIL
    1. Torque:
    2. Filler and Drain plug: 38 N.m (387 kgf.cm, 28 ft.lbf)
    3. Oil grade: API GL-4 or GL-5
    4. Viscosity: SAE 75W-90
    5. Capacity: 2.6 litter (2.7 US qts, 2.3 lmp. qts)

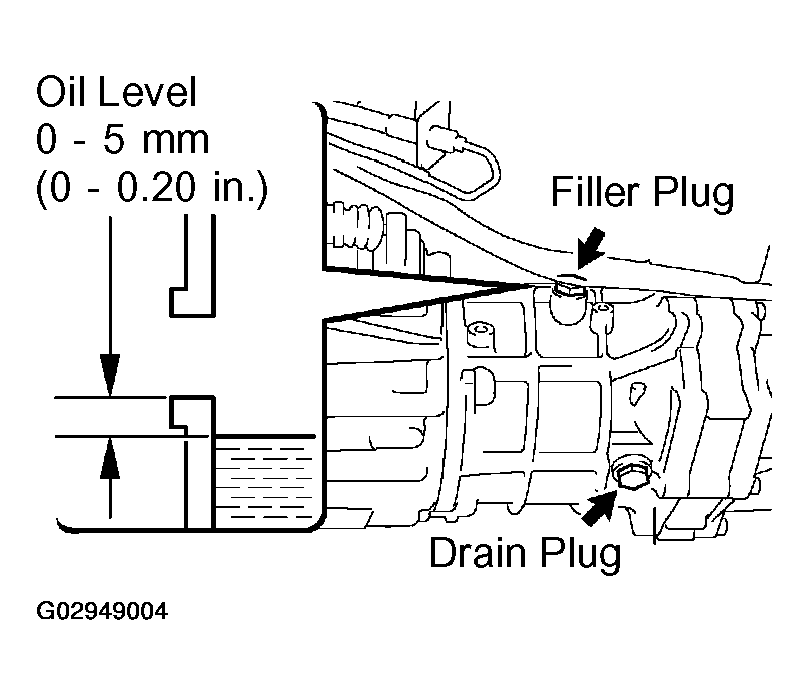

    6. Fig 7: Filling With Transmission Oil
      G02949004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 REAR FLOOR BOARD
  12. INSTALL LH FRONT FLOOR CENTER COVER
  13. LOWER VEHICLE
  14. INSTALL EXHAUST MANIFOLD
    1. Install 2 new gaskets to the cylinder head.
    2. Install the exhaust manifold with the 8 nuts. Uniformly tighten the nuts in several passes.
      1. Torque: 40 N.m (408 kgf.cm, 29 ft.lbf)
    3. Connect the heated oxygen sensor (bank 2 sensor 1) connector.
    4. Install the case clamp.

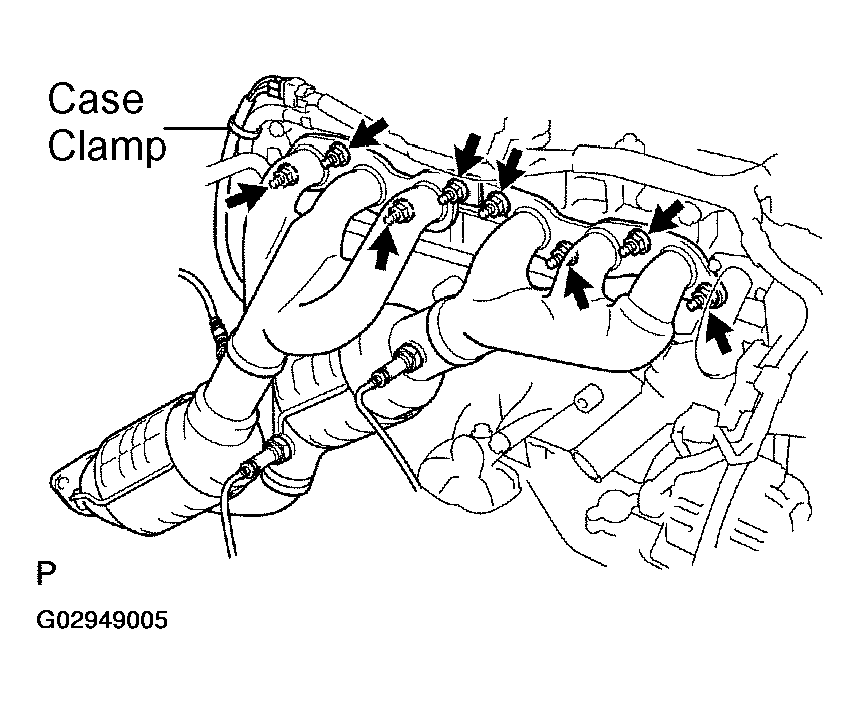

    Fig 8: Installing Exhaust Manifold
    G02949005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL INTAKE AIR CONNECTOR
    1. Install the intake air resonator to the throttle body, tighten the 2 hose clamp bolts.
    2. Connect the PCV hose to the No. 2 cylinder head cover.
    3. Connect the engine wire harness clamp to the air cleaner case.
    4. Connect the MAF meter connector.

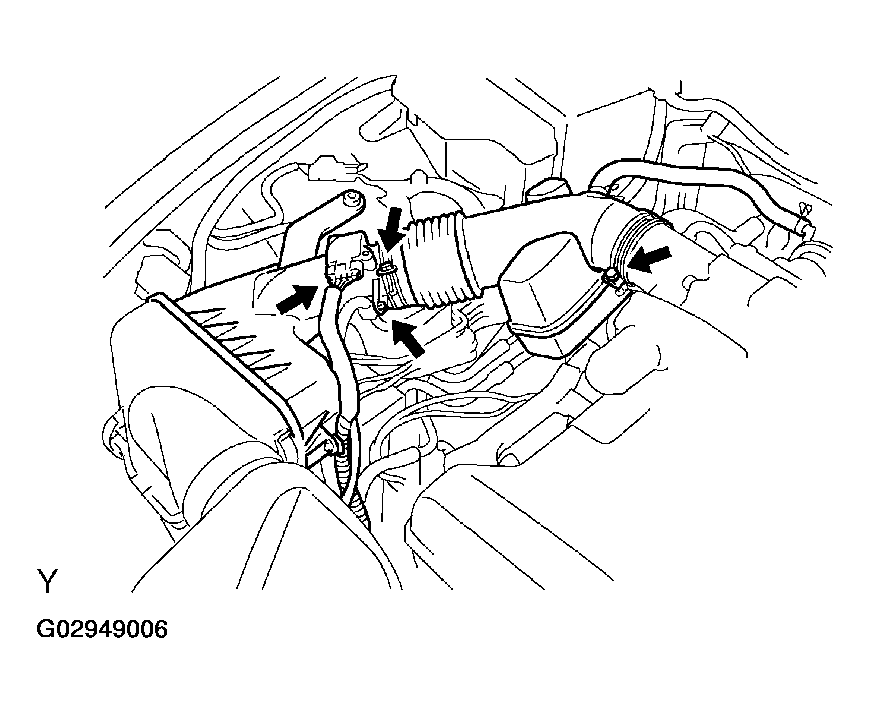

    5. Fig 9: Installing Intake Air Connector
      G02949006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. CONNECT RADIATOR UPPER HOSE NO. 1 FROM ENGINE
  17. FILL WITH ENGINE COOLANT
  18. INSTALL ENGINE COVER NO. 1
    1. Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
  19. INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS
  20. INSTALL TRANSMISSION SHIFT LEVER
    1. Install the washer.
    2. Apply MP grease to the tip of shift lever.
    3. Install the shift lever with the 4 bolts.
      1. Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

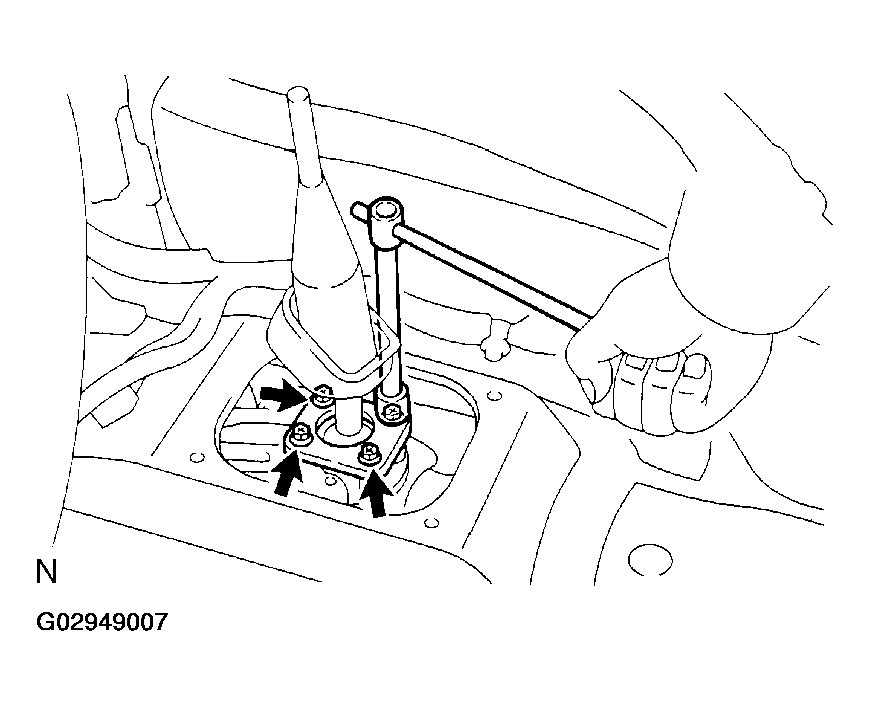

      Fig 10: Installing No. 1 And No. 2 Engine Under Covers
      G02949007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL SHIFT BOOT
  22. INSTALL SHIFT BOOT RETAINER
    1. Install the shift boot retainer with the 4 bolts.
    2. Connect the 2 wire harness clamps.

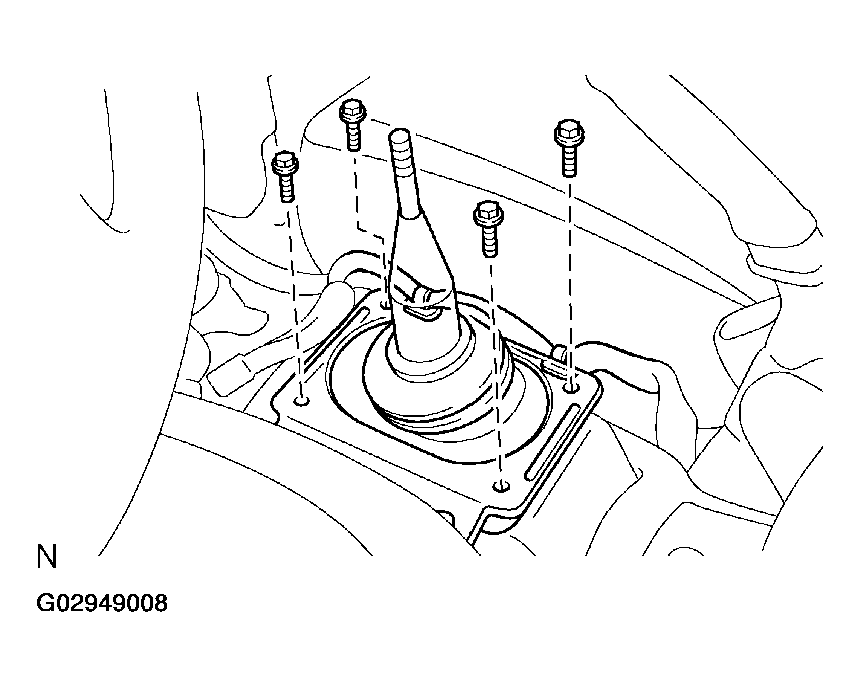

    3. Fig 11: Installing Shift Boot Retainer
      G02949008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL UPPER CONSOLE PANEL AND CONSOLE BOX (See  INSTALLATION  )
  24. DO ROAD TEST

    Check for abnormal noises and smooth shifting.
