Navigation Module: Testing and Inspection

TERMINALS OF ECU

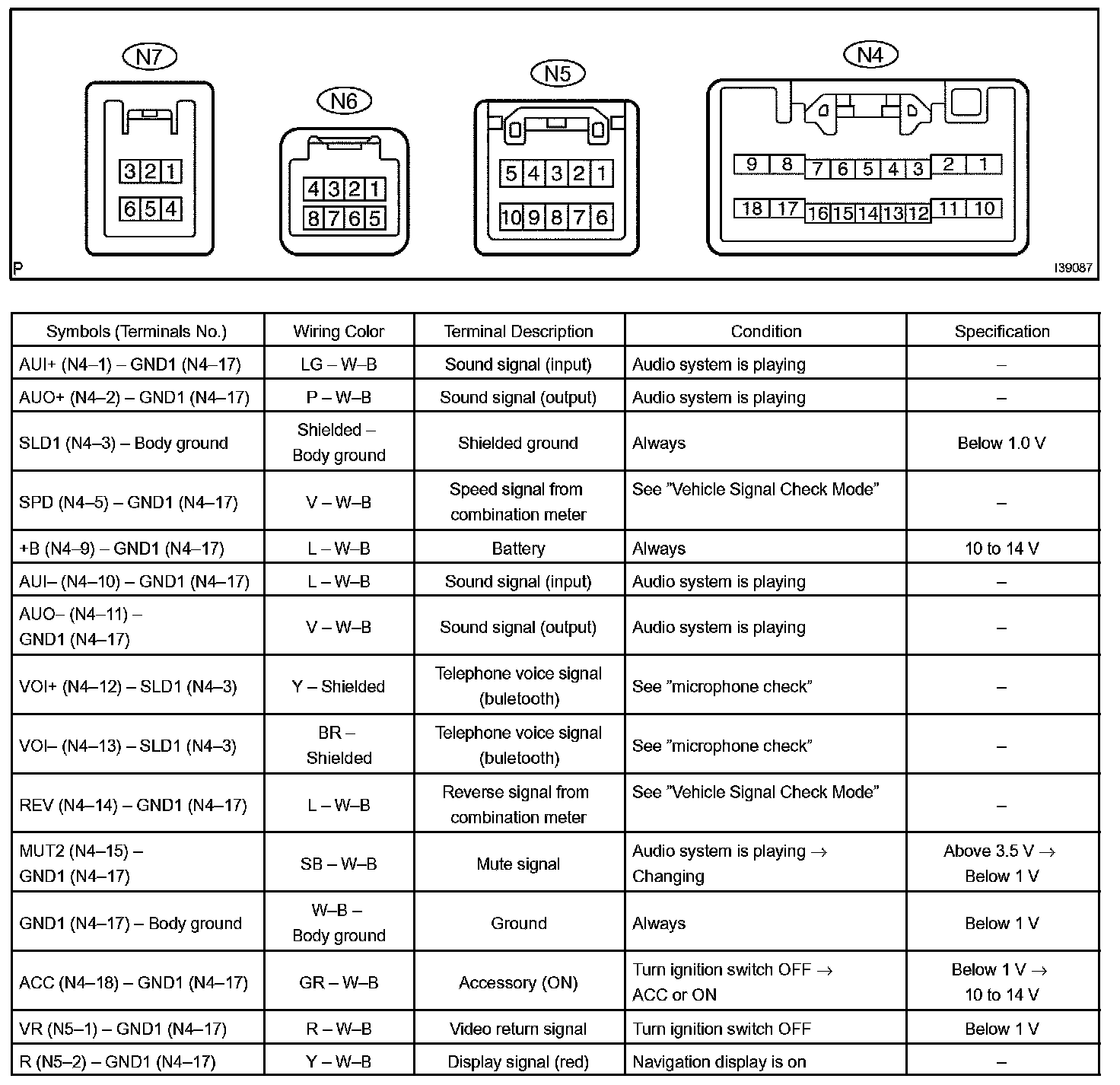

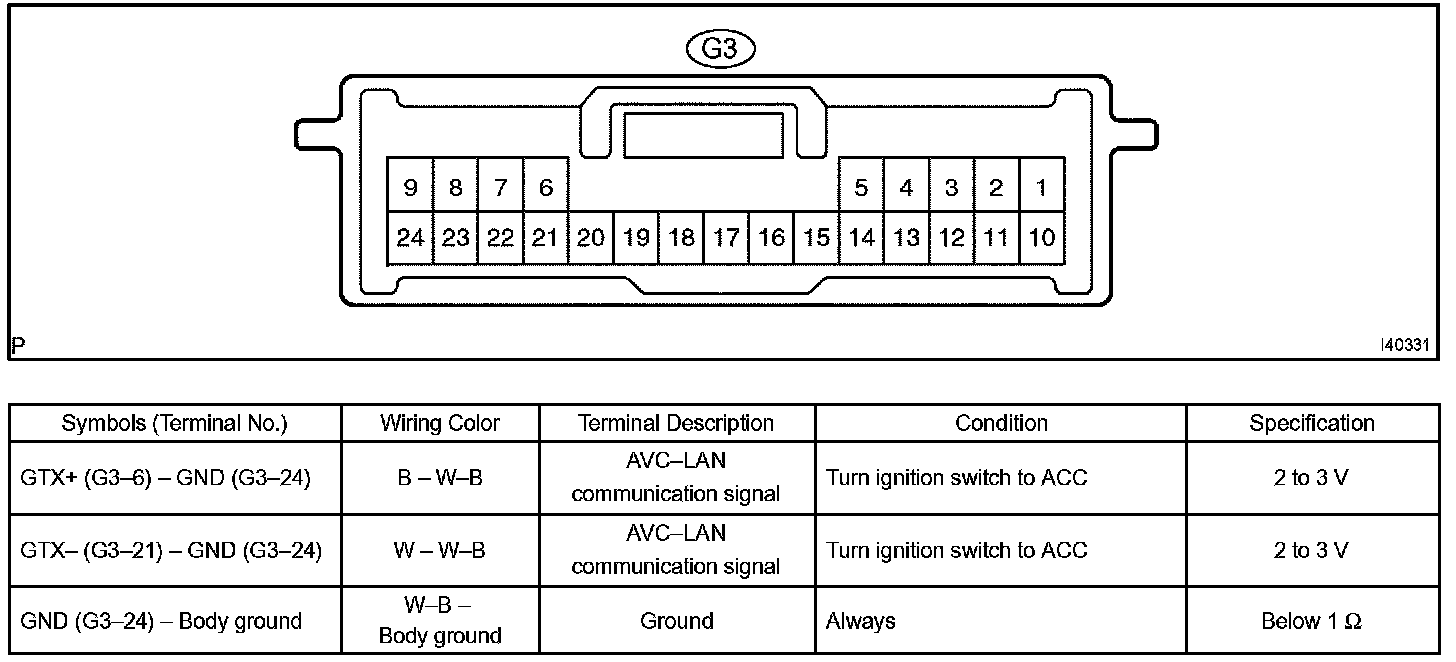

Terminals Of Control Module / Pinouts - Multi-Dispaly Assy Part 1:

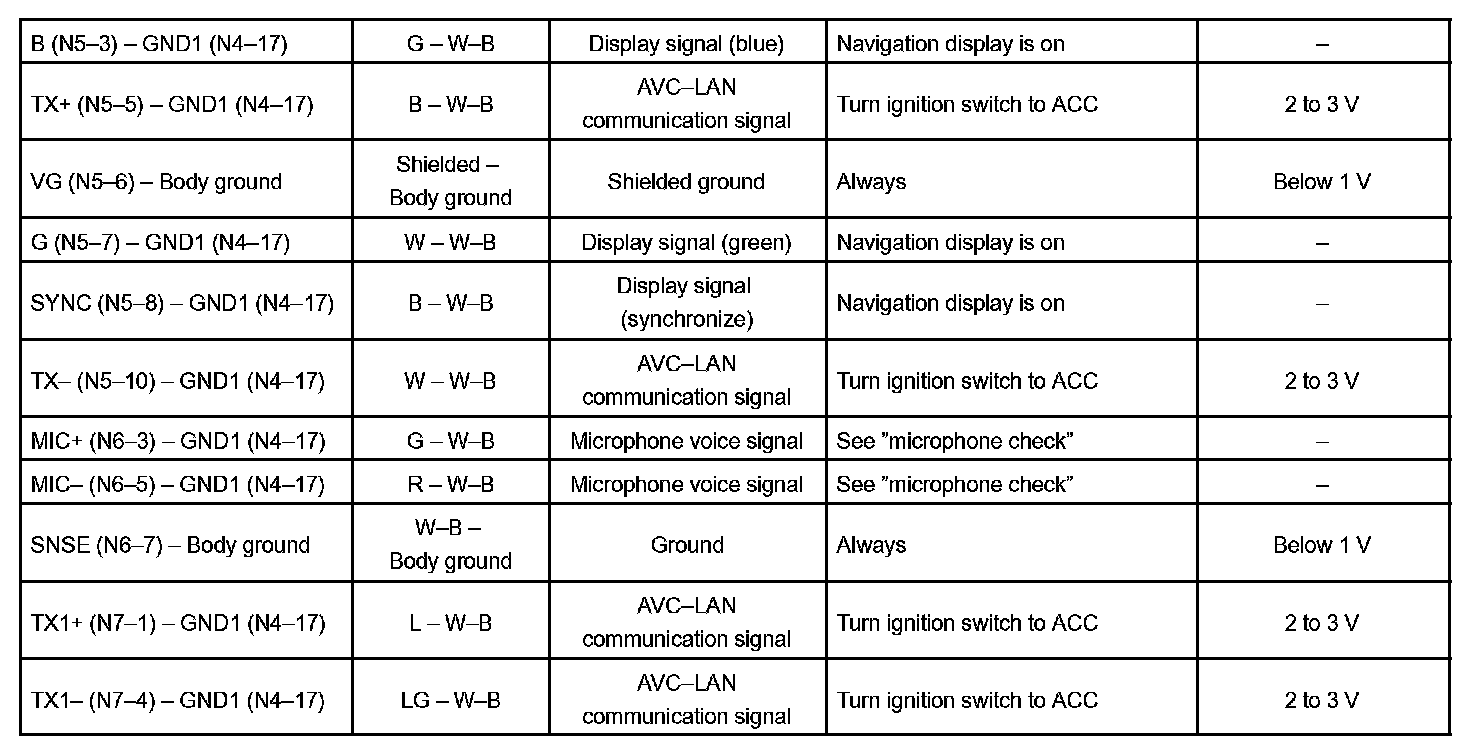

Terminals Of Control Module / Pinouts - Multi-Dispaly Assy Part 2:

1. MULTI DISPLAY ASSEMBLY

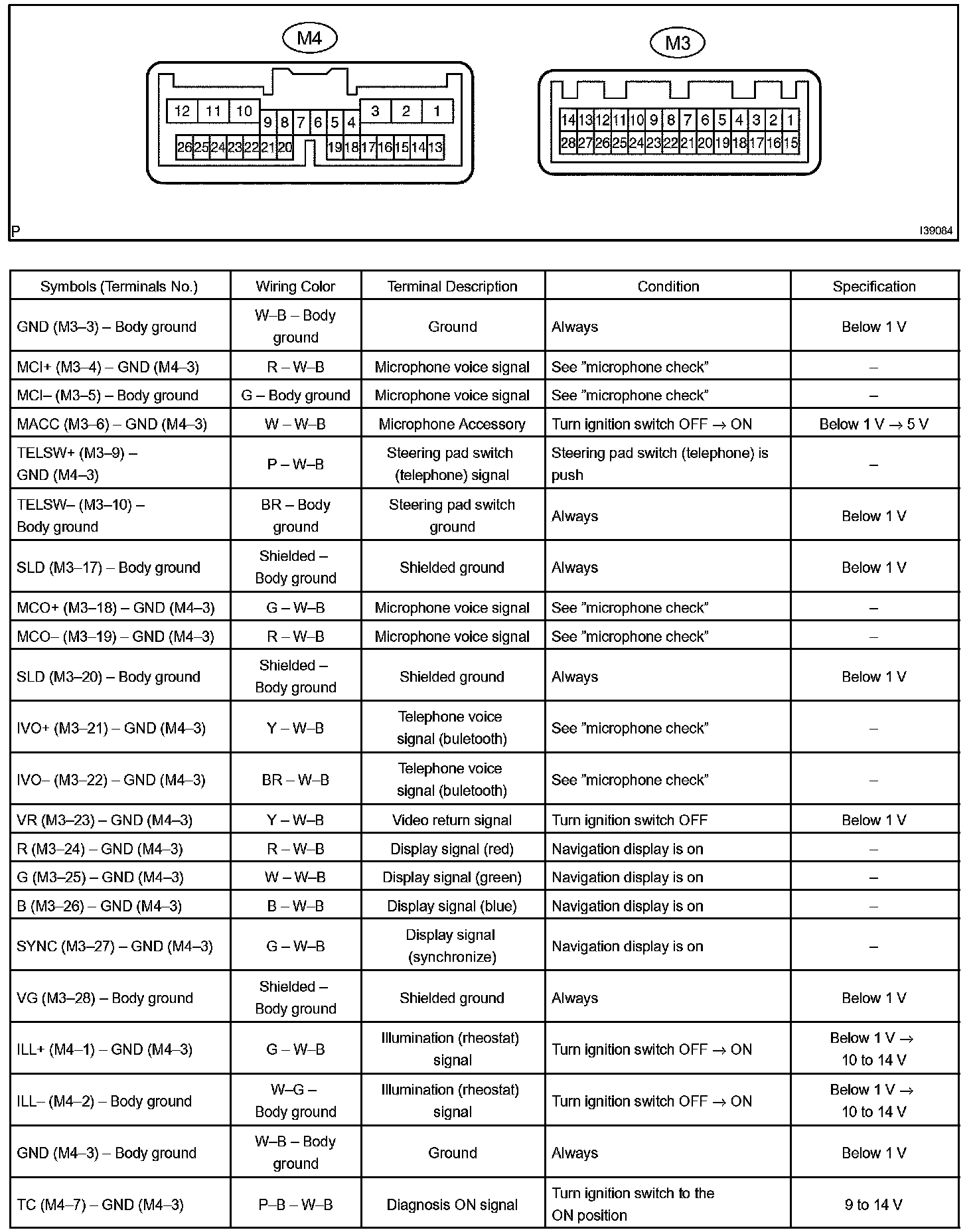

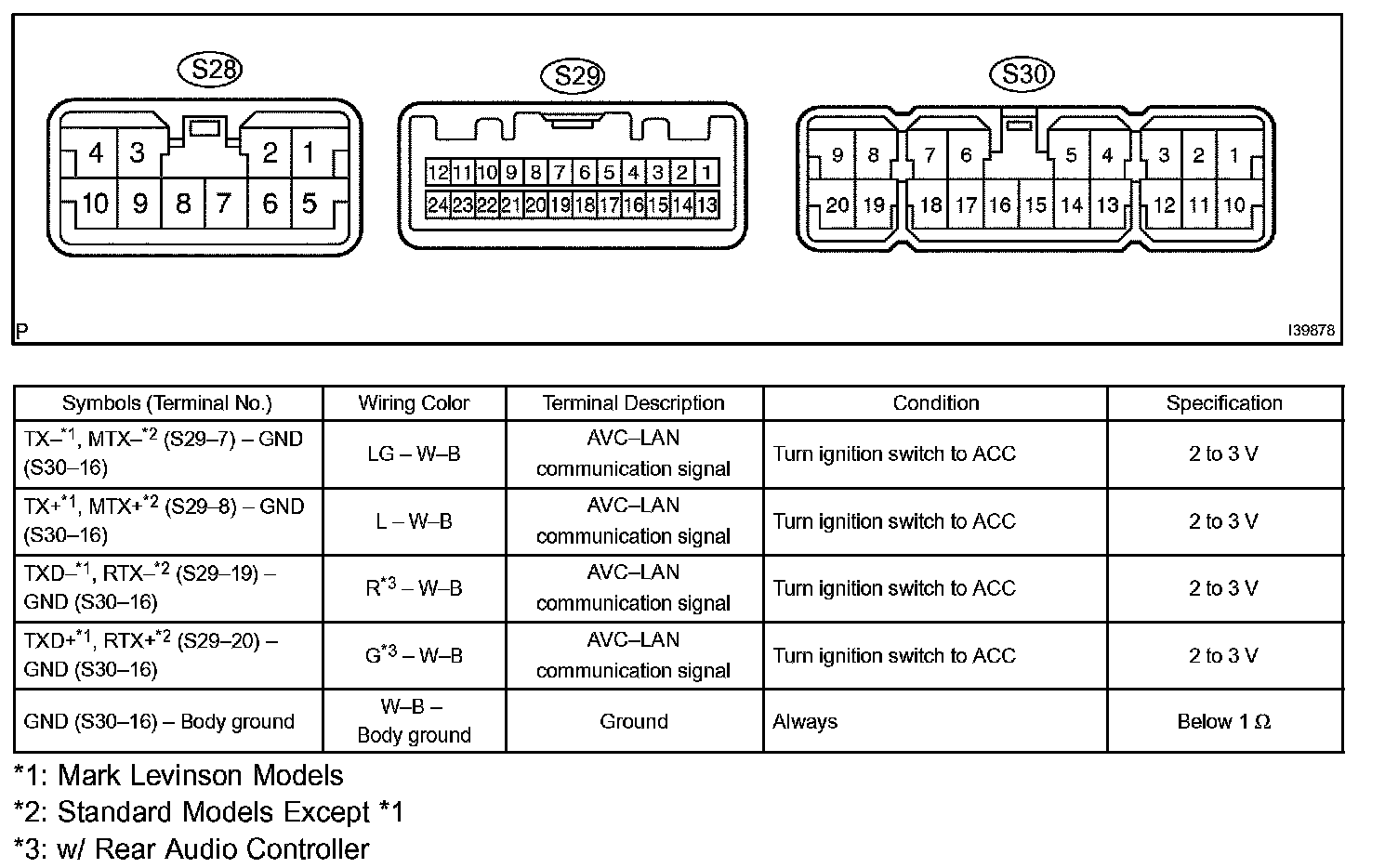

Terminals Of Control Module / Pinouts - Navigation ECU Part 1:

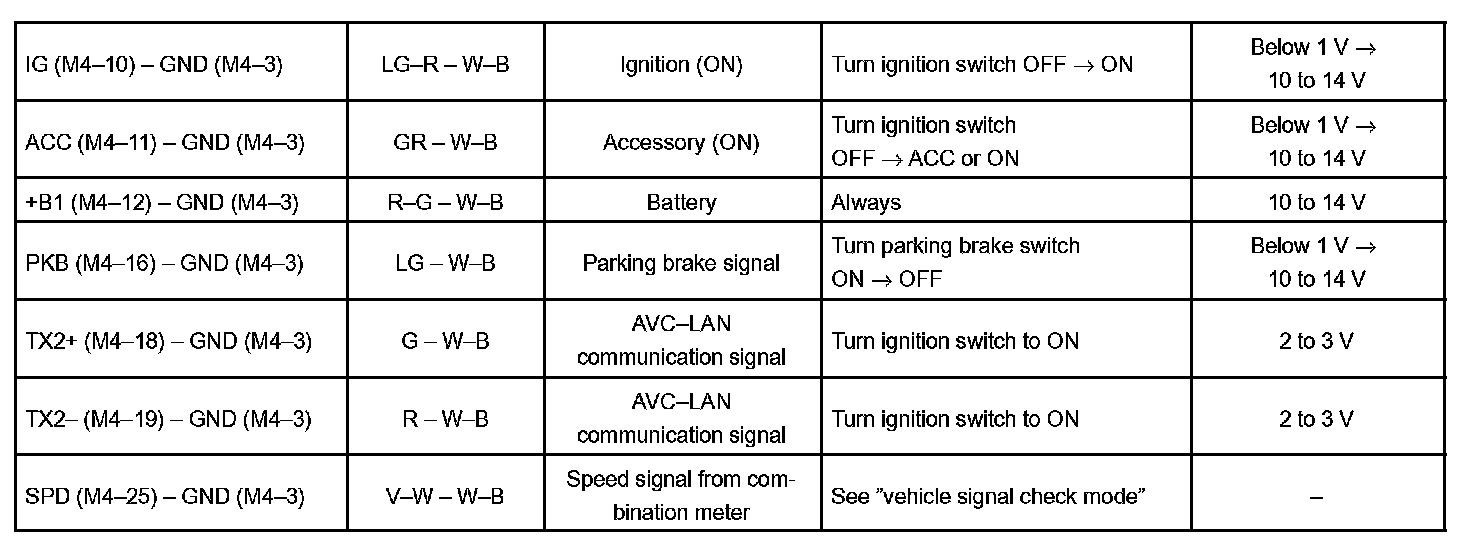

Terminals Of Control Module / Pinouts - Navigation ECU Part 2:

2. NAVIGATION ECU

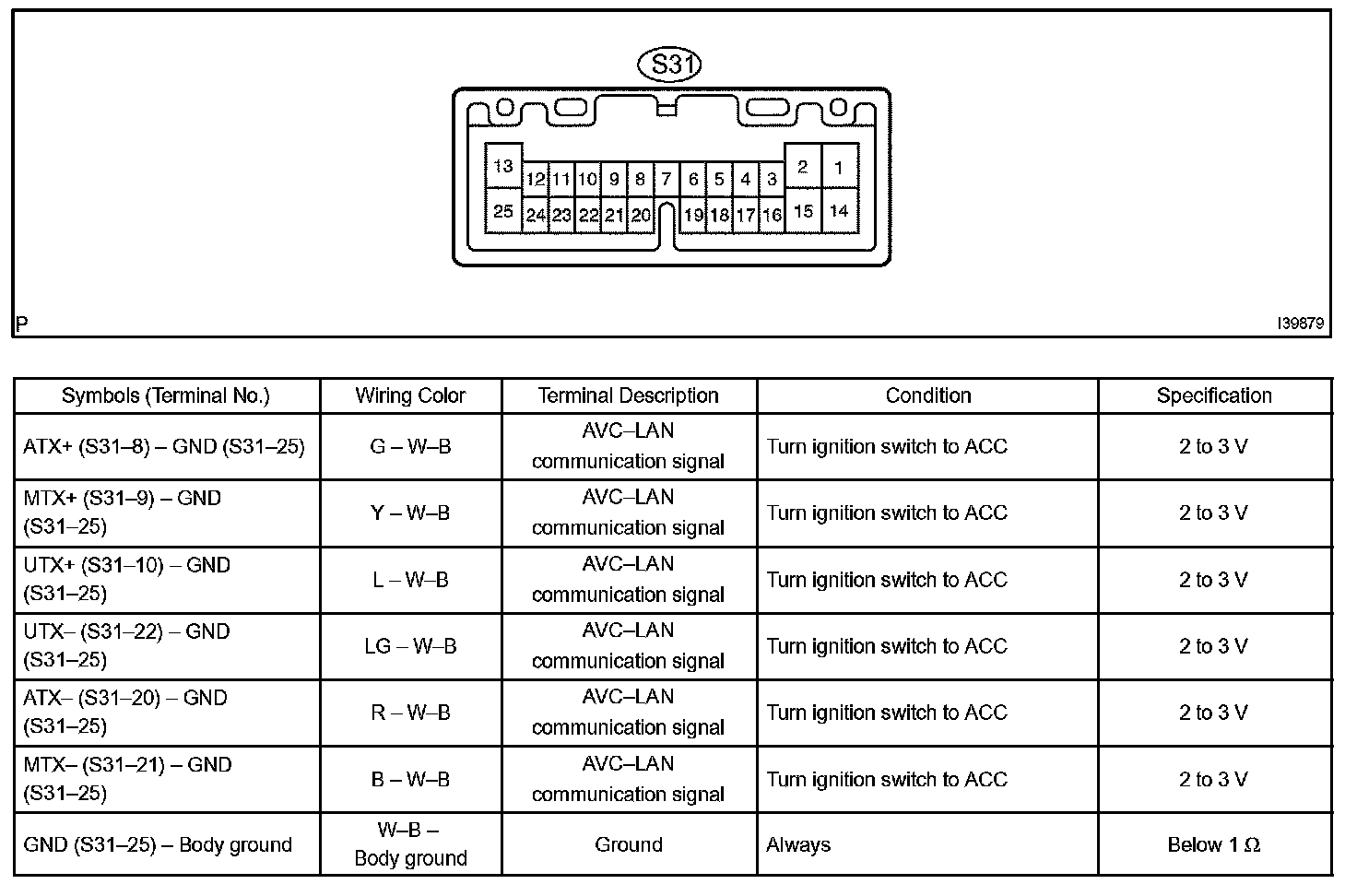

Terminals Of Control Module / Pinouts - Radio Receiver Assy:

3. RADIO RECEIVER ASSEMBLY

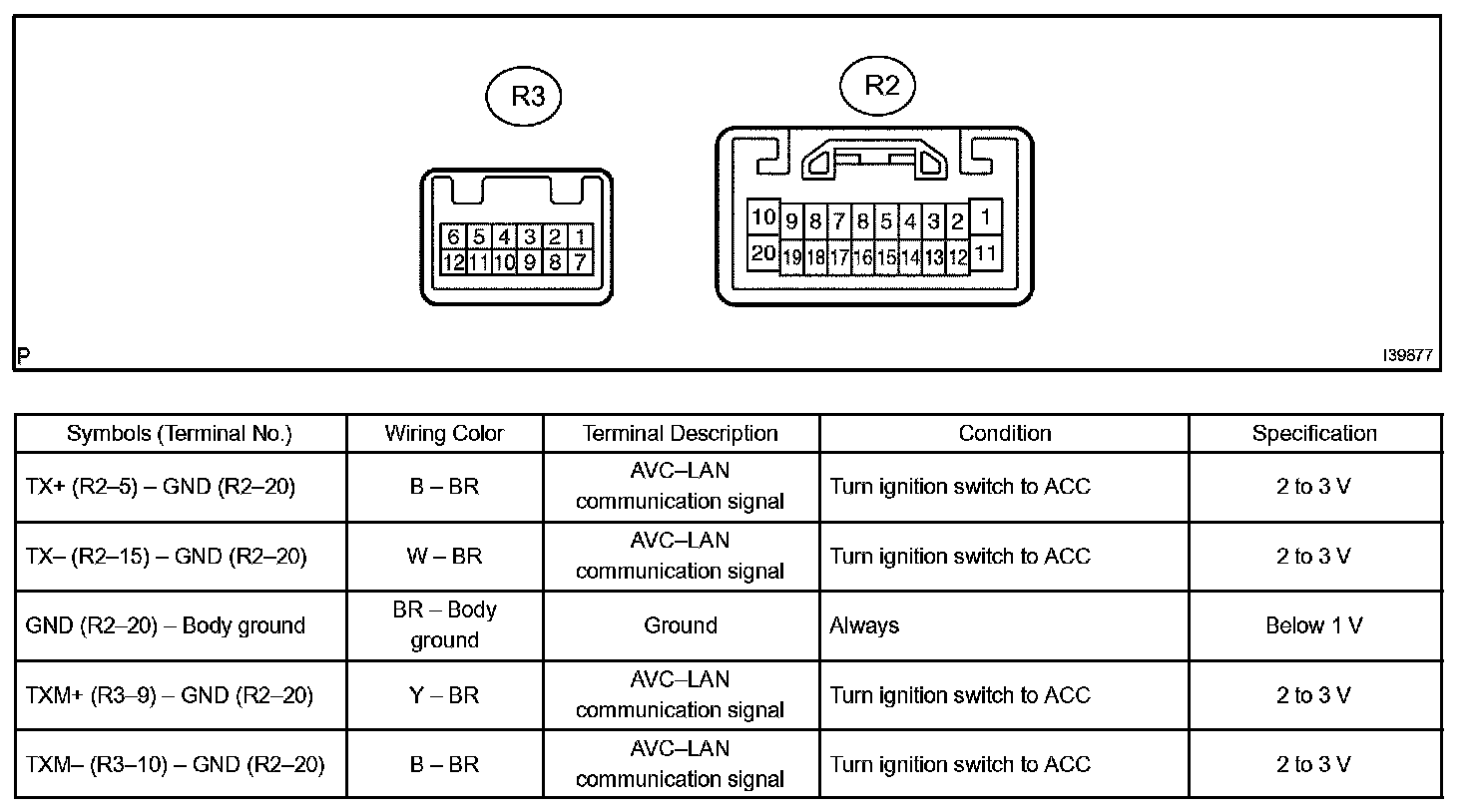

Terminals Of Control Module / Pinouts - Stereo Component Amplifier Assy:

4. STEREO COMPONENT AMPLIFIER ASSEMBLY

Terminals Of Control Module / Pinouts - Stereo Component Tuner:

5. STEREO COMPONENT TUNER

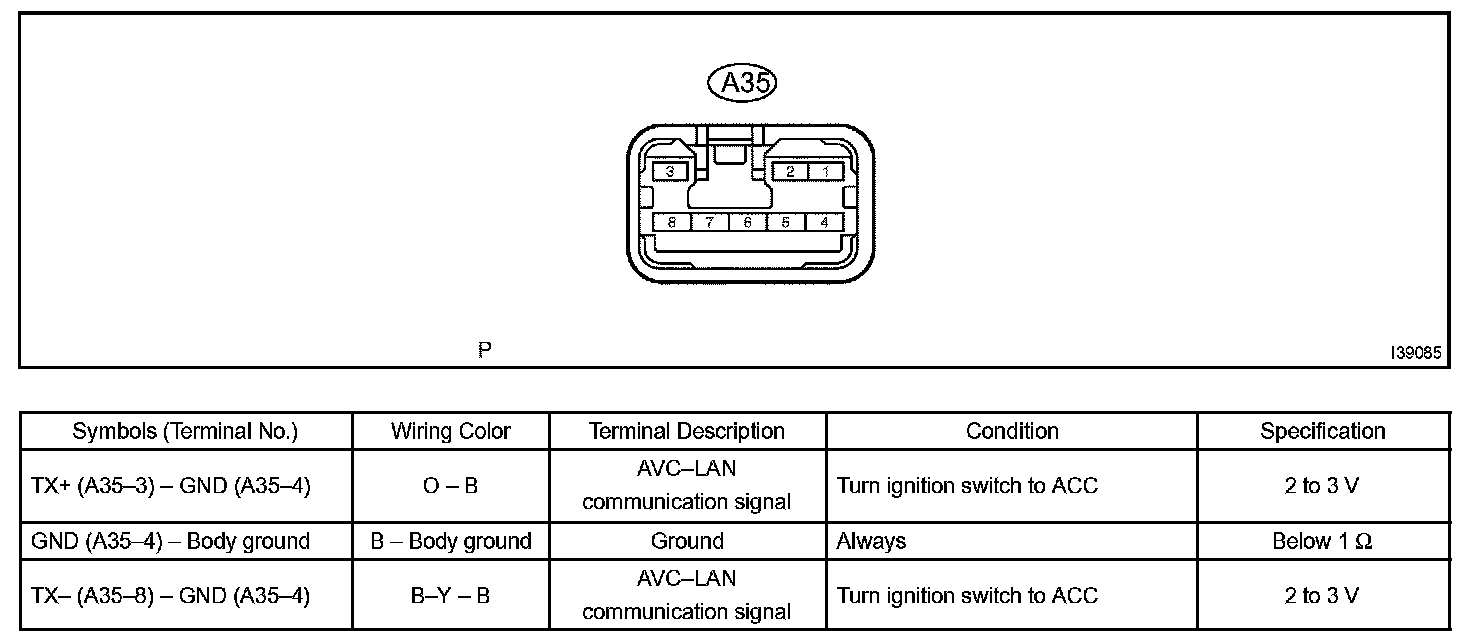

Terminals Of Control Module / Pinouts - Audio And Rear A/C Control SW:

6. AUDIO AND REAR A/C CONTROL SW

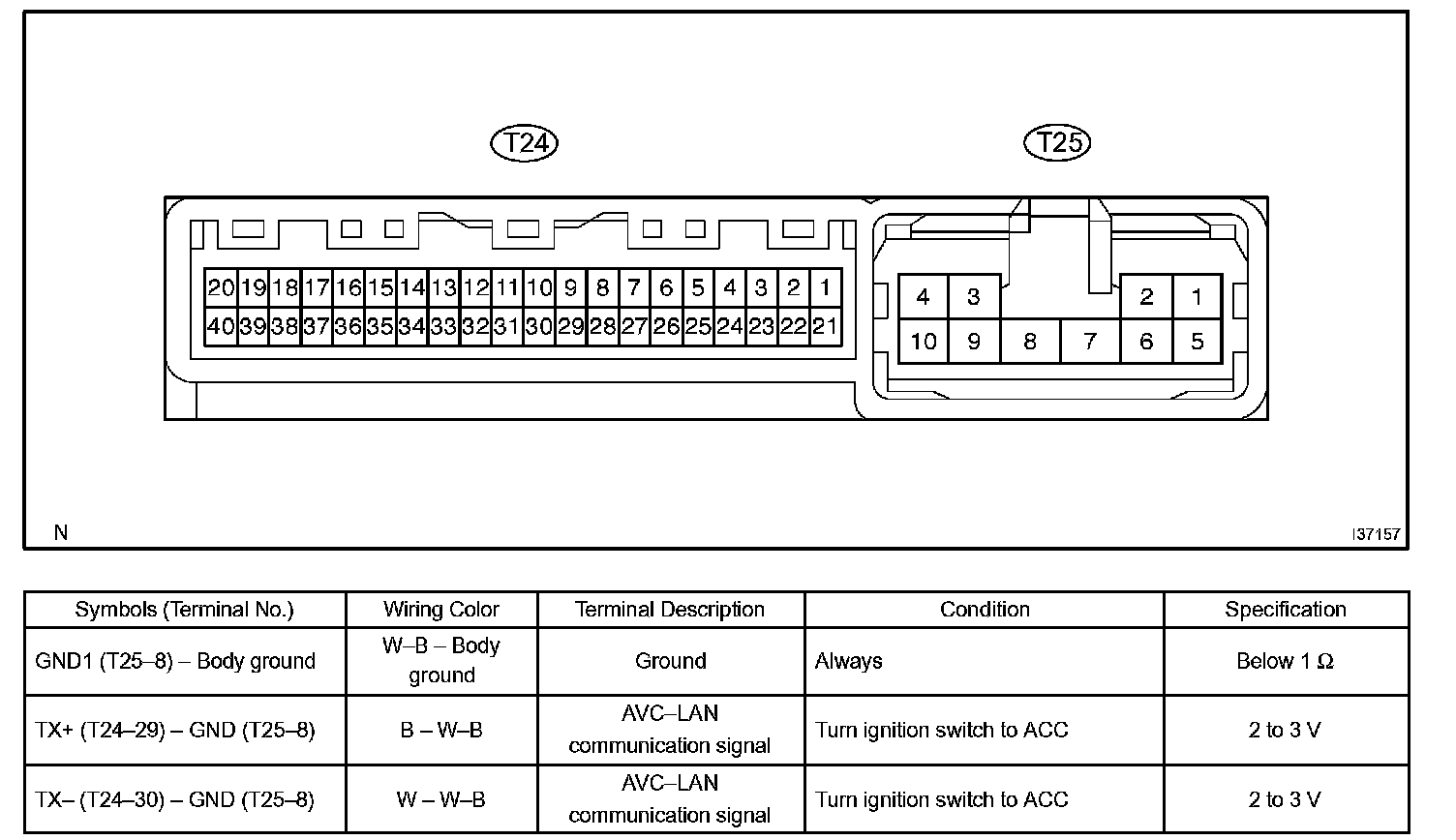

Terminals Of Control Module / Pinouts - Television Camera ECU:

7. TELEVISION CAMERA ECU

Terminals Of Control Module / Pinouts - Gateway ECU:

8. GATEWAY ECU
