Fuse Block

Engine Room No.1 R/B, J/B - Engine Compartment Left:

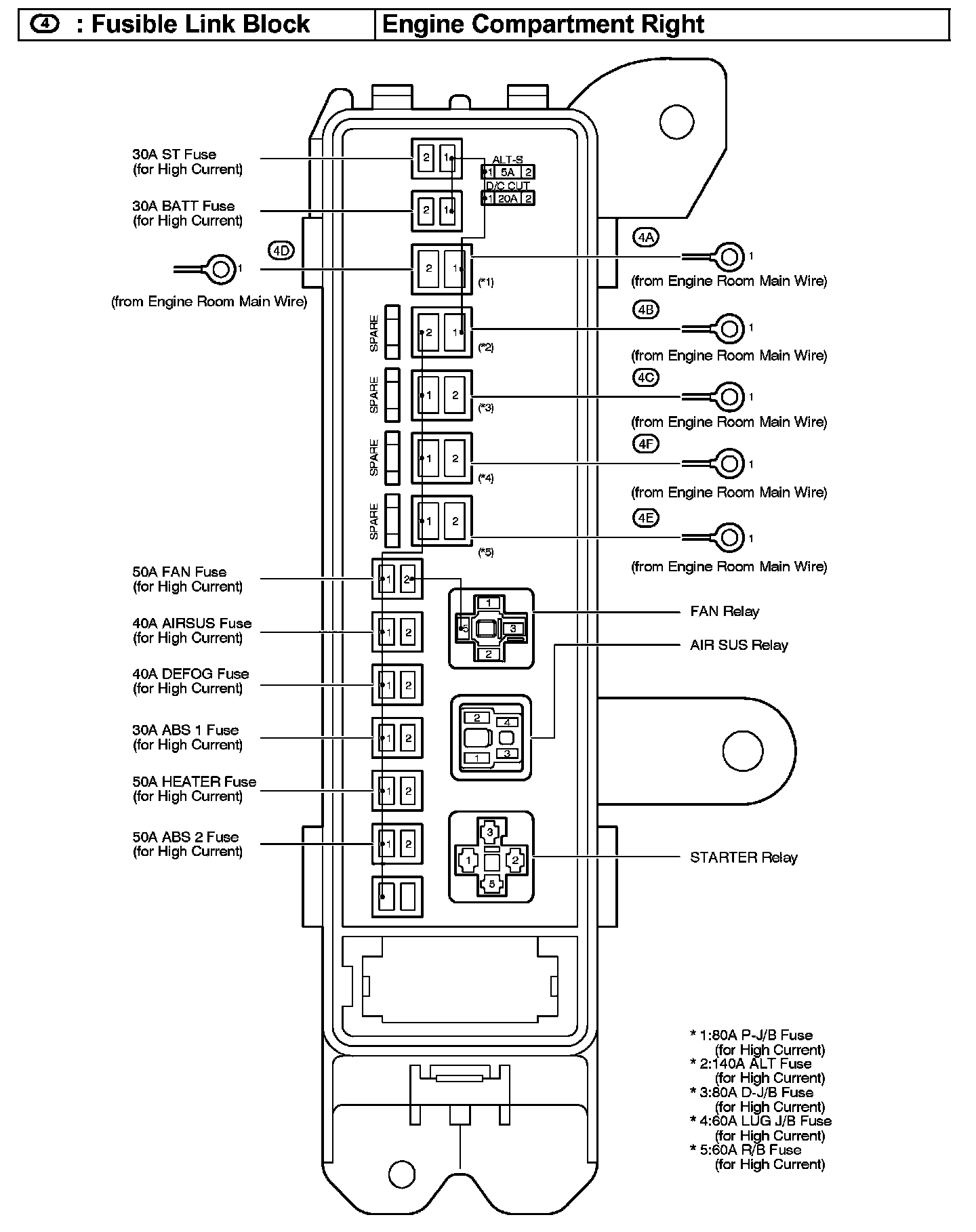

Fusible Link Block - Engine Compartment Right:

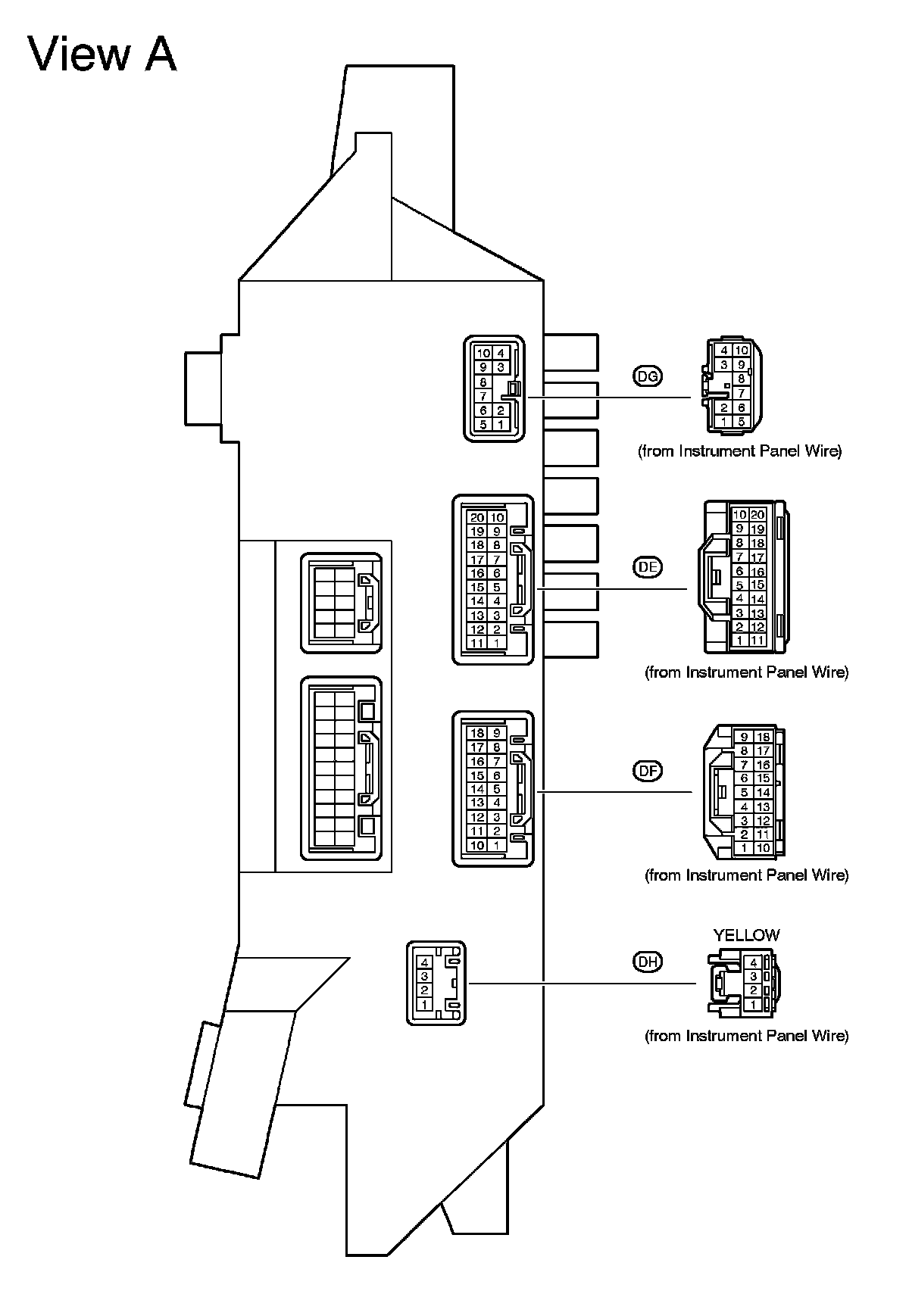

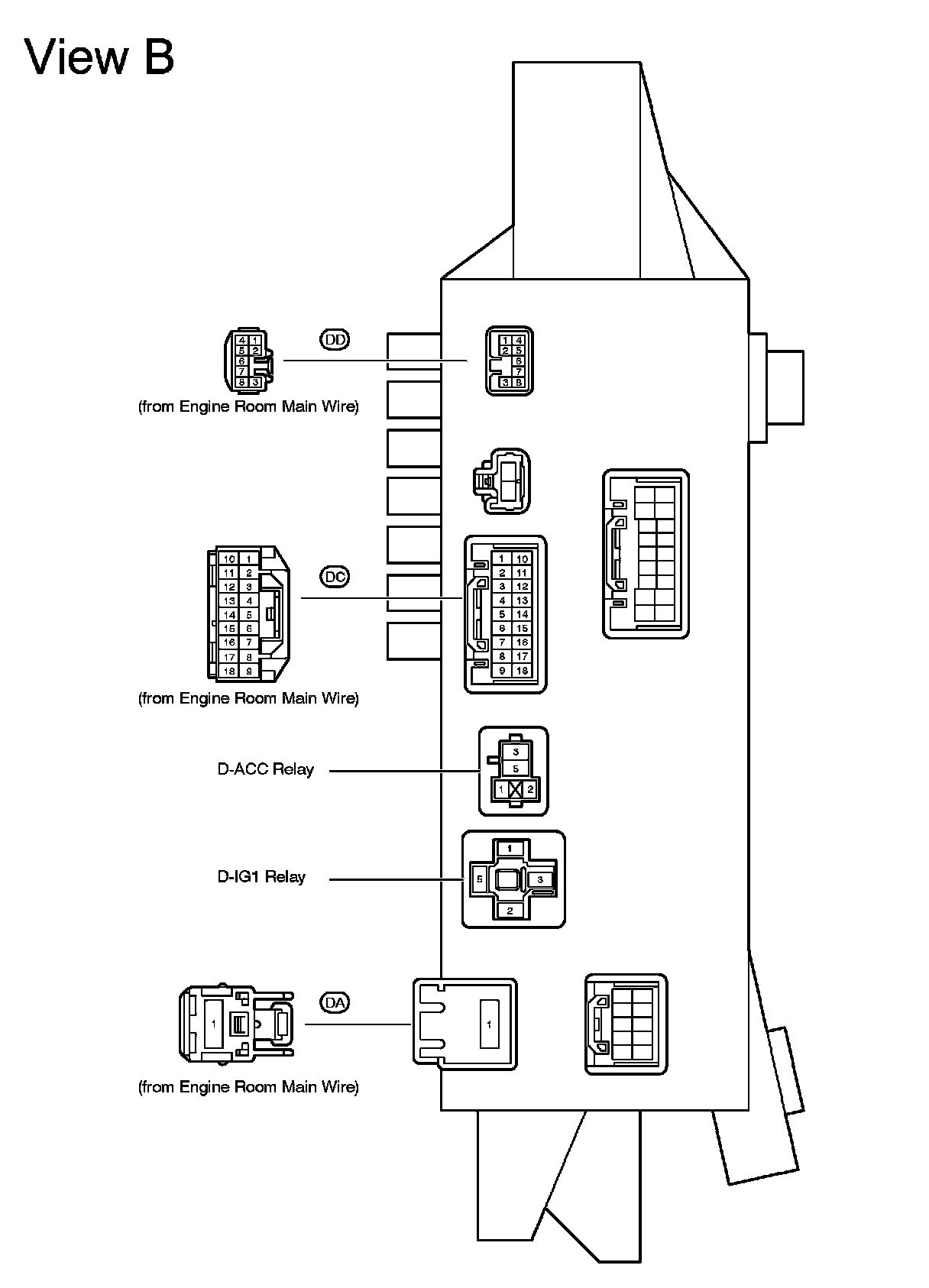

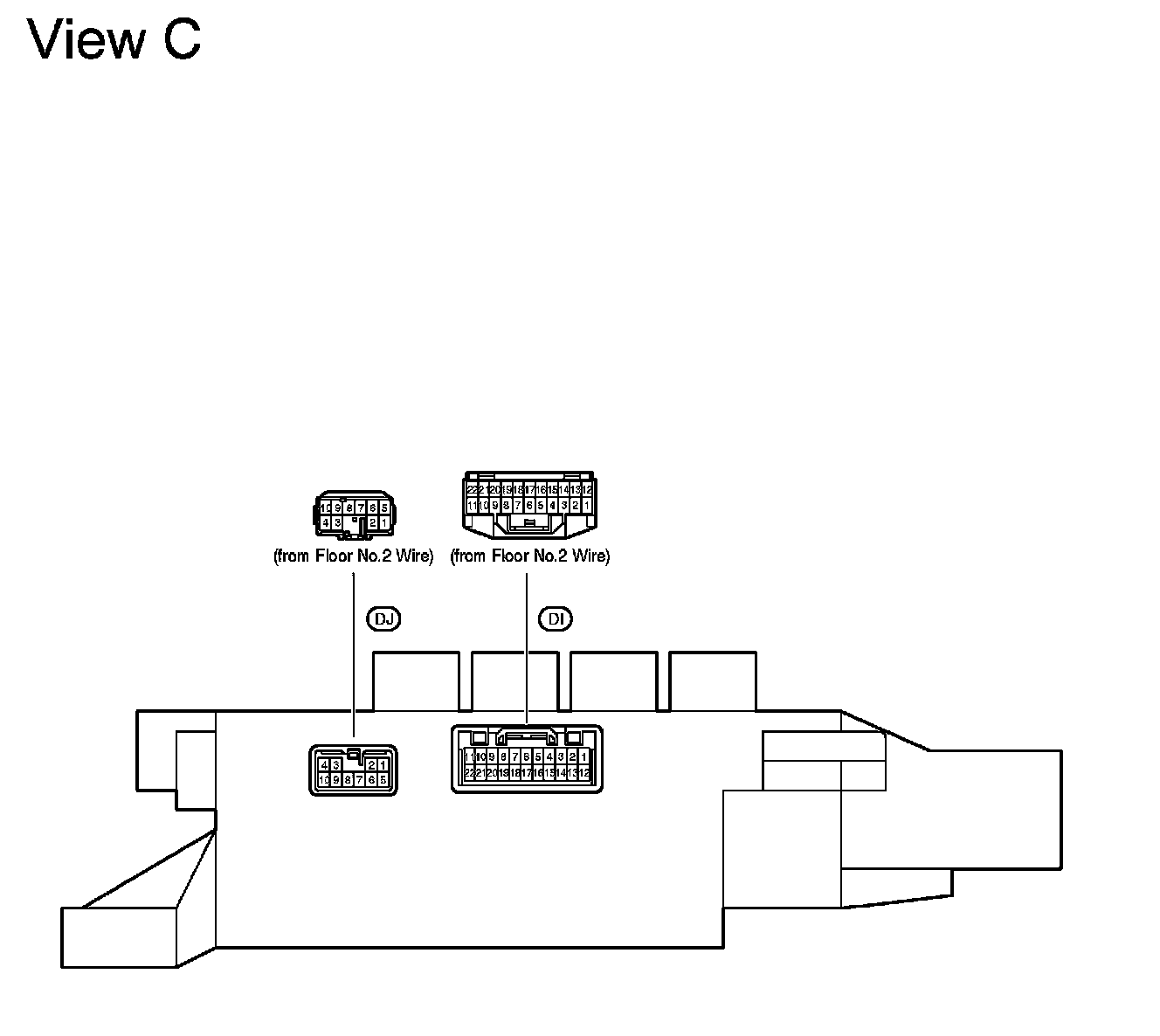

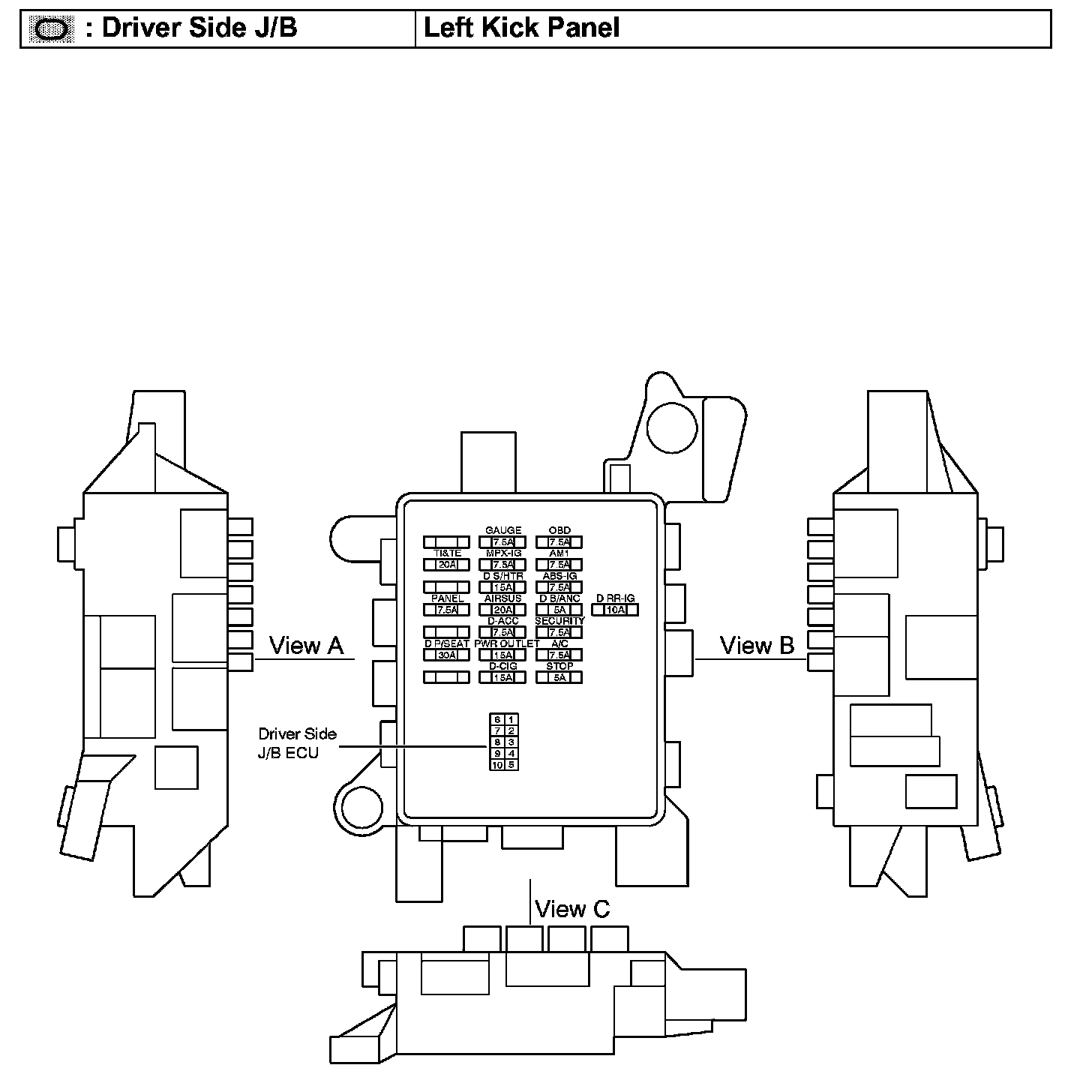

Driver Side J/B - Left Kick Panel:

Driver Side J/B - Left Kick Panel:

Driver Side J/B - Left Kick Panel:

Driver Side J/B - Left Kick Panel:

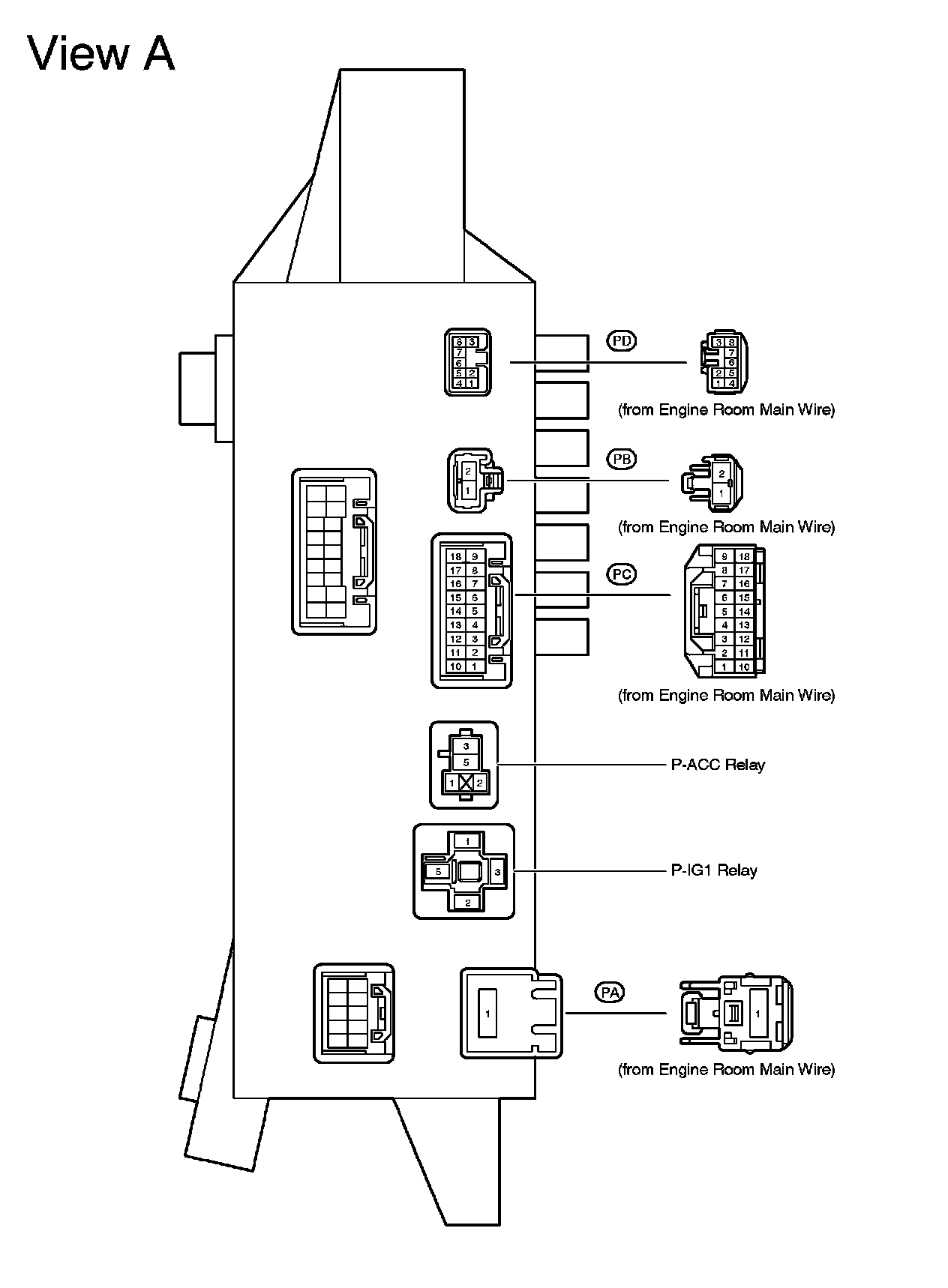

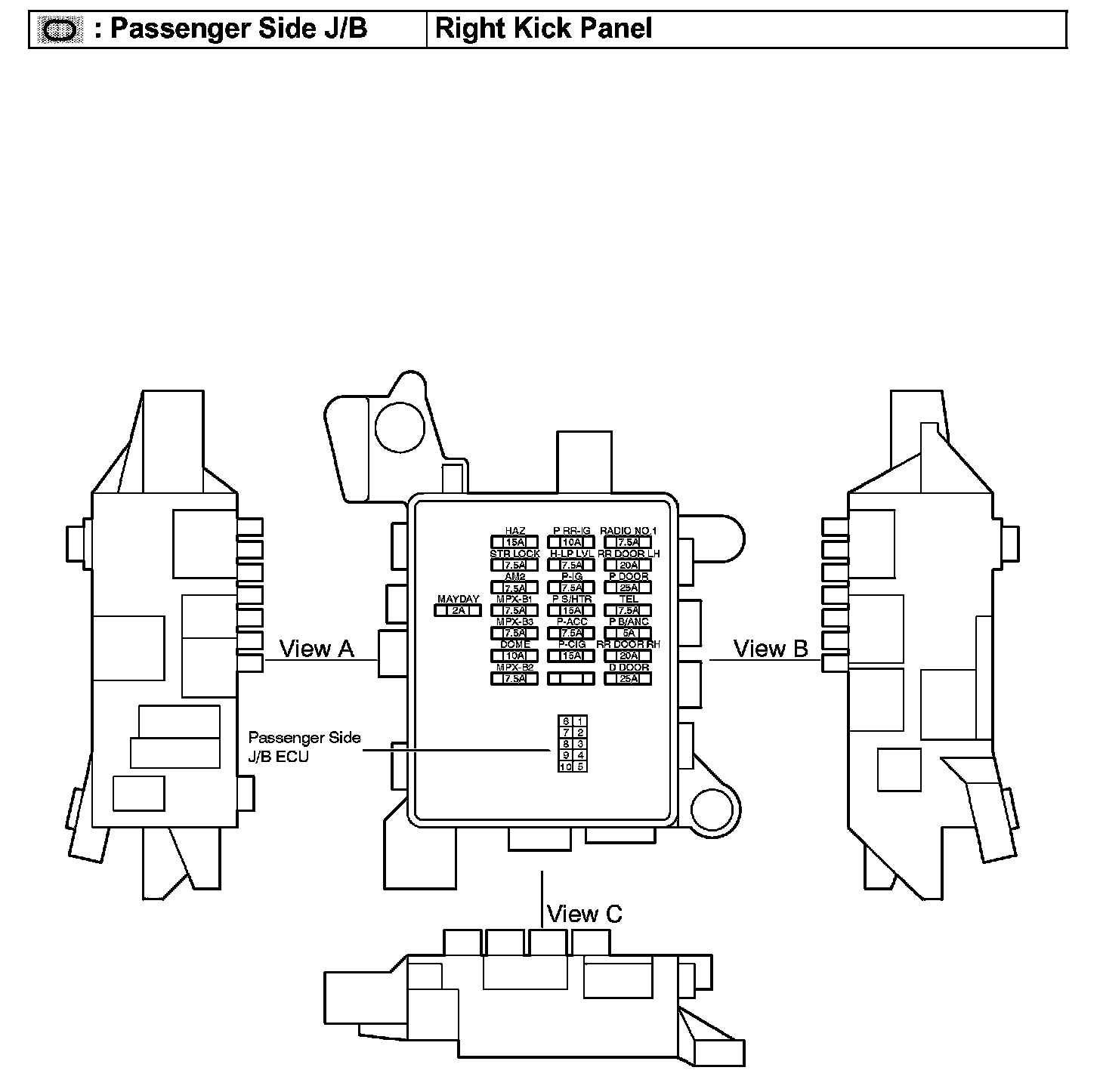

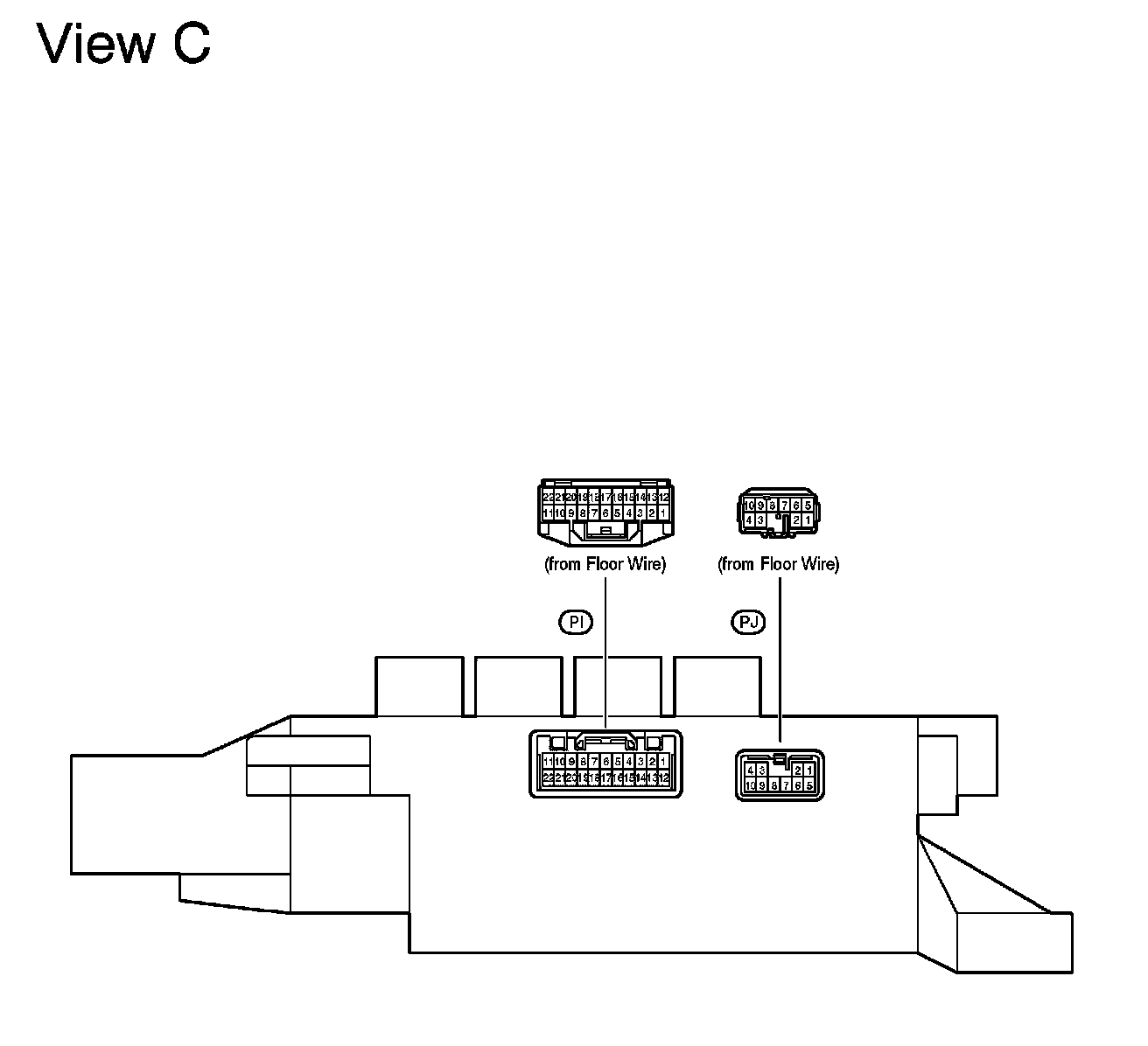

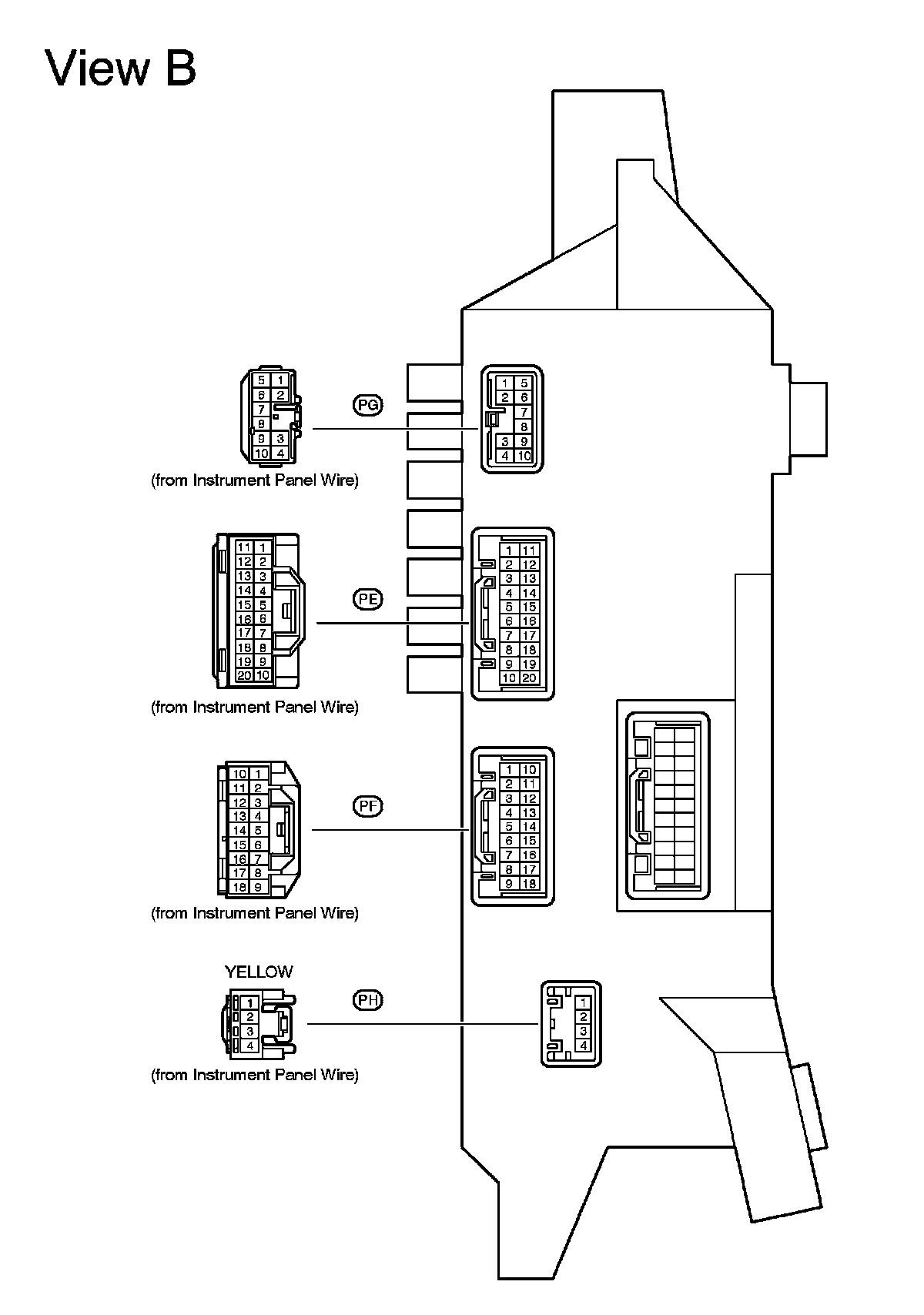

Passenger Side J/B - Right Kick Panel:

Passenger Side J/B - Right Kick Panel:

Passenger Side J/B - Right Kick Panel:

Passenger Side J/B - Right Kick Panel:

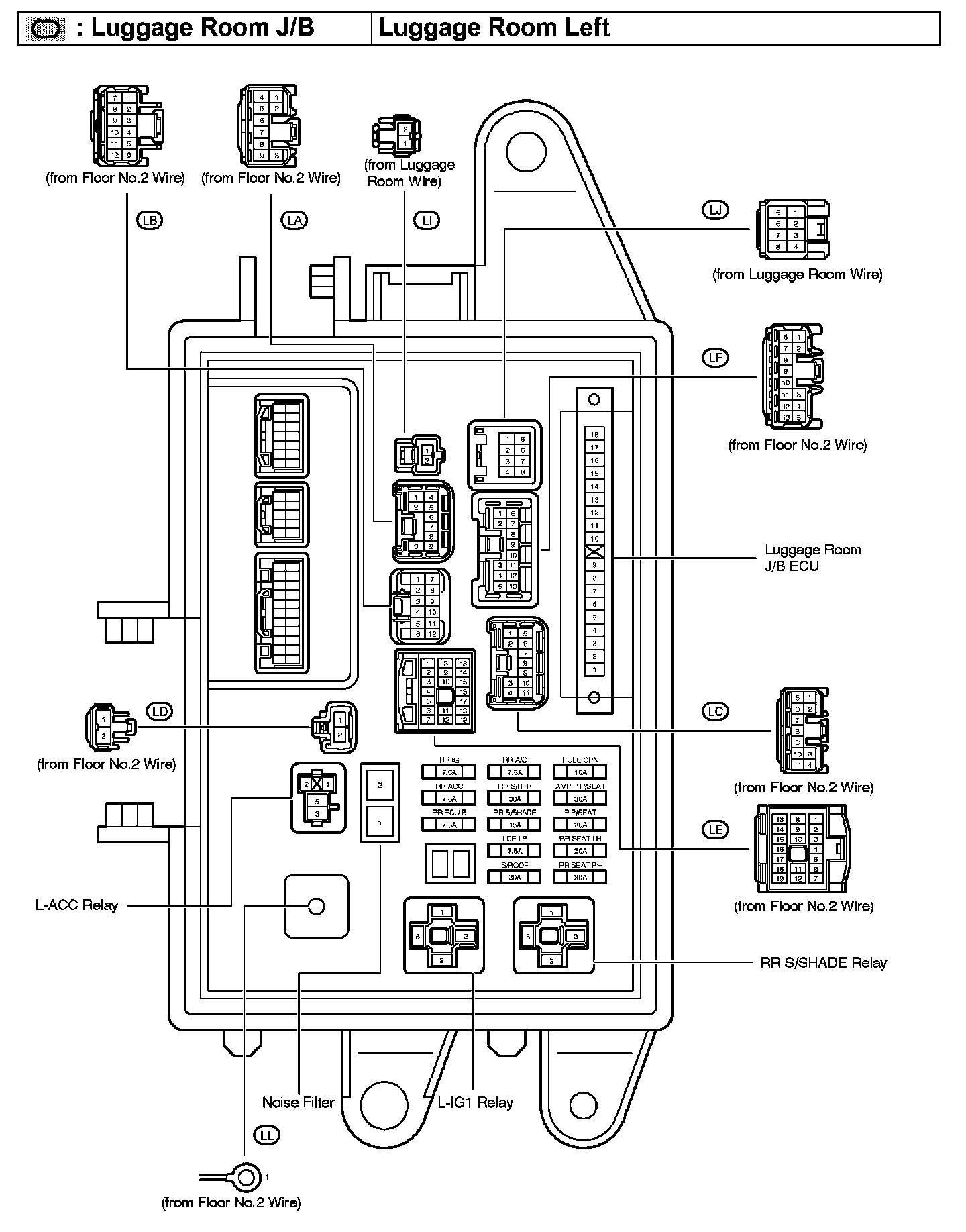

Laggage Room J/B - Luggage Room Left:
