Seats

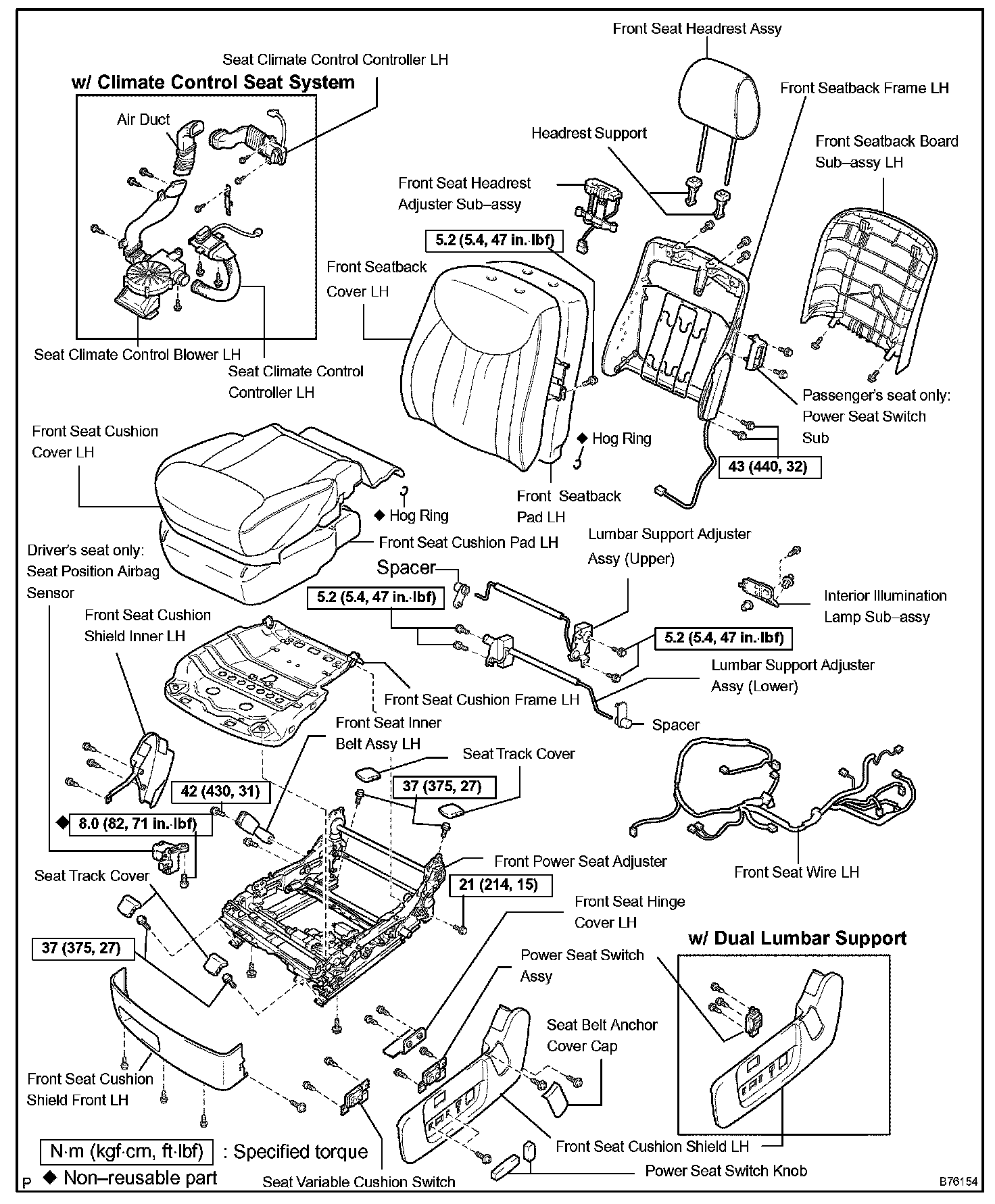

Front Seat Assy Part 1:

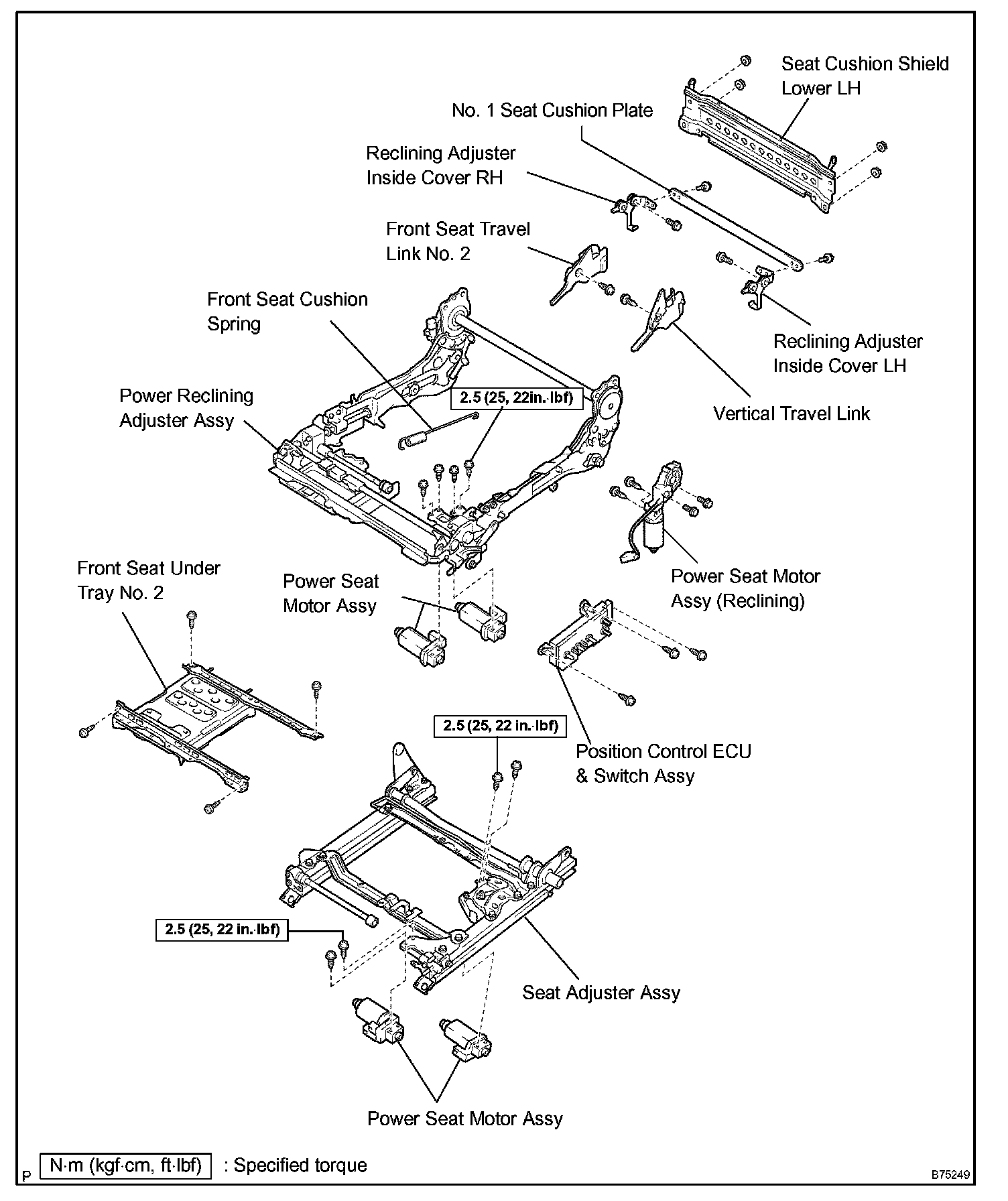

Front Seat Assy Part 2:

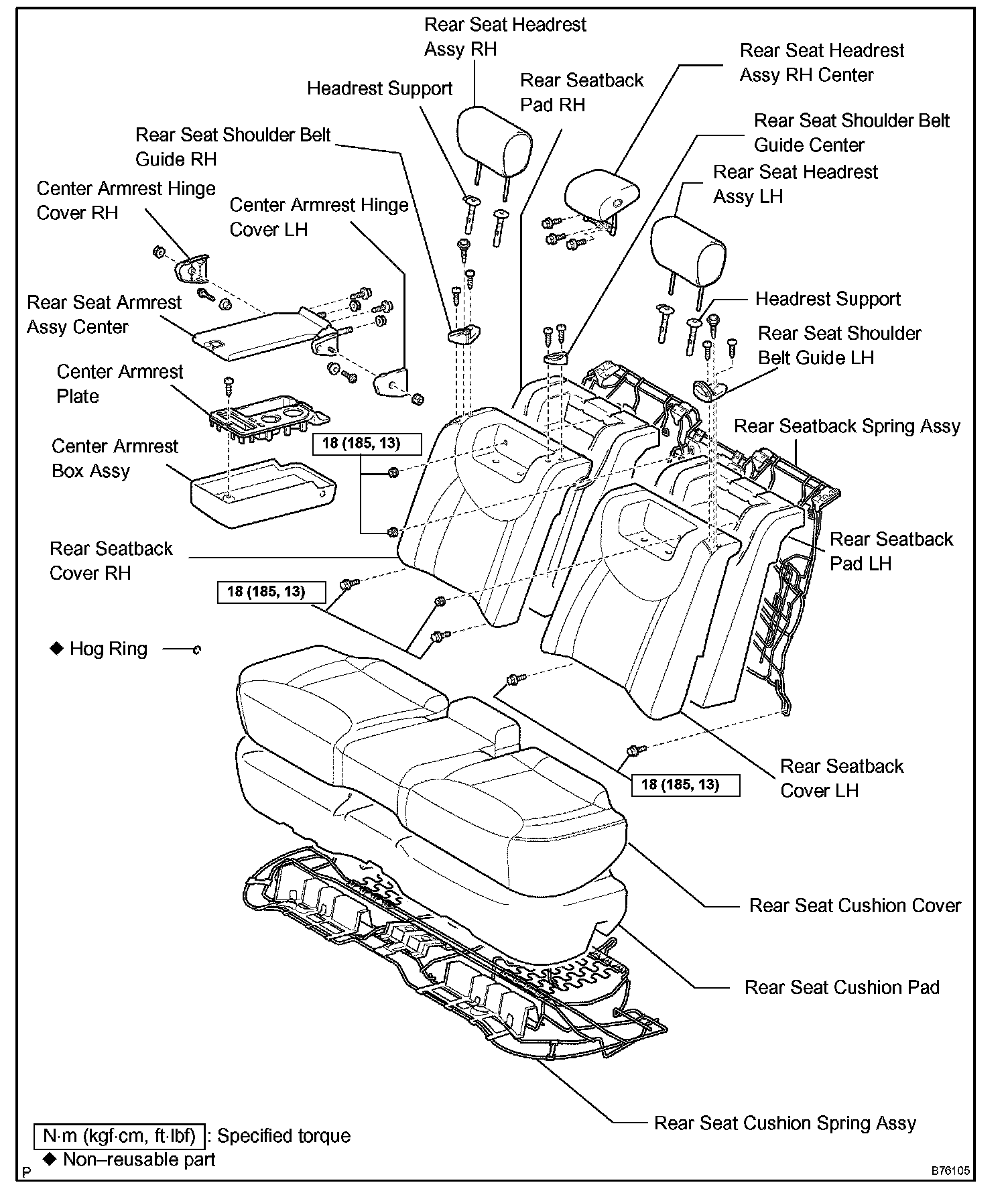

Rear Seat Assy (Fixed Type):

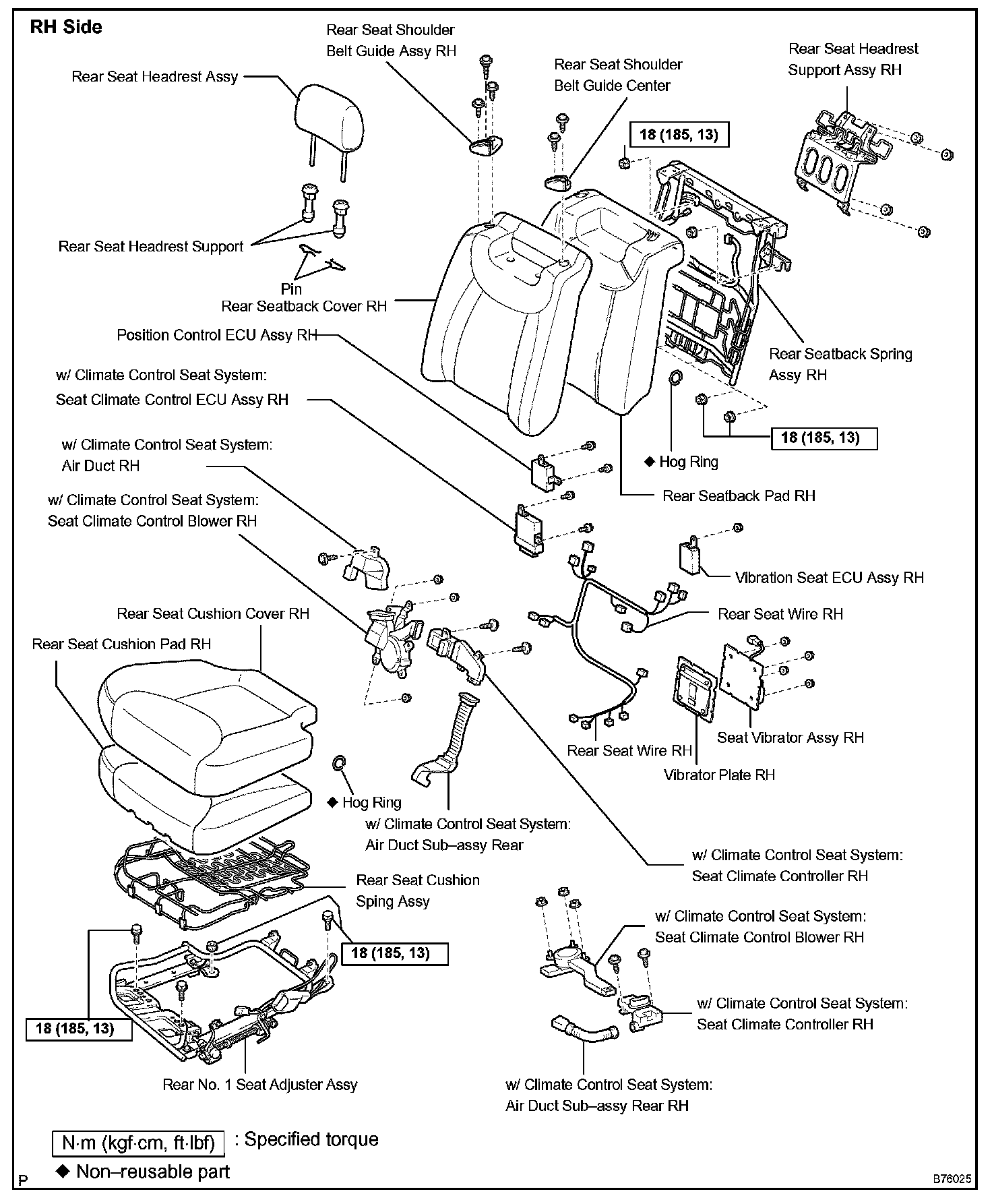

Rear Seat Assy(Power Adjuster Type) Part 1:

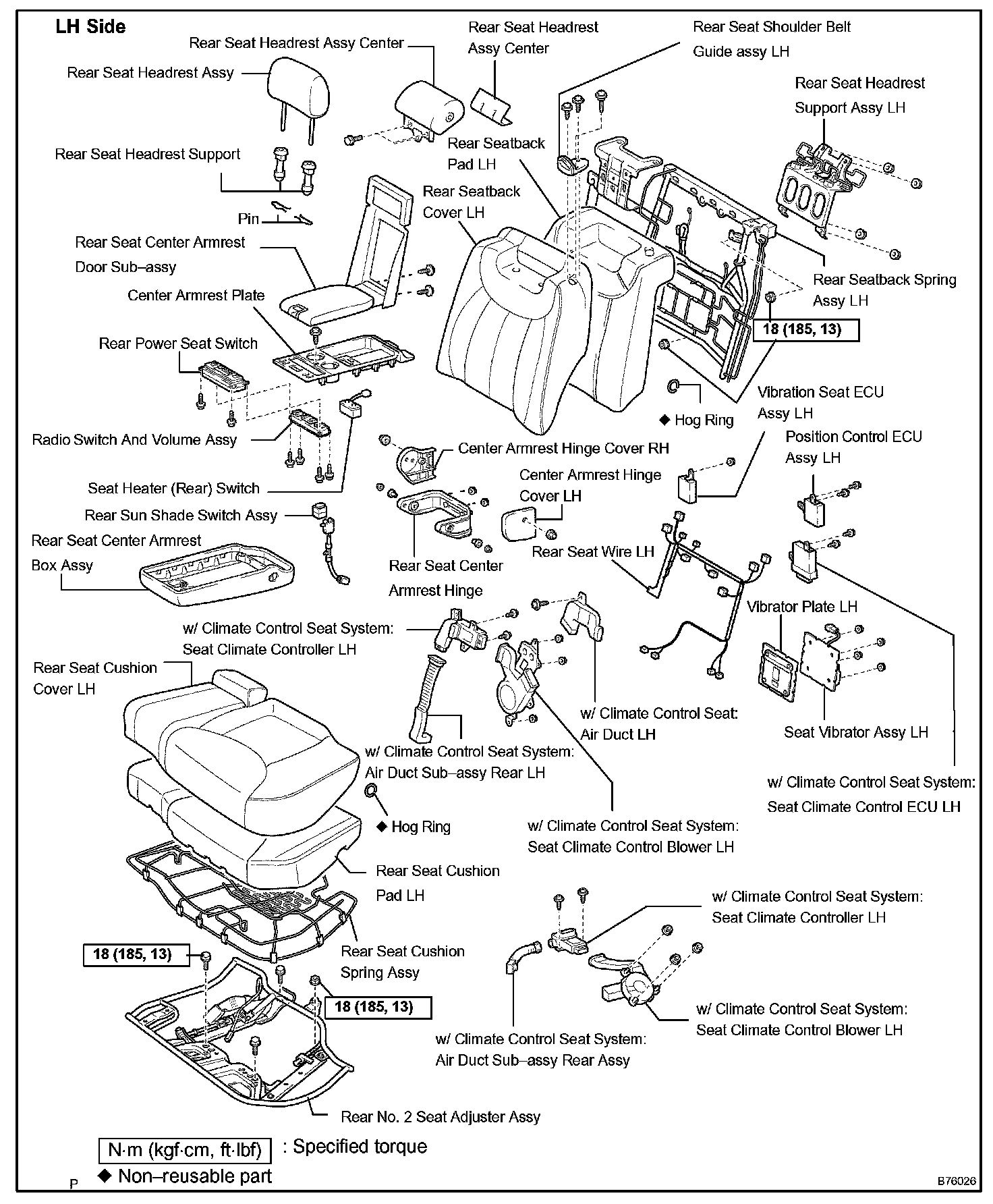

Rear Seat Assy(Power Adjuster Type) Part 2:

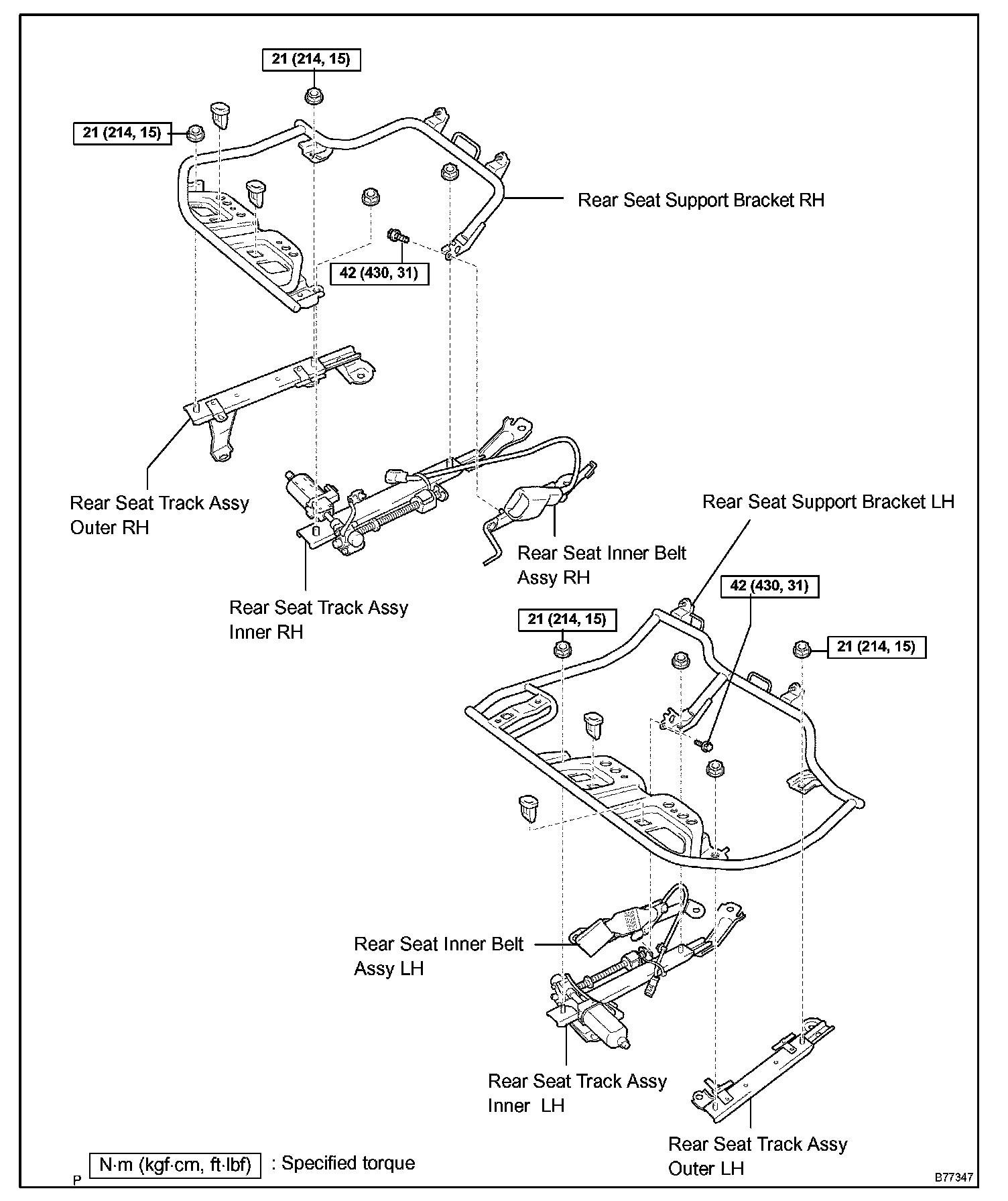

Rear Seat Assy(Power Adjuster Type) Part 3:
