Main Relay (Computer/Fuel System): Locations

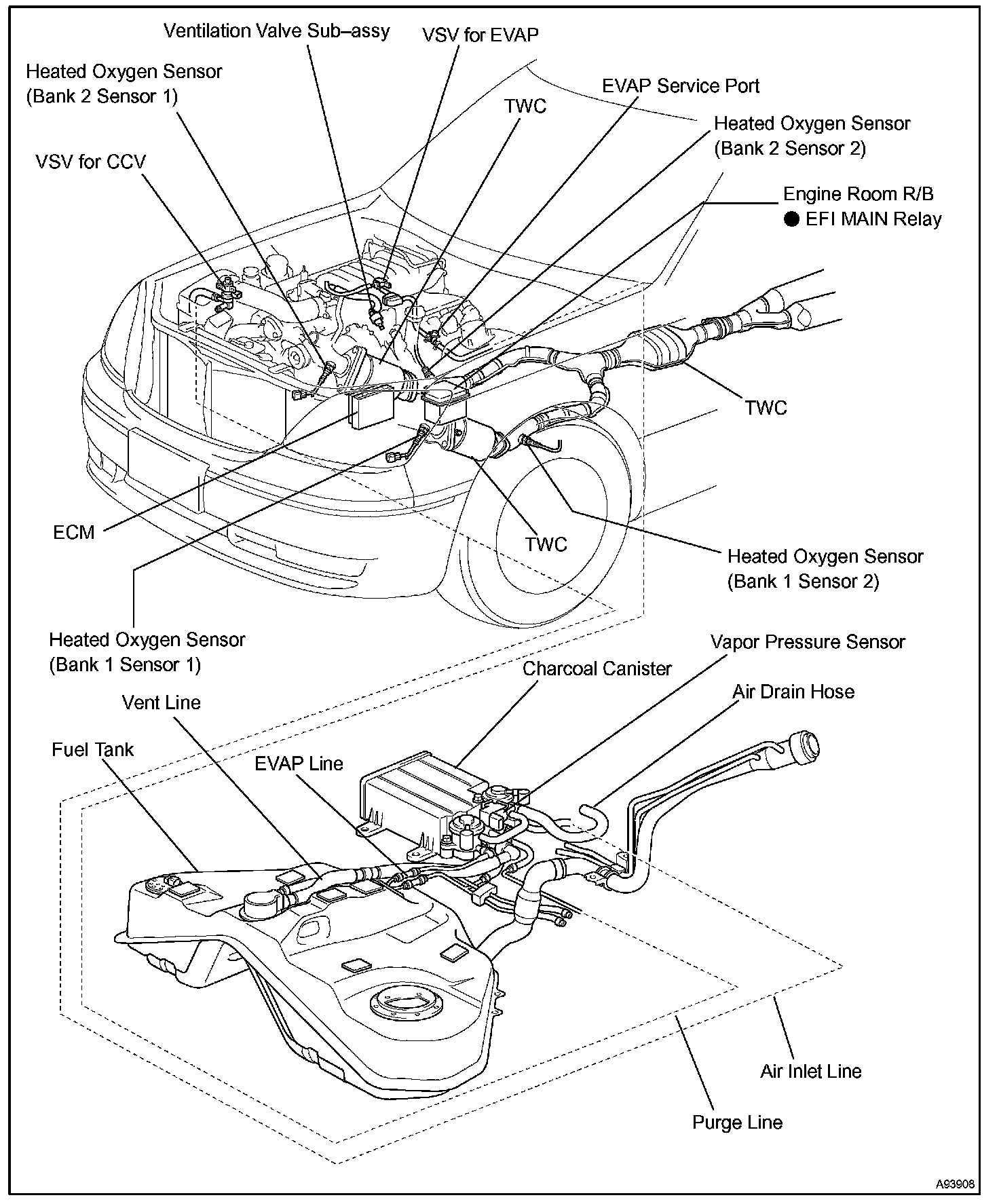

Emission Control System:

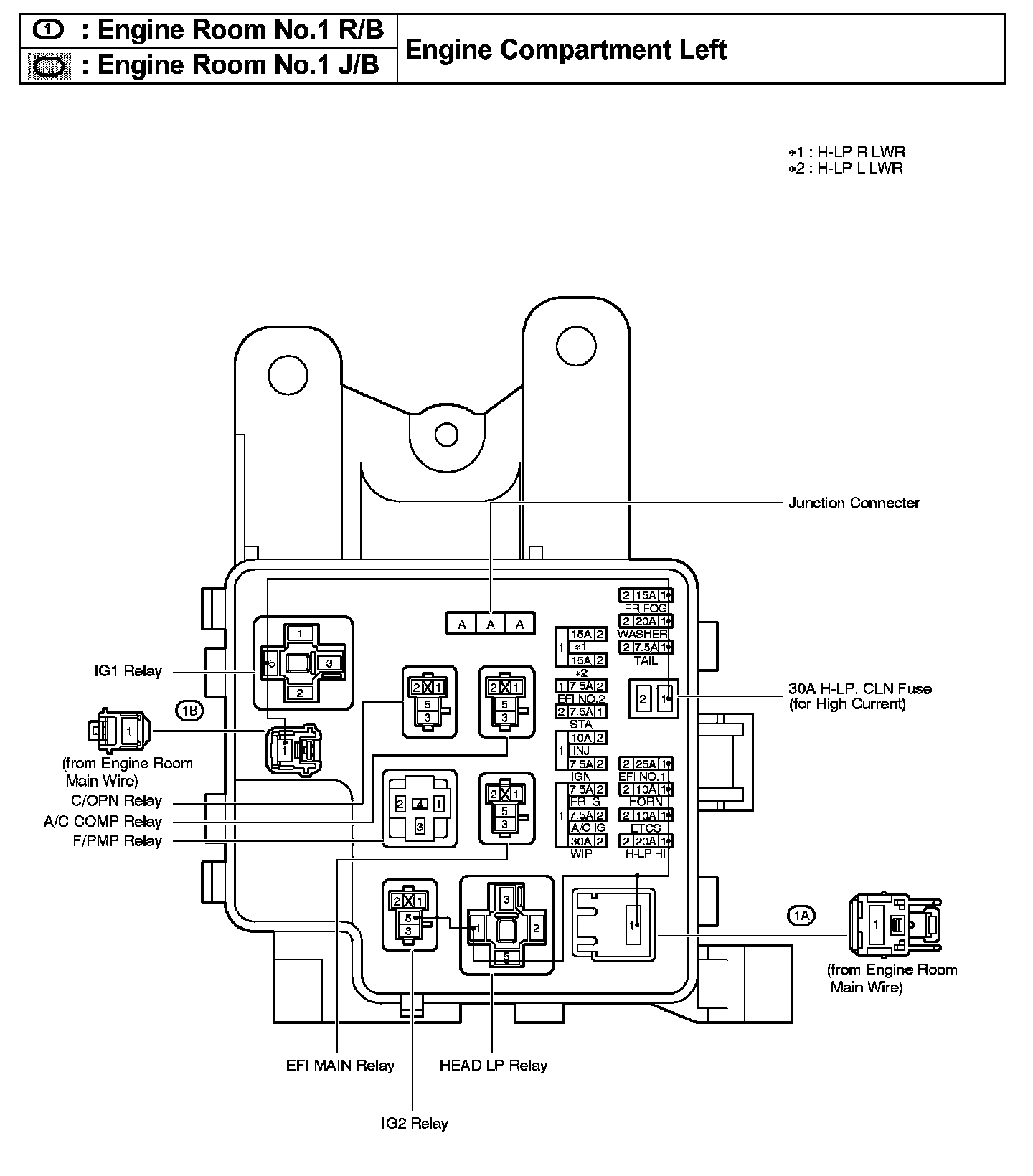

Engine Room No.1 R/B, J/B - Engine Compartment Left:
