Torque Specifications

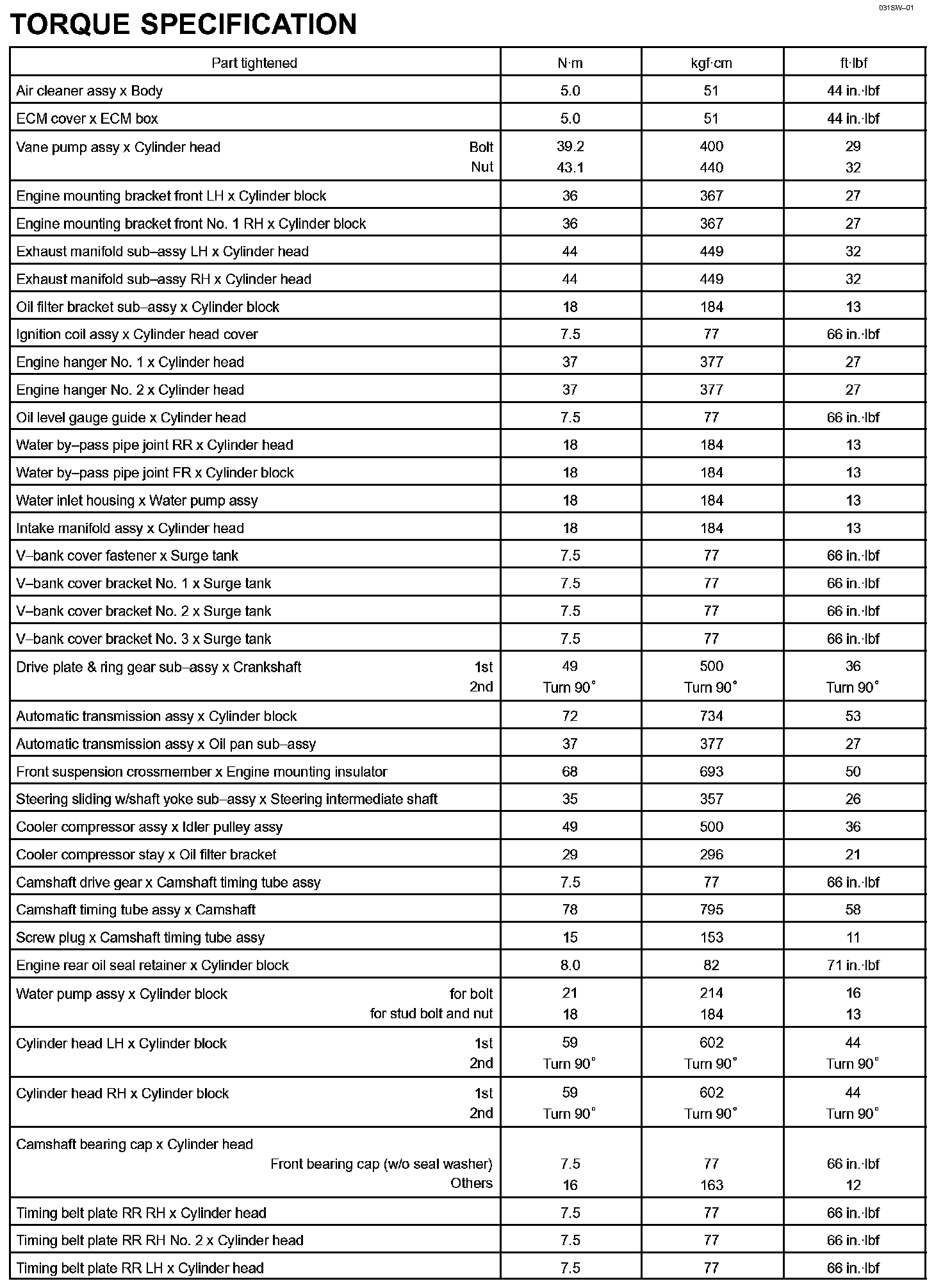

Engine Mechanical - Torque Specification Part 1:

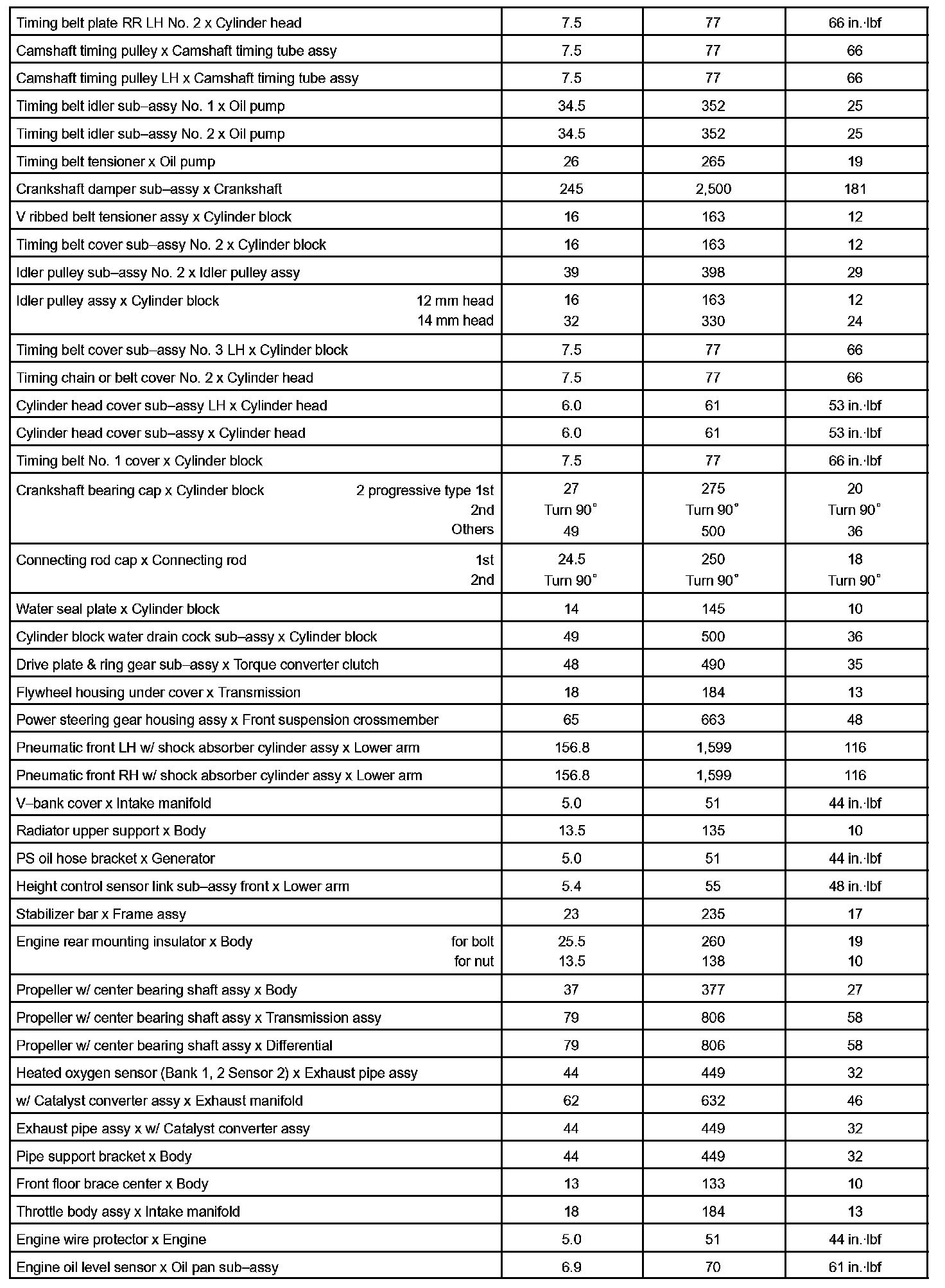

Engine Mechanical - Torque Specification Part 2:

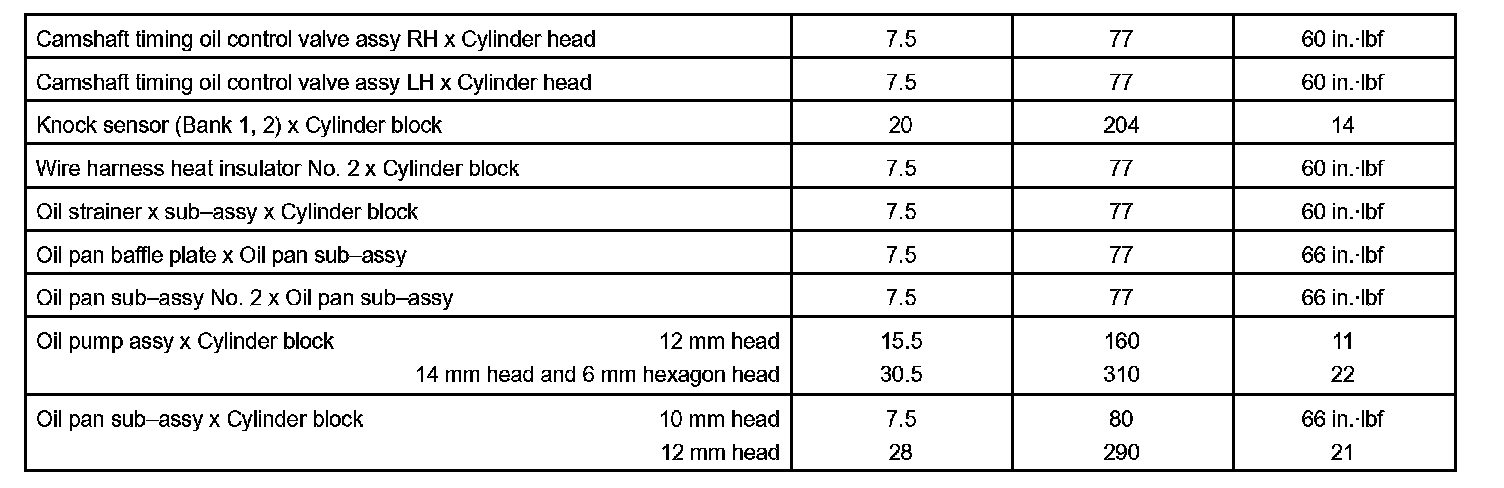

Engine Mechanical - Torque Specification Part 3:





Torque Specifications
