Height Control Sensor Sub-ASSY Front LH: Replacement

REMOVE FRONT WHEEL
REMOVE HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
1. Disconnect the connector.
2. Remove the nut and disconnect the height control sensor link.

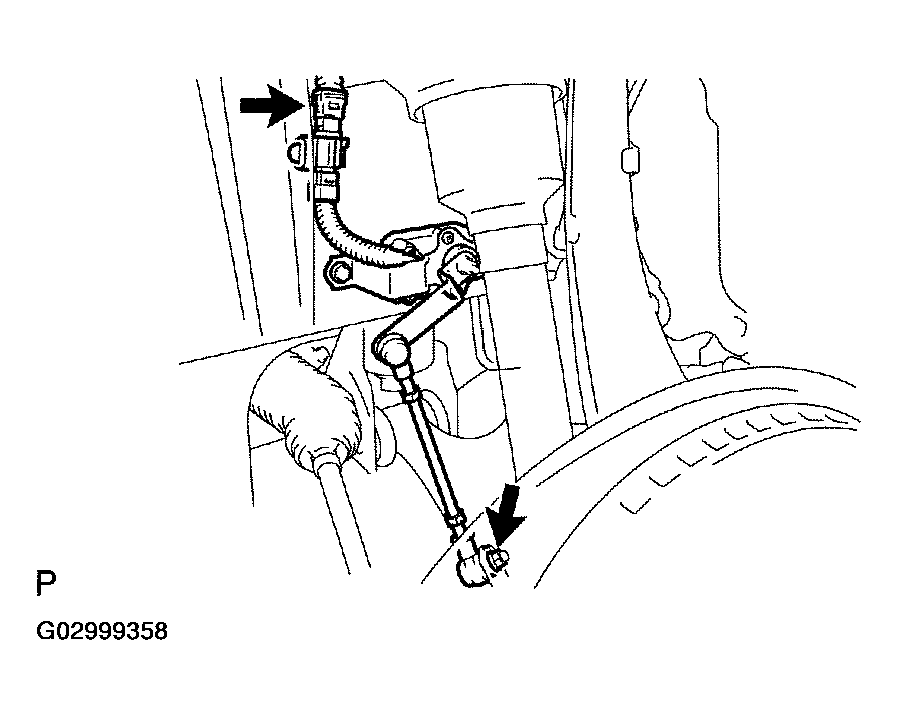

  Fig 1: Disconnecting Height Control Sensor Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and the height control sensor sub-assy front LH.

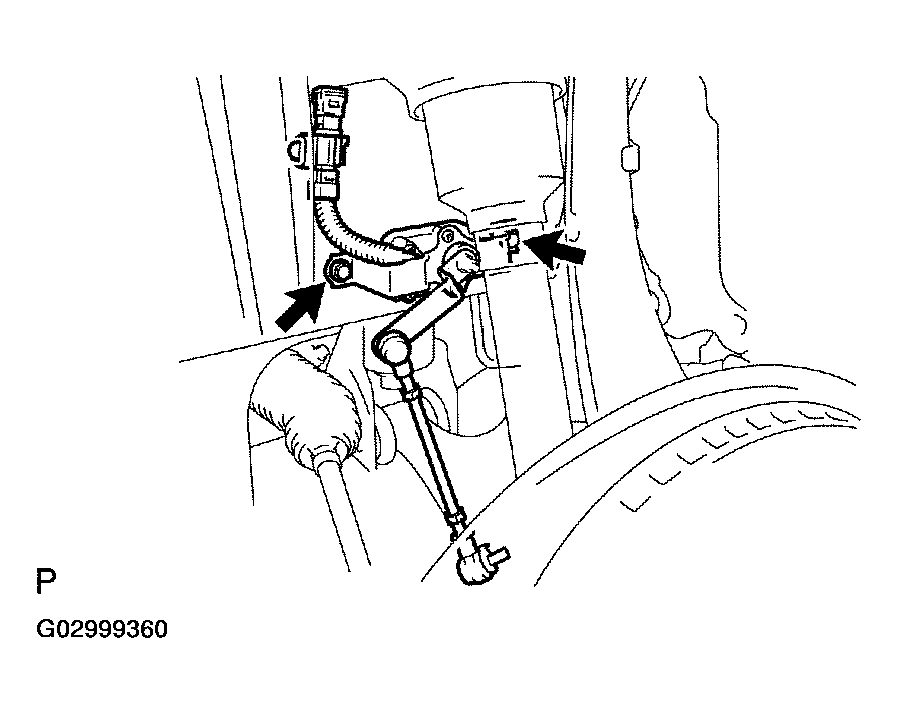

Fig 2: Removing Height Control Sensor Sub-Assy Front LH Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
1. Install the height control sensor sub-assy LH with the 2 bolts.

  Fig 3: Installing Height Control Sensor Sub-Assy LH Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the height control sensor link with the nut.
  1. Torque: 5.4 N.m (55 kdgf.cm, 48 in.lbf)
3. Connect the connector.

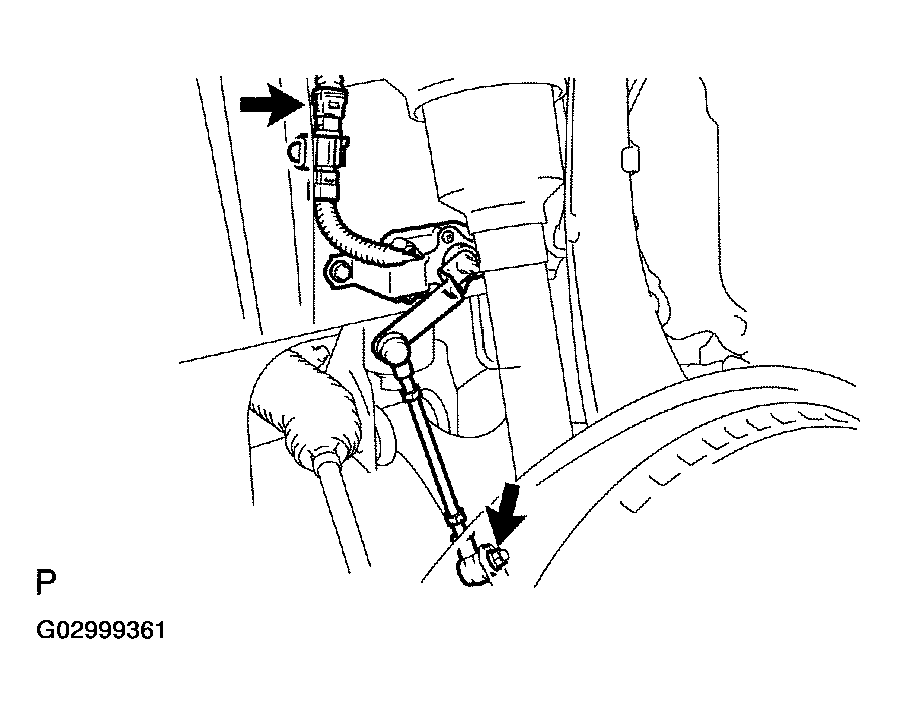

Fig 4: Installing Height Control Sensor Link
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
HEADLIGHT AIM ONLY (See ADJUSTMENT )
