Inspection Procedure

CHECK THE MAP DISC
1. Check for dirt on the map disc surface.

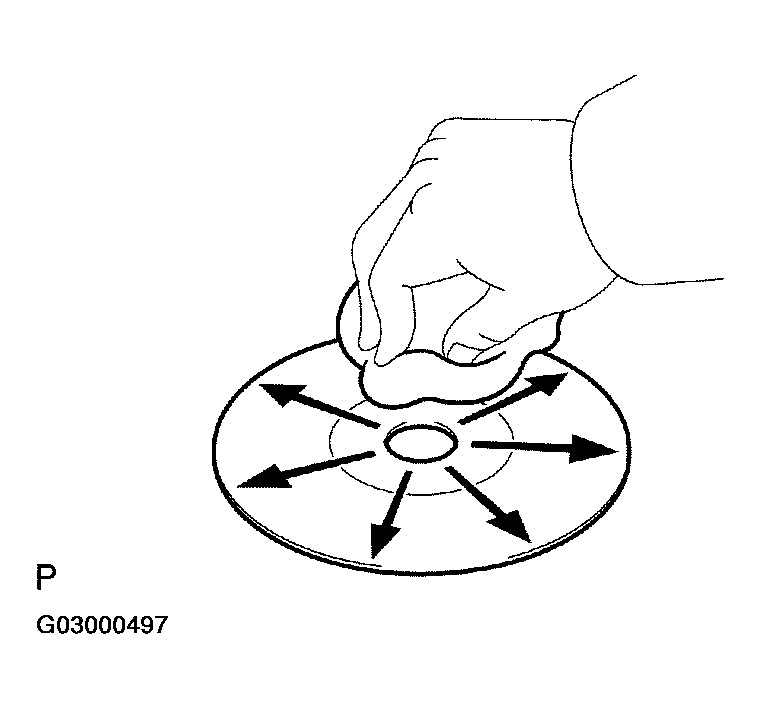

  Fig 1: Checking Dirt On Map Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: No dirt is on the map disc surface.

HINT:

If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

NOTE: Do not use conventional record cleaner or anti-static preservative.

NG: CLEAN THE MAP DISC

OK: GO TO NEXT STEP
CHECK THE MAP DISC

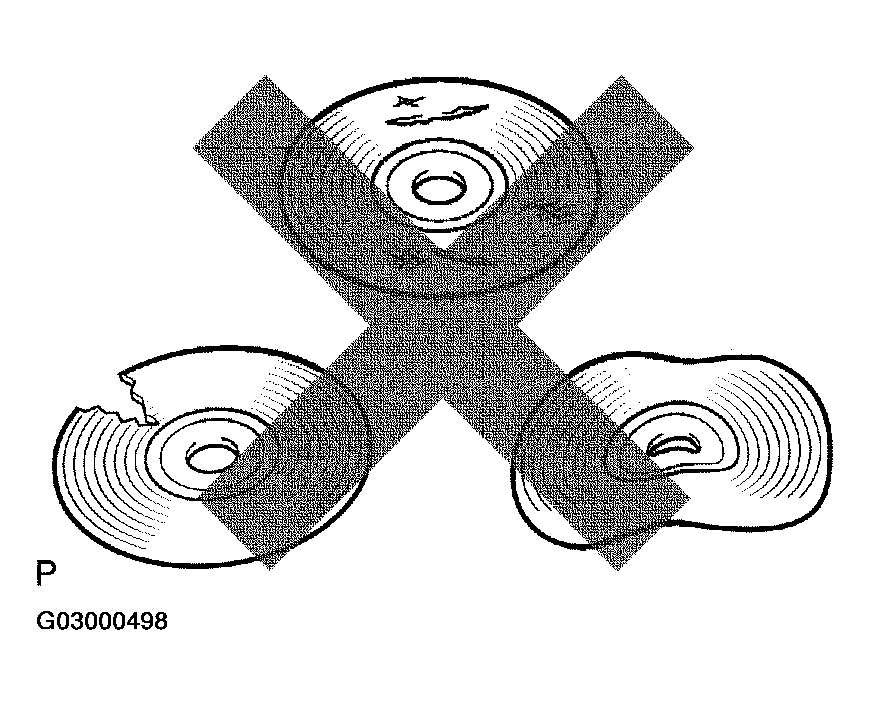

Fig 2: Checking Map Disc
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks appear on the map disc.
NG: REPLACE THE MAP DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART
