Inspection Procedure

1. Check for dirt on the display surface.

   OK: The display surface is clean.

OK: GO TO NEXT STEP

NG: REMOVE ANY DIRT FOUND AND RECHECK TOUCH PANEL

1. Enter the "Display Check" mode (Touch Switch Check) (see DISPLAY CHECK MODE (TOUCH SWITCH CHECK)  ).

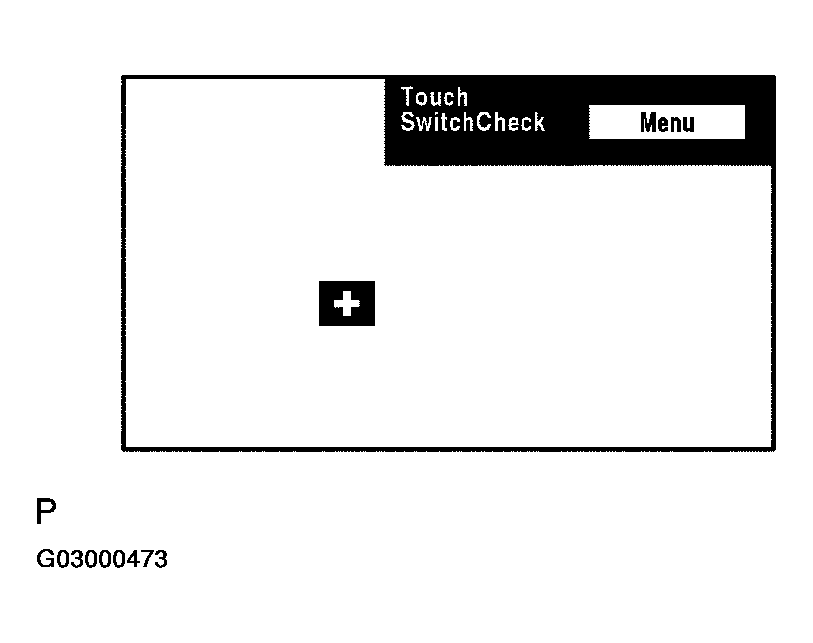

   Fig 1: Displaying Touch Switch Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Touch the display in the area where the abnormal switch occurs.

OK: A "+" mark appears at the touched position.

OK: REPLACE MULTI-DISPLAY (SEE  REPLACEMENT  )

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
