Ignition System: Preparation: Brake: Preparation

SST

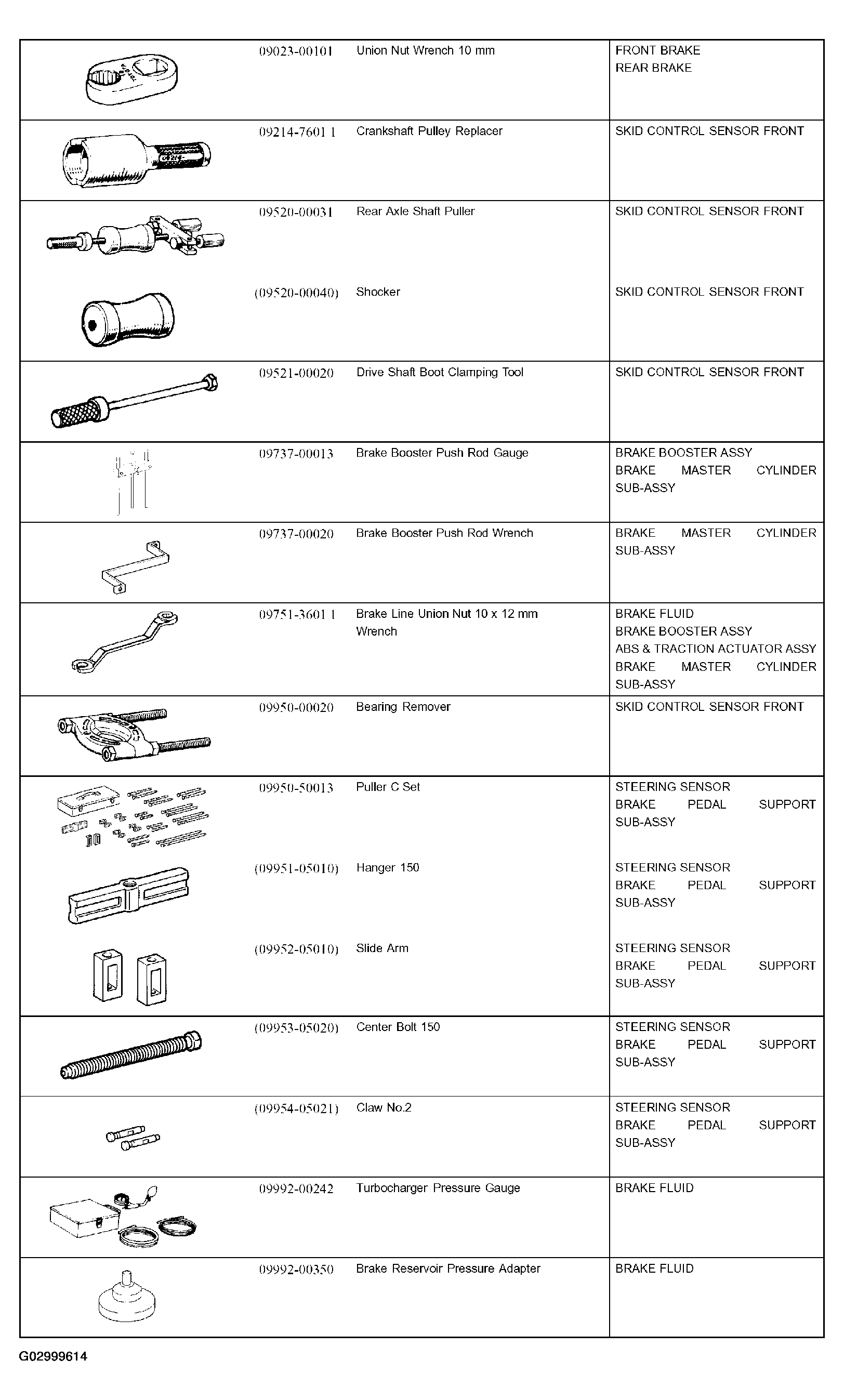

Fig 1: Brake Tools Reference
G02999614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

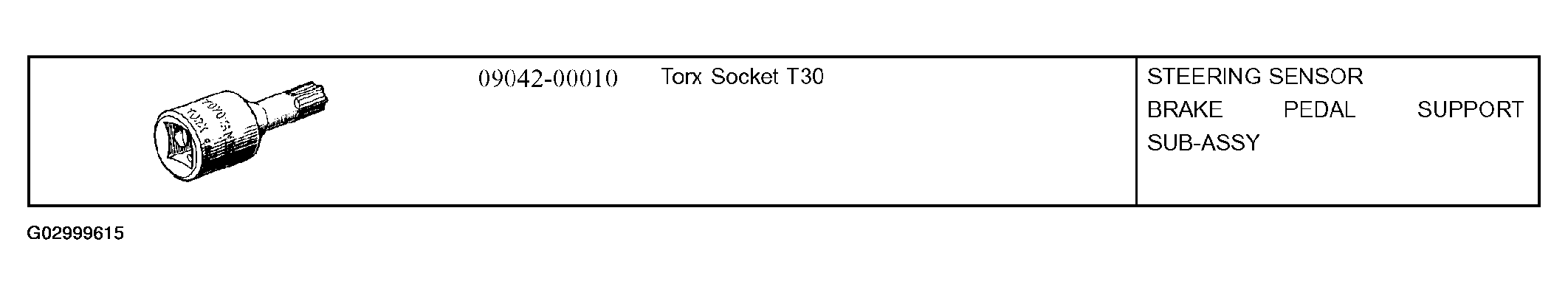

Fig 2: Recommended Tools Reference
G02999615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Micrometer
Dial indicator w/ magnetic base
Brake drum gauge
Slide calipers
Torque wrench

Lubricant

LUBRICANT CLASSIFICATION

Item Capacity Classification
Brake fluid - SAE J1703 or FMVSS No. 116 DOT3
