Starting & Charging: Preparation

SST

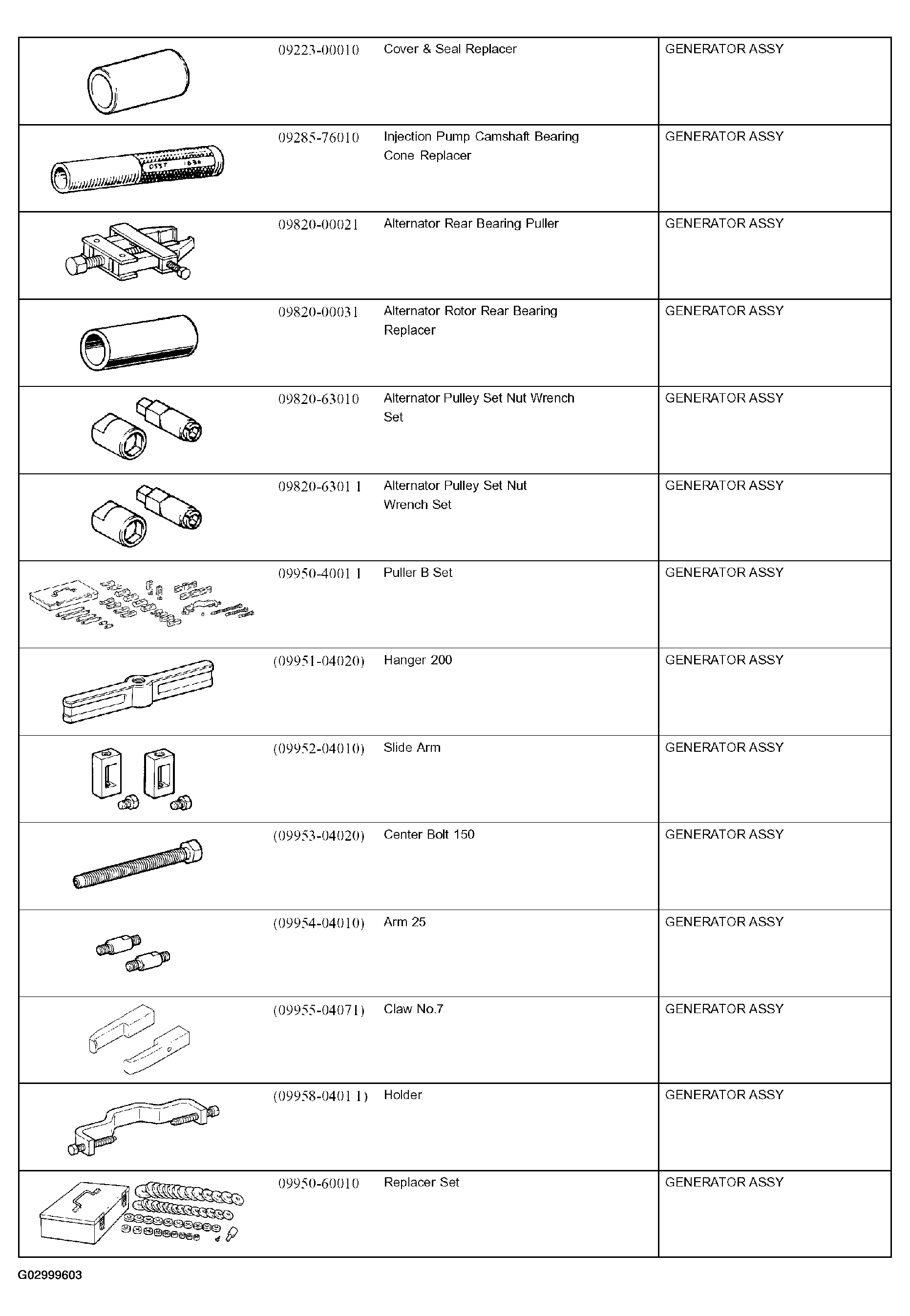

Fig 1: Starting & Charging Tools Reference
G02999603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

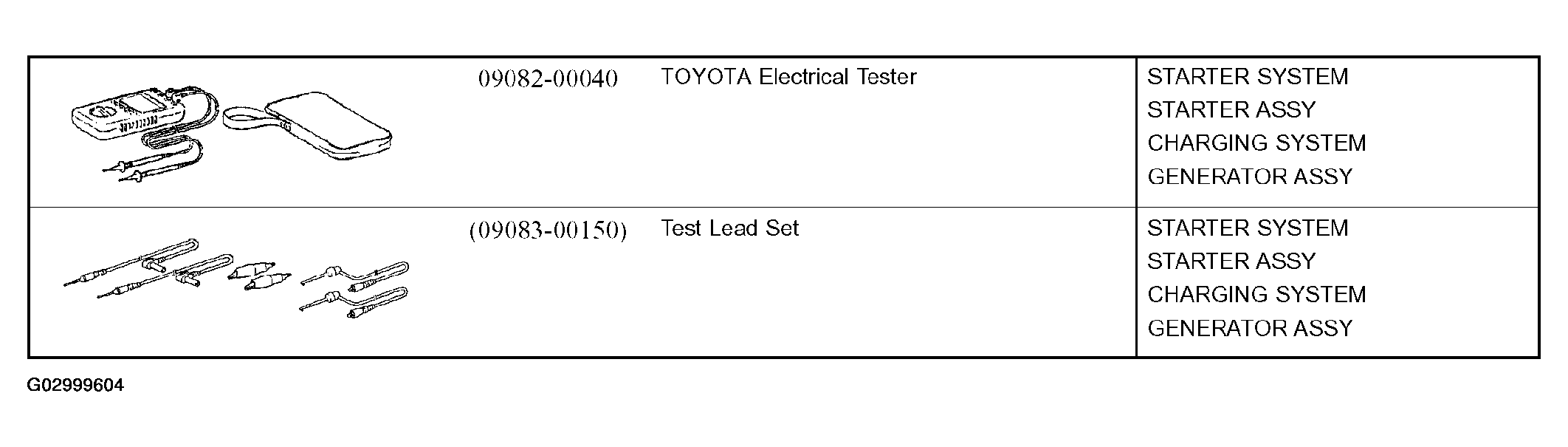

Fig 2: Recommended Tools Reference
G02999604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Ammeter
Battery
Dial indicator
Ohmmeter
Press
Pull scale
Radiator cap tester
Service wire harness
Sandpaper (#400)
Torque wrench
V-block
Vernier calipers
